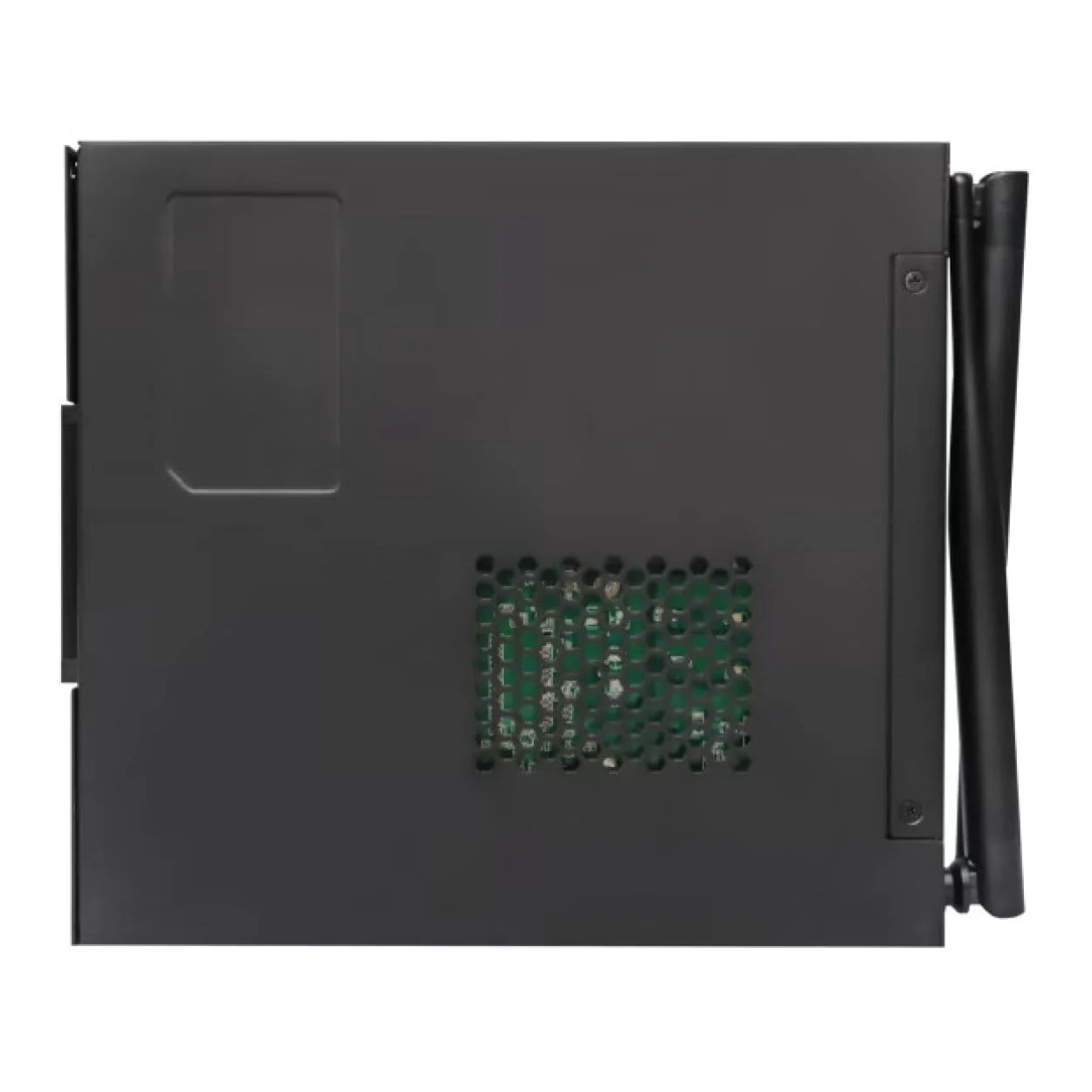

Hisense S02BDS5A811E OPS for BE/CE/DE Device

Hisense S02BDS5A811E OPS for BE/CE/DE Device

Hisense Interactive displays comes with an OPS slot (Open Pluggable Specification) giving you the ability to integrate a computer in to the display. The integrated OPS computer utilises powerful Intel processors to bring you all the power of a desktop computer within the interactive display maximising its versatility and compatibility.

MSATA System Disk

Support quick start of MSATA system disk and one click restore to enhance user experience.

10th Generation CPU

10th Generation Intel desktop CoreTM CPU.

Update System to Win10 Iot Enterprise LTSC or Win 11 Pro

Windows Enterprise is a streamlined operating system that is designed for use on Internet of Things (IoT) devices.

HD Graphics

The standard Intel HD graphics 630 integrated graphics card supports h.265 and 4K.

Support Bluetooth 4.2

Version 4.2 makes Bluetooth smarter, faster and the ideal wireless technology supporting up to 1Mbps.

Support WiFi 5 and Wired Network

Wifi 5 or IEEE 802.11ac is the fifth generation of wireless networking standards in the IEEE 802.11 set of standards which provides high throughput in a wireless local area network (LAN)

Technical Specifications:

OPS

• CPU: Intel® Core™ i5-10400
• RAM: 8 GB
• Storage: 128 GB SSD
• System: Windows 10 IoT Enterprise LTSC / Windows 11 Pro

Power

• Supply Mode: Internal Power Supply Module
• Requirements: 12V–19V DC
• Max Power: 95 W
• Standby Power: 0.5 W

Motherboard Interface

• LAN: Integrated 10/100/1000M Adaptive
• WiFi: WiFi 5 (802.11ac)
• Bluetooth: 4.2
• USB: 2 × USB 3.0, 2 × USB 2.0
• Video Output: 1 × HDMI Out, 1 × DP Out
• Audio: 1 × Mic In

Physical

• Colour: Black
• Dimensions (L × W × H): 180 × 195 × 30 mm
• Net Weight: 1.4 kg

Environmental Conditions

• Operating Temperature: 0 °C to 40 °C
• Operating Humidity: 10% – 90%
• Storage Temperature: -20 °C to 60 °C
• Storage Humidity: 10% – 90%

Available Regions

• EU
• USA
• APAC
• SA
