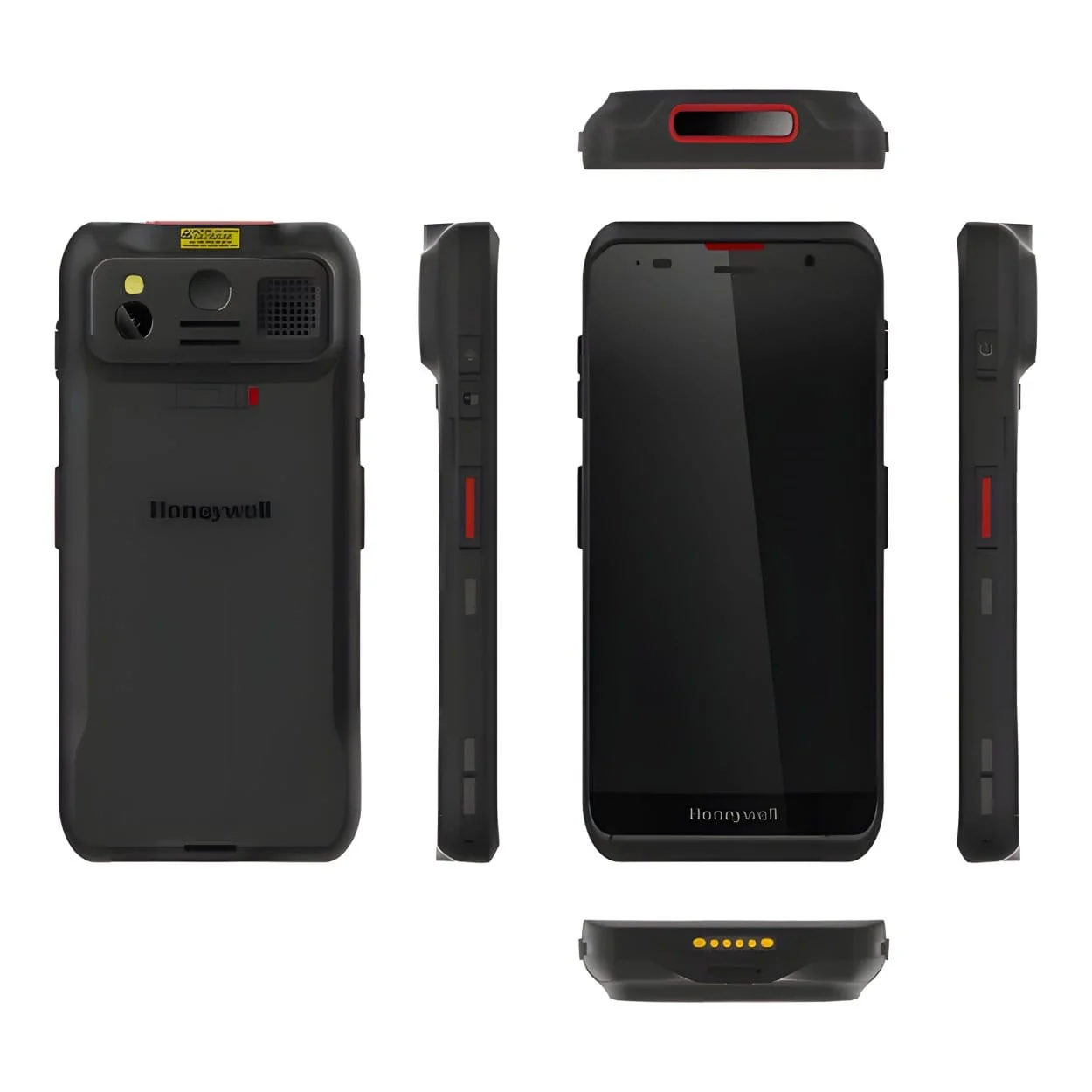

Honeywell ScanPal EDA52 Durable Android Mobile Computer EDA52-11AE64N21RK

Honeywell ScanPal EDA52 Durable Android Mobile Computer EDA52-11AE64N21RK

Honeywell ScanPal™ EDA52 is an enterprise-class mobile computer that provides reliable and secure connectivity between frontline workers and backend systems. It's designed for retail use, logistics, manufacture, healthcare and public service.

Features:

Camera

• Front: 5-megapixed color camera
• Rear: 13 - megapixel color camera

Camera Position

• Front and Rear

Connectivity

• Wi-Fi
• Wi-Fi & Cellular

Environment

• Healthcare
• Standard

Application

• Retail, transportation & logistics, manufacturing, healthcare, and public service

Durability

• Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air
• Environmental Sealing: IP67

ScanPalEDA52 is Honeywell’s next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi5, Bluetooth5.1 and 4GLTE communication.

A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.

The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.

The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.

Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.

The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.

The EDA52 is built on Android11 and can be upgraded to Android13* minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.

Technical Specifications:

Decode Capability: Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

Network
Bluetooth Specifications: Bluetooth Class 5.1
WWAN Specifications:

• FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 12, 13, 17, 19, 20, 25, 26, 28, 30, 66
• GSM/EDGE: Bands 2, 3, 5, 8
• TDD-LTE: Bands 38, 39, 40, 41
• UMTS/HSPA+: Bands 1, 2, 4, 5, 6, 8, 9, 19

WLAN Specifications:

• Additional WLAN Features: 802.11 d/e/h/i/k/r/u/w
• Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise), WPA3 (OWE, SAE, Enterprise)
• WLAN (Wi-Fi Alliance certified): 802.11 a/b/g/n/ac
• WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP

GPS Specifications:

• GPS (WWAN only) Supported Protocols: Simultaneous receiver support for GPS, GLONASS, and BeiDou

Software & Firmware
Operating System: Android 11, upgradeable to Android 13 (pending confirmation from Qualcomm & Google)

Memory & Data
Memory Expansion: MicroSD up to 128 GB

Hardware
Display Resolution: 1440 × 720 HD
Display Size: Gorilla Glass 5, 5.5-inch
Scan Engine Model: Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Scan Distance: Standard Range (0–1 m)
Processor: Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz + Quad low-power Kryo cores 1.8 GHz
Keypad: Full Touchscreen

Electrical
Battery Capacity: 3.8 V, 4,500 mAh, removable
Battery Type: Li-Ion (Honeywell)

Environmental
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Operating Humidity: 5% to 90% (non-condensing)

Standards & Approvals
Tumble Specifications: 550 tumbles at 0.5 m (1.64 ft)
Drop Specifications:

• Multiple 1.3 m (4.3 ft) drops per MIL-STD 810G to concrete at room temperature
• Multiple 1.5 m (5 ft) drops per MIL-STD 810G with rubber boot to concrete at room temperature

Others
Industry: Retail
