The Story

HP Designjet T230 24-inch Large Format Inkjet Printer 5HB07D

Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions. It's responsibly designed to help you save energy and reduce plastics use . Plus, it’s compact and adaptable to fit the way you work.

Print speed: 35 sec/page on A1, 68 A1 prints per hour
Model size: 610 mm
Print quality color (best): Up to 2400 x 1200 optimised dpi
Power consumption: <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Print technology: HP Thermal Inkjet
Dimensions (W x D x H): 1013 x 440 x 285 mm
Weight: 21.5 kg

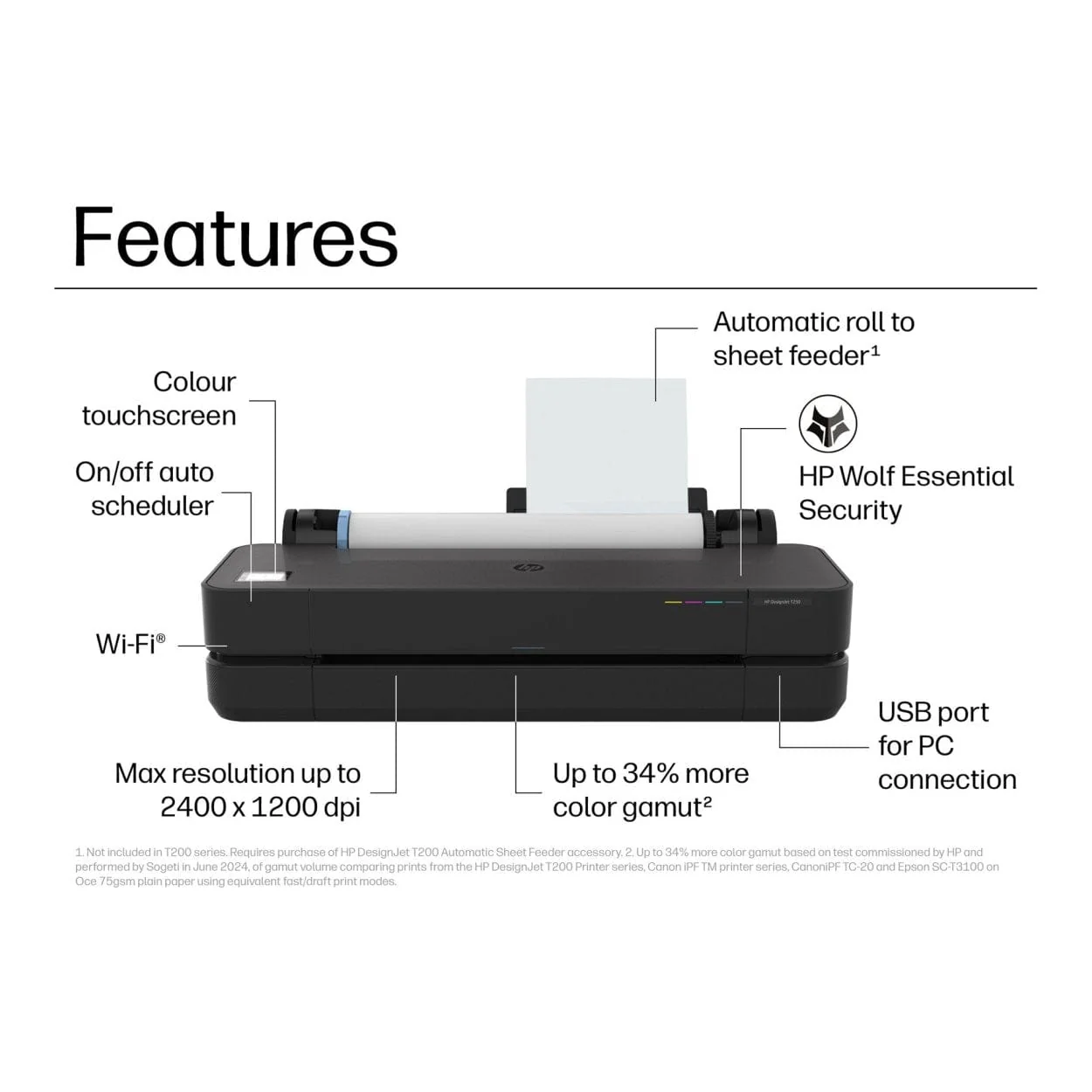

INTUITIVE—Easy, effortless printing

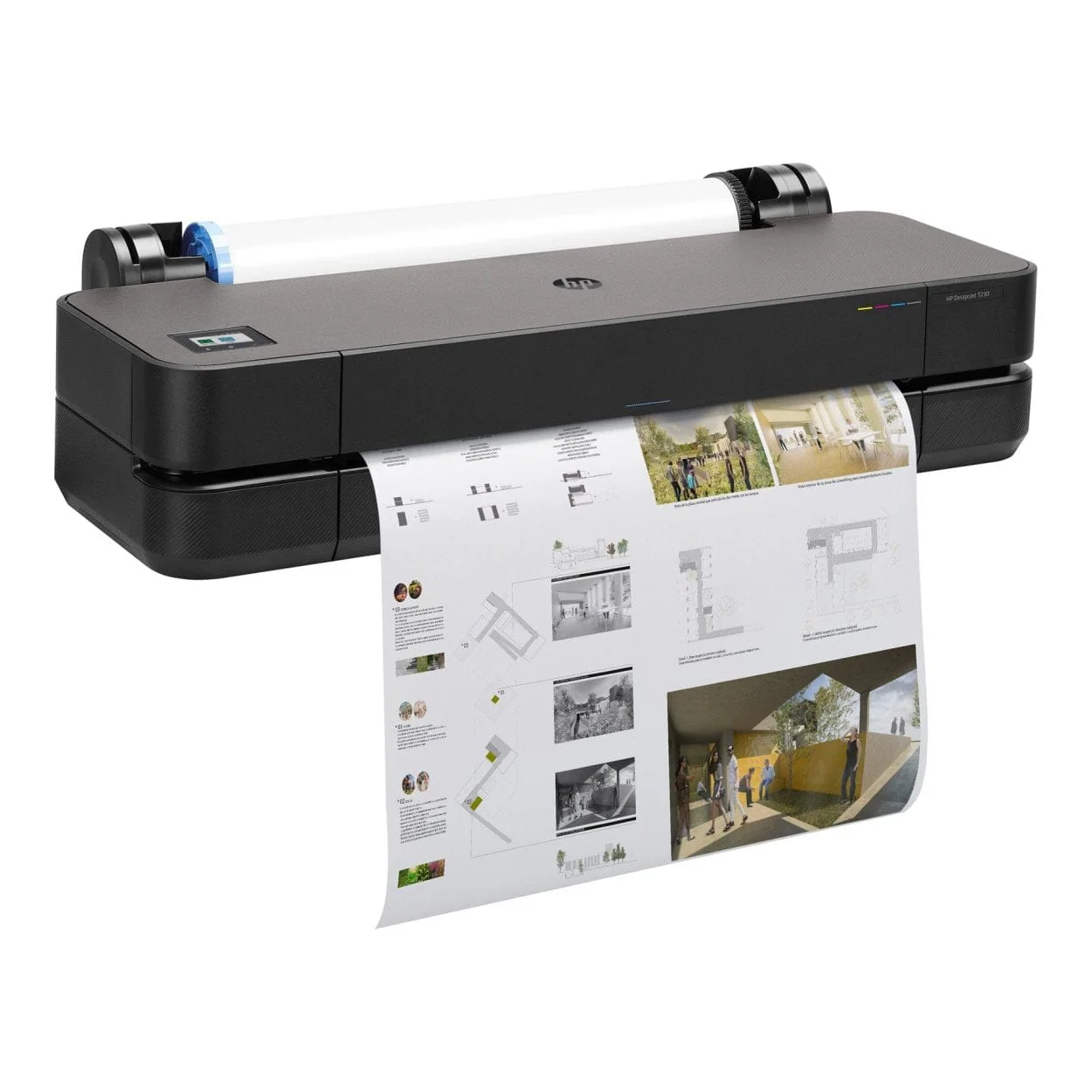

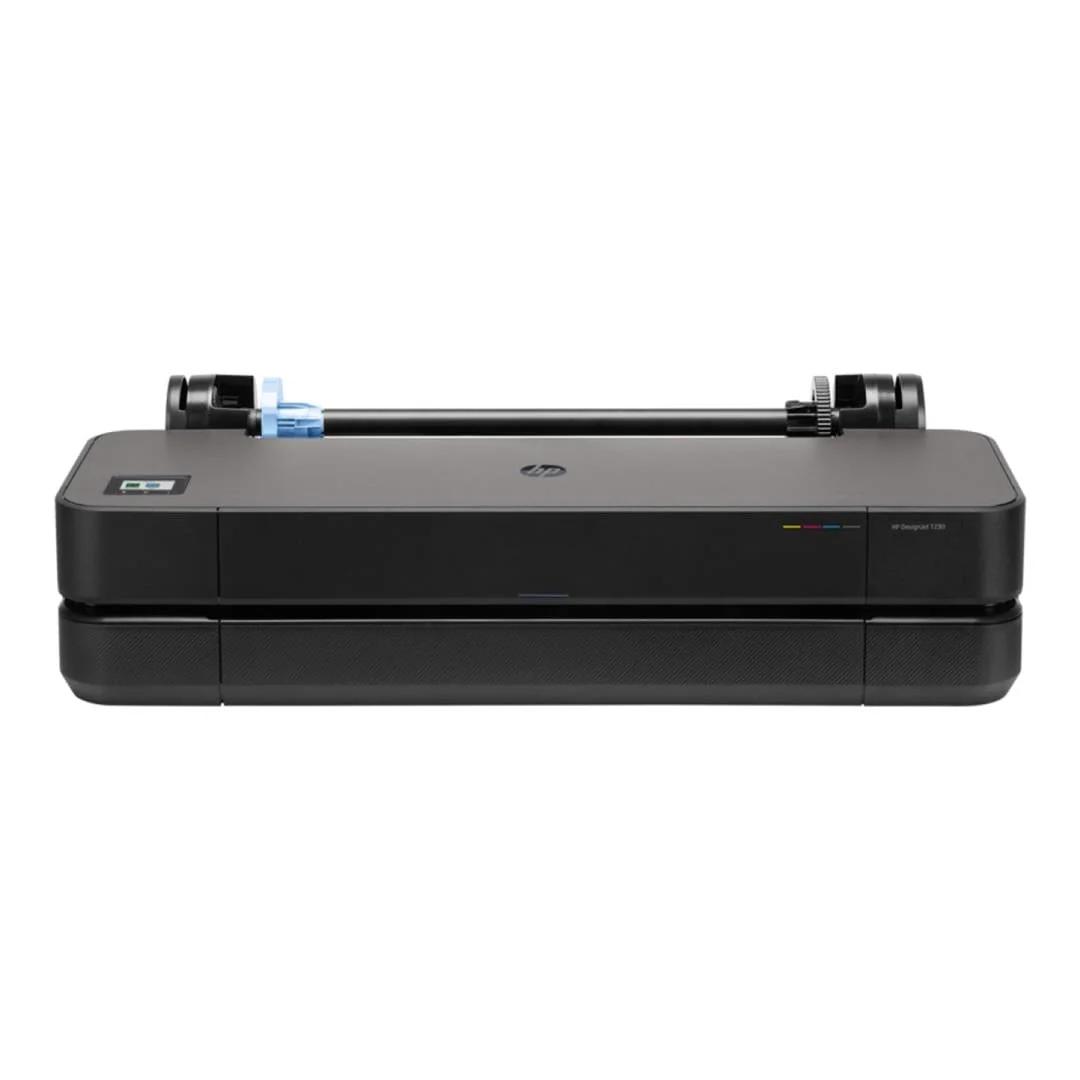

HP DesignJet T230 24in Front 01 - no base

RESPONSIBLY DESIGNED—Reduce energy and plastic use

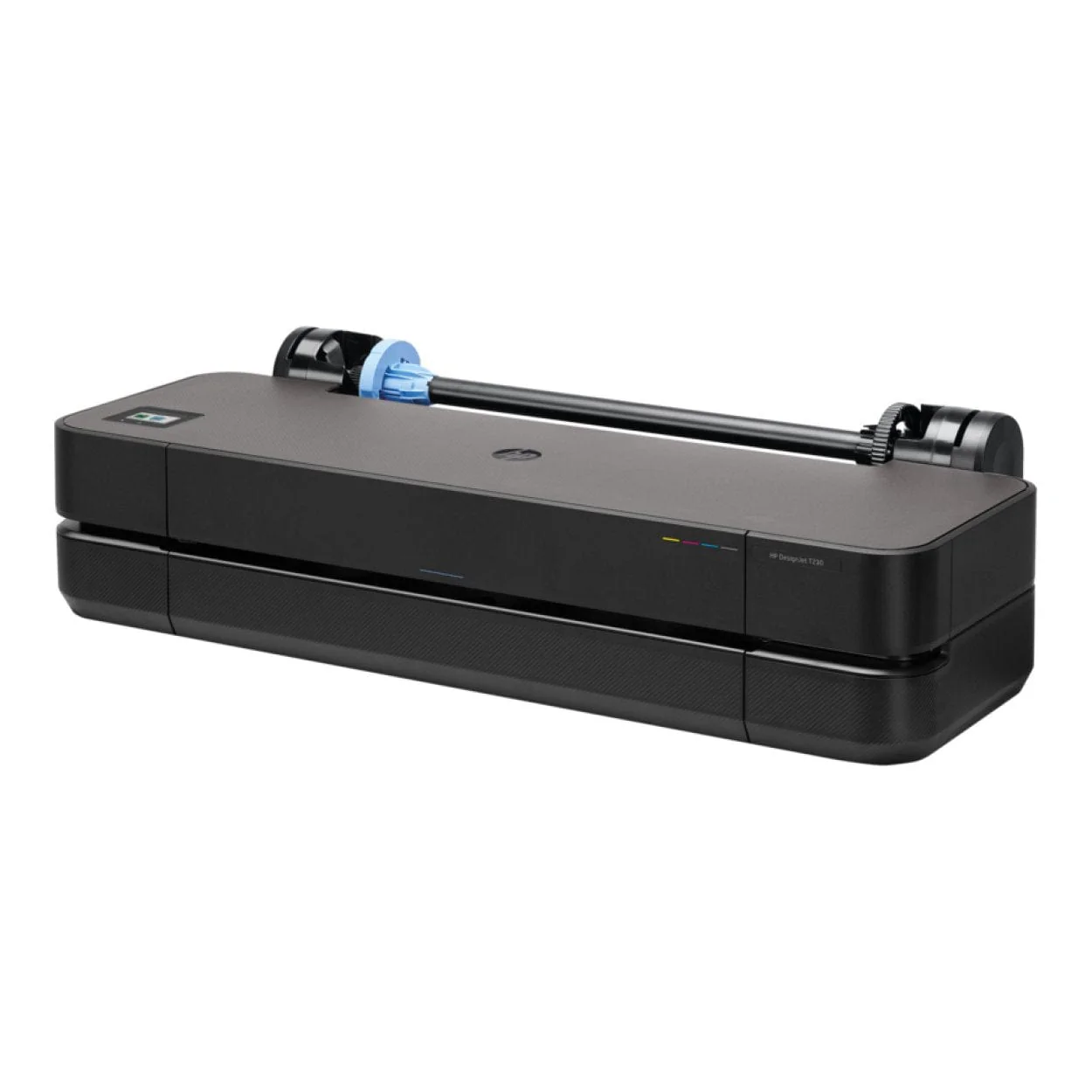

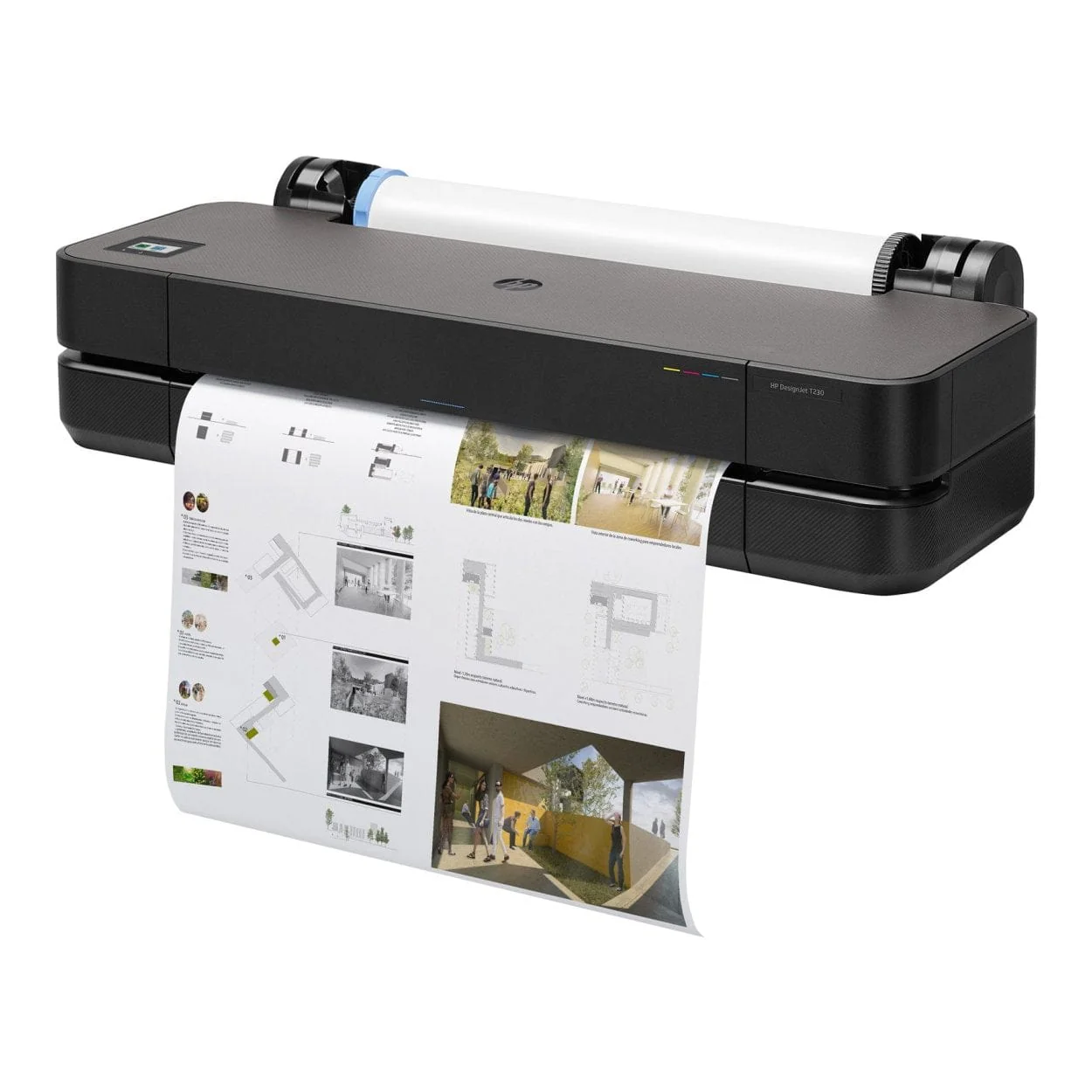

HP DesignJet T230 24in Left 01 - no base

OPTIMIZED—Fits the way you work

HP DesignJet T230 24in Right 01 - no base

Specifications

Product: HP DesignJet T230 24-in Printer 2025 edition

Functions: Print

Print speed: 35 sec/page on A1, 68 A1 prints per hour

Ink drop: 5.5 pl (C, M, Y); 12 pl (K)

Print head nozzles: 1376

Print cartridge/bottle volume: 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge

Ink types: Dye-based (C, M, Y); pigment-based (K)

Print Cartridges/Bottle, Number: 4 (C, M, Y, K) cartridges

Print heads: 1 (cyan, magenta, yellow, black)

High capacity of page yield (colour): 20 ml of ink yields 101 A1 pages, taking into account maintenance routines

Print Cartridge/Bottle, Color(s): Cyan, magenta, yellow, black

Print quality color (best): Up to 2400 x 1200 optimised dpi

Maximum optical density (black): 8 L* min/2.10 D

Finished output handling: Sheet feed, roll feed; automatic horizontal cutter

Media sizes standard (metric rolls): 279 to 610 mm

Roll external diameter: 100 mm

Roll maximum input: 1

Roll maximum weight: 4.1 kg

Recommended media: Q1396A HP Universal Bond Paper (FSC® certified) (recyclable) 610 mm x 45.7 m;C6019B HP Coated Paper (FSC® certified) (recyclable) 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC® certified) (recyclable) 610 mm x 30.5 m

Media thickness: Up to 11.8 mil

Media thickness maximum (metric): Up to 0.3 mm

Media width, maximum: 610 mm

Supported Primary Applications: Line drawings; Presentations; Renderings

Non-printable area (cut-sheet): 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)

Non-printable area (roll media): 5 x 5 x 5 x 5 mm

Media sizes, custom: 210 x 279 to 610 x 1897 mm

Media sizes supported: A4, A3, A2, A1

Media types: Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media weight, recommended: 60 to 280 g/m²

Model size: 610 mm

Internal Storage: None

Line accuracy: ±0.1%

Printer drivers included: Raster driver for macOS and Windows, HP Click Driver for Windows 11

Print languages: JPEG, URF

Print technology: HP Thermal Inkjet

Theoretical minimum line width: 0.02 mm

Printing path: HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing

Connectivity, standard: Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Security features: HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartridge Security; Unique password; Disable USB ports; TLS 1.2; 802.1x; IPv4 & IPv6 Compatibility; CA/JD Compatibility

Remote print enabled: Yes

Print multi-size files in one click: Yes

Dimensions (W x D x H): 1013 x 440 x 285 mm

Weight: 21.5 kg

Memory: 512 MB

Energy star certified: Yes
