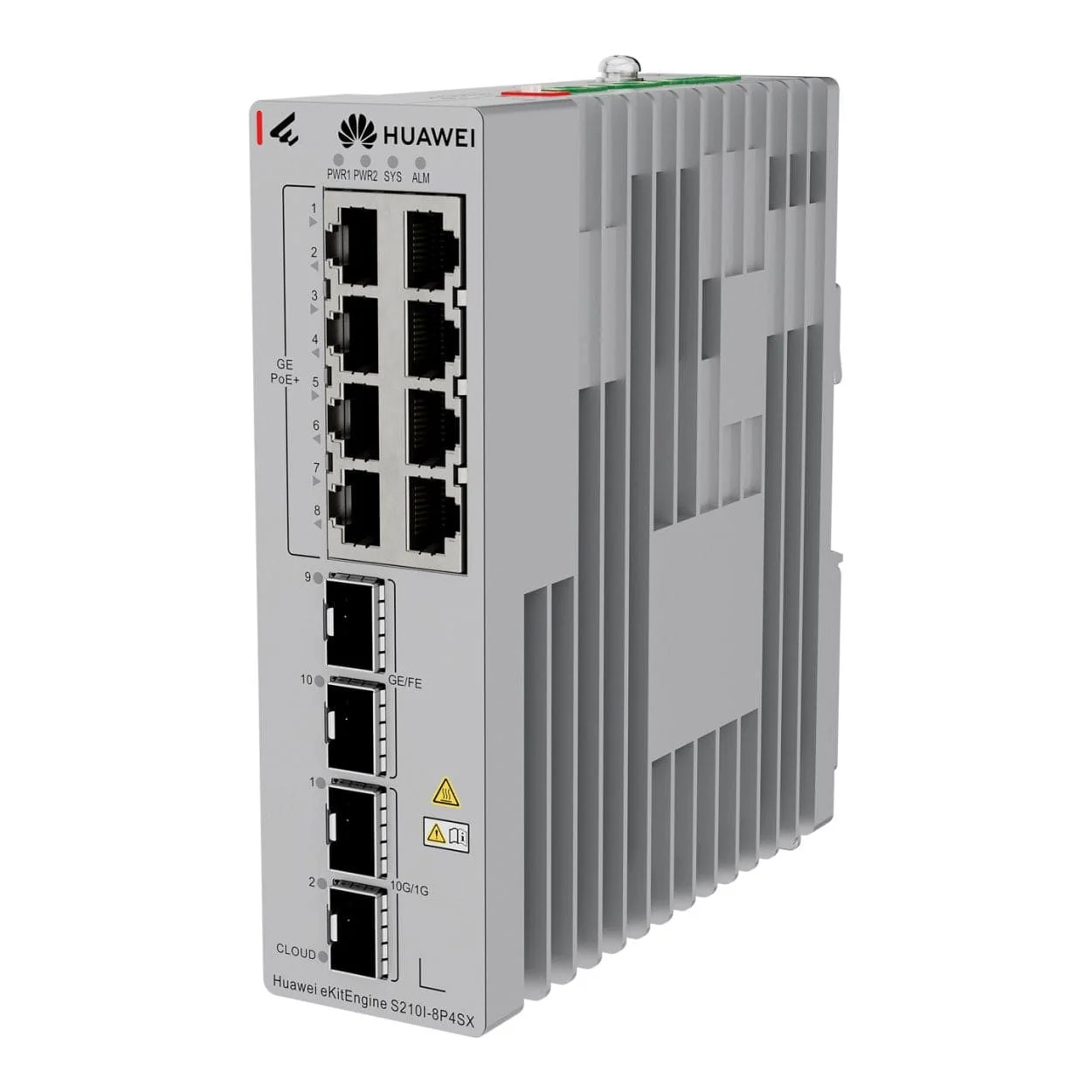

Huawei eKitEngine S210I-8P4SX 8-port Industrial Switch with 4x SFP Ports 98012933
Huawei eKitEngine S210I-8P4SX is an industrial L2 switch with an extended temperature range, designed for demanding environments and installation in outdoor or industrial enclosures. It offers 8x 10/100/1000BASE-T PoE+ ports for powering connected devices, 2x GE SFP and 2x 10GE SFP+ uplink ports, and 1x DI/DO interface. It supports both local web interface and cloud management (SNC / eKit App). Thanks to its passive cooling, IP40 protection, and wide input voltage range of 9.6 - 60V DC, it is suitable for long-term operation in temperatures from -40°C to +75°C.
Huawei S210I-8P4SX Gigabit PoE smart industrial switch, 2x SFP, 2x SFP+, redundant power.
- 8x GLAN with PoE+ support with a total power budget of up to 240 W
- 2x GE SFP + 2x 10GE SFP+ uplink ports
- 1x DI/DO interface for integration into industrial solutions
- Passive cooling – silent operation, no fans
- Industrial design: IP40 protection, surge, reverse polarity, and overheating protection
- Redundant power supply: supports 1+1 hot backup
- Advanced features: STP/PSTP, ERPS, link aggregation, industrial protocol prioritization (PROFINET, GOOSE)
- Perpetual PoE – ensures uninterrupted power supply to connected devices (PD) even during switch reboot or upgrade
Specifications:
LAN speed: (8) 10/100/1000Mbps
Optical interfaces: (2) 1000Mbps + (2) 10Gbps
Power type: DC terminal
PoE-Out standards: 802.3af, 802.3at
Redundant power supply: Yes
PoE Out ports: 8
PoE budget: 240W
Max. power consumption: 16W
Power via connector/terminal: (2) 9,6 .. 60V DC
Design: DIN rail, Industry
Fans: No
Chassis design: Metal
Buttons: Reset
Operating temperature [°C]: -40 up to 75
Width: 44 mm
Height: 150 mm
Depth: 133 mm
Switchning capacity: 60 Gbps
Packet forwarding rate: 44 Mpps
Web management: Yes
Management: Web management, eKit cloud / eKit app
Features: VLAN, QoS, L2
Default IP address: 192.168.1.253
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Huawei eKitEngine S210I-8P4SX 8-port Industrial Switch with 4x SFP Ports 98012933
Huawei eKitEngine S210I-8P4SX is an industrial L2 switch with an extended temperature range, designed for demanding environments and installation in outdoor or industrial enclosures. It offers 8x 10/100/1000BASE-T PoE+ ports for powering connected devices, 2x GE SFP and 2x 10GE SFP+ uplink ports, and 1x DI/DO interface. It supports both local web interface and cloud management (SNC / eKit App). Thanks to its passive cooling, IP40 protection, and wide input voltage range of 9.6 - 60V DC, it is suitable for long-term operation in temperatures from -40°C to +75°C.
Huawei S210I-8P4SX Gigabit PoE smart industrial switch, 2x SFP, 2x SFP+, redundant power.
- 8x GLAN with PoE+ support with a total power budget of up to 240 W
- 2x GE SFP + 2x 10GE SFP+ uplink ports
- 1x DI/DO interface for integration into industrial solutions
- Passive cooling – silent operation, no fans
- Industrial design: IP40 protection, surge, reverse polarity, and overheating protection
- Redundant power supply: supports 1+1 hot backup
- Advanced features: STP/PSTP, ERPS, link aggregation, industrial protocol prioritization (PROFINET, GOOSE)
- Perpetual PoE – ensures uninterrupted power supply to connected devices (PD) even during switch reboot or upgrade
Specifications:
LAN speed: (8) 10/100/1000Mbps
Optical interfaces: (2) 1000Mbps + (2) 10Gbps
Power type: DC terminal
PoE-Out standards: 802.3af, 802.3at
Redundant power supply: Yes
PoE Out ports: 8
PoE budget: 240W
Max. power consumption: 16W
Power via connector/terminal: (2) 9,6 .. 60V DC
Design: DIN rail, Industry
Fans: No
Chassis design: Metal
Buttons: Reset
Operating temperature [°C]: -40 up to 75
Width: 44 mm
Height: 150 mm
Depth: 133 mm
Switchning capacity: 60 Gbps
Packet forwarding rate: 44 Mpps
Web management: Yes
Management: Web management, eKit cloud / eKit app
Features: VLAN, QoS, L2
Default IP address: 192.168.1.253
