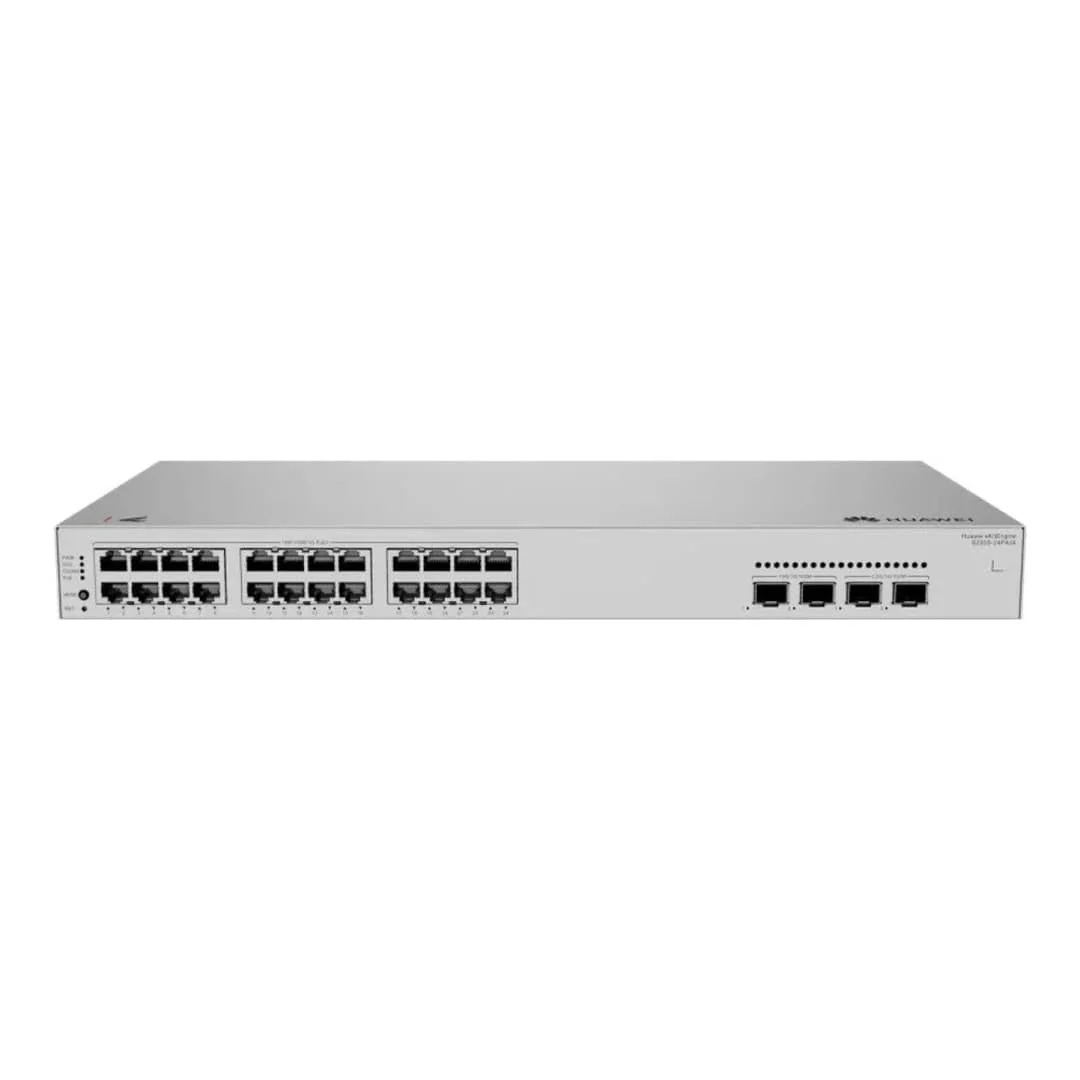

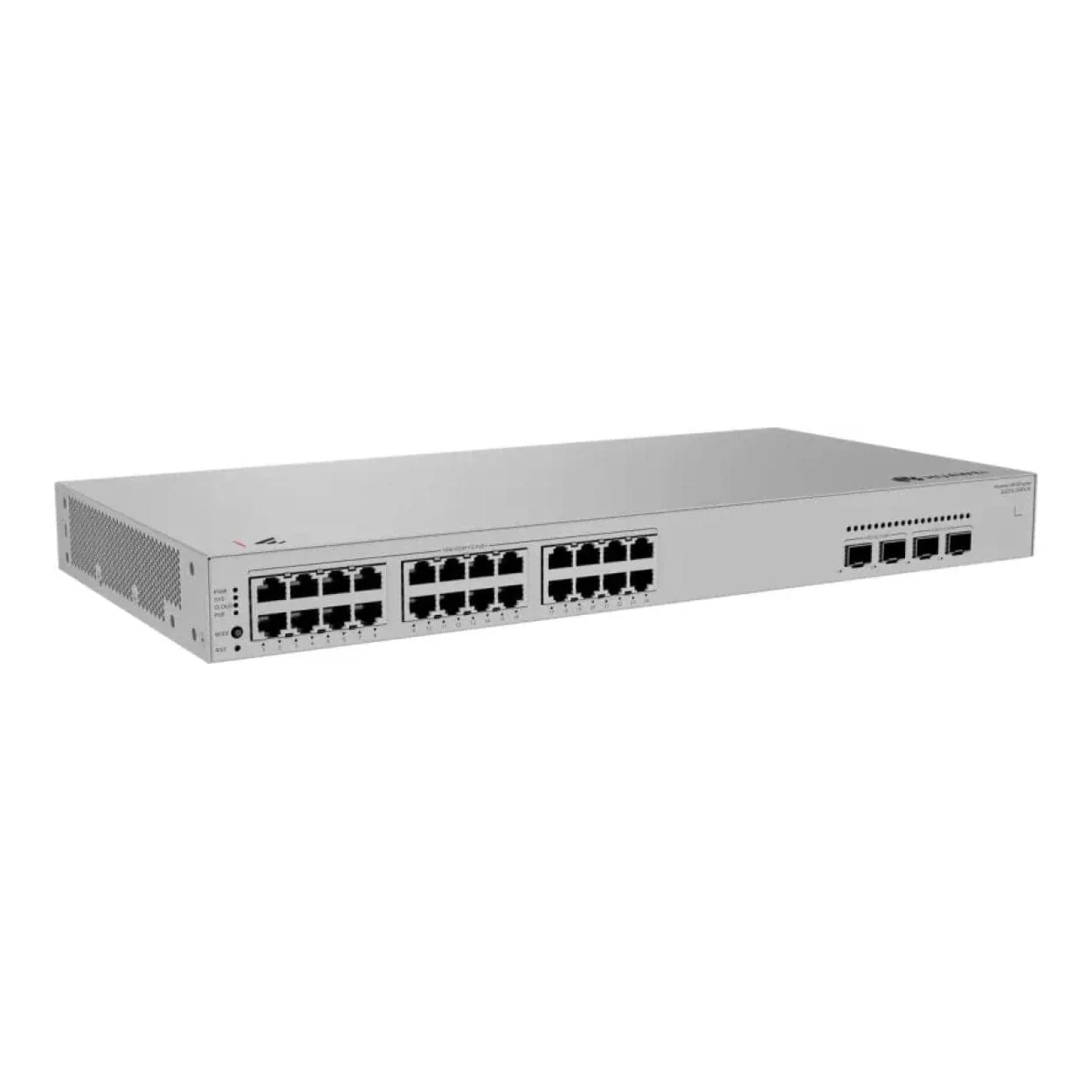

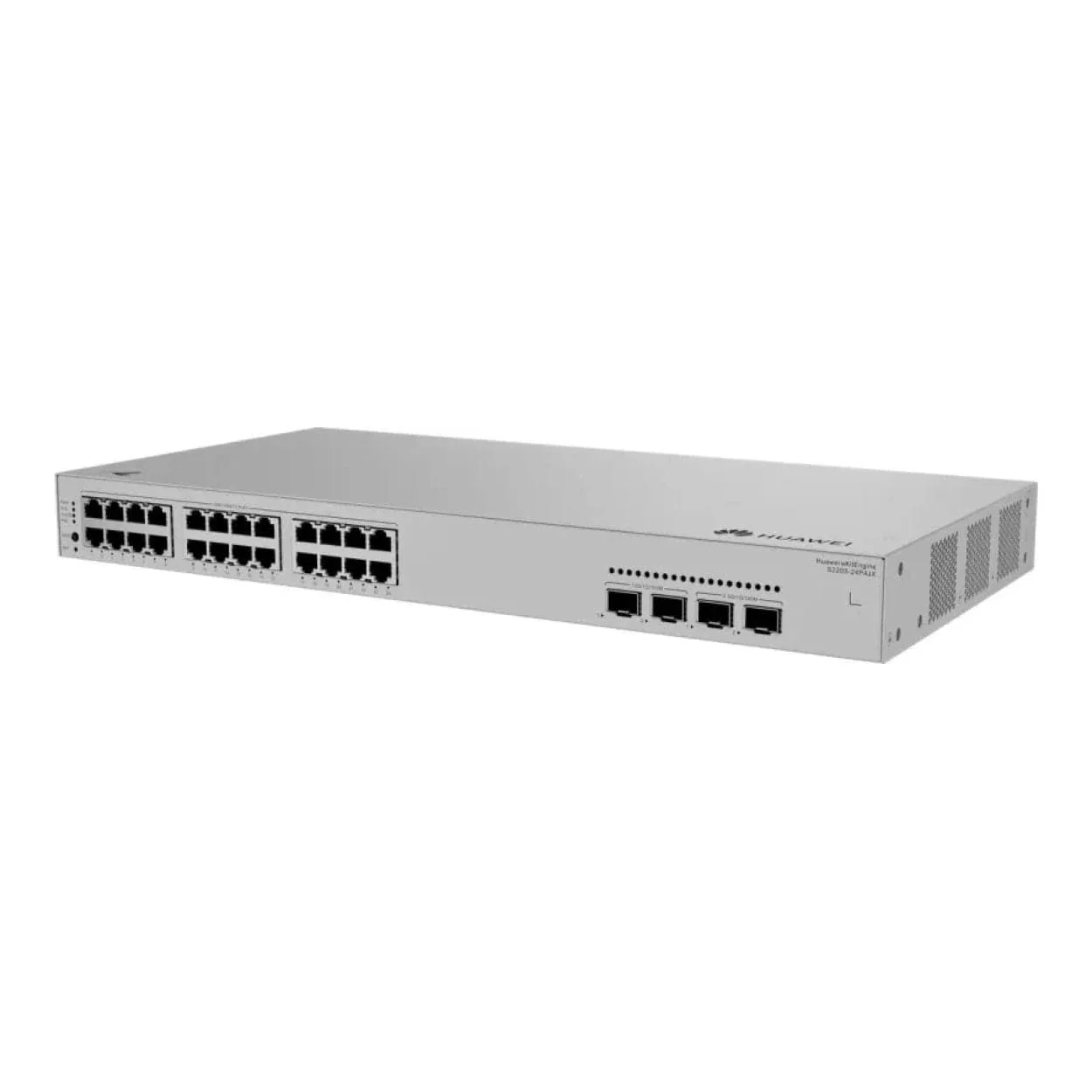

Huawei eKitEngine S220S-24P4JX 24-port L2 Managed Network Switch 98012518

Huawei eKitEngine S220S-24P4JX 24-port L2 Managed Network Switch 98012518

Huawei S220S-24P4JX is a manageable L2 switch equipped with 24x 1Gbit Ethernet with PoE+ support, 2x 2.5G SFP and 2x SFP+ ports. The total PoE budget is 400W, ensuring reliable power for 24 devices under the 802.3af standard or 13 devices under the 802.3at standard with full power consumption. It supports all common L2 features and extensive management options, including management via the Huawei eKit App, enabling cloud management. With the Huawei Online Upgrade Platform (HOUP) service, the switch provides one-click automatic updates.

The Huawei eKitEngine S220S series switches are L2 GE/10GE designed for small and medium-sized businesses (SMBs). Advanced features, high reliability, extensive device management options, rack mounting, built-in 230V AC power supply, and fanless design enable use in various installation scenarios.

Specifications:

LAN speed: (24) 10/100/1000Mbps

Optical interfaces: (2) 1G/2.5G + (2) 1/10G

Power type: Mains power (230V)

PoE-Out standards: 802.3af, 802.3at

PoE Out ports: 24

PoE budget: 400W

Max. power consumption: 482W

Power via connector/terminal: 230V AC

Design: Rackmount

Fans: Yes

Chassis design: Metal

Buttons: Reset

Operating temperature [°C]: -5 up to 40

Width: 442 mm

Height: 44 mm

Depth: 220 mm

Switchning capacity: 98 Gbps

MAC address table: 16000

Packet forwarding rate: 73 Mpps

Web management: Yes

Management: Web management, SSH, Telnet, eKit cloud / eKit app

Features: VLAN, QoS, DHCP snooping
