Huawei S620-16X8YZ 16-port L3 Managed Network Switch with 8x SFP Ports 98012580

Huawei S620-16X8YZ 16-port L3 Managed Network Switch with 8x SFP Ports 98012580

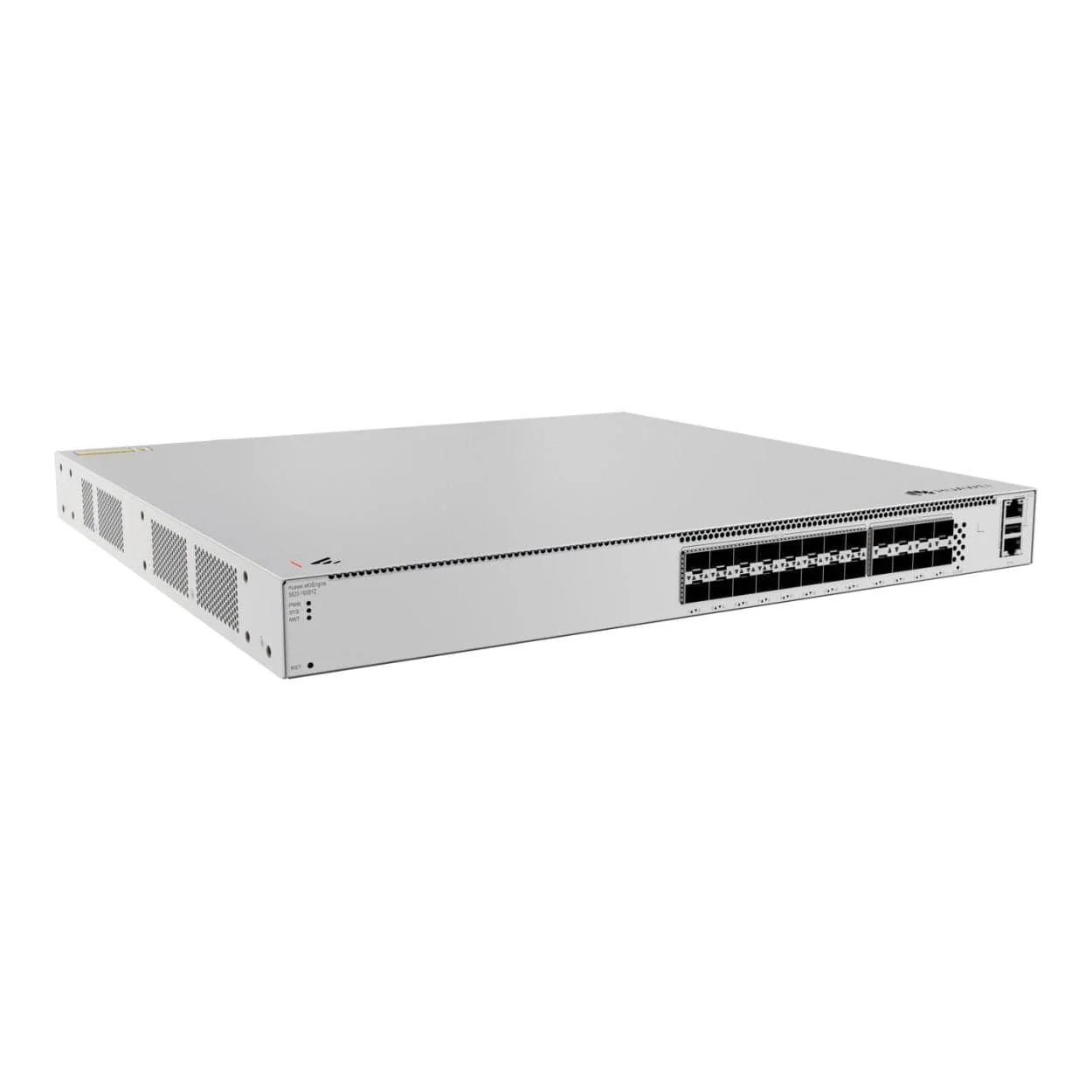

The Huawei S620-16X8YZ is a highly equipped Layer 3 switch with stacking capabilities, offering a combination of 16 x 1/2.5/10 G optical SFP+ ports and 8 x 1/2.5/10/25 G optical SFP28 ports. Additionally, it features a console port for management, an Ethernet management port, and a USB port for firmware upgrades or configuration backup transfers.

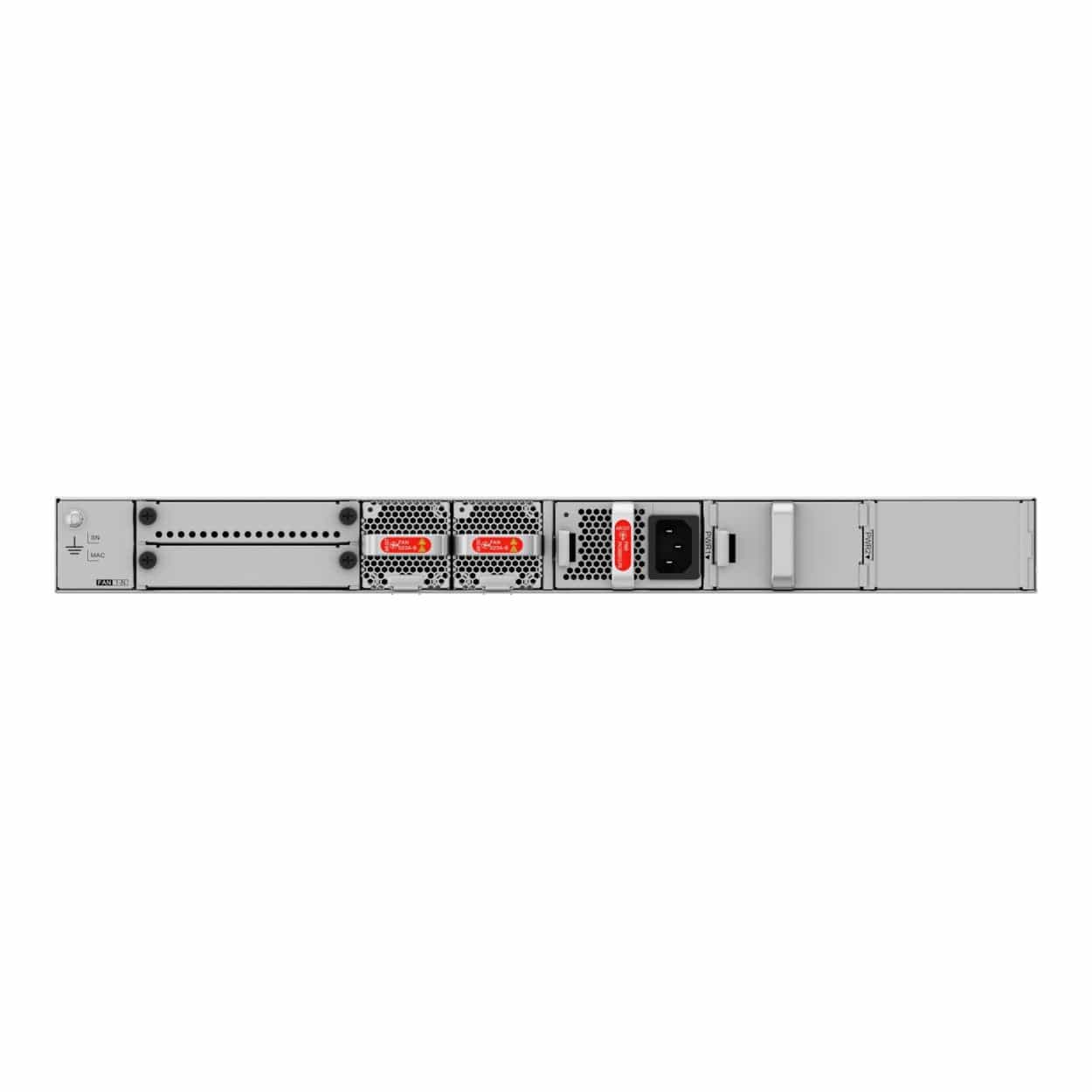

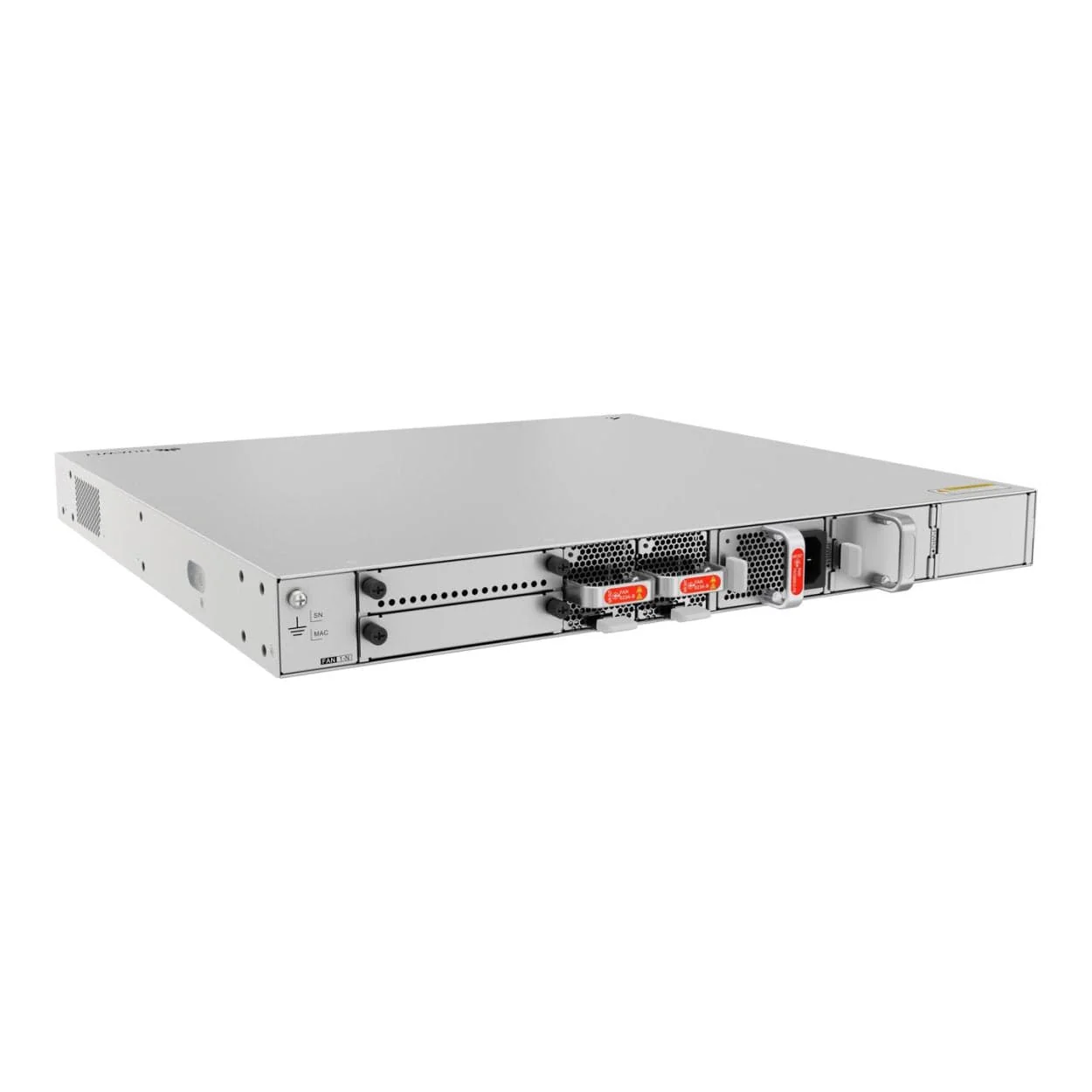

On the rear side, the switch includes a slot for an expansion module that can add either 8 x SFP+ or 4 x SFP28 ports (software configurable). Heat dissipation is handled by a pair of hot-swappable fans. The device also supports redundant power supplies with hot-swap capability, offering four types of power modules with different input voltages and power ratings, with or without fans. When using two power supplies, mixing fan and fanless models is not supported.

Specifications:

Management LAN: (1) 10/100Mbps

Optical interfaces: (16) 1/2.5/10Gbps + (8) 1/2.5/10/25Gbps

Serial port: RJ45

USB ports 2.0: 1

Redundant power supply: Yes

Max. power consumption: 50W

Power via connector/terminal: -48 .. -60V DC, 48V DC, 230V AC

Design: Rackmount

Fans: Yes

Chassis design: Metal

Buttons: Reset

Operating temperature [°C]: -5 up to 45

Width: 442 mm

Height: 44 mm

Depth: 420 mm

Switchning capacity: 1160 Gbps

MAC address table: 64000

Packet forwarding rate: 450 Mpps

Web management: Yes

Management: Web management, SSH, Telnet

Features: Physical stacking, L3
