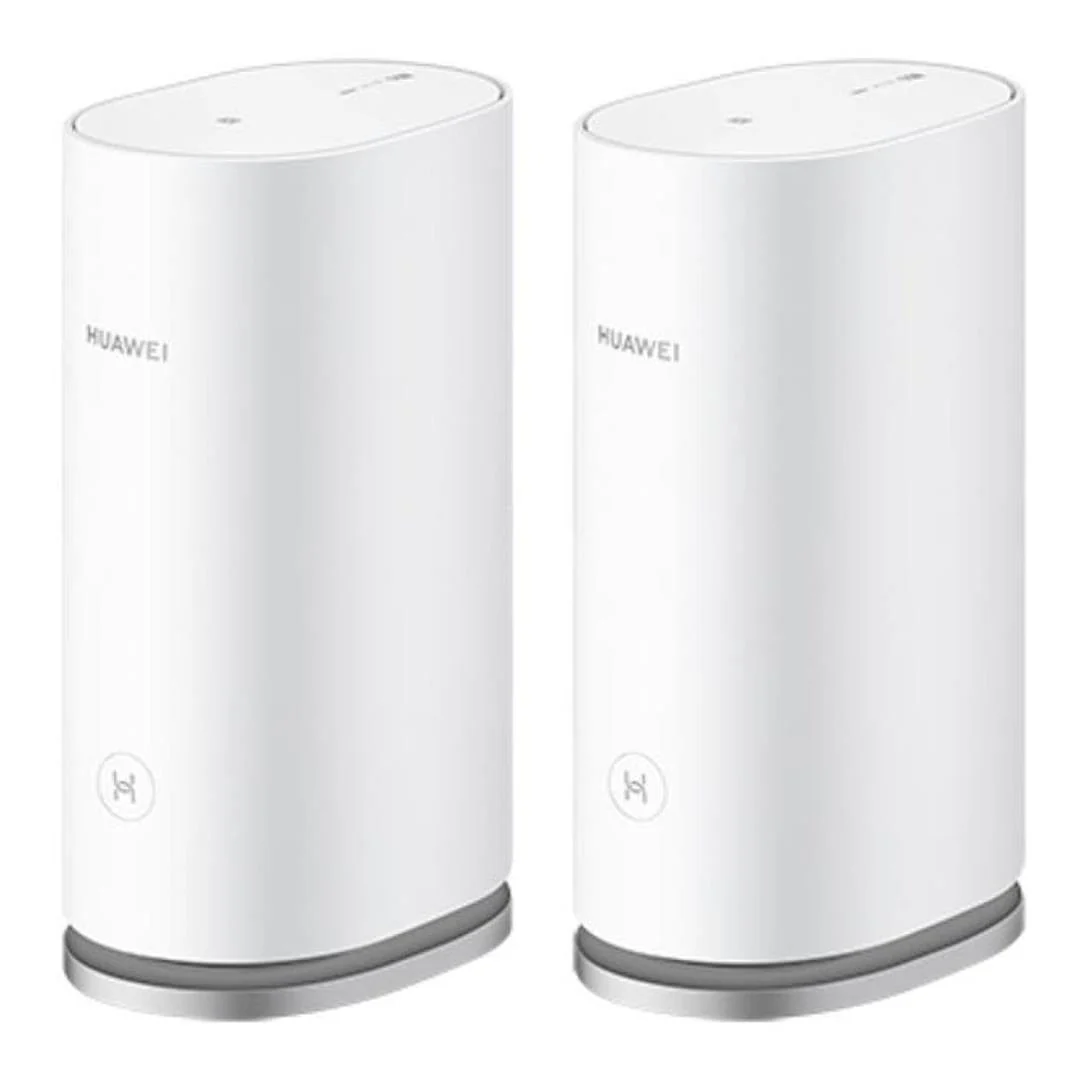

Huawei WS8100-2 Mesh 3 AX3000 Dual-Band 2.4GHz and 5GHz Wi-Fi 6+ Mesh System 2-pack

Huawei WS8100-2 Mesh 3 AX3000 Dual-Band 2.4GHz and 5GHz Wi-Fi 6+ Mesh System 2-pack

AX3000 Whole Home Coverage

Meet HUAWEI WiFi Mesh 3. It's a powerful whole-home mesh system that fills every room and connects all of your devices. Set up by simply plugging in, then enjoy a strong and stable connection throughout your home.

Wi-Fi 6 Plus, Speed Accelerated to 3,000 Mbps

HUAWEI Wi-Fi 6 Plus boosts overall maximum speeds to 3,000 Mbps. Bring exhilarating speeds to everything you do online, like downloading 4K films and large files.

One for Your Home

Choose the suitable pack for strong and stable Wi-Fi connectivity all over your home.

Strong Signal, Powerful Performance

HUAWEI WiFi Mesh 3 is equipped with 4 high-performance power amplifiers to provide a stronger signal and wider coverage for every room.

Handle Your Devices All at Once

HUAWEI WiFi Mesh 3 keeps all your Wi-Fi devices connected, supporting up to 250+ connections. You can watch HD movies, tune into live streams, and play online games all at the same time, with less buffering.

Dual-Band Super Networking for a Smoother Ride

Create a mesh network with a 5 GHz band and a 2.4 GHz band simultaneously, bringing you exceptional speeds and a network efficiency boost. The signal remains strong even against obstacles and interferences — for more stable connections all of the time.

Seamless Roaming, Constant Connections

HarmonyOS Mesh+ keeps your devices seamlessly connected to the optimal Wi-Fi signal, so you can always enjoy a high-speed, stable network as you move freely around your home.

Connect with One Tap

Simply tap your phone to the NFC-sensing area on HUAWEI WiFi Mesh 3 for instant Wi-Fi connection². No need to input Wi-Fi name or password.

Technical Specifications:

Dimensions & Weight
Height: 174 mm
Width: 70 mm
Depth: 107 mm
Weight: ~413 g (without packaging)
Product size, weight, and specifications are theoretical. Actual values may vary.

Wi-Fi
Transmission Standard:
• IEEE 802.11b/g/n/ax (2 × 2 MIMO, 2.4 GHz)
• IEEE 802.11a/n/ac/ax (2 × 2 MIMO, 5 GHz)

Wireless Transmission Rate:
• 2.4 GHz: 574 Mbps (theoretical)
• 5 GHz: 2402 Mbps (theoretical)
• Total negotiated: 2976 Mbps

Wireless Frequency Band:
2.4 GHz & 5 GHz (supports prioritizing 5 GHz)

Antenna
Internal WLAN antennas

Memory
256 MB RAM + 128 MB ROM
Actual available memory may vary due to system usage and updates.

Network Port
WAN/LAN Auto-adaptive Port
Any of the three 10/100/1000 Mbps Ethernet ports can serve as WAN.

Interface
Power port
Network port
Reset button (pinhole)
H button

Buttons
HUAWEI H/Hi Button (WPS compatible)
• Connects to HarmonyOS Connect devices or WPS devices

Reset Button
• Independent pinhole reset

LED Indicator
One “H” indicator (red/blue)

Power Supply
12V DC, 1A
Power Consumption: < 12 W
Input Voltage: 100–240V
Input Frequency: 50–60 Hz

Software Functions
802.11k/v/r protocol
HarmonyOS Mesh+
PPPoE / DHCP / Static IP
Wi-Fi timer
Guest Wi-Fi
Device speed limiting
Wi-Fi access control
Parental control
VPN pass-through
DMZ / Virtual server

Security
HUAWEI HomeSec™ firewall
Wi-Fi brute-force attack prevention
Unauthorized access prevention
WPA3
Parental control supported

Environment
Operating Temperature: 0°C to 40°C (32°F–104°F)
Storage Temperature: –40°C to +70°C (–40°F–158°F)
Humidity: 5%–95% (non-condensing)

What's in the Box:

• HUAWEI WiFi Mesh 3 x2
• Power Adapter x1
• Quick Start Guide x1
• Warranty Card x1
• Ethernet Cable x1
