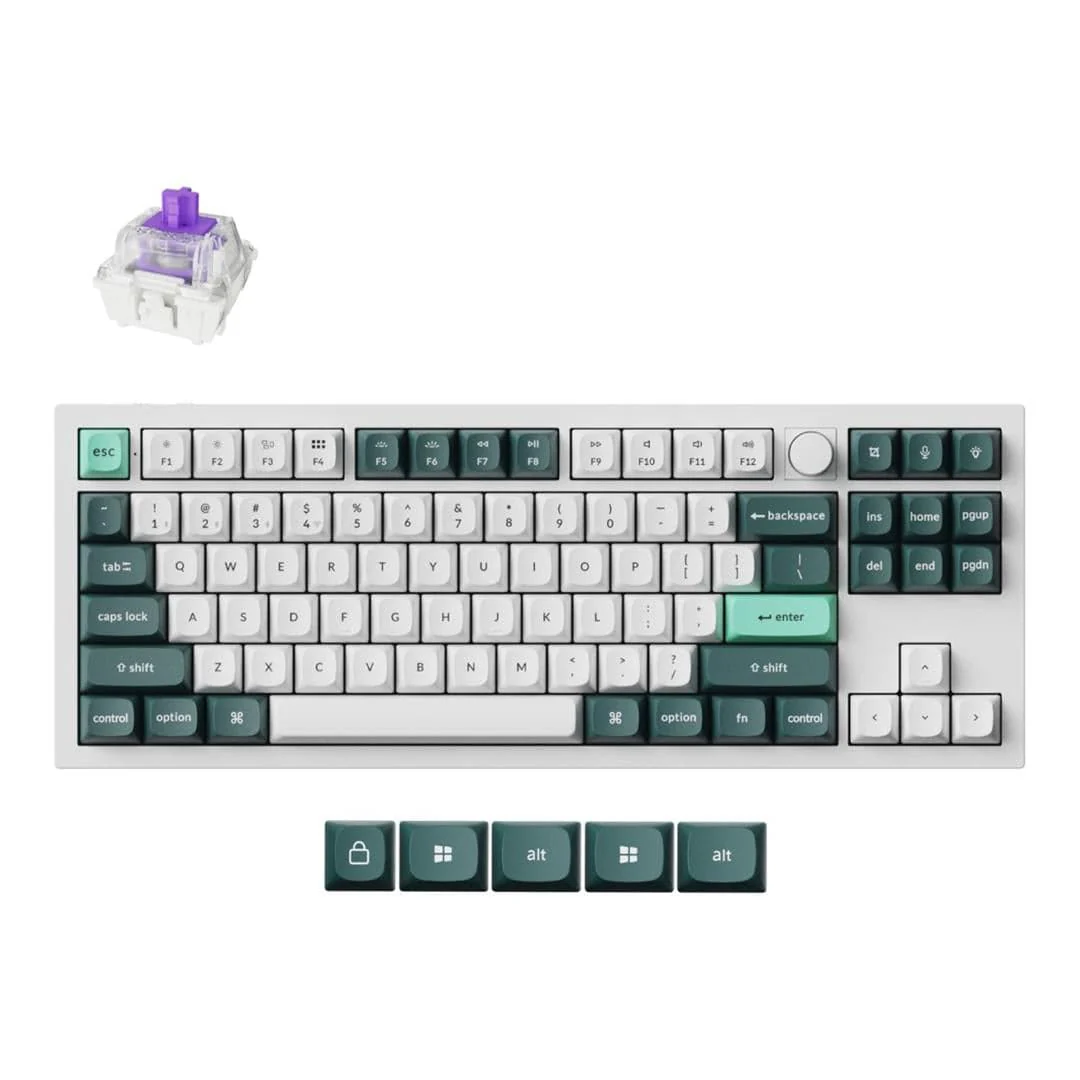

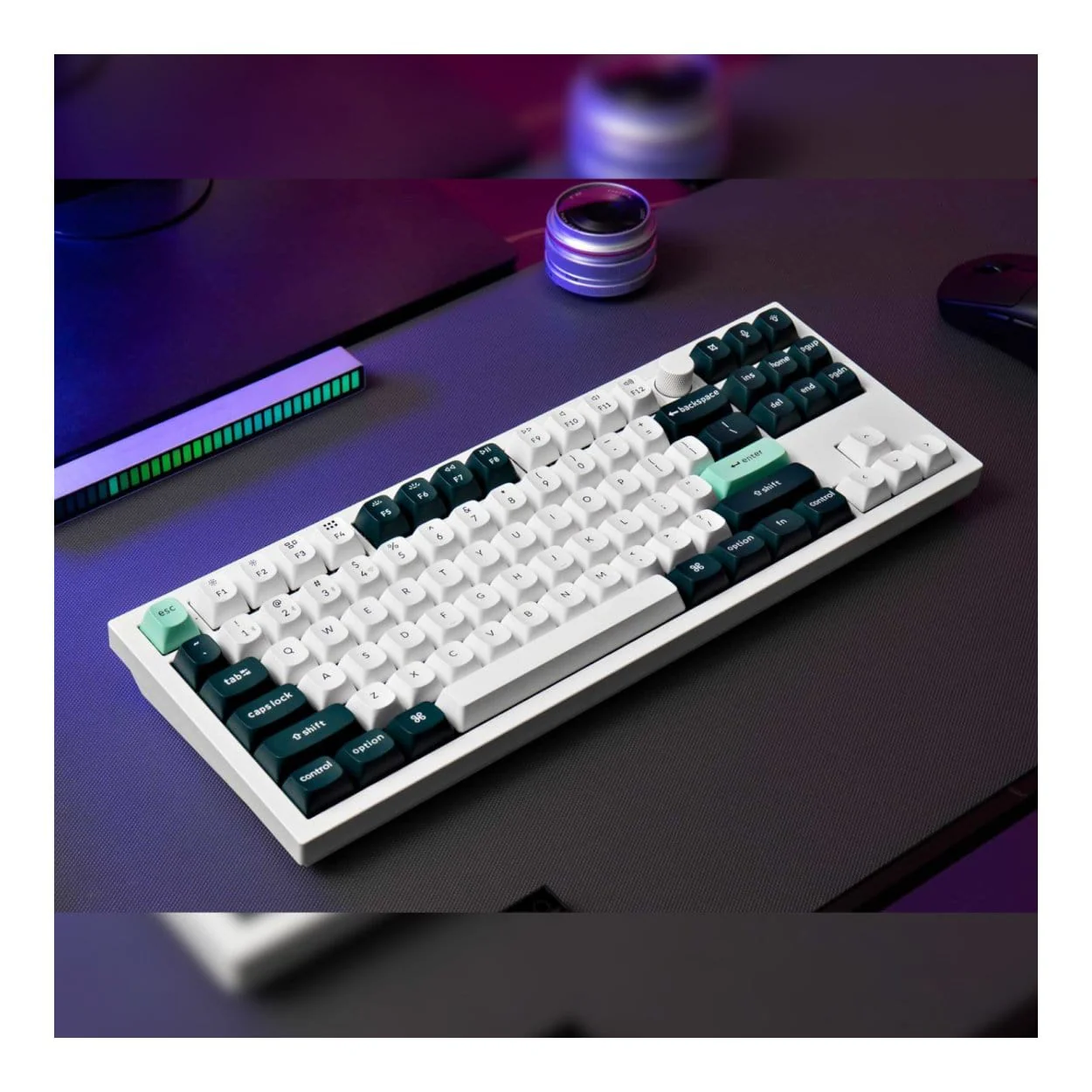

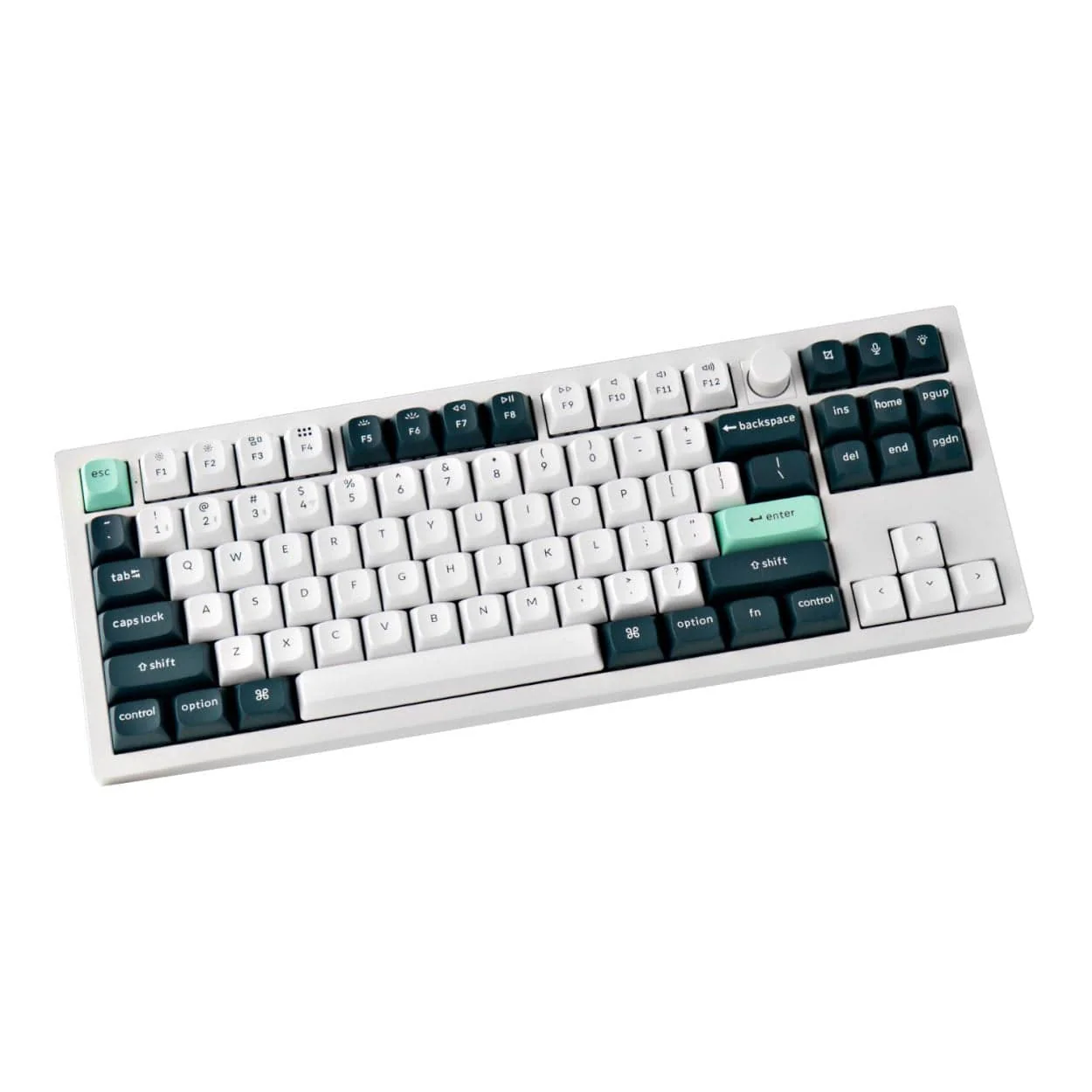

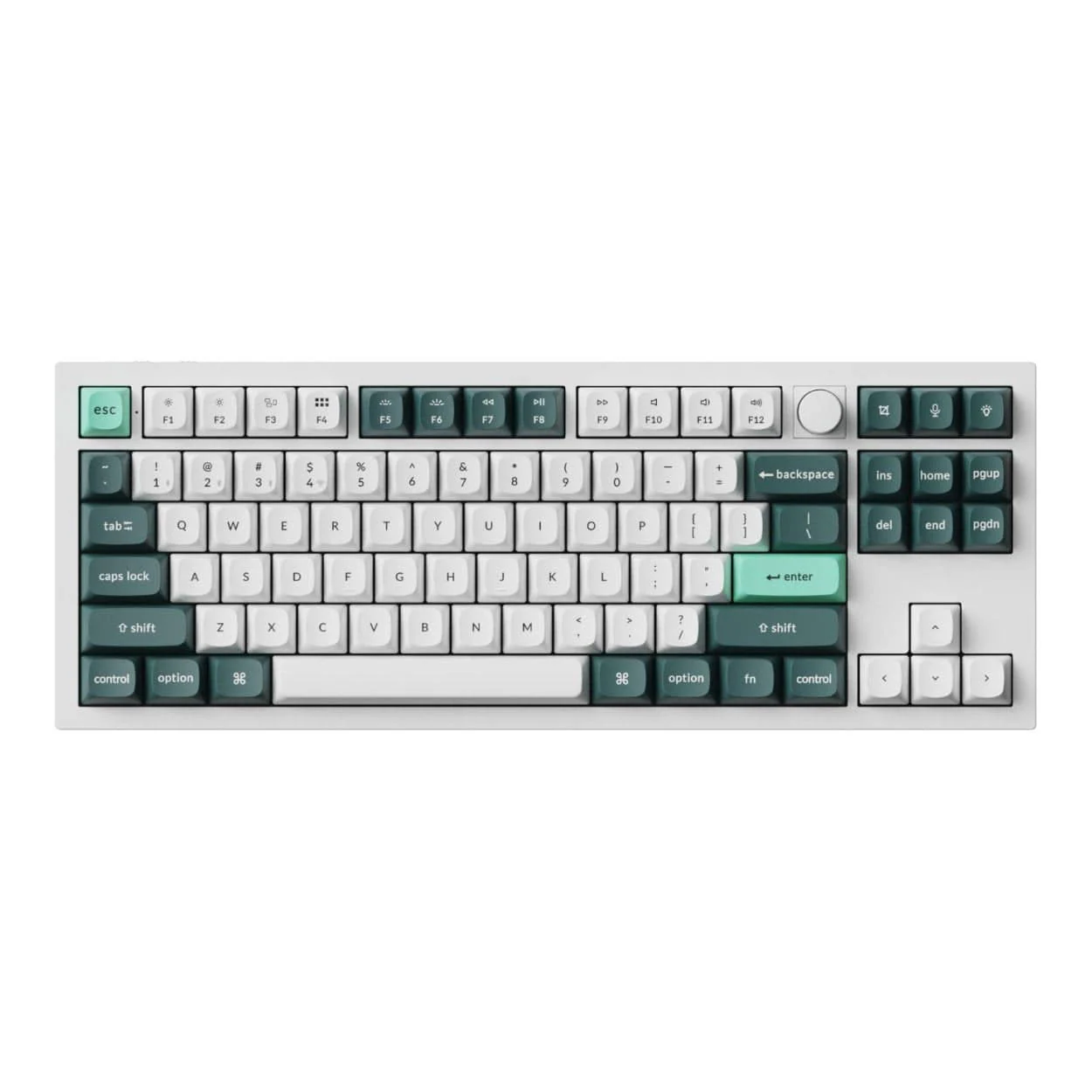

Keychron Q3 HE QMK Wireless Custom Mechanical Keyboard Shell White Q3H-P1

Keychron Q3 HE QMK Wireless Custom Mechanical Keyboard Shell White Q3H-P1

The Keychron Q3 HE QMK 80% Wireless Custom Mechanical Keyboard redefines premium mechanical keyboards with its robust aluminium full-metal body and gasket mount design, delivering exceptional durability and a refined typing feel. Its 80% compact layout strikes the perfect balance between functionality and space-saving efficiency, featuring fully programmable keys for maximum productivity. Equipped with OSA PBT keycaps, the Q3 HE ensures a comfortable, long-lasting typing experience that resists shine and wear, making it ideal for both work and gaming.

Hot-swappable double-rail magnetic NEBULA switches allow users to fine-tune their typing experience with adjustable actuation points from 0.2mm to 3.8mm. Rapid Trigger and Dynamic Keystroke (4-in-1 action keys) technology ensure ultra-sensitive, responsive, and precise keystrokes. N-Key Rollover (NKRO) in both wired and wireless modes guarantees flawless performance under pressure.

Connectivity options include USB Type-C wired, 2.4GHz wireless, and Bluetooth 5.2, with support for up to three paired devices. The 1000Hz polling rate (wired & 2.4GHz) and 90Hz polling rate (Bluetooth) ensure ultra-low latency for competitive gaming and multitasking. Powered by a 4000mAh rechargeable battery, the Q3 HE delivers up to 100 hours of use with backlighting off.

With 22 RGB backlight modes and south-facing LEDs, the Q3 HE provides vibrant, customizable illumination to complement any setup. Compatible with Mac and Windows and featuring screw-in PCB stabilizers, this keyboard is perfect for gamers, professionals, and creators seeking premium build quality, advanced functionality, and ultimate flexibility.

• 80% compact layout with fully programmable keys
• Gasket mount design with full-metal aluminium body
• Triple-mode connectivity: 2.4GHz wireless, Bluetooth, and USB Type-C wired

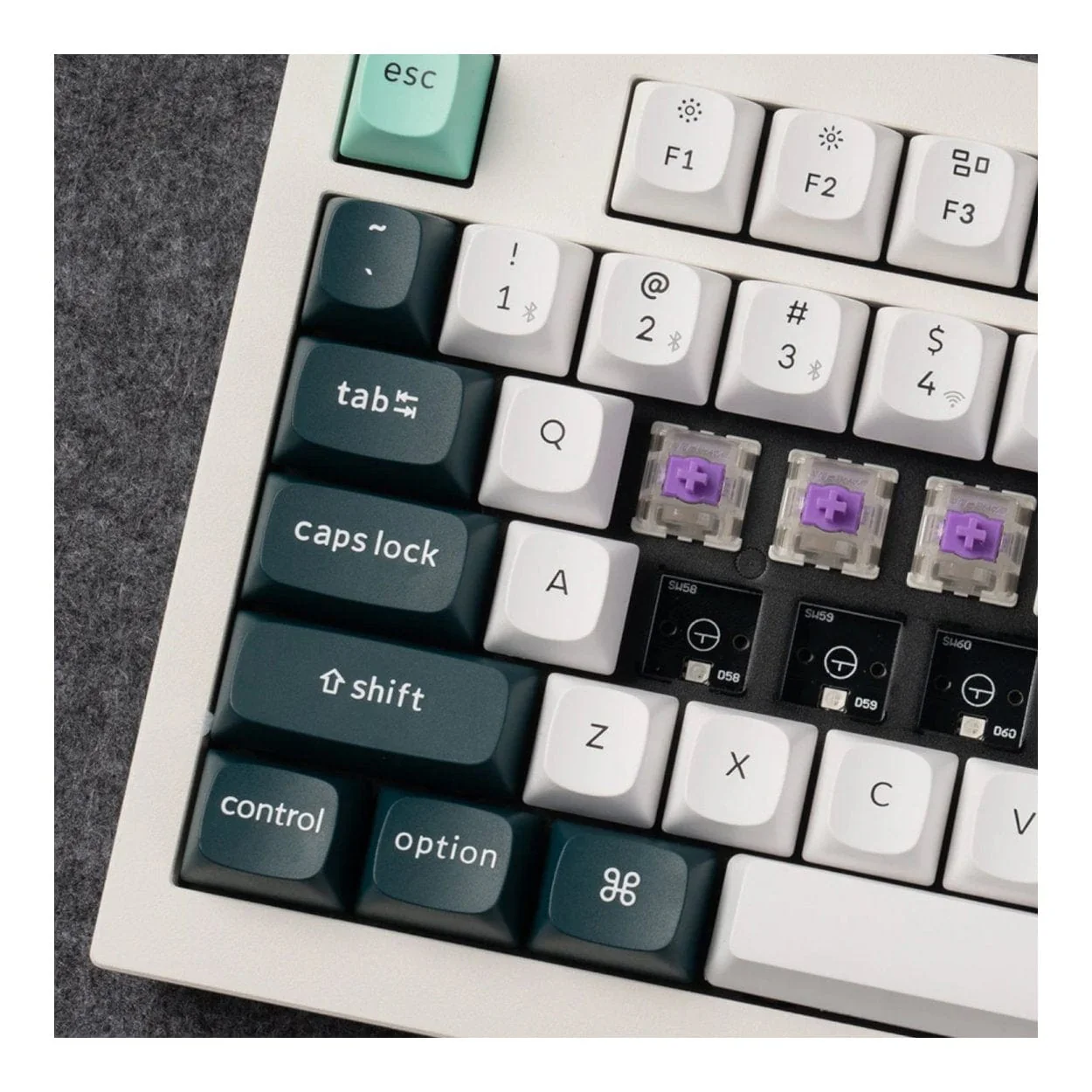

• Hot-swappable double-rail magnetic NEBULA switches
• OSA PBT keycaps for durability and comfort
• Adjustable actuation points for tailored typing
• Mac and Windows compatible

Specifications
Body Material: Aluminium
Plate Material: Aluminium
Polling Rate: 1000Hz (Wired & 2.4GHz) / 90Hz (Bluetooth)
N-Key Rollover (NKRO): Yes (Wireless & Wired)
Rapid Trigger: Yes
Adjustable Actuation Points: 0.2 – 3.8 mm
Dynamic Keystrokes: 4-in-1 action keys
Sensitivity: 0.1 mm
Keycap: OSA Double-shot keycaps, not shine-through
MCU: ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight: 22 RGB backlight modes, south-facing LED
Switch: Gateron double-rail magnetic NEBULA
Hot-swappable Support: Yes, compatible with Gateron double-rail magnetic switch only
Stabilizer: Screw-in PCB stabilizer
Cable: Type-C cable (1.8 m) + Type-A to Type-C adapter
Connectivity: 2.4GHz / Bluetooth / Type-C wired
Bluetooth Version: 5.2
Bluetooth Device Name: Keychron Q3 HE
Battery: 4000mAh rechargeable Li-polymer
Operating Environment: -10℃ to 50℃
Wireless Working Time (Backlit off): Up to 100 hours
Product Dimensions: 36.5 × 13.7 × 3.5 cm (without keycaps)
Product Weight: 1775g ±10g

What’s in the Box

• 1 × Keychron Q3 HE QMK 80% Wireless Custom Mechanical Keyboard (Nebula Switch) – Shell White
• 1 × USB Type-C Cable
• 1 × USB Type-A to Type-C Adapter
• 1 × Extension Adapter for Receiver
• 1 × USB Type-A 2.4GHz Receiver
• 1 × Keycap and Switch Puller
• 1 × Screwdriver
• 1 × Hex Key
