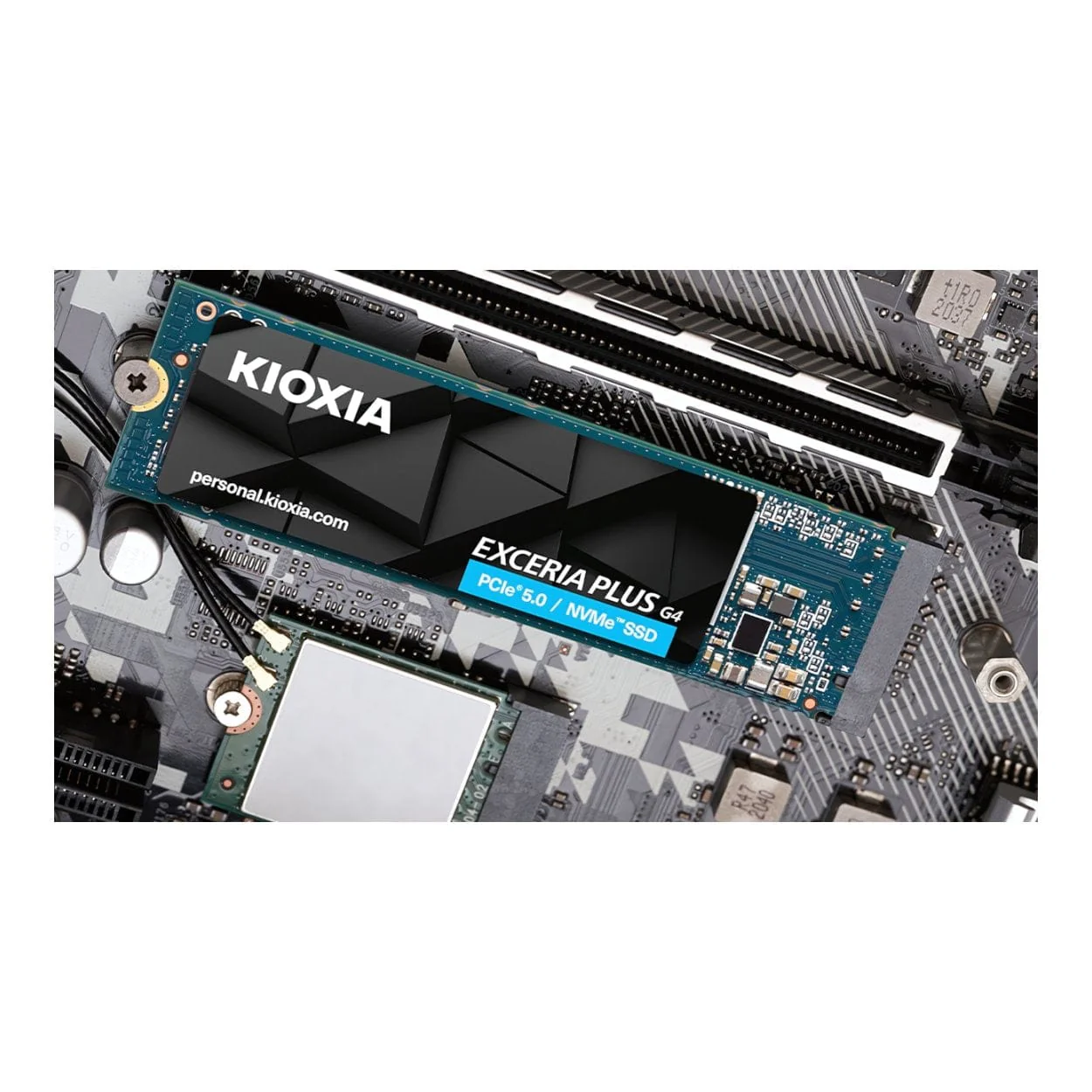

Kioxia LVD10Z002TG8 2TB M.2 PCIe 5.0 NVMe BiCS TLC Internal SSD LVD10Z002TG8
Get an enhanced PC experience with the all-new KIOXIA EXCERIA PLUS G4 SSD series featuring a state-of-the-art PCIe® 5.0 interface. Offering improved performance and up to 2TB of capacity for gamers and video editors, the EXCERIA PLUS G4 series delivers low power consumption and reduced heat generation.
Technical Specifications:
Product Description: KIOXIA Exceria Plus G4 Series LVD10Z002TG8 – SSD – 2 TB – PCI Express 5.0 x4 (NVMe)
Type: Solid state drive – internal
Capacity: 2 TB
NAND Flash Memory Type: 3D triple-level cell (TLC)
Form Factor: M.2 2280
Interface: PCI Express 5.0 x4 (NVMe)
Features: 3D BiCS Flash, Host Memory Buffer (HMB), Idle Time Garbage Collection, TRIM support, NVMe 2.0
Dimensions (W × D × H): 22.15 × 80.15 × 2.38 mm
Weight: 5.7 g
Manufacturer Warranty: 5-year warranty
Performance
SSD Endurance: 1200 TB
Internal Data Rate: 10,000 MBps (read) / 8,200 MBps (write)
4KB Random Read: 1,300,000 IOPS
4KB Random Write: 1,400,000 IOPS
Reliability
MTBF: 1,500,000 hours
Expansion & Connectivity
Interfaces: 1 × PCI Express 5.0 x4 (NVMe) – M.2 M key
Compatible Bay: M.2 2280
Power
Power Consumption: 5.3 W (active), 5 mW (idle)
Miscellaneous
Compliant Standards: ROHS Directive 2011/65/EU
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 85 °C
Min Storage Temperature: -40 °C
Max Storage Temperature: 85 °C
Shock Tolerance (operating): 1000 g @ 0.5 ms half-sine wave
Vibration Tolerance (operating): 20 g @ 20–2000 Hz
