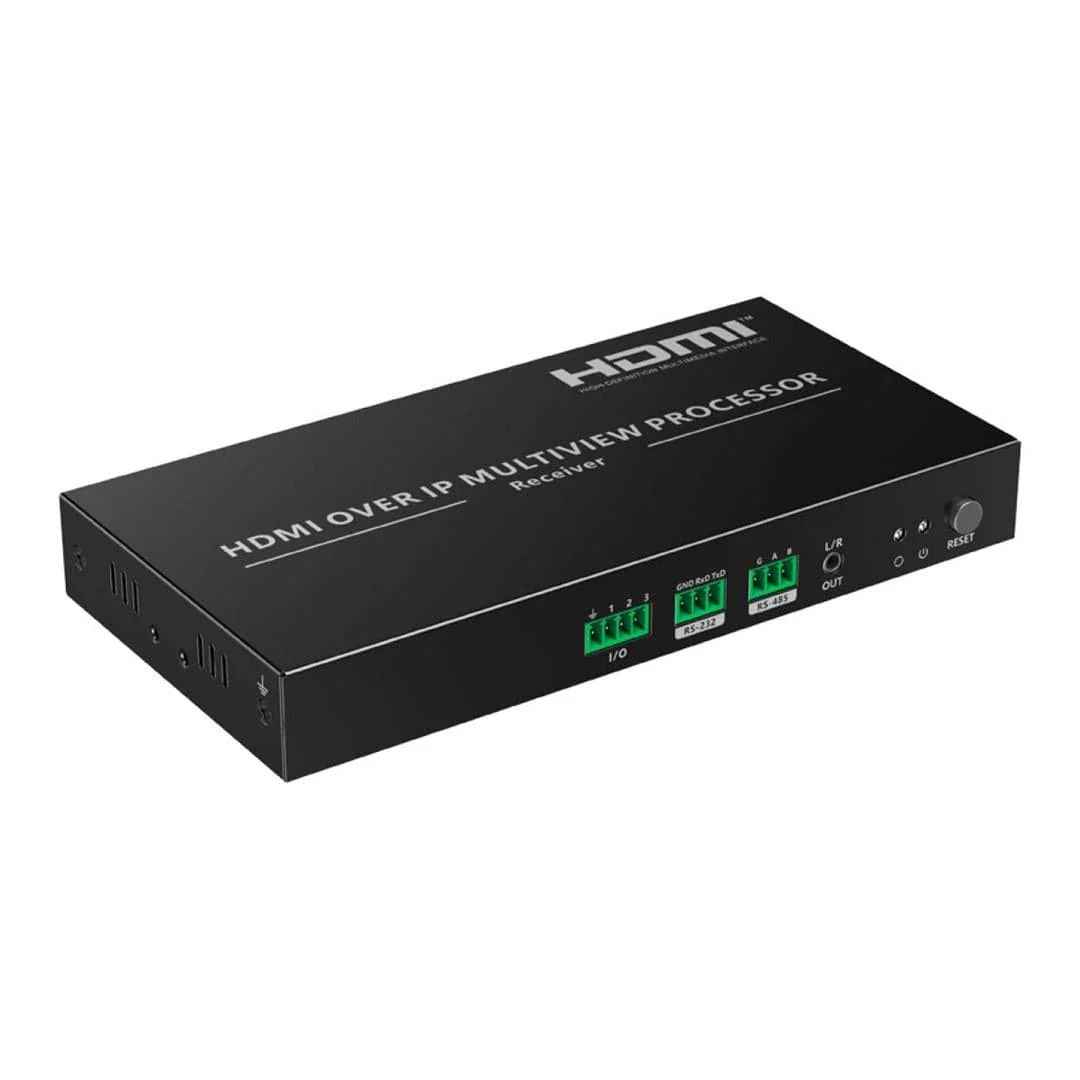

Lenkeng iMCS-RX-Multiview | 4K @60Hz HDMI over 1G IP Multiview Processor with PoE

This HDMI multiview processor is designed for ipcolor Multimedia Control System (iMCS). When using this product, it needs to be paired with the iMCS series products. After connecting to the iMCS Transmitter through an IGMP switch, it can simultaneously receive and process multiple AV signals. Allowing remote control of multiple 4K @60Hz video displays via the iMCS control APP. Utilising ipcolor STREAM technology to achieve high-definition, low-latency transmission, while supporting other functions such as RS232 control, RS485 control, I/O control and digital audio separation.

Features:

• Built on ipcolor STREAM technology to deliver high-definition and low-latency transmission
• Supports up to 3840×2160 @60Hz resolution.
• Compatible with Cat5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m. The actual distance may vary slightly due to different switch performances.
• Supports switch cascading.
• Supports RS232 / RS485 Control.
• Supports IR learning remote and control device by APP (20~60KHz).
• Supports I/O interface control.
• Supports POE (Power over Ethernet).
• Supports 3.5mm L/R channel audio separation.
• After connecting to the iMCS over IP matrix, it supports receiving and processing multiple signals simultaneously. Paired with the iMCS APP, allowing remote control of the screen display view, providing four-panel and nine-panel screen view, also allowing for the adjusting of the view size and position.
• Firmware upgrading

Specifications:

Input Interface: 1× RJ45

Output Interface: 1× HDMI

HDMI Length: ≤5m

Maximum Transfer Rate: 18Gbps

Compatibility: HDMI 2.0HDCP 1.4 / HDCP 2.2

Resolutions: 4096×2160 @24/30Hz, 3840×2160 @24/30/50/60Hz, 1080p @50/60Hz, 720p @50/60Hz, 1920×1200 @60Hz, 2560×1440 @60Hz

Connection Types: Regular Switch Connection, Switch Cascade

Transmission Distance: CAT6 / 6A / 7 ≤120m

Transmission Latency: 180~250ms

HDMI Output: LPCM 2.0

3.5mm Audio Input/Output Format: LPCM 2.0

IR Frequency: 20~60kHz
