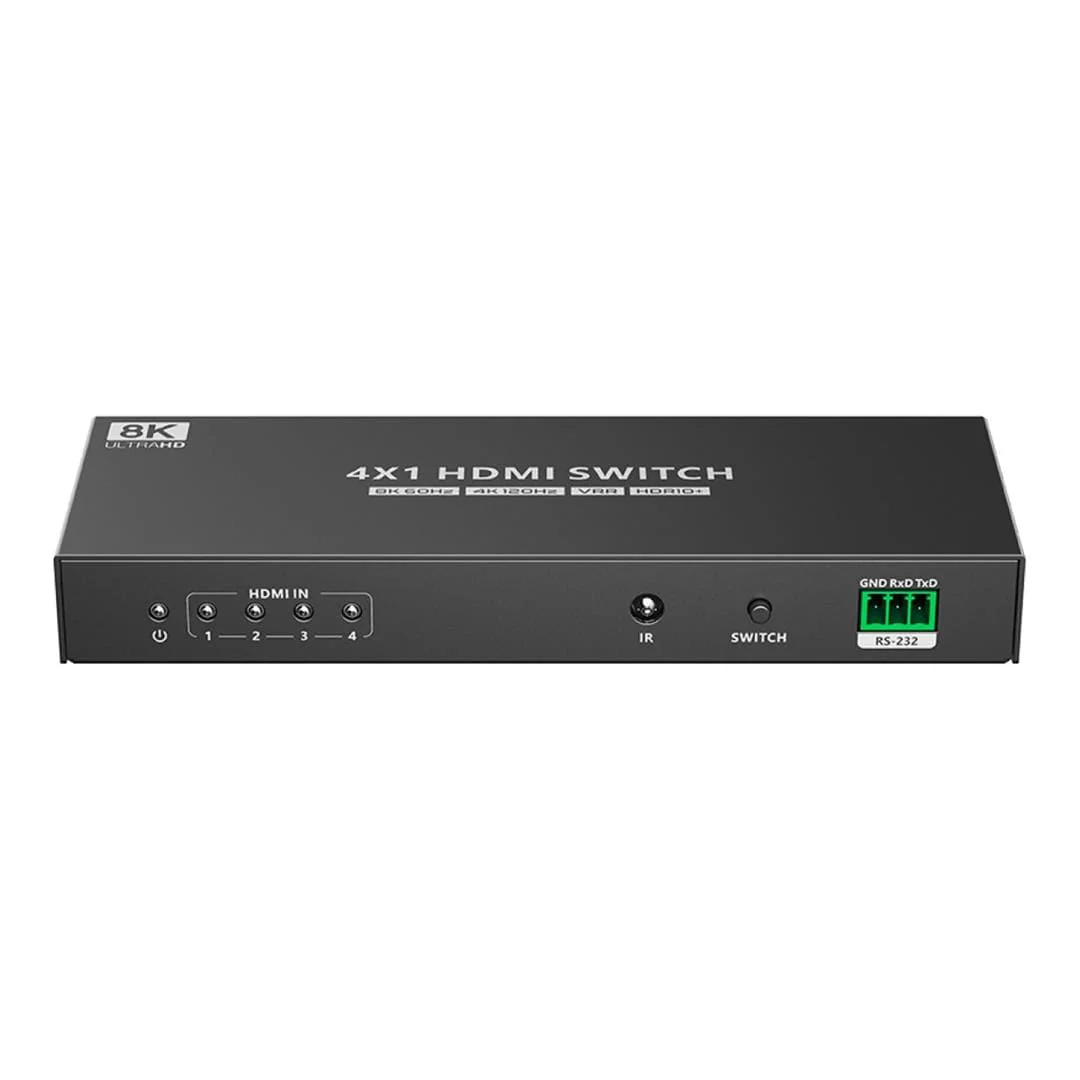

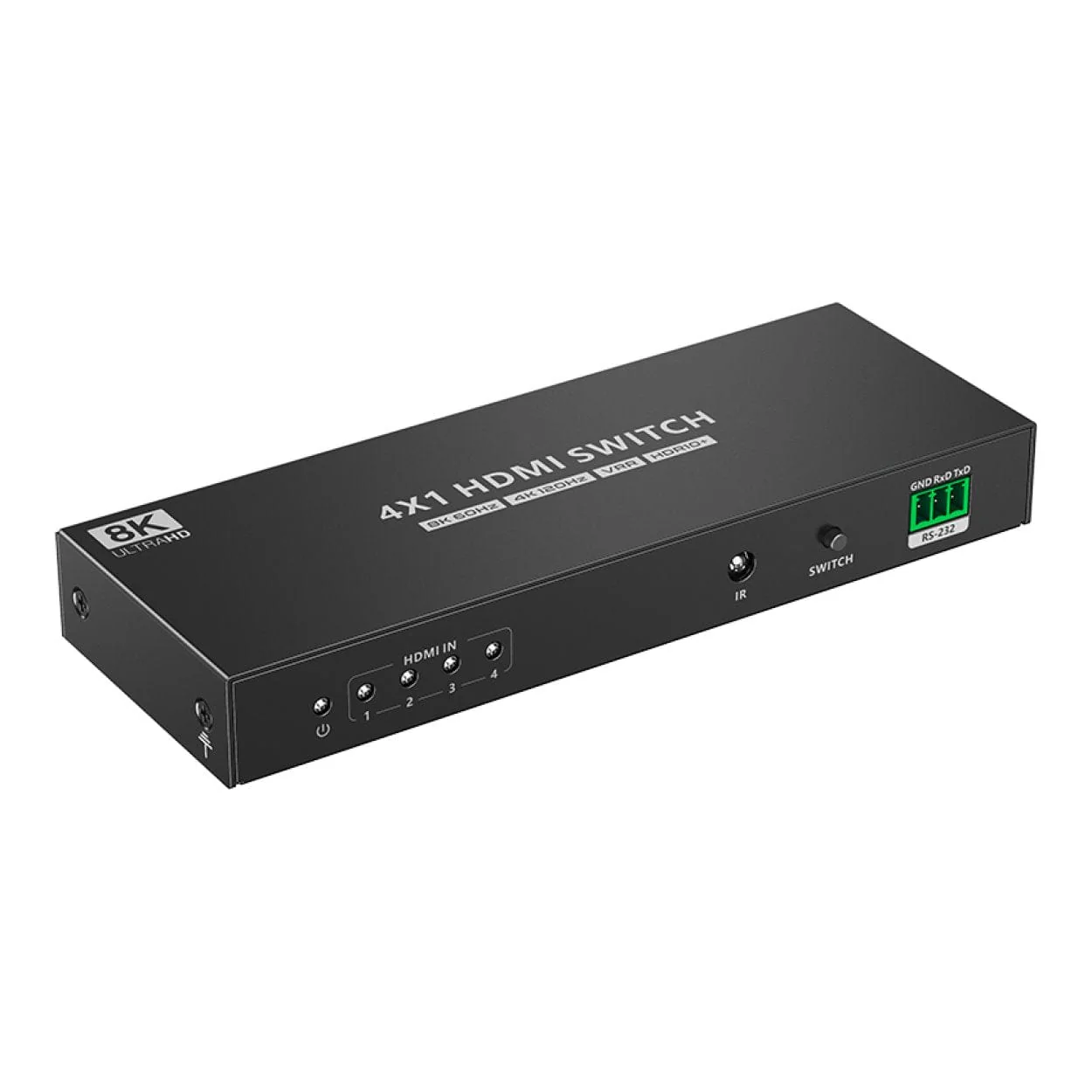

Lenkeng 4x1 8K@60Hz HDMI Switch LKV841

Lenkeng 4x1 8K@60Hz HDMI Switch LKV841

This is a 4-in-1-out 8K switch. It supports 4 HDMI signal inputs and 1 HDMI signal output, the highest resolution is 8K@60Hz and is backward compatible. A variety of control methods (IR remote control and RS-232 switch) can easily switch the content of the 4 HDMI signal sources to the display. The product is widely used in security monitoring, media entertainment, broadcasting, command centers, etc.

• Supports up to 4 HDMI input sources connected to 1 HDMI display
• Delivers ultra-high definition video up to 8K@60Hz
• Provides smooth and stable signal switching between connected devices
• High bandwidth capability for advanced video and audio formats
• Ideal for gaming consoles, media players, PCs, and AV receivers
• Compact design suitable for desktop or entertainment unit placement
• Simple operation for quick and convenient source selection

Specifications

HDMI Version: HDMI 2.1, backward compatible; HDCP 2.3, backward compatible

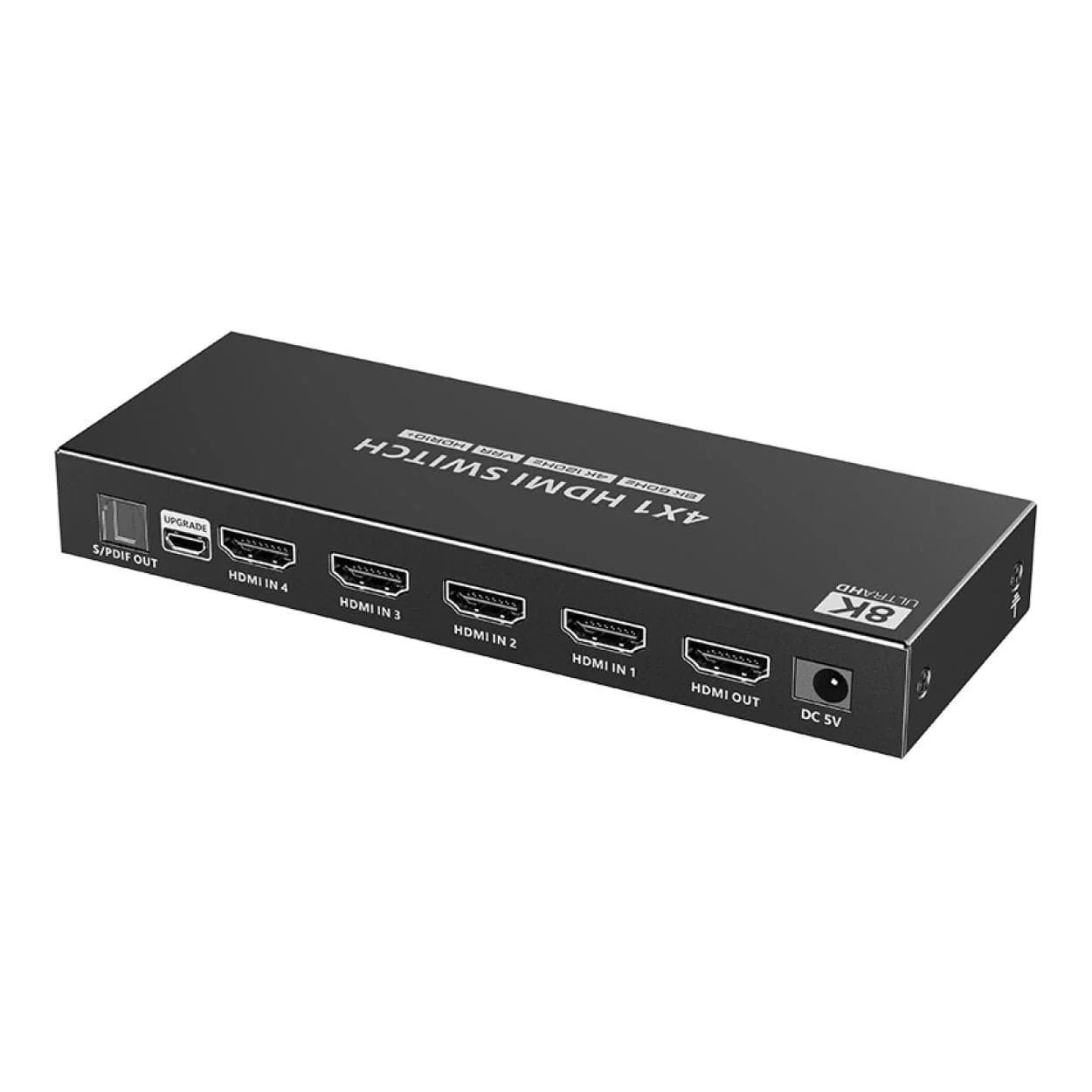

HDMI Port: 4 × HDMI input, 1 × HDMI output
Transmission Speed: 48Gbps
Video Bandwidth: 1200MHz
HDMI Resolution: 7680x4320@24/25/30/50/60Hz, 4096x2160@24/25/30/50/60/100/120Hz, 3840x2160@24/25/30/50/60/100/120Hz, 3440x1600@60Hz, 3440x1440@60Hz, 2560x1600@60Hz, 2560x1440@60/100/120Hz, 2560x1080@60Hz, 2048x1080@60Hz, 1920x1440@60/100/120Hz, 1080p@50/60/100/120Hz, 1080i@50/60Hz, 720p@50/60Hz
S/PDIF Output: Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD, etc.
HDMI Output Audio: Dolby Atmos, Dolby Digital 7.1CH, Dolby TrueHD, DTS:X, DTS-HD, LPCM 7.1CH, etc.
RS-232: 3-pin (GND / RxD / TxD), baud rate 9600
Voltage / Current: DC 5V / 1A
Power Consumption: < 2.0W
Working Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity (No Condensation): 0 ~ 90% RH
Housing: Iron
Colour: Black
Weight: 275g
Dimensions: 160.0(L) × 58.0(W) × 20.6(H) mm
Protection: ESD protection, Contact discharge level 2, Air discharge level 3, IEC61000-4-2 standard, Lightning protection, Surge protection

What's in the box

• HDMI 2.1 Switch Unit
• Power Adapter
• User Manual
