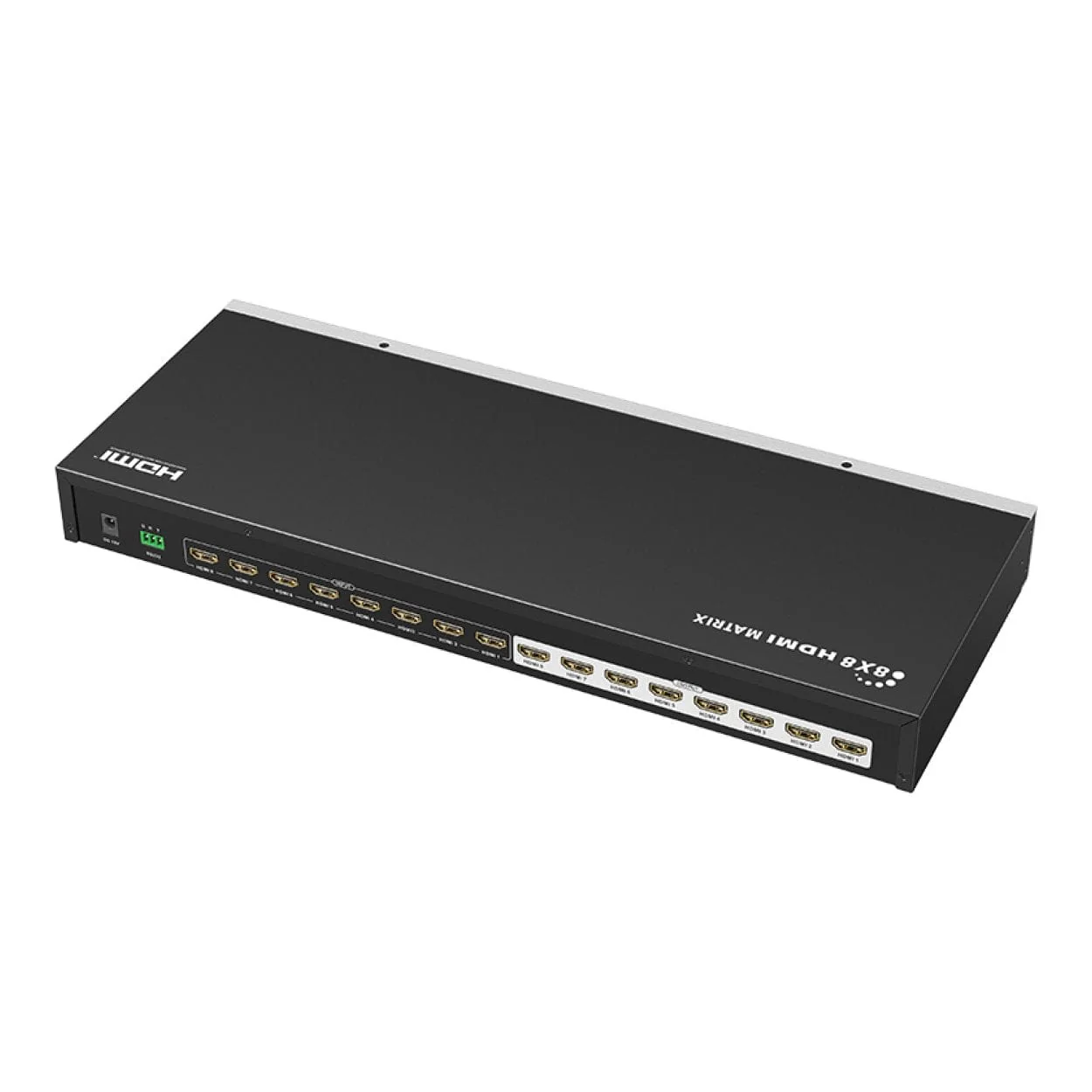

Lenkeng 8x8 HDMI Matrix Switch 4K@30Hz LKV818

Lenkeng 8x8 HDMI Matrix Switch 4K@30Hz LKV818

This product is a 8×8 HDMI Matrix Switch, with 8 HDMI inputs and 8 HDMI outputs. 8 HDMI inputs accommodate the simultaneous connection up to 8 high definition video sources, such as satellite systems and Blu-ray players. 8 HDMI outputs send the high definition audio/video signals to 8 HDTV displays. This Matrix Switch supports IR remote control and button control for switching inputs and outputs. This product is perfect for security system, digital monitoring system, school education system, exhibition center, multimedia conference, command system etc.

• Supports connection of up to 8 HDMI input sources and 8 HDMI output displays
• Any input can be routed to any output independently or simultaneously
• Supports 4K Ultra HD resolution at 30Hz for sharp, detailed video
• Delivers stable, high-bandwidth HDMI signal transmission
• Ideal for multi-display environments such as offices, schools, and AV installations
• Designed for continuous operation in professional setups
• Simple control for efficient source switching and display management

Specifications

HDMI Signal: HDMI 1.4, fully compatible with HDCP 1.4
Inputs: 8 HDMI
Outputs: 8 HDMI
Transmission Rate: 10.2Gbps
Supported Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@25/30Hz
Supported Audio Format: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, DSD
YUV: 4:2:2
Video Signal: 0.5 ~ 1.5Vp-p (TMDS)
DDC Signal: 5Vp-p (TTL)
Video Bandwidth: 340MHz
HDMI Port: Type A, 19-pin, female
RS232: RS232 serial control
Working Temperature: 0°C to 60°C
Working Humidity: 0°C  90% (no condensation)
Power Supply: DC 12V / 3A
Power Consumption: 27W (Max)
Product Dimensions: 482.45(L) × 179.60(W) × 44.40(H) mm
Weight: 2.07kg
Colour: Black

What's in the box

• 8x8 HDMI Matrix Switch
• Power Adapter
• User Manual
