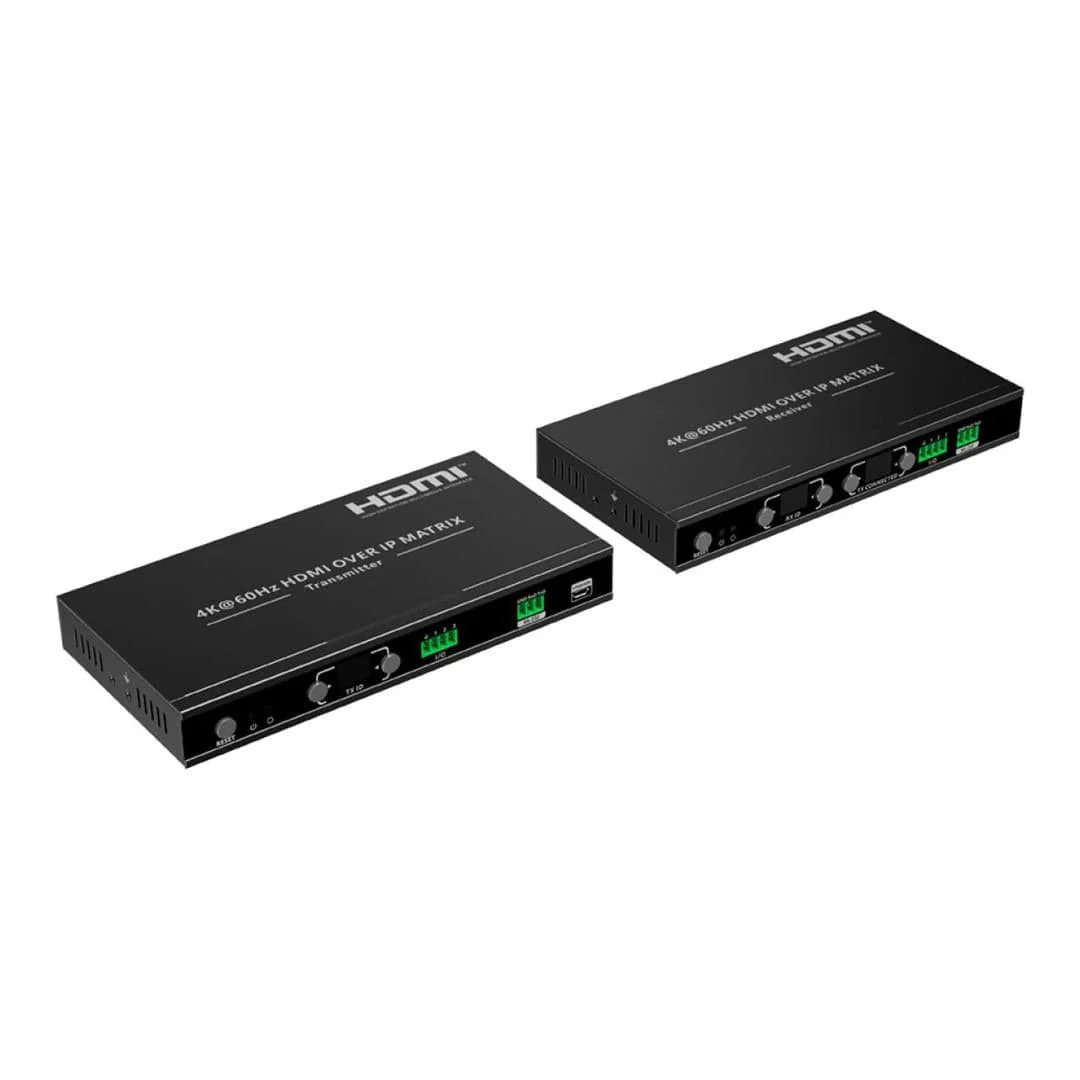

Lenkeng IMMS-IM02-TX 4K HDMI Extender Matrix Transmitter

Lenkeng IMMS-IM02-TX 4K HDMI Extender Matrix Transmitter

Lenkeng iMCS-IM02 | 4K @60Hz HDMI Extender Matrix with PoE

This 4K @60Hz HDMI Extender allows switching, extending and distributing audio and video signals via an IGMP switch. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission. The transmitter can extend 256× signal sources and switch to 256× receiving terminals. The HDMI signal can be extended up to 120m over CAT6 or higher-level network cable while supporting one-to-one connection and many-to-many connections. Equipped with HDMI loop-out, bi-directional IR passback, RS232 command control, I/O, POE, etc.

Features:

• Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission
• Supports up to 3840×2160 @60Hz resolution
• Compatible with Cat5e/6 or higher-level networking cables, transmission distance of CAT6 cable is 120m
• Supports one-to-one or many-to-many connections through a gigabit switch
• Supports RS232 passthrough and control
• The transmitter supports HDMI loop-out.
• Supports bi-directional IR pass-back (20~60KHz)
• Supports IR learning remote and control device by APP
• Supports I/O interface control
• Supports POE (Power over Ethernet)
• Creating multi-screen splicing with up to 5x5 (also includes 1x1 / 1x2 / 1x3 / 1x4 / 1x5 / 2x1 / 2x2 / 2x3 / 2x4 / 2x5 / 3x1 / 3x2 / 3x3 / 3x4 / 3x5 / 4x1 / 4x2 / 4x3 / 4x4 / 4x5 / 5x1 / 5x2 / 5x3 / 5x4 / 5x5) video wall through a switch and controlled by APP.
• Supports 256× signal source inputs and 256× signal outputs, providing a flexible many-to-many matrix configuration (Requires APP control operation while connecting more than 100 TX-to-RXs)
• Firmware upgrading via Micro USB port
• Lightning, surge and ESD protection
• Stable 24/7 operation
