Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO
HomeStore

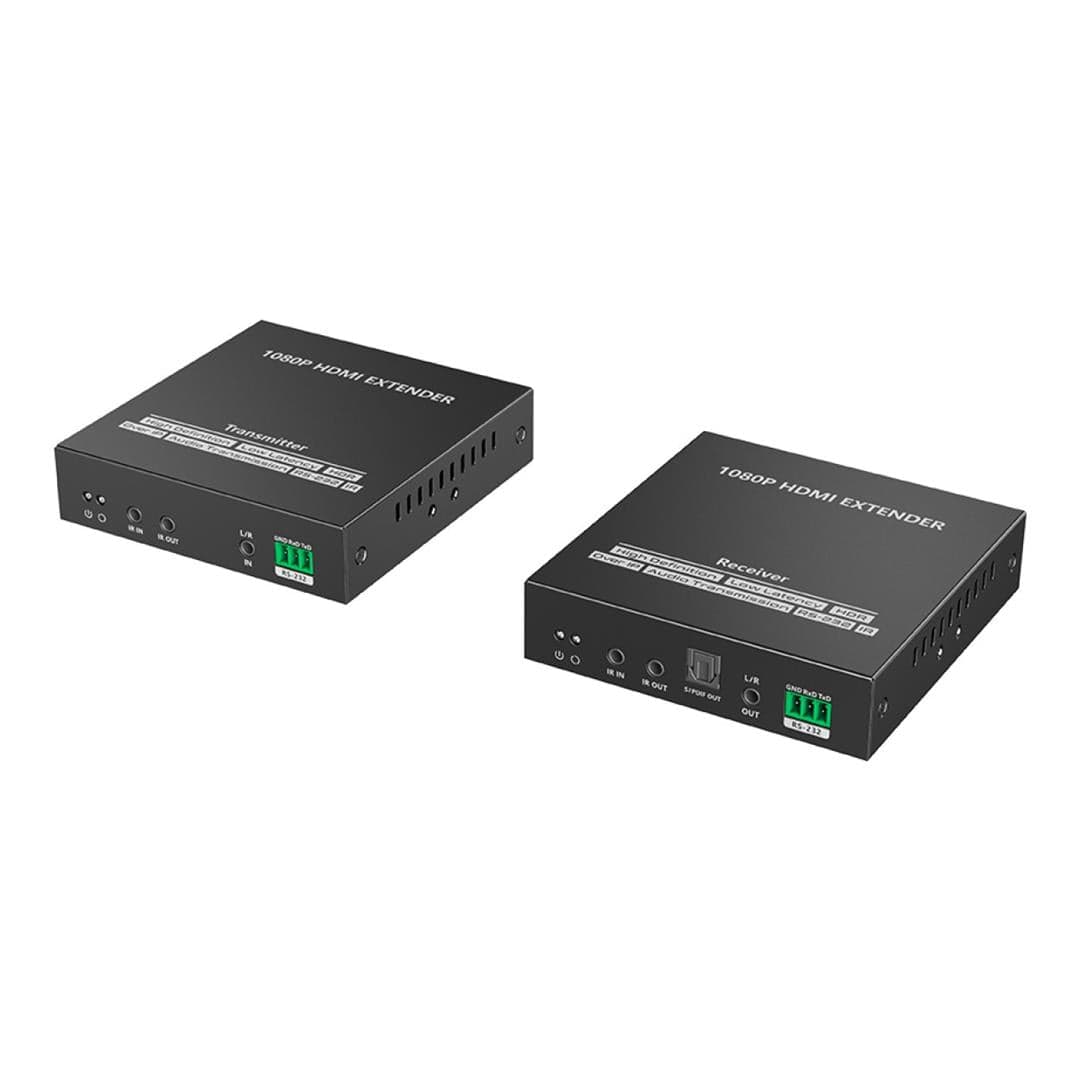

Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO

Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO

$55.17

Original: $183.90

-70%
Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO—

$183.90

$55.17

The Story

Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO

This is an HDMI™ over IP extender kit, including a transmitter and a receiver. With this device, HDMI™ signals can be transmitted uncompressed and lowlatency over Cat6/6A/7 cable at 1080p@60Hz resolution. The transmission distance is up to 150 meters. This HDMI™ extender kit has features including HDMI™ loop out, bi-directional IR passthrough, RS-232 passthrough, and audio extraction through S/PDIF output on the receiver. It supports pointto- point connection or one-to-many connection through gigabit switch, and cascading of switches is also supported. This extender kit is a reliable video transmission and distribution solution which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre and other fields.

Specifications

HDMI cable: ≤5m
Compatibility: HDMI 1.4 (HDR10)， HDCP 1.4
Resolutions: 1080p@24/25/30/50/60Hz, 720p@50/60Hz, 1024x768@ 60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60H, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480P@60Hz, 576P@ 50Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x768@60Hz
Connection types: One-to-one connection One-to-many connection Switch cascading
Transmission distance: CAT6/6A/7≤150m
Transmission latency: 16ms-33ms
HDMI out: DTS-Audio/Dolby Digital 5.1/LPCM2.0
S/PDIF out: LPCM 2.0/DTS-Audio/5.1/Dolby Digital 5.1
3.5mm L/R output: PCM2.0
Audio sampling rate: 32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz
Audio bit depth: 16bit, 24bit
IR receiving range: ≤5m
IR frequency: 20kHz~60kHz

Protection

  • ESD protection
  • 1a Contact discharge level 2 (±4KV)
  • 1b Air discharge level 3 (±8KV)
  • Implementation of the standard: IEC61000-4-2
  • Lightning protection, surge protection

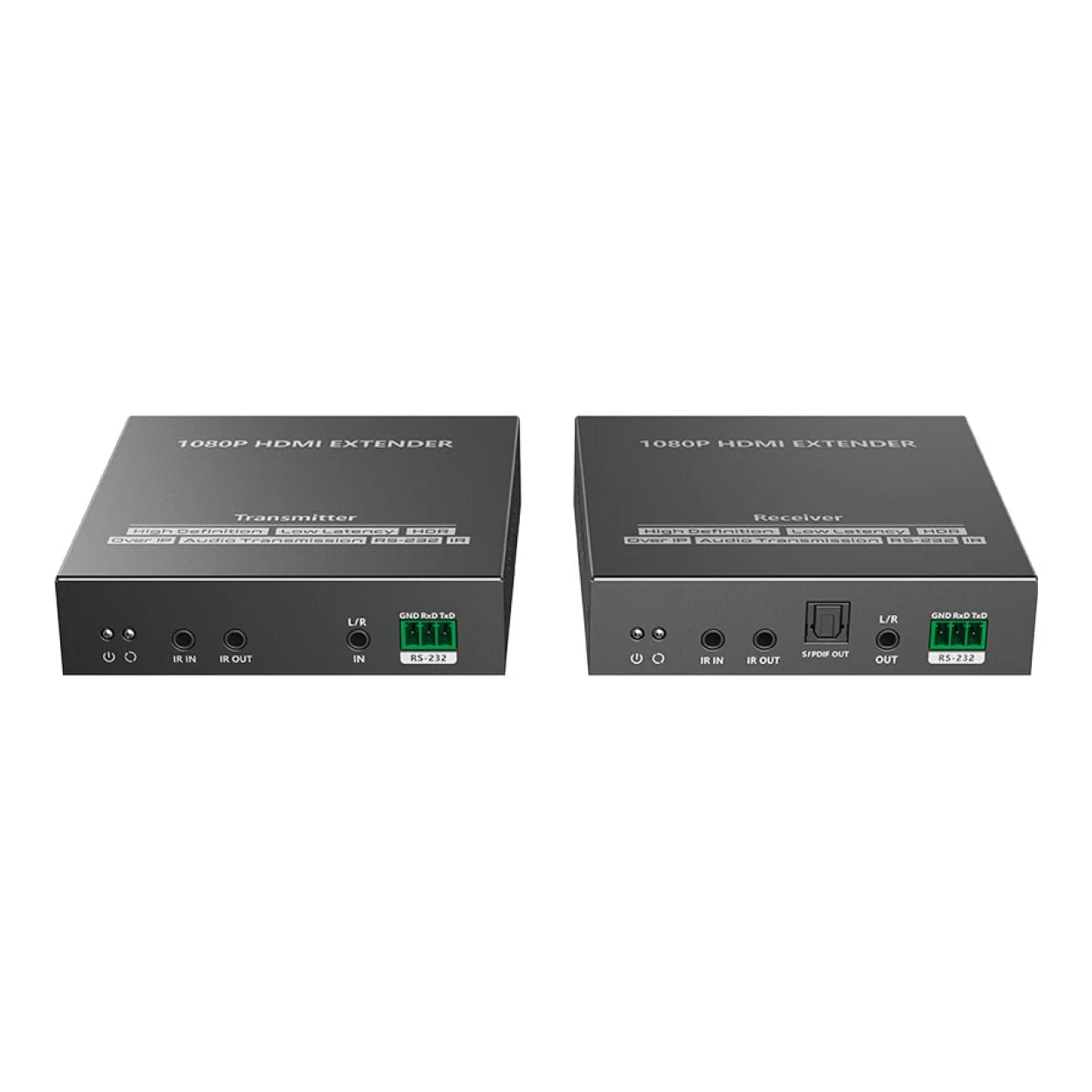

Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

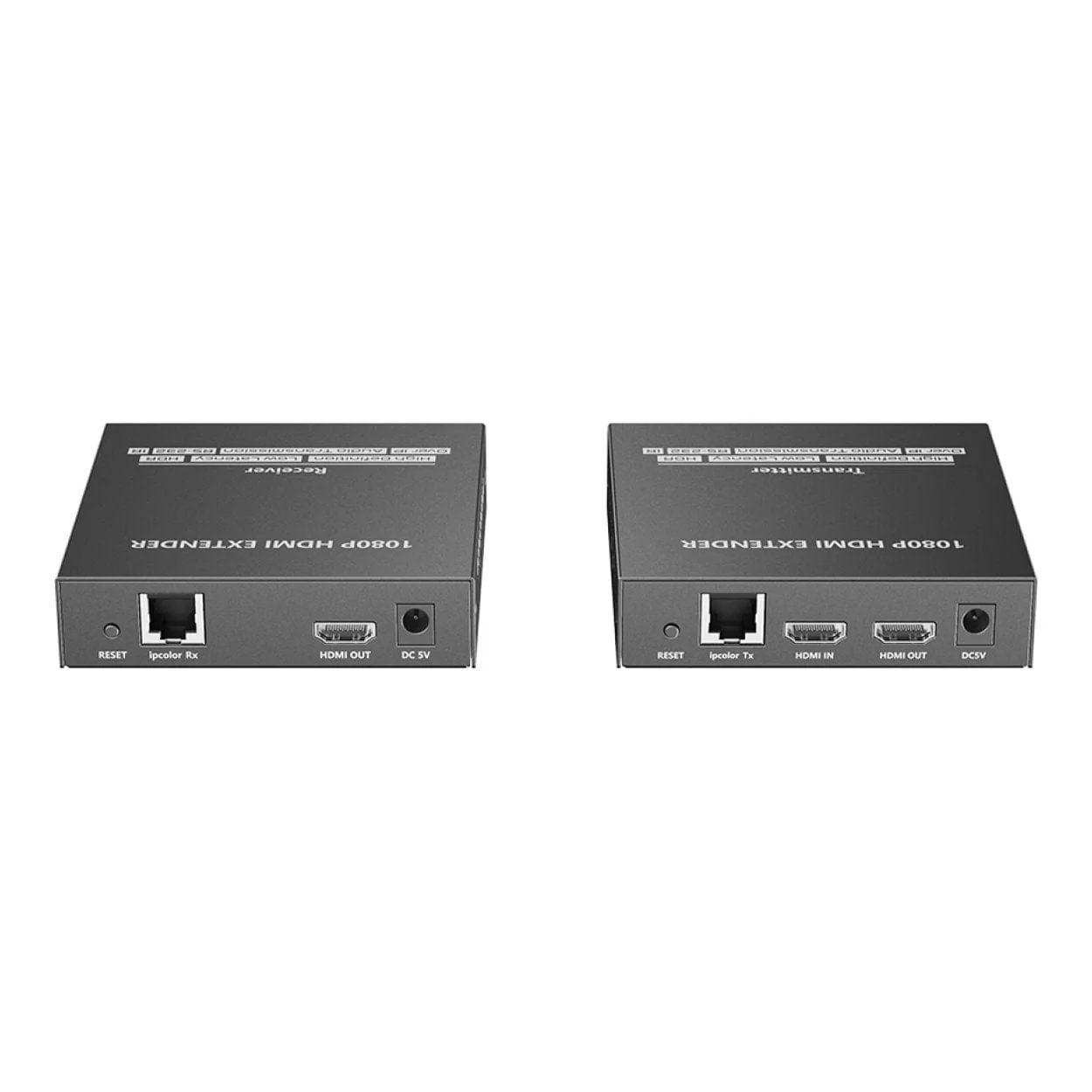

Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Lenkeng Uncompressed HDMI IP Extender 150m LKV562PRO

This is an HDMI™ over IP extender kit, including a transmitter and a receiver. With this device, HDMI™ signals can be transmitted uncompressed and lowlatency over Cat6/6A/7 cable at 1080p@60Hz resolution. The transmission distance is up to 150 meters. This HDMI™ extender kit has features including HDMI™ loop out, bi-directional IR passthrough, RS-232 passthrough, and audio extraction through S/PDIF output on the receiver. It supports pointto- point connection or one-to-many connection through gigabit switch, and cascading of switches is also supported. This extender kit is a reliable video transmission and distribution solution which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre and other fields.

Specifications

HDMI cable: ≤5m
Compatibility: HDMI 1.4 (HDR10)， HDCP 1.4
Resolutions: 1080p@24/25/30/50/60Hz, 720p@50/60Hz, 1024x768@ 60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60H, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 480P@60Hz, 576P@ 50Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x768@60Hz
Connection types: One-to-one connection One-to-many connection Switch cascading
Transmission distance: CAT6/6A/7≤150m
Transmission latency: 16ms-33ms
HDMI out: DTS-Audio/Dolby Digital 5.1/LPCM2.0
S/PDIF out: LPCM 2.0/DTS-Audio/5.1/Dolby Digital 5.1
3.5mm L/R output: PCM2.0
Audio sampling rate: 32kHz, 44.1kHz, 48kHz, 88kHz, 96kHz, 176kHz, 192kHz
Audio bit depth: 16bit, 24bit
IR receiving range: ≤5m
IR frequency: 20kHz~60kHz

Protection

  • ESD protection
  • 1a Contact discharge level 2 (±4KV)
  • 1b Air discharge level 3 (±8KV)
  • Implementation of the standard: IEC61000-4-2
  • Lightning protection, surge protection
