Lenovo ThinkSmart Core Gen 2 Conferencing System for Microsoft Team Rooms 12X2S00012

Lenovo ThinkSmart Core Gen 2 Conferencing System for Microsoft Team Rooms 12X2S00012

Note: some configurations are only available on selected models and may not be available in all regions

EXPERIENCE AN AI-OPTIMIZED CONFERENCE ROOM SYSTEM

Improve Your Teams Meeting Spaces

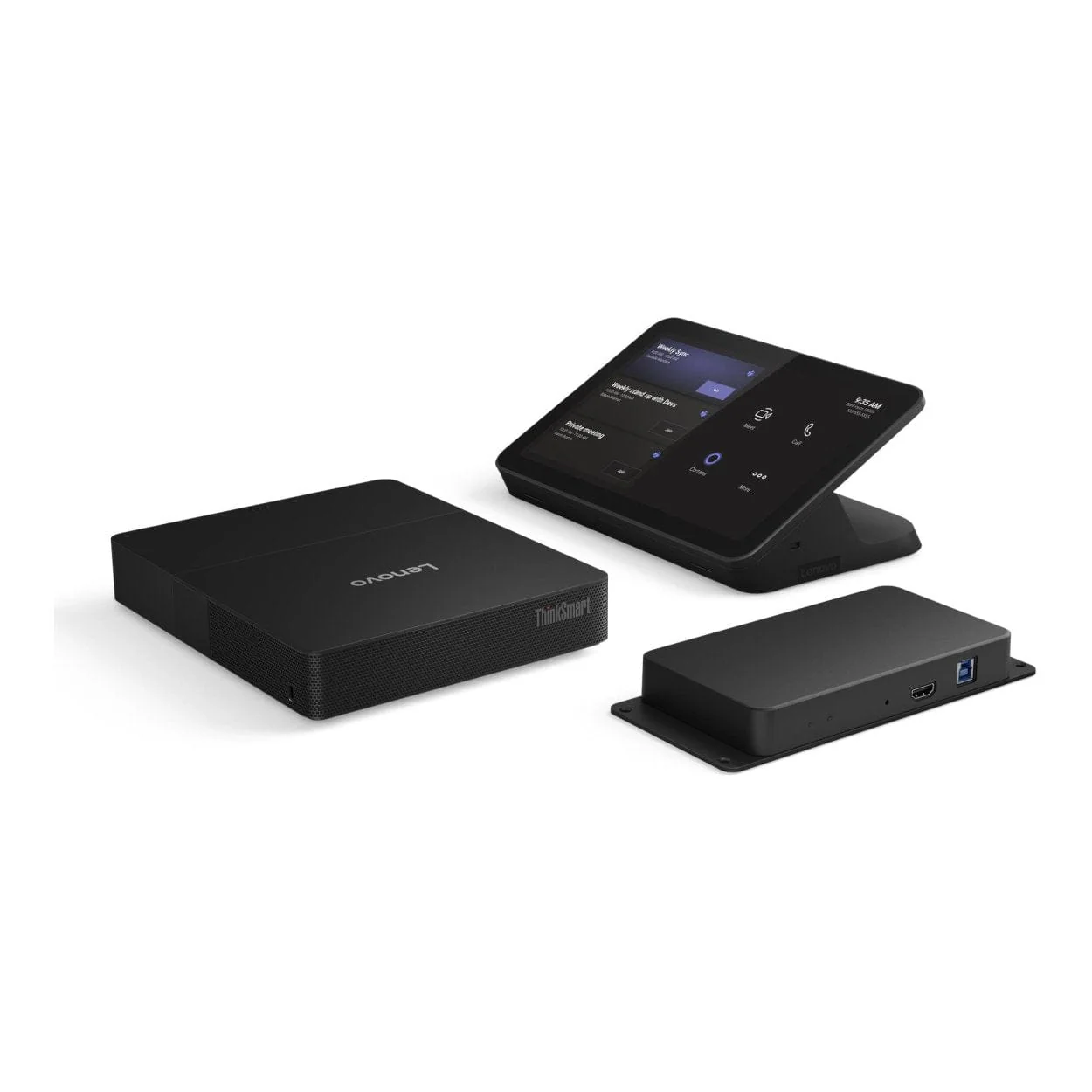

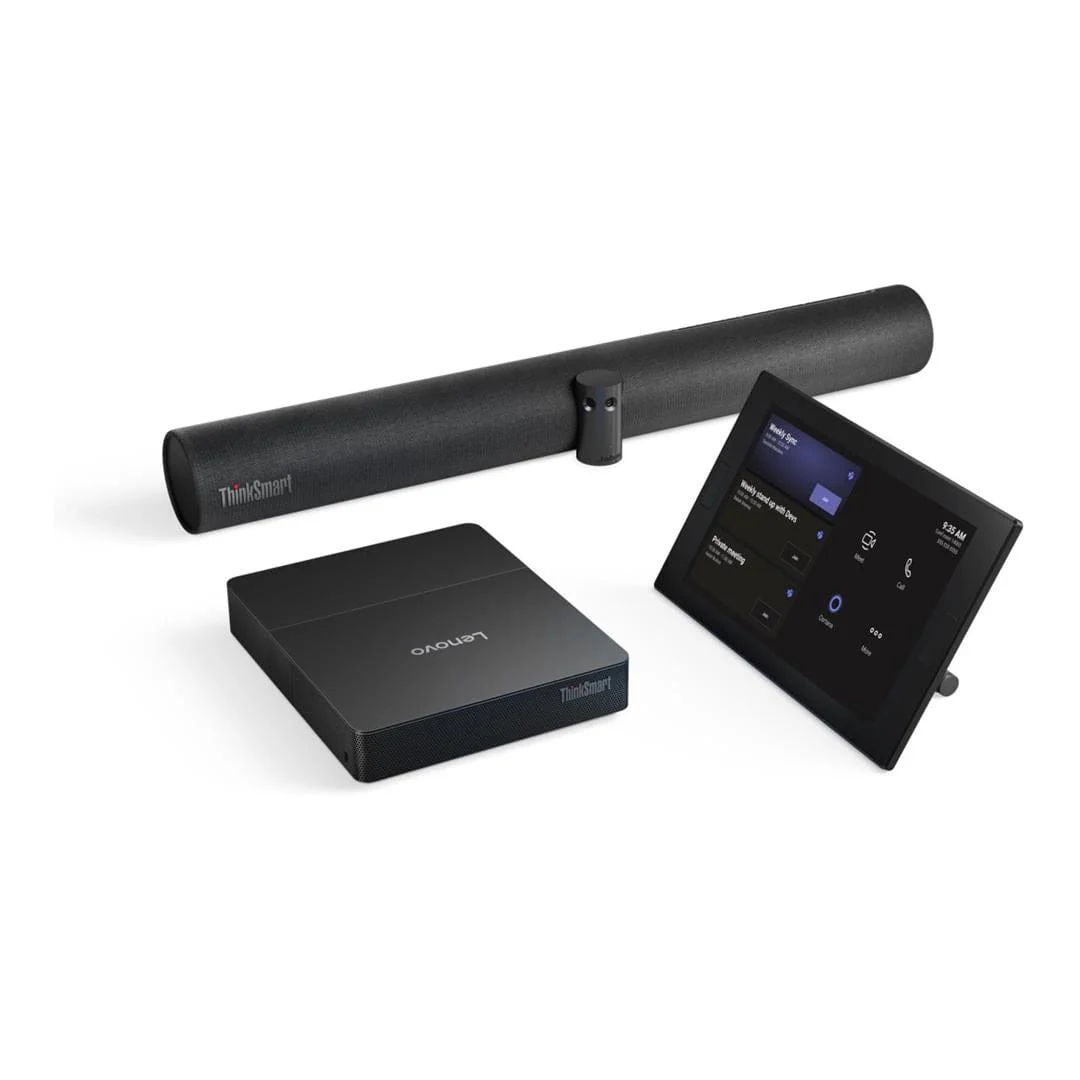

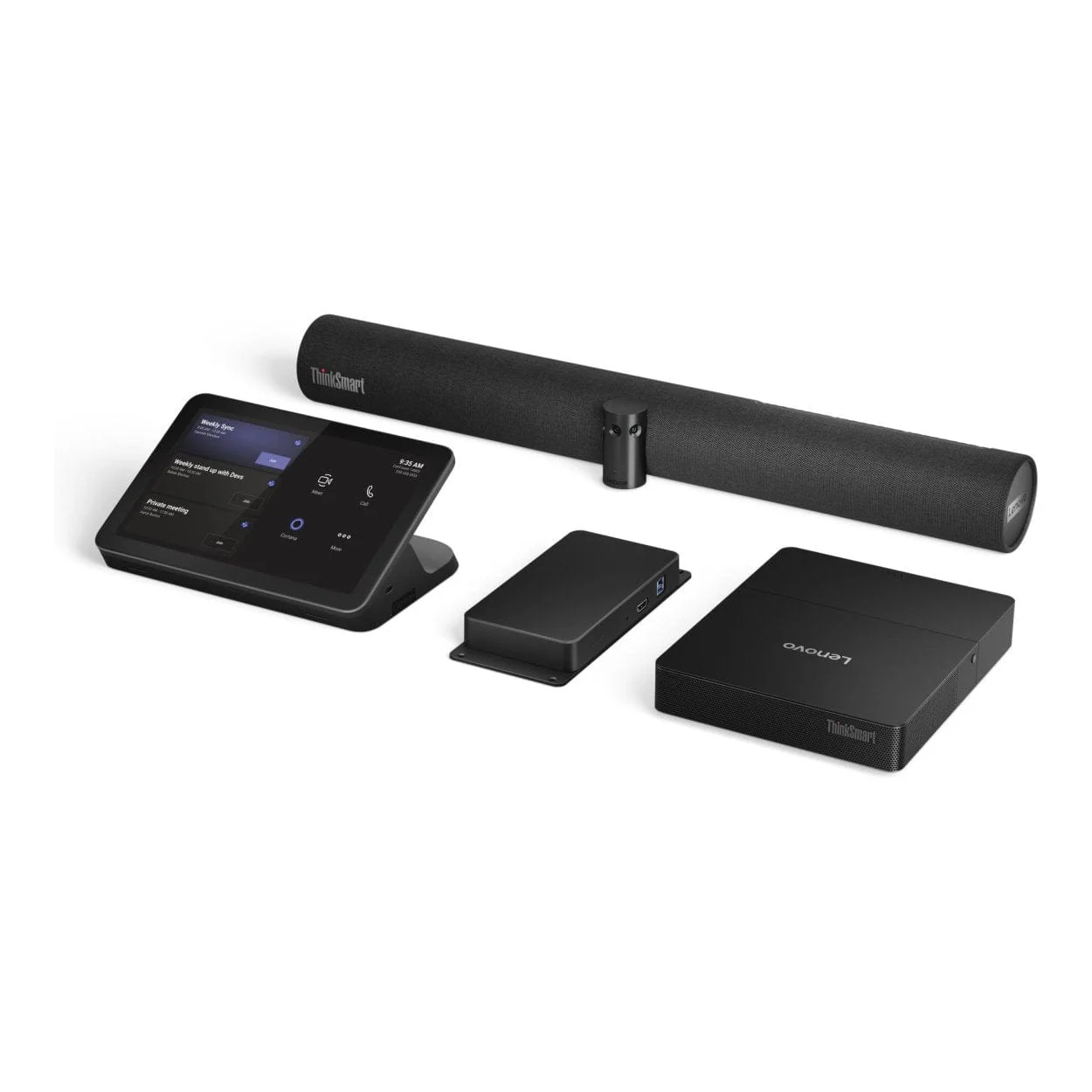

The ThinkSmart Core Gen 2 Full Room Kit for Microsoft Teams is ideal for your medium room spaces. The kit includes the ThinkSmart Core Gen 2 compute device, the ThinkSmart Controller with a 10-point touchscreen, and the ThinkSmart Bar 180 soundbar. Plus, it’s powered by an Intel^® Core™ Ultra 5 processor, delivering reliable performance, AI-based productivity features, and seamless collaboration.

Features:

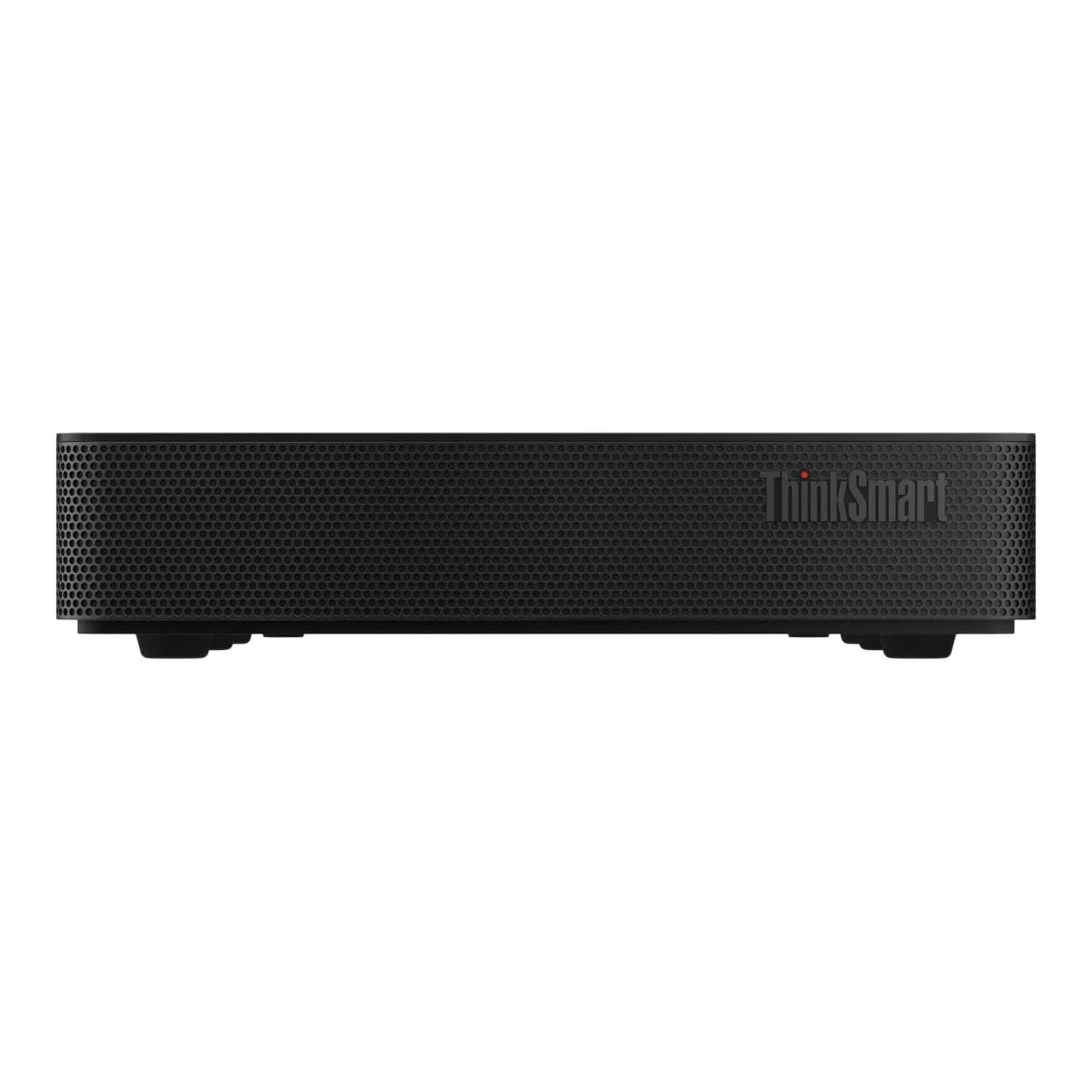

• Innovative ThinkSmart Core Gen 2 compute system for efficient & effective Microsoft Teams meetings
• Enterprise-level performance & security with Intel® Core™ Ultra 5 processor on Intel vPro^®
• Ideal for medium meeting spaces & huddle rooms, for upgrades & initial setups

INITIATE & CONTROL THE MEETING EASILY

Revolutionize Video Conferencing in Medium Rooms

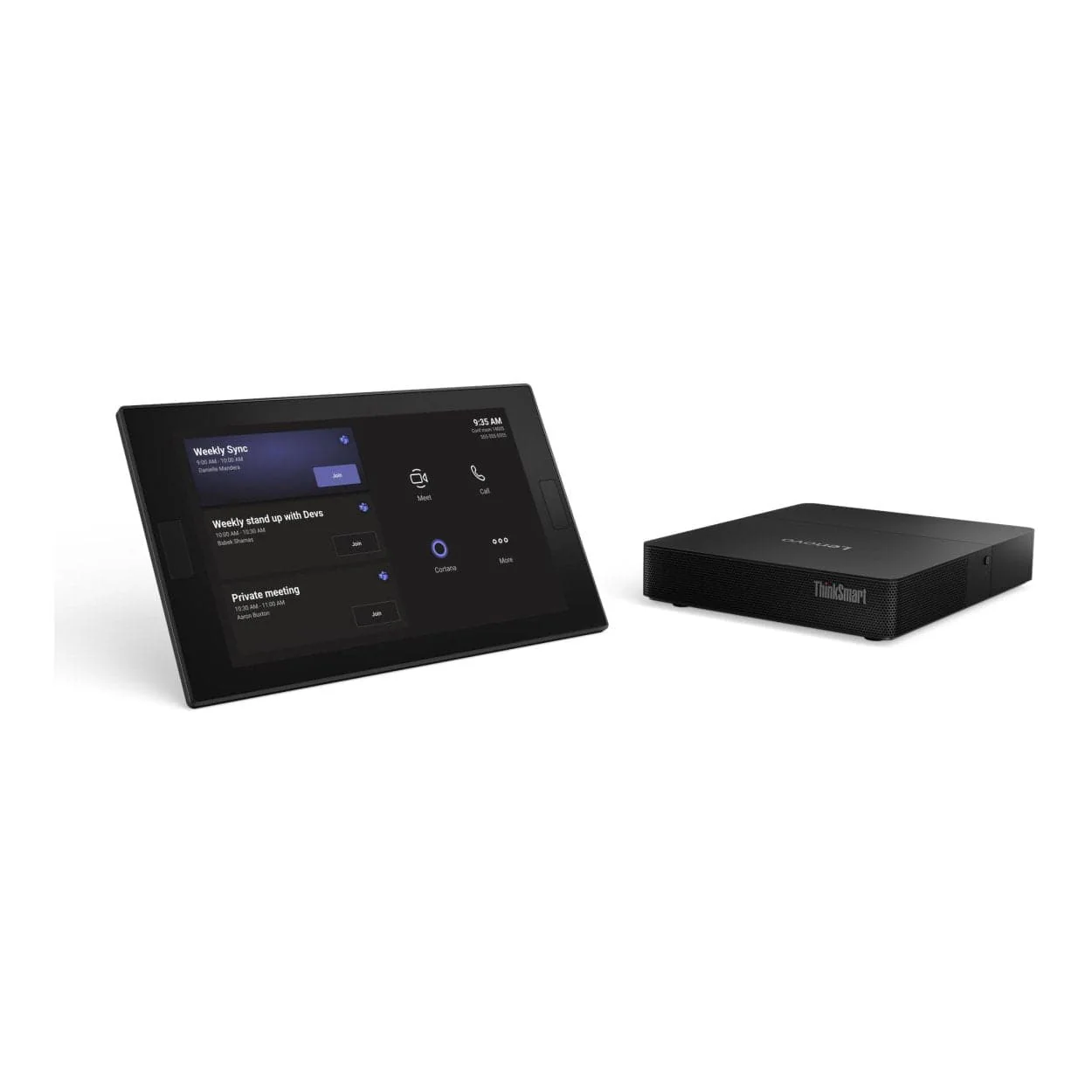

Take control of your meetings with the ThinkSmart Controller’s 10.1″ HD, antismudge touchscreen display. The familiar Microsoft Teams interface simplifies content sharing and collaboration with dual viewing angles for convenience. Additionally, the device includes USB-C^® connectivity and a headphone jack to make remote collaboration more effective.

AUDIO CLARITY LIKE NEVER BEFORE

Keep the Focus on the Meeting Speakers

The ThinkSmart Bar 180 boasts AI-enabled cameras and voice detectors, which automatically focus on people speaking. Experience immersive audio with noise cancellation and echo reduction — enjoy crystal-clear communication. Plus, real-time whiteboard streaming enhances remote teamwork and note-taking.

Technical Specifications:

Processor
Intel Core Ultra 5 135H Processor (E-Core Max 3.60 GHz, P-Core Max 4.60 GHz with Turbo Boost, 14 Cores, 18 Threads, 18 MB Cache)

Operating System
Windows 11 IoT Enterprise for Collaboration GAC

Graphics
Integrated Intel Arc graphics

Memory
16GB dual-channel DDR5 (5600MHz) SODIMM

Storage
256GB PCIe TLC SSD Gen 4

Connectivity
WiFi 6E AX211 802.11AX (2 x 2)
Bluetooth 5.3
Ethernet (RJ45)
Note: 6GHz WiFi 6E operation depends on OS support, WiFi 6E routers/APs/gateways, regional certifications, and spectrum allocation.

Ports & Slots
HDMI Ingest
2 x HDMI out
Ethernet (RJ45)
3 x USB-A (USB 5Gbps)
USB-A (hi-speed USB)
2 x USB-C (USB 10Gbps)
USB-C Ingest (for models with BYOM)
DC power in
Note: USB port transfer speeds vary depending on many factors.

Security
Kensington Security Slot
Removable Cable Management
Trusted Platform Module (TPM) 2.0

Dimensions (H x W x D)
38 mm x 220 mm x 185 mm / 1.50″ x 8.66″ x 7.28″ (with cable management)

Weight
Starting at 1.01 kg / 2.23 lbs

Color
Black

ThinkSmart Controller
Display
10.1″ HD (1280 x 800) 10-point touchscreen, 16:10 aspect ratio, 340 nit, antiglare, antismudge
Rotatable 30° and 60°

Controller Ports & Slots
USB-C (hi-speed USB)
Headphone / mic combo

Controller Security
Kensington MiniSaver Security Slot

Controller Dimensions (H x W x D)
265.5 mm x 13 mm x 168.1 mm / 10.5″ x 0.5″ x 6.6″

Controller Weight
Starting at 0.753 kg / 1.7 lbs

Controller Color
Black

ThinkSmart Bar 180
Audio
2 stereo speakers
2 tweeters
Stereo audio out
80 Hz to 20 kHz frequency

Microphones
8 built-in beamforming microphones
100 Hz to 8 kHz frequency
Up to 37 dB sensitivity

Camera
3 cameras
54-degree vertical field of view
180-degree horizontal field of view
Up to 6x lossless digital zoom
Intelligent zoom
UHD (3840 x 1080), 32:9 aspect ratio

Bar Connectivity
Audio jack
USB-C (USB 5Gbps)
Ethernet (RJ45)
Bluetooth 5.3

Mounting Options
Mount on wall, TV, or display
Wall bracket and display mounting hardware included

Bar Dimensions (H x W x D)
650 mm x 80 mm x 125 mm / 25.6″ x 3.1″ x 4.9″

Bar Weight
Starting at 2.19 kg / 4.85 lbs

ThinkSmart Manager
Service Level
1-year ThinkSmart Manager Premium

Preloaded Software
Microsoft Teams Rooms
ThinkSmart Manager

Warranty
3-year Lenovo Premier Support
3-year ThinkSmart Collaboration Professional Services – Deploy
3-year ThinkSmart Collaboration Professional Services – Maintain

What’s in the Box
ThinkSmart Core Gen 2 (Microsoft Teams)
ThinkSmart Controller
ThinkSmart Bar 180
Quick Start Guide
AC Adapters
Wall mount for ThinkSmart Bar 180
BYOM Cable for ThinkSmart Core Gen 2 (USB-C to USB-C, 3 m)
VESA mount bracket for ThinkSmart Core Gen 2
Power cage
