$47.13The Story

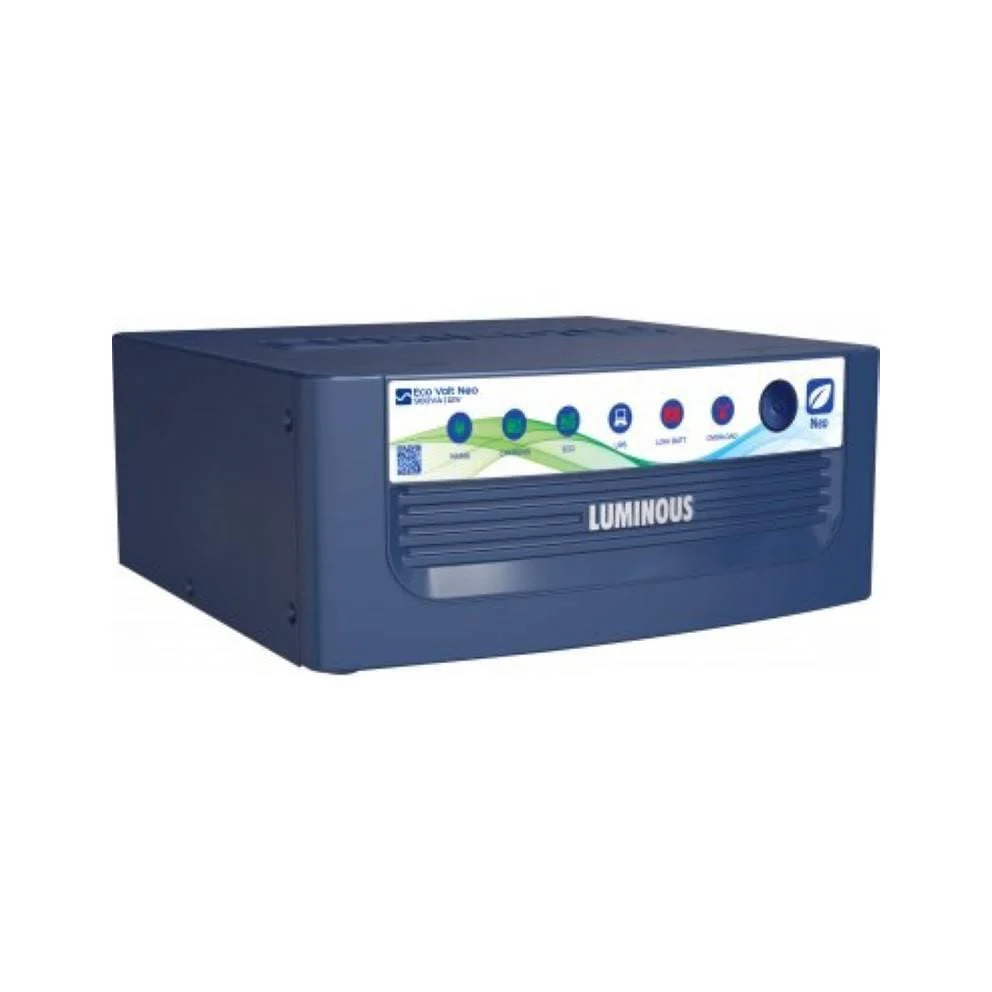

Luminous EcoVolt NEO 924W 1100VA 12V Pure Sinewave Inverter
The Luminous EvoVolt Neo 1100VA, 12V inverter offers a max load of 924W and a charging current of 17A. When purchasing this unit, a 1 x 12V Inverlast Tall Tubular battery, either a 150Ah, 200Ah or 220Ah is required for operation. This is a DIY unit as it has a standard connection for AC in and AC out.
THE GENX HOME UPS WITH UNPRECEDENTED PERFORMANCE!
EcoVolt is a pure sine wave UPS with features such as Intelligent Water Level Indication which helps consumer to track battery water level hassle-free, low harmonic distortion makes inverter practically noiseless. Pure sine wave output makes it highly efficient and saves electrically bills.
Features:
- Pure sine wave technology
- Rugged technology design for high performance and longer back-up time
- Turbo mode increases voltage across the load and enables them to run faster
- Auto holiday mode preserves battery charge and safeguards battery life
- Supports wide range of batteries with 3-step charging current and 4-step battery type selection
- Adaptive battery charging control technology (ABCC) ensures faster battery charging and enhances battery life up to 70%
Specifications:
Capacity: 924W, 1100VA, 12V
UPS Mode
- Rated voltage: 230V
- Undervoltage Cut Off: 180 ± 5V
- Undervoltage Restoration: 285 ± 10V
- Overvoltage Cut Off: 265 ± 5V
- Overvoltage Restoration: 255 ± 5V
ECO mode
- Undervoltage Cut Off: 85±10V
- Undervoltage Restoration: 105±10V
- Overvoltage Cut Off: 285±10V
Output
- Rated voltage (Normal Mode): (200 - 220)V AC ± 5%
- Rated voltage (Turbo Mode): (200 - 240)V AC ± 5%
- Voltage (Mains Mode): Same as input
- Frequency (UPS / ECO Mode): 50 ± 0.5Hz
- Load Performance Factor: 0.6 to 0.8#
- Frequency (Mains Mode): Same as input (45-55 Hz)
- Overload: > 105%
- Transfer Time(UPS Mode): < 20 ms
Battery
Battery Not Included
- Type/Voltage: 80Ah-200Ah - Tubular, Flat, SMF or Local Battery / 12V
- Number: 1
- Typical Recharge Time: 10-12 Hrs.
- Protection: Low Battery, Reverse Polarity
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Luminous EcoVolt NEO 924W 1100VA 12V Pure Sinewave Inverter
The Luminous EvoVolt Neo 1100VA, 12V inverter offers a max load of 924W and a charging current of 17A. When purchasing this unit, a 1 x 12V Inverlast Tall Tubular battery, either a 150Ah, 200Ah or 220Ah is required for operation. This is a DIY unit as it has a standard connection for AC in and AC out.
THE GENX HOME UPS WITH UNPRECEDENTED PERFORMANCE!
EcoVolt is a pure sine wave UPS with features such as Intelligent Water Level Indication which helps consumer to track battery water level hassle-free, low harmonic distortion makes inverter practically noiseless. Pure sine wave output makes it highly efficient and saves electrically bills.
Features:
- Pure sine wave technology
- Rugged technology design for high performance and longer back-up time
- Turbo mode increases voltage across the load and enables them to run faster
- Auto holiday mode preserves battery charge and safeguards battery life
- Supports wide range of batteries with 3-step charging current and 4-step battery type selection
- Adaptive battery charging control technology (ABCC) ensures faster battery charging and enhances battery life up to 70%
Specifications:
Capacity: 924W, 1100VA, 12V
UPS Mode
- Rated voltage: 230V
- Undervoltage Cut Off: 180 ± 5V
- Undervoltage Restoration: 285 ± 10V
- Overvoltage Cut Off: 265 ± 5V
- Overvoltage Restoration: 255 ± 5V
ECO mode
- Undervoltage Cut Off: 85±10V
- Undervoltage Restoration: 105±10V
- Overvoltage Cut Off: 285±10V
Output
- Rated voltage (Normal Mode): (200 - 220)V AC ± 5%
- Rated voltage (Turbo Mode): (200 - 240)V AC ± 5%
- Voltage (Mains Mode): Same as input
- Frequency (UPS / ECO Mode): 50 ± 0.5Hz
- Load Performance Factor: 0.6 to 0.8#
- Frequency (Mains Mode): Same as input (45-55 Hz)
- Overload: > 105%
- Transfer Time(UPS Mode): < 20 ms
Battery
Battery Not Included
- Type/Voltage: 80Ah-200Ah - Tubular, Flat, SMF or Local Battery / 12V
- Number: 1
- Typical Recharge Time: 10-12 Hrs.
- Protection: Low Battery, Reverse Polarity
