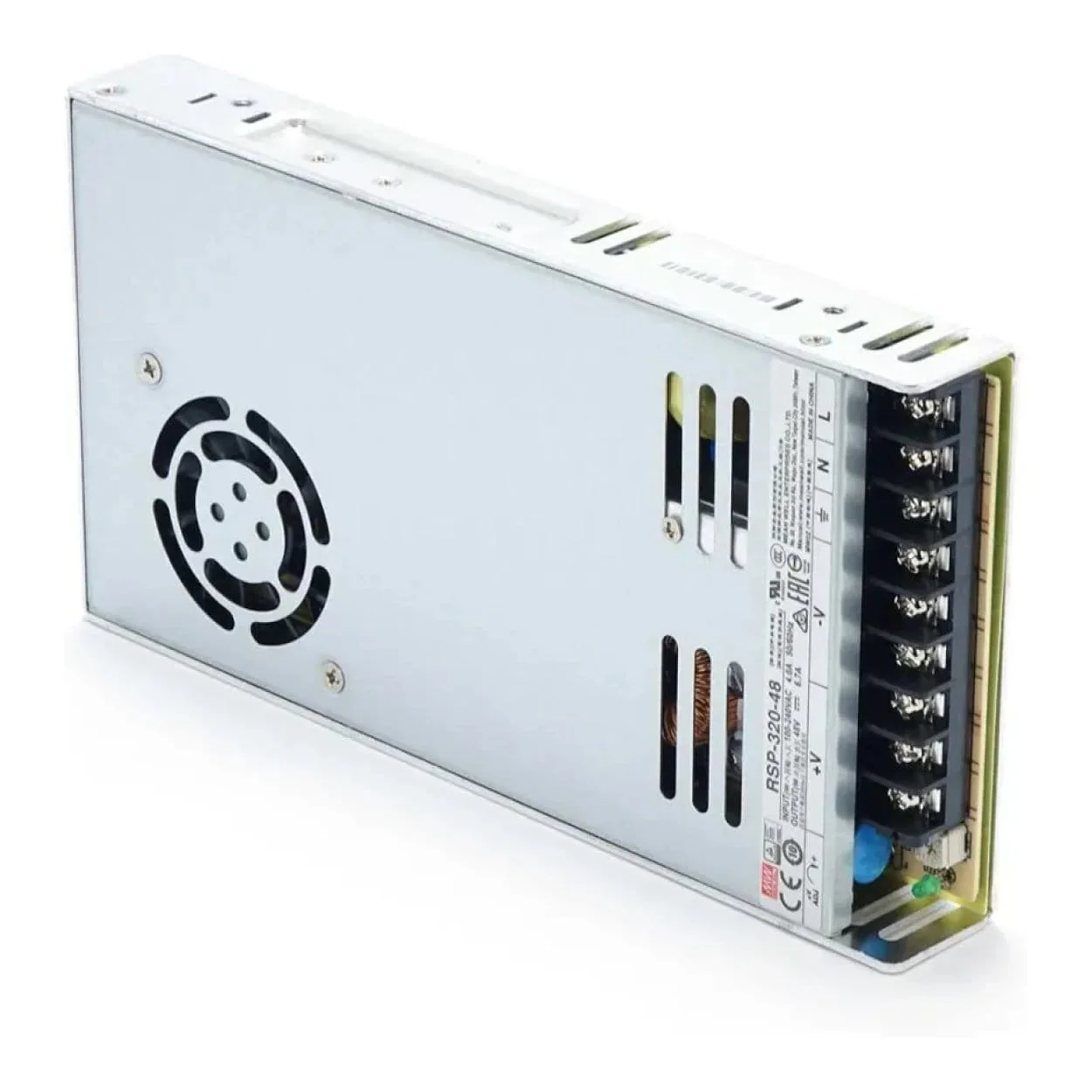

Mean Well 320W 48VDC Single Output Enclosed AC-DC Power Supply RSP-320-48

Mean Well 320W 48VDC Single Output Enclosed AC-DC Power Supply RSP-320-48

The Mean Well RSP-320-48 is a 320W single-output enclosed AC-DC power supply with a 48VDC output. This unit operates with a universal AC input from 88V to 264V and features a built-in active PGC function for improved power quality. Its design achieves an efficiency of up to 90% and includes a built-in DC fan for forced air cooling. enabling full load operation at ambient temperatures up to 50°C.  The RSP-320-48 is equipped with comprehensive protection mechanisms against short circuits, overload, overvoltage, and overtemperature conditions. Its compact 1U low-profile (30mm) form factor makes it a suitable power solution for industrial automation, control systems, and various electronic instruments. Key specifications include an adjustable output voltage range of 41 - 56V, a remote sense function, and an LED power-on indicator.

Features:

• Universal AC input / Full range
• Built-in active PFC function, PF>0.95
• High efficiency up to 90%
• 1U low profile 30mm
• Optional conformal coating
• LED indicator for power on

Technical Specifications:

Series: RSP-320
Brand: Mean Well
Dimensions (L×W×H): 243 × 121 × 38 mm
Warranty: 12 Months Bring-In
Gross Weight: 850 g
Type: AC-DC
Form Factor: Enclosed
Mounting Method: Chassis mount
Min. Output Voltage: 48 V
Max. Output Voltage: 48 V
Number of Output Voltages: 1
Max. Output Power: 320 W
Input Voltage: 88 – 264 V
Min. Input Voltage: 88 V
Max. Input Voltage: 264 V
Max. Output Current: 6.7 A
Number of Output Currents: 1
IP Rating: No IP assigned
LED Driver: No
Dimming Technologies: No Dimming
Control Signals: No control signal
Carbon Footprint: 15 kgCOâ‚‚e per piece
Height Product: 38 mm
