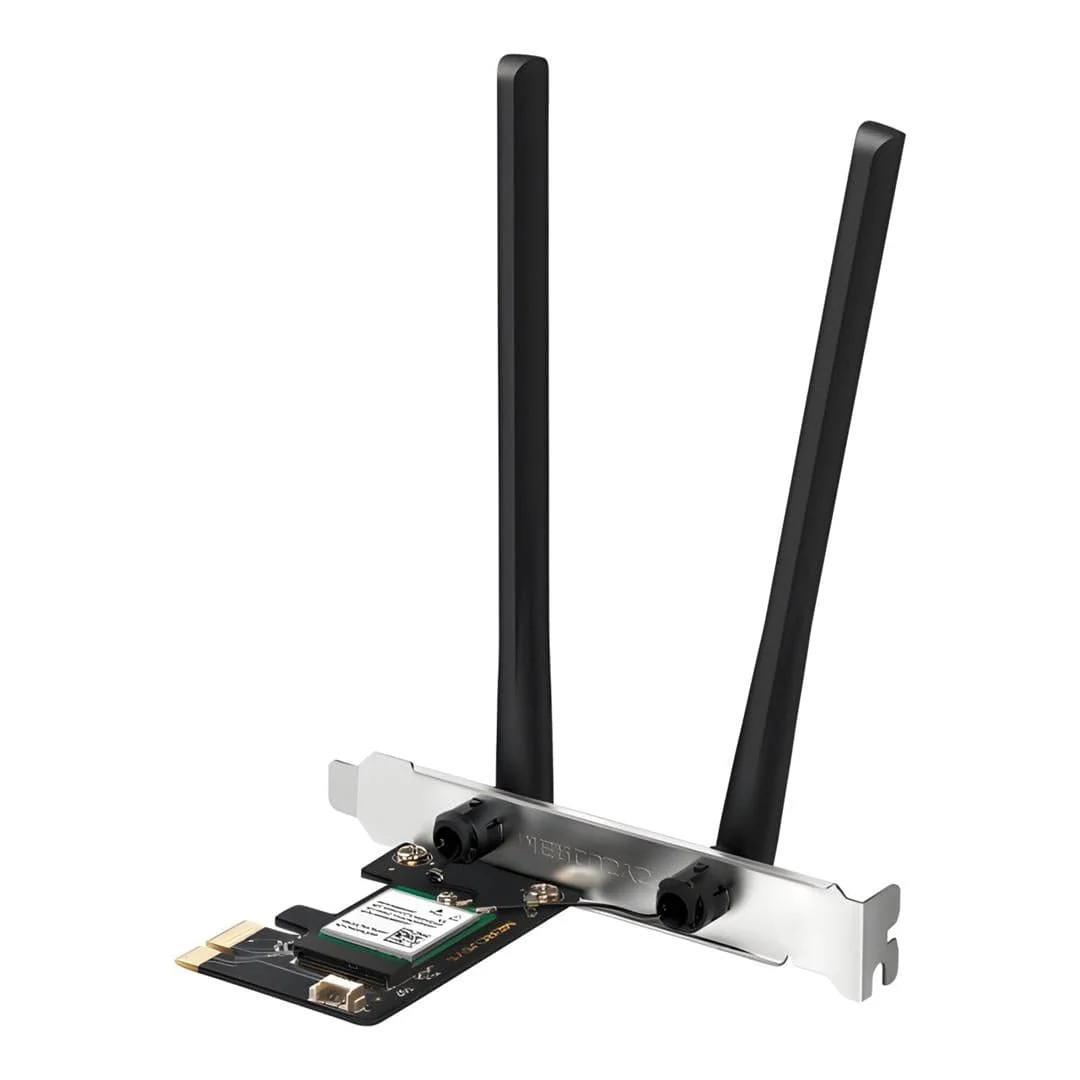

Mercusys MA80XE AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

Mercusys MA80XE AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter

Arm Your PC with Wi-Fi 6 and Bluetooth 5.2

With 1024-QAM and 160 MHz of bandwidth, Wi-Fi 6 offers strong, uninterrupted Wi-Fi.2 Gaming requires lower latency while bandwidth-intensive applications like VR require fast speeds. Simply insert MA80XE to your PC for smoother experiences.

Features:

• Dual Band Speed —  Speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)1
• Better Experience — More devices, lower latency and less congestion2
• Wider Signal Coverage — Two high-performance antennas
• Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety4
• Bluetooth 5.3 — The latest Bluetooth technology achieves faster speeds and broader coverage6
• Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards
• Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)

Lower Latency

Innovative OFDMA lowers latency by up to 75% to enable live streaming, nonstop video chatting, and ultra-responsive gaming.

Higher Performance for Variety Demands

With the very newest Wi-Fi standard, Wi-Fi 6, you can experience extremely quick downloads, lag-free streaming, and unbroken connectivity for more immersive gaming.

High-Gain Antennas
for Broader Coverage

Two strong signal-booster high-gain antennas significantly increase the range of the currently available Wi-Fi, providing a quick, seamless online experience from a greater distance.

Bluetooth 5.2 Connect Everything

With ultra-fast Bluetooth 5.2, which outperforms Bluetooth 4 in terms of connection stability, range, and transmission speeds, MA80XE equips your PC with Bluetooth functionality. Simply pair your Bluetooth gadgets with your PC to start enjoying immediately.

Compatible with Windows Operating System

MA80XE fully supports for the latest Windows 11. Just simply upgrade your PC to the newest WiFi 6 by MA80XE.

The Latest WPA3 Protects Your Personal Network

The latest security standard, WPA3, offers improved comprehensive WiFi protection to defend your devices and private information against brute-force attacks.

Technical Specifications:

Wireless Standards: IEEE 802.11 a/ac/ax 5 GHz, IEEE 802.11 b/g/n/ax 2.4 GHz
Wi-Fi Speeds: 2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
Reception Sensitivity:

5 GHz:

• 11ax HE80 MCS0: -90 dBm
• 11ax HE80 MCS11: -59 dBm
• 11a 54 Mbps: -77 dBm
• 11ac VHT80 MCS0: -92 dBm
• 11ac VHT80 MCS9: -64 dBm

2.4 GHz:

• 11ax HE40 MCS0: -91 dBm
• 11ax HE40 MCS11: -60 dBm
• 11g 54 Mbps: -76 dBm
• 11n HT40 MCS7: -72 dBm

Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions: 8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm)
Antenna Type: 2× Fixed High-Performance Omni-Directional Antennas

Package Contents
AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter (MA80XE), Bluetooth Header Cable, Quick Installation Guide, Resource CD

Environment
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity: 10% ~ 90% Non-Condensing
Storage Humidity: 5% ~ 90% Non-Condensing

System Requirements
Supported Operating Systems: Windows 10, 11 (64-bit)
