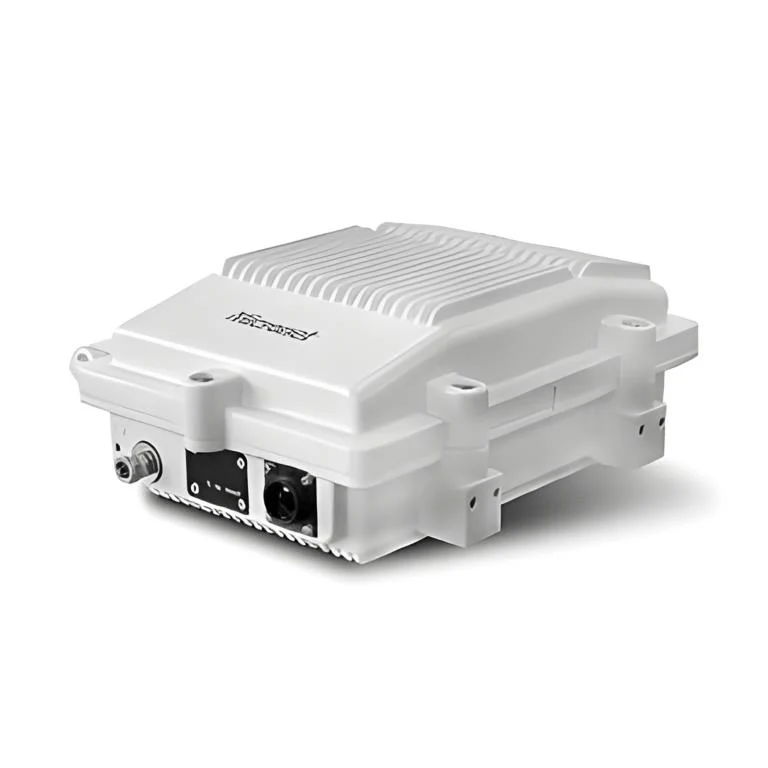

Micronet 11M Outdoor Wireless Access Point with Bridge SP915-100

Micronet 11M Outdoor Wireless Access Point with Bridge SP915-100

Micronet proudly introduces SP915-1000, high power outdoor Access Point. It is compliant with IEEE802.11b providing speed of up to 11Mbps. The AP includes a Web-Based User Interface for easy management of your wireless network. Security is intact with WEP, WPA and 802.1x for preventing unauthorized access in wireless environment. SP915-1000 combining with high power antenna is ideal for distant inter-building connection.

AP/Bridge provides both Access Point and Static LAN-to-LAN Bridging functionality
AP Client is for Dynamic LAN-to-LAN Bridging
AP load balancing
Transmit power control
MAC-address-based access control
Wireless client isolation

Features

• Solid housing provides protection against rigorous weather conditions
• Work seamlessly with SP912 series in Inter-Building with repeating mode
• Compliant with IEEE 802.11 and 802.11b standards
• Provide 1 RJ-45 LAN port of 10/100M
• Support auto data rate selection at 11, 5.5, 2 and 1M for IEEE802.11b
• Support modulation with Direct Sequence Spread Spectrum (DSSS) technology for 802.11b
• Operate in 2.4GHz frequency band
• Support 64(40)/128 bit WEP, 802.1x and Access Control List for security
• Support operation mode Infrastructure, Station Adapter and Inter-Building Bridge Function
• Support bandwidth and SNMP management control
• Support web-based, telnet and utility management

Specifications

Standard IEEE 802.11 and 802.11b standards
LAN Port 1-port of 10/100M
Antenna Connector N-type female connector
Radio Modulation DSSS
Frequency Band 2.4 GHz
Data Rate 11, 5.5, 2 and 1M
Output Power (Max) 20 dBm
Security 64(40)/128bit WEP Encryption, 802.1x and Access Control List
Operation Channel 11/N. America (FCC), 13/Europe (ETSI), 14/Japan (Telco)
Operation Mode Infrastructure, Station Adapter and Inter-Building Bridge mode

Advance Feature
Bandwidth Control and SNMP management
Management Windows-Based Utility, Web-Based and Telnet
Power DC 12V, 2A
Dimension (mm) 280 x 230 x 116
Operation Temperature (¢XC) 0¢XC ~ 60¢XC
Operating Humidity 5% to 85%
Weight (kg) 2.8
Emission CE, FCC
