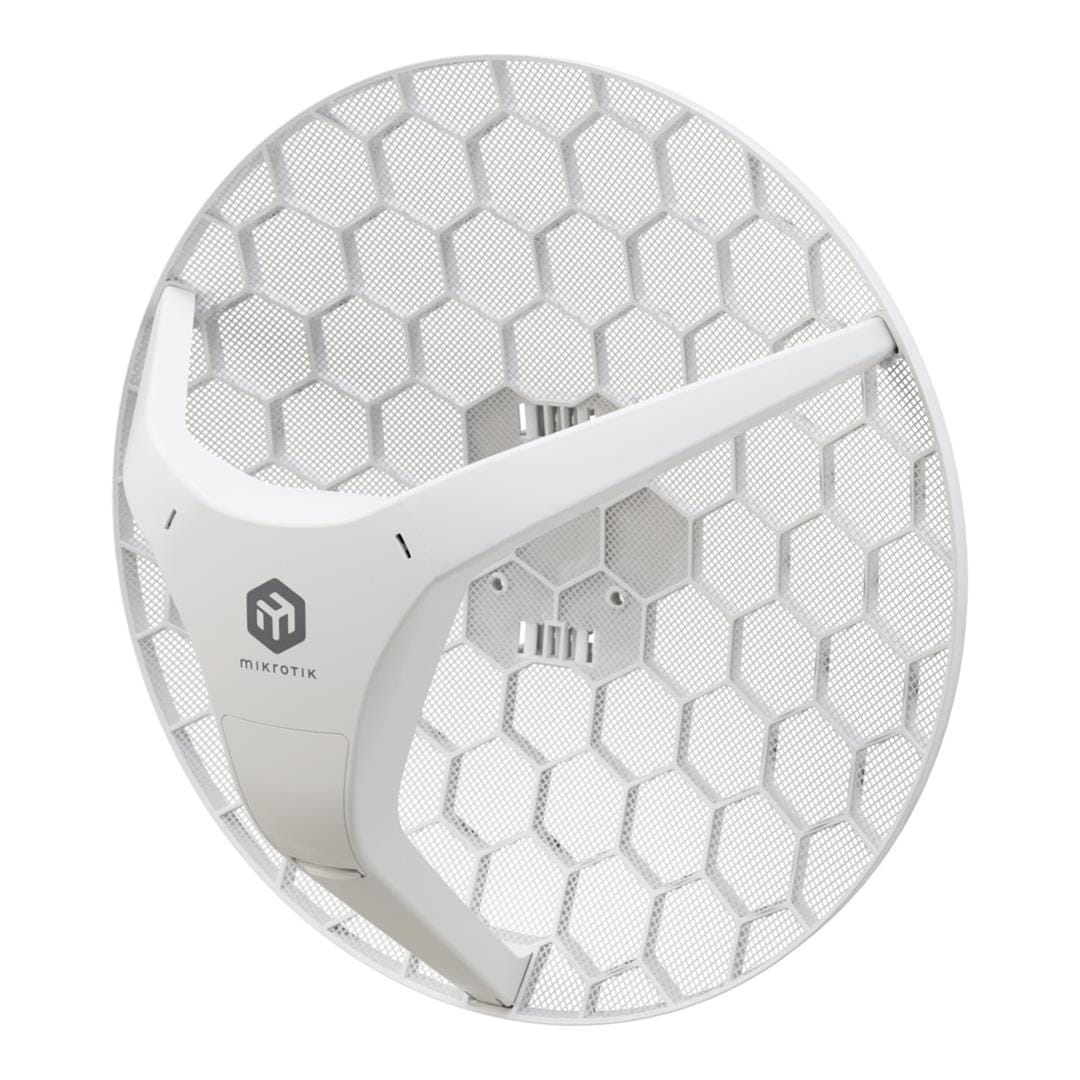

MikroTik LHG 5 ax 24dBi PtP CPE Antenna LHG-5axD
Need a fast, stable connection across large distances? Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.
The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!
LHG 5 ax is compact, long-range CPE with a 24.5 dBi antenna. Perfect for links up to 20 km in most scenarios. Check related devices below for the XL version if you need a longer distance!
Technical Specifications:
Product Code: LHG-5axD
Architecture: ARM 32bit
CPU: IPQ-5010
CPU Core Count: 2
CPU Nominal Frequency: 800 MHz
RouterOS License: 3
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage Size: 128 MB
Storage Type: NAND
MTBF: Approximately 100,000 hours at 25°C
Tested Ambient Temperature: -40°C to 70°C
Powering
Number of DC Inputs: 1 (PoE-IN)
Max Power Consumption: 5 W
PoE In: Passive PoE
Cooling Type: Passive
PoE In Input Voltage: 12-28 V
Wireless Specifications
Wireless 5 GHz Max Data Rate: 1200 Mbit/s
Wireless 5 GHz Number of Chains: 2
Wireless 5 GHz Standards: 802.11a/n/ac/ax
Antenna Gain dBi for 5 GHz: 24.5
Wireless 5 GHz Chip Model: QCN-6102
Wireless 5 GHz Generation: Wi-Fi 6
Ethernet
10/100/1000 Ethernet Ports: 1
Other
CPU Temperature Monitor: Yes
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: 54
Wireless Specifications – 5 GHz
Transmit (dBm) / Receive Sensitivity
6 Mbit/s: 24 / -96
54 Mbit/s: 21 / -80
MCS0: 24 / -96
MCS7: 20 / -75
MCS9: 19 / -70
MCS11: 17 / -67
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
