Milesight NON LTE UC502 Controller UC502-868M
Features:
- Rich Industrial Interfaces: GPIO, AI, RS232/RS485 & SDI-12
- SDI-12 Interface for Environmental Data Acquisition
- Internal and External Antenna Versions Optional
- IP68 Rated Enclosure for Harsh Environments

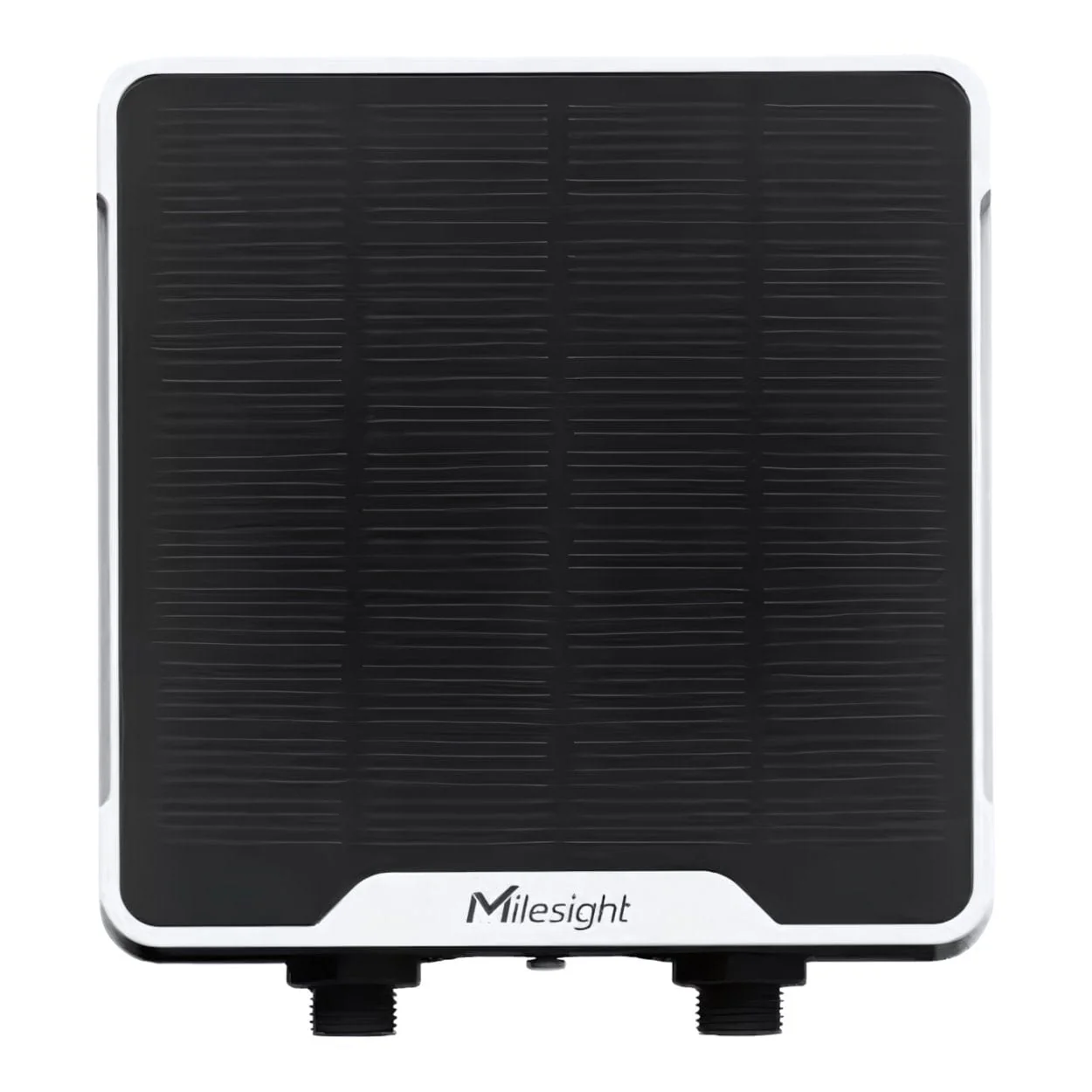

- Flexible Power Supply Options
- Data Threshold Reporting
- Easy Configuration via NFC
- Data Integrity and Reliability

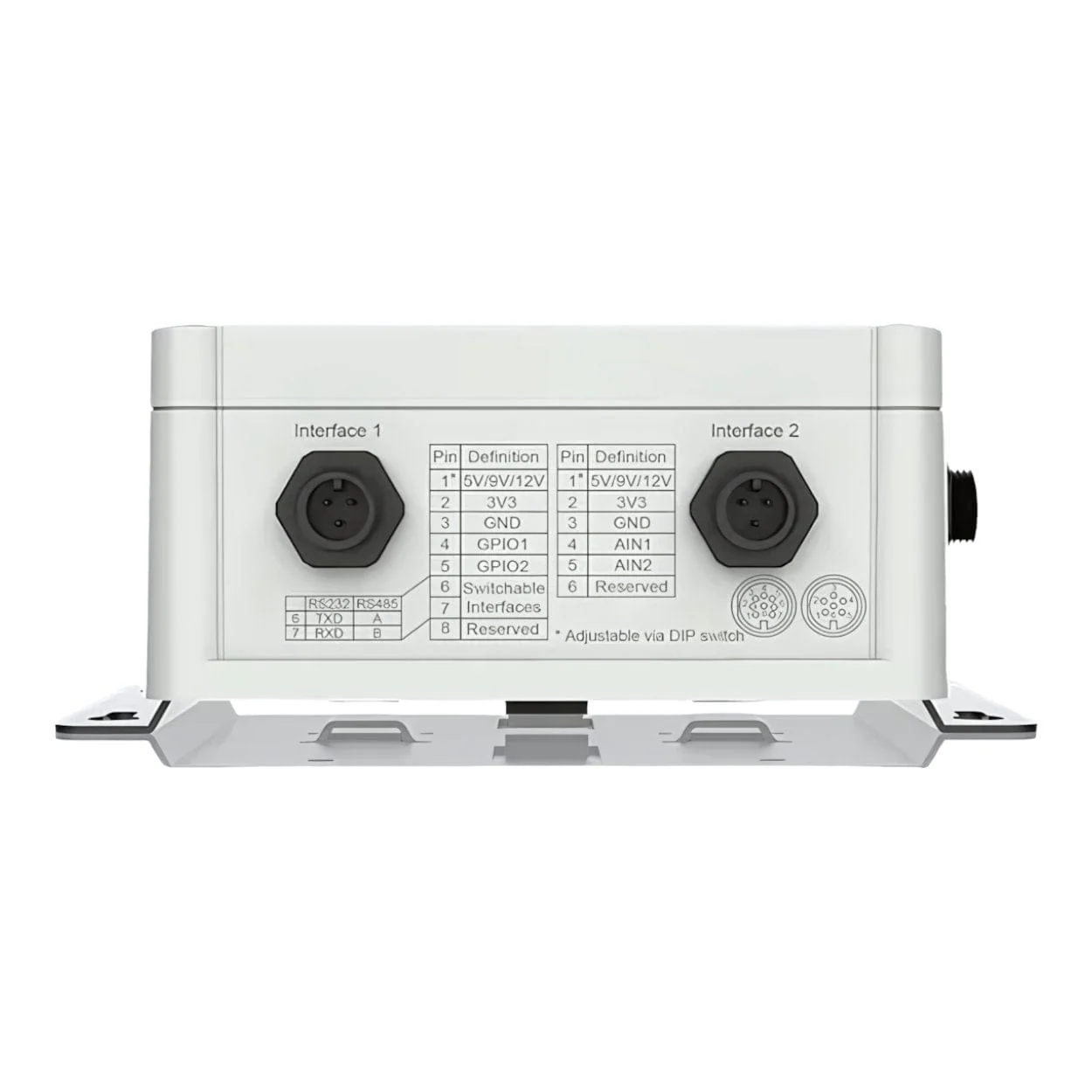

Rich Industrial Interfaces
The UC50x Series features multiple industrial interfaces to monitor and control field sensors or devices simultaneously.
SDI-12 Interface for
Environmental Data
Acquisition
The UC50x Series is equipped with SDI-12 interface, making it incredibly easy to connect a wide range of instruments used for environmental monitoring. This includes weather sensors, hydrological sensors, agricultural sensors, etc. With SDI-12 support, the UC50x series expands its versatility and adaptability across multiple domains.
Ultra-Rugged Enclosure for Harsh Environment
The UC50x Series is equipped with an IP68 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.
Timely Alerts and
Notifications
The UC50x Series enables data threshold reporting, triggering alerts and notifications when sensor readings exceed previously set thresholds. This facilitates proactive monitoring and ensures a timely response to abnormal situations, promoting prompt resolution and preventing potential issues.
Analog Input Value Conversion
The UC50x series simplifies data interpretation and utilization for users by directly converting received sensor values into meaningful measurements for connected devices, eliminating the need for manual conversion.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
