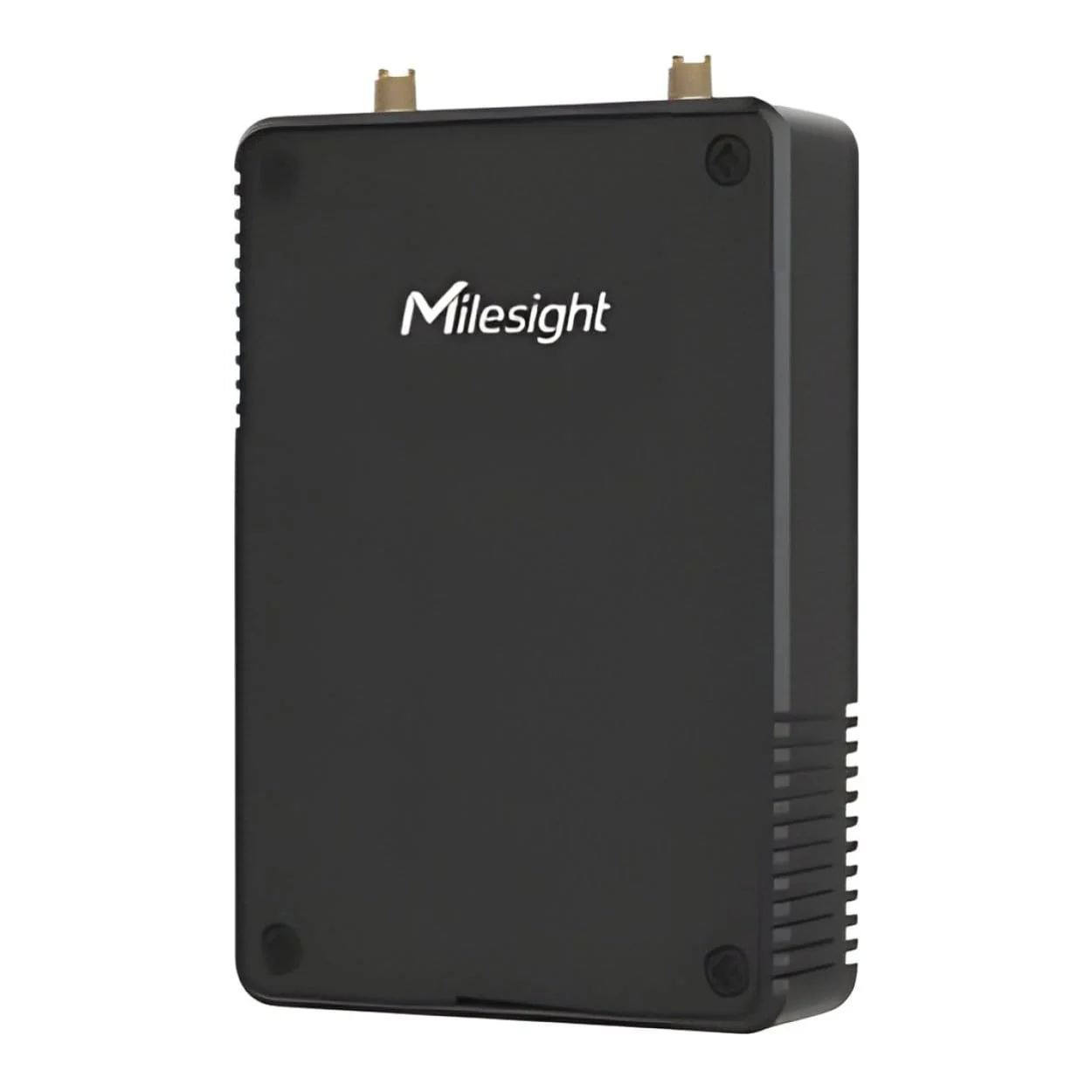

Milesight UG56 Industrial LoRaWAN Gateway UG56-L08GL-868M

Milesight UG56 Industrial LoRaWAN Gateway UG56-L08GL-868M

Bridge the Gap. Be Connected

UG56 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.

Features:

• Industrial-Grade Design
• Listen Before Talk
• Gateway Fleet
• Free Embedded Network Server
• Multiple Backhaul Connectivities
• Global LoRaWAN® Frequency Plans

Penetrating Obstructions Through and Through

Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas.

Towards Massive Connectivity for IoT Deployments

Adopting Semtech SX1302 LoRa chip, UG56 supports connection with more than 2000 LoRaWAN® nodes.

• 8 Channels
• Quad-core CPU

Optimizing Coverage and Placement Concurrently

The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas.

Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

Listen Before Talk

UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment.

Enabling Multiple Backhaul Connectivities

Stay connected via Ethernet, cellular, and Wi-Fi.

Deep Compatibility, Greater Flexibility

Milesight Gateways are deeply compatible with leading LoRaWAN® Network Servers (LNS). This ensures:

Fast Deployment – quick setup, minimal effort

Interoperability – proven compatibility across platforms

Lower Risk & Cost – reduce integration effort, easier scaling

Faster Time-to-Market – leverage existing ecosystems

With Milesight, you gain not just compatibility, but a truly interoperable solution ready for IoT ecosystem.

Remote Firmware Updates for End Devices After Deployment

The embedded Network Server of the UG56 supports Firmware Update Over-The-Air (FUOTA), allowing seamless remote firmware updates for connected LoRa® devices via a LoRa® wireless network after deployment.

Integrating with Building Management System

With support for BACnet and Modbus, real-time data can be seamlessly integrated into existing Building Management System (BMS).

Effortless Auto-P Configuration

UG56 integrates with the RPS (Redirection and Provisioning Service) service, enabling fast device deployment without user intervention. Upon powering up and connecting to the network, the device undergoes automatic configuration.

Plug-and-Play Configuration and Remote Management

Milesight Development Platform simplifies your device deployment with intuitive addition processes, plug-and-play configurations, and seamless connectivity. Your devices will be set up automatically by applying settings from predefined templates upon initial activation. It also allows you to send data to custom applications using APIs or webhooks.

Simplify Your Processes with Node-RED

With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.
