Transcend Connectivity, Embrace Possibility

UG65 is a high-performance 8-channel LoRaWAN® gateway that offers reliable connectivity for industrial applications.

Features:

• IP65 Rating
• NXP Quad-Core Processor
• Semtech SX1302 LoRa Chip
• Multiple Backhaul Connectivities
• Embedded Network Server
• Compatible with Multiple Network Servers
• Global LoRaWAN® Frequency Plans

Achieve Greatness with Outstanding Performance

Utilizes advanced hardware, the UG65 device delivers powerful performance for faster data processing.

• 512 MB DDR4 RAM
• NXP 64-bit Quad-Core Processor

New Generation of LoRa Chip

The UG65 device excels at efficiently managing high volumes of traffic while consuming minimal power.

• Semtech SX1302
• Full-Duplex
• Support SF5 & SF6
• LoRaWAN® Class A/B/C

Unleash Powerful Signal Penetration

UG65 offers an impressive capability for long-range communication, allowing seamless connectivity over distances of up to 2 km in urban areas.

Connecting Thousands of Devices with Ease

UG65 supports receiving data from 8 end-devices simultaneously. And it supports up to 2000 end devices.

Flexible Connection with Internal and External Antennas

• Integrated internal LoRa, Cellular, and Wi-Fi antennas
• 1 external LoRa antenna is also available to strengthen signal coverage

Gateway Fleet

The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN® network.

Simplify Your Processes with Node-RED

With compatibility with Node-RED, users can easily integrate devices, APIs, and online services effortlessly.

Enabling Multiple
Backhaul Connectivities

Stay connected via Ethernet, cellular, and Wi-Fi.

Certified for North American Cellular Networks

UG65 is fully certified for major North American networks, ensuring reliable LTE connectivity and easy deployment.

Deep Compatibility, Greater Flexibility

Milesight Gateways are deeply compatible with leading LoRaWAN® Network Servers (LNS). This ensures:

Fast Deployment – quick setup, minimal effort

Interoperability – proven compatibility across platforms

Lower Risk & Cost – reduce integration effort, easier scaling

Faster Time-to-Market – leverage existing ecosystems

With Milesight, you gain not just compatibility, but a truly interoperable solution ready for IoT ecosystem.

Remote Firmware Updates for End Devices After Deployment

The embedded Network Server of the UG65 supports Firmware Update Over-The-Air (FUOTA), allowing seamless remote firmware updates for connected LoRa® devices via a LoRa® wireless network after deployment.

Integrating with Building Management System

With support for BACnet and Modbus, real-time data can be seamlessly integrated into existing Building Management System (BMS).

Effortless Auto-P Configuration

UG65 integrates with the RPS (Redirection and Provisioning Service) service, enabling fast device deployment without user intervention. Upon powering up and connecting to the network, the device undergoes automatic configuration.

Technical Specifications:

Hardware System CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory: 512 MB DDR4 RAM
Flash: 8 GB eMMC

LoRaWAN® Antenna: 1 × 50 Ω N-Female External Connector
Channel: 8 (Half/Full-duplex)
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity: -140 dBm @292bps
Tx Power: 27 dBm Max
Protocol: V1.0 Class A/B/C and V1.0.2 Class A/B/C

Ethernet Interface Port: 1 × RJ45 WAN Port (PoE PD supported)
Physical Layer: 10/100/1000 Base-T (IEEE 802.3)
Data Rate: 10/100/1000 Mbps (Auto-Sensing)
Interface: Auto MDI/MDIX
Mode: Full or Half Duplex (Auto-Sensing)
Ethernet Isolation: 1.5 kV RMS

Wi-Fi Interface Antenna: Internal Antenna
Standards: IEEE 802.11 b/g/n, 2.4 GHz
Tx Power: 802.11b: 18 dBm ±2 dBm (11 Mbps), 802.11g: 15 dBm ±2 dBm (6/54 Mbps), [email protected] GHz: 13-14 dBm ±2 dBm (MCS0_HT20 to MCS7_HT40)

Cellular Interface (Optional) Network: 4G LTE
Tx Power: Class 3 (23 dBm ±2 dB)
SIM Slot: 1 (mini SIM-2FF)

Others Reset Button: 1 × RST
USB: 1 × USB Type-C for Power Supply and Console

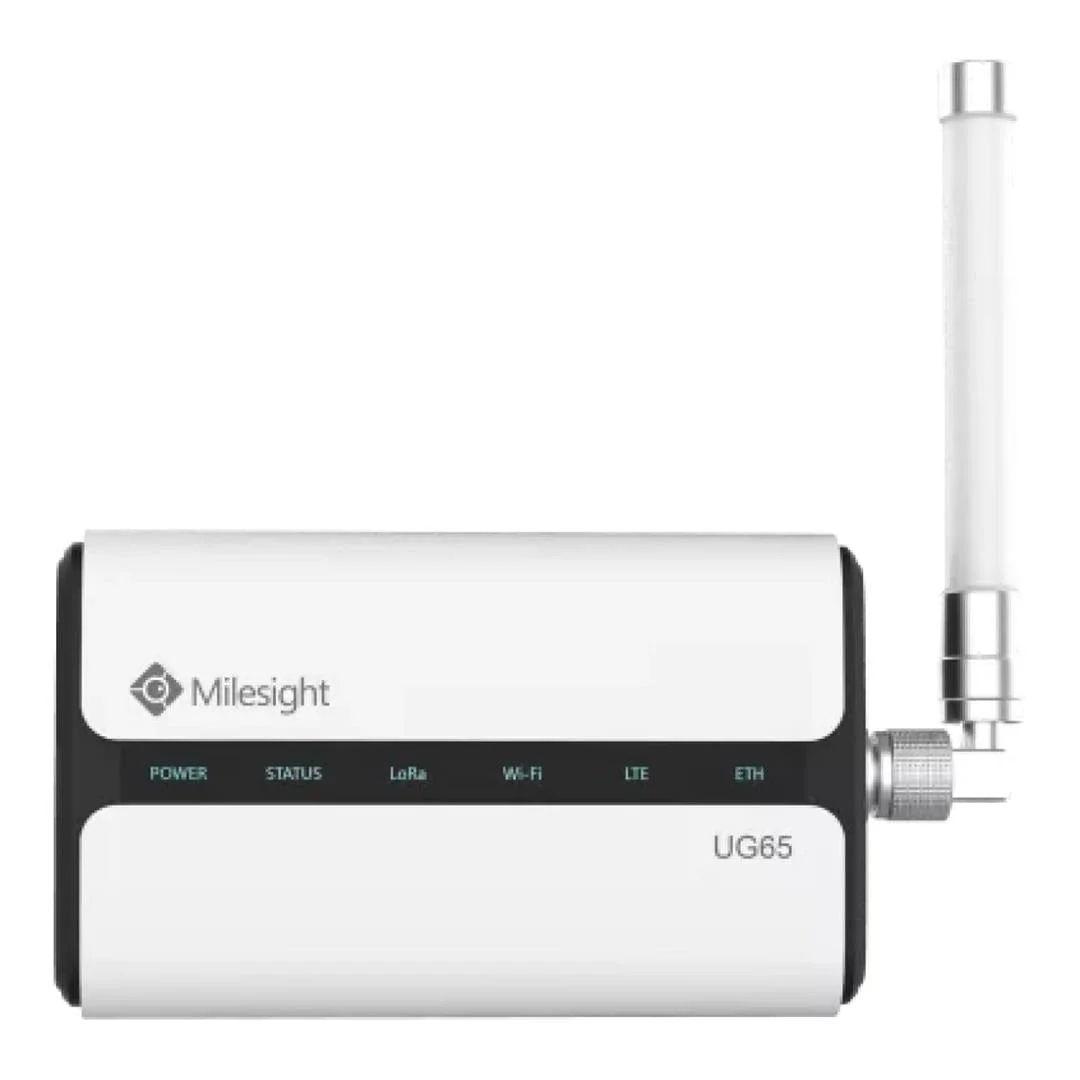

LED Indicators: 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
Power Connector: 1 × DC Male Jack Connector (2.1 x 5.5 mm)
Built-in: Watchdog, RTC, Timer

Power Supply and Consumption Power Input: 1. DC 9-24 V by Power Connector, 2. 802.3 af PoE, 3. 5V/1A by USB Type-C Port
Power Consumption: Typical 2.9 W, Max 4.2 W

Physical Characteristics Ingress Protection: IP65
Material & Color: PC+ABS (UL94 V0), White & Black
Weight: 548 g
Dimensions: 180 x 110 x 55.5 mm (7.09 x 4.33 x 2.19 in)
Installation: Desktop, Wall or Pole Mounting

Environmental Operating Temperature: -40°C to +70°C (-40°F to +158°F), Reduced Cellular Performance Above 60°C
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F

Approvals Regulatory: CE, CE(RED), FCC, IC, Telec, JATE, RCM
Environmental: RoHS
