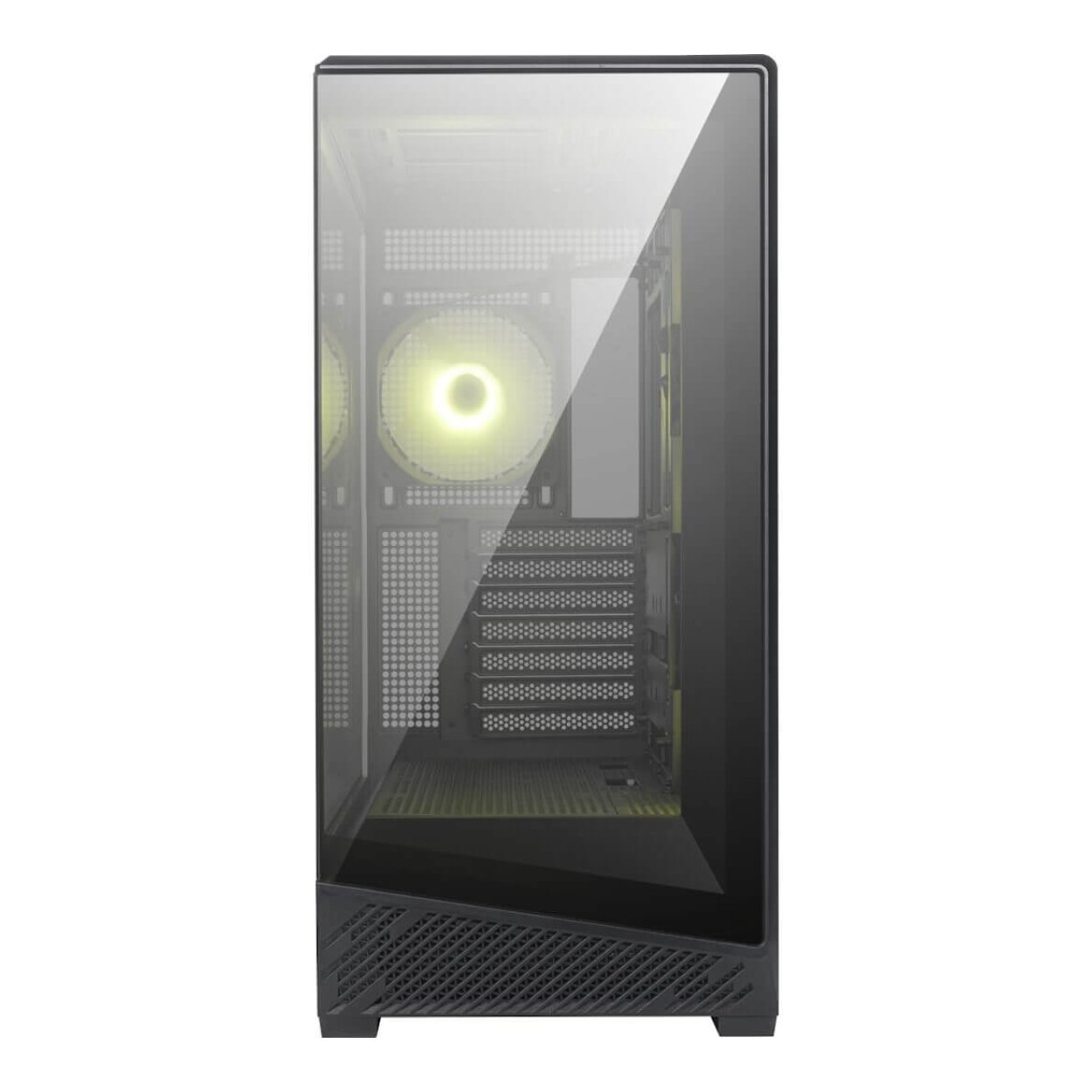

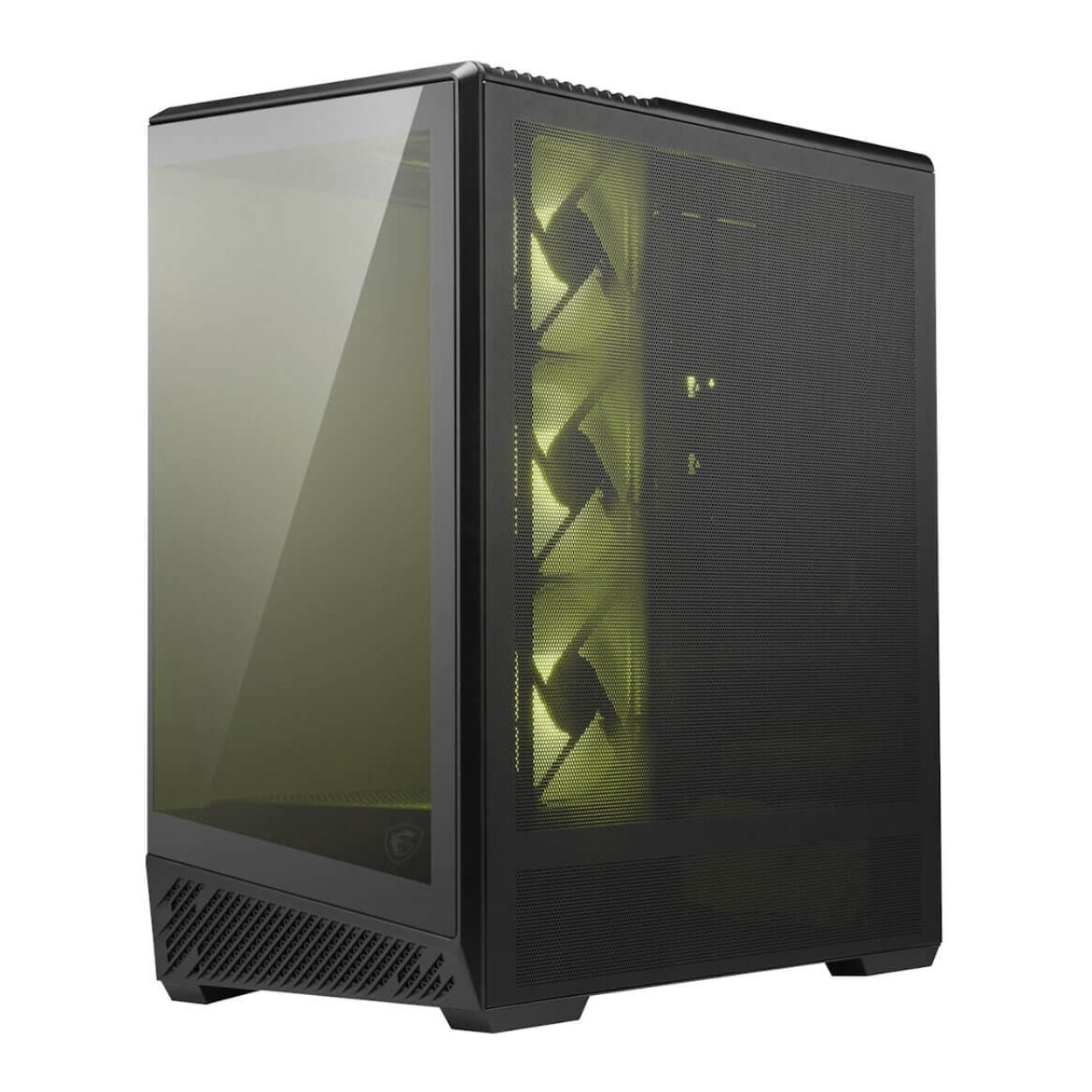

MSI MAG PANO 130R PZ Mid Tower PC Case Black

MSI MAG PANO 130R PZ Mid Tower PC Case Black

MAG msi arsenal gaming

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Features:

• Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
• Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
• Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.
• Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
• Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.

Panoramic Display

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 130R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

MAG Design Language

Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.

Rotatable GPU Bracket

One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.(Riser cable sold separately)

Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.

Technical Specifications:

Product Name
MAG PANO 130R PZ

Case Form Factor
Mid-Tower

Motherboard Form Factor Support
Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX

I/O Ports
2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button

Drive Mount Support
Up to 3 x 2.5” SSD
Up to 2 x 3.5” HDD
Maximum of 3 drives can be mounted at once, depending on configuration

Expansion Slots
7

Maximum GPU Length
400 mm / 15.75 inches

Maximum CPU Cooler Height
165 mm / 6.50 inches

Power Supply Support
ATX

Maximum PSU Length
180 mm / 7.09 inches

Fan Size Support
Top: 3 x 120 mm or 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm (above power shroud)

Pre-installed Fan Type
Rear: 1 x 120 mm ARGB Fan
Side: 3 x 120 mm ARGB Reverse Blade Fans

Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: N/A

Dimensions (DxWxH)
460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches

Net Weight
8.37 kg / 18.45 lbs

Gross Weight
10 kg / 22.04 lbs
