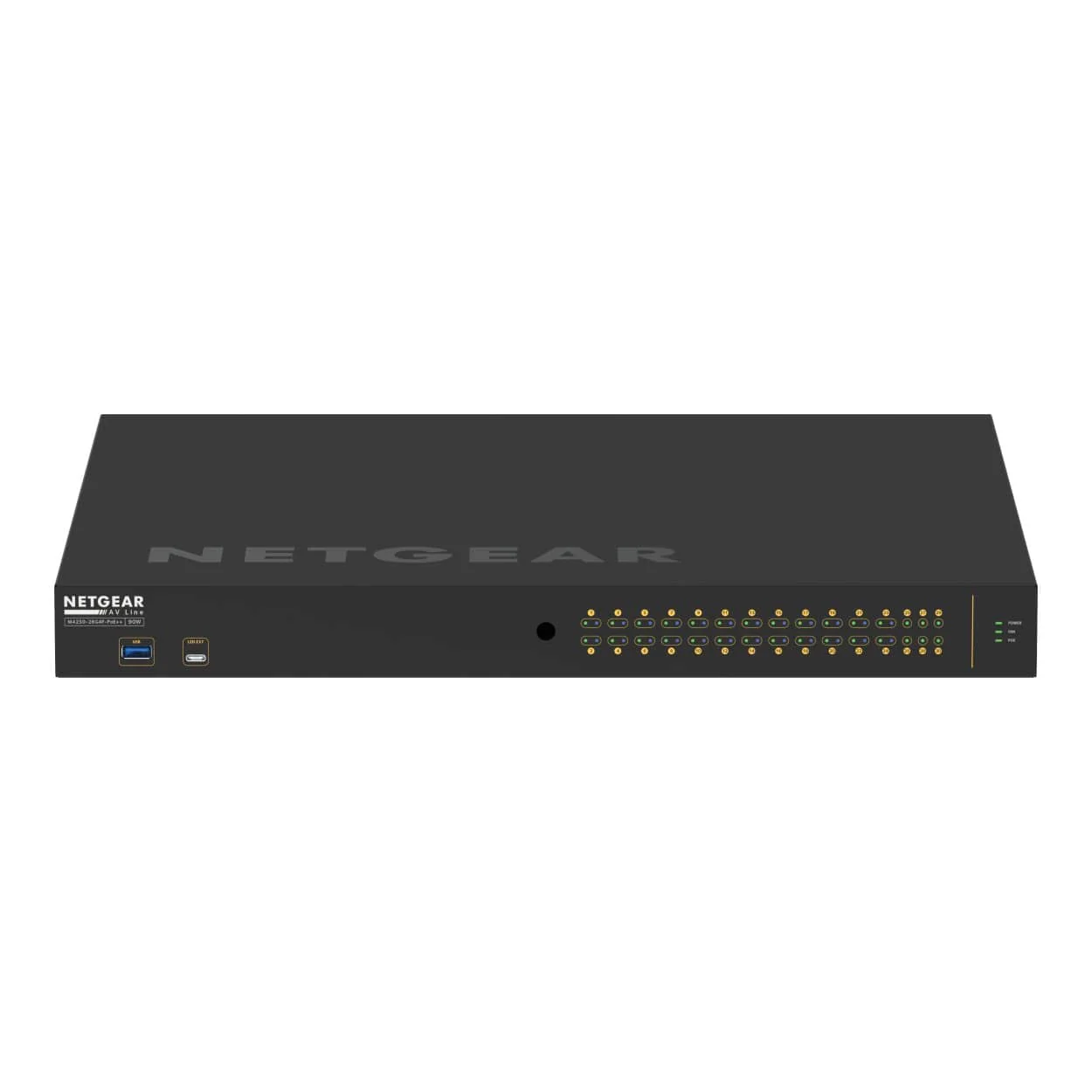

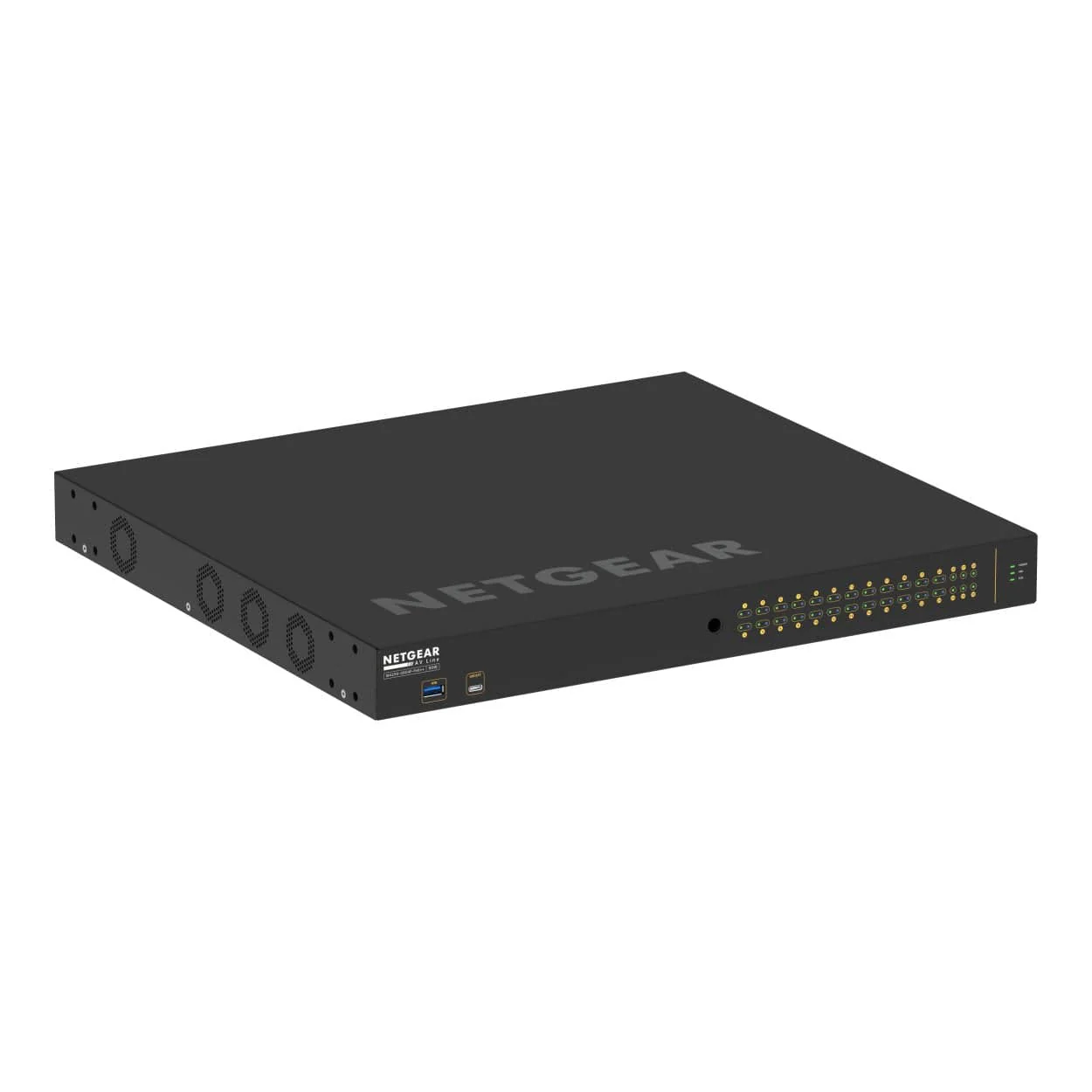

Netgear AV Line M4250 24-port PoE++ GbE Managed Switch with 4x SFP ports GSM4230UP-100EUS

Netgear AV Line M4250 24-port PoE++ GbE Managed Switch with 4x SFP ports GSM4230UP-100EUS

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

Features

• Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.
• Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
• Sleek, Quiet Design - Less fan noise, and mounting ears included for under-table or wall mounting.
• Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

Technical Specification

Product: Netgear M4250-26G4F-PoE++ (GSM4230UP)

Ports

• 24x 1GbE PoE++
• 2x 1GbE
• 4x 1Gb SFP

PoE Ports / Budget: 24 PoE++ (90W/port), 1,440W Budget

CPU: Quad-Core Cortex-A57 ARMv8 1.8Ghz 64-bit

RAM: 2 GB

Switching Capacity: 60 Gbps

Throughput: 44.64 Mpps

Packet Buffer: 16MB

IGMP Support: Enhanced (NETGEAR IGMP Plus)

Jumbo Frame Support: Yes, up to 12kb

AVB Support: Yes. Electronic license required, activation key sent via email (AVB4230UP-10000S).

Acoustics: Fanless or 60dB@25ºC

Power Consumption: Single AC With PoE: 889W/3035.05Btu/hr

Dual AC With PoE: 1734W/5919.88Btu/hr

Without PoE: 48.8W/166.6Btu/hr

Standby without any port connection: 36.9W/125.98Btu/hr

Third party support: Domotz

Rack mount: 1U

Dimensions (WxDxH): 440 x 400 x 43.2 mm

Weight: 6.75Kg
