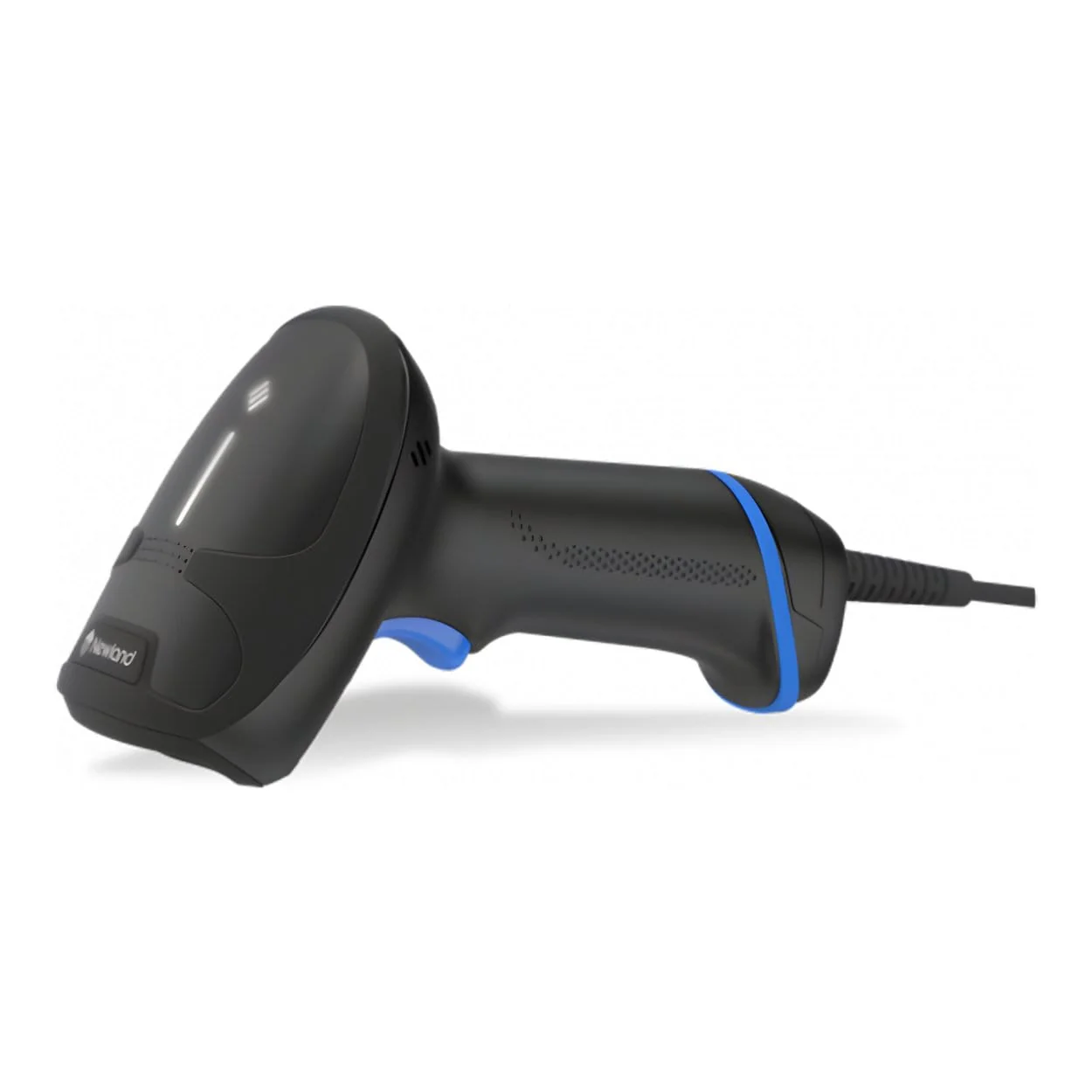

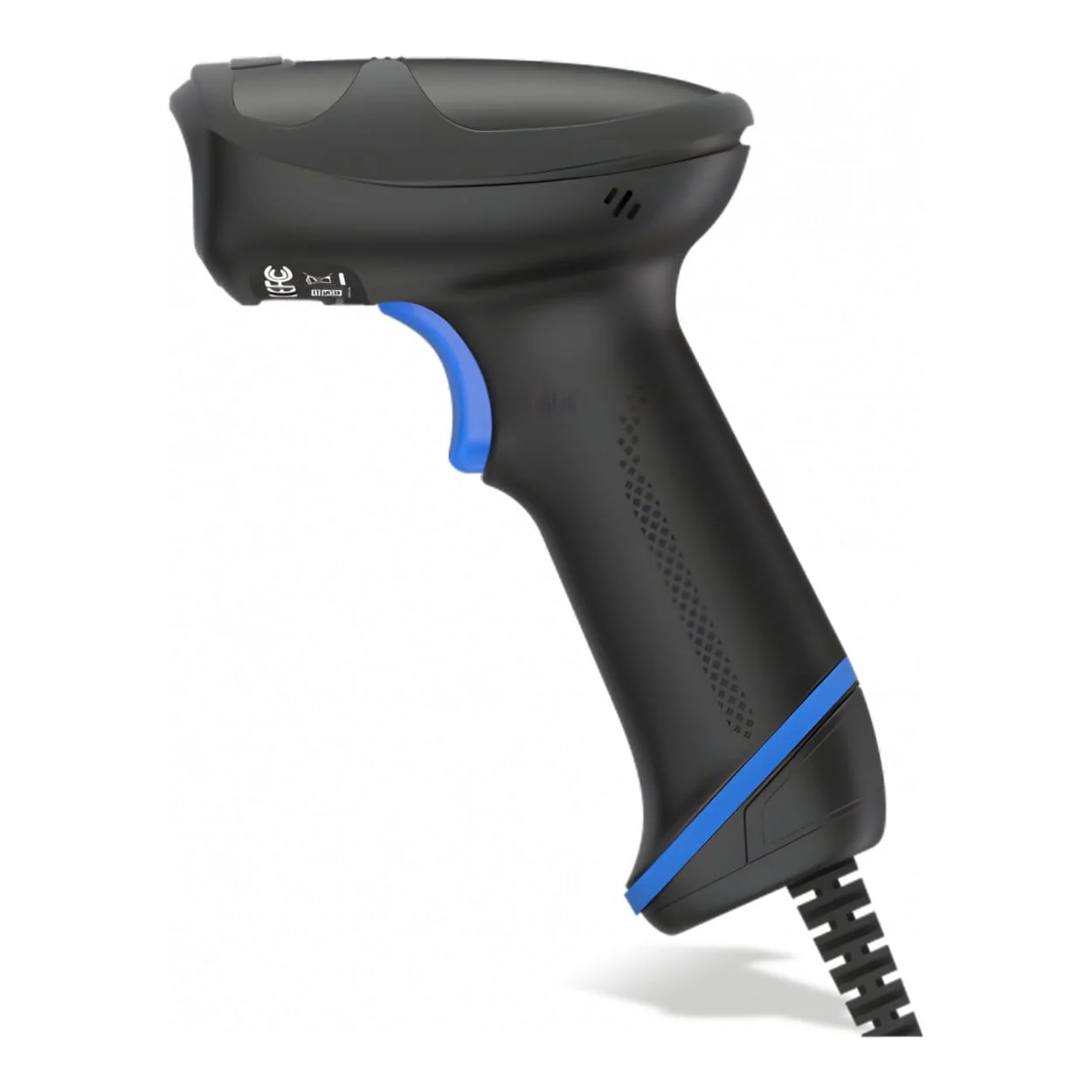

Newland HR33 Marlin 2D Bluetooth Handheld Barcode Reader NLS-HR3300-SA
The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.
Performance and Elegance
The HR33 Marlin boasts a stylish design that is not only well-balanced and comfortable to hold but also looks great. It is an example of Newland taking pride in matching performance with beauty.
Adaptable to your needs.
The HR33 Marlin is the first in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.
High Performance
The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.
Acuscan
Laser aiming with Acuscan is an optional feature that allows you to hone in on the code you want, even if barcodes are printed closely together.
Hands-free Scanning
The HR33 Marlin Corded scanner offers various hands-free scanning stand options. The first option is the intelligent adjustable auto-sense stand, which can be adjusted from an upright position to a flat one, making it suitable for desktop and wall-mounted use. The second option is the gooseneck stand, which provides a flexible design to adjust to your preferred scanning distance and angle.
Be confident with Newland
The HR33 Marlin’s IP52 and 1.5m drop specification are backed up with a trustworthy 5-year warranty. Select the HR33 with confidence, knowing that Newland has created a scanner that’s up for the job no matter the environment.
Technical Specifications:
Data Capture
1D: Code 11, Code 128, Code 39, GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 Databar (RSS), Code 49, Code 16K
2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, Dotcode
OCR: Passport OCR, Chinese ID Card OCR, China Travel Permit OCR
Image Sensor: 1280 × 800 CMOS
Aiming: Cross laser
Illumination: White LED
Resolution: ≥ 3 mil
Scanning Performance
Depth of Field (EAN-13, 13 mil): 40 mm – 535 mm
Depth of Field (Code 39, 5 mil): 50 mm – 230 mm
Depth of Field (PDF417, 6.7 mil): 45 mm – 215 mm
Depth of Field (DataMatrix, 10 mil): 30 mm – 245 mm
Field of View: Horizontal 48°, Vertical 30°
Scan Angle: Roll 360°, Pitch ±60°, Skew ±60°
Minimal Print Contrast: 15%
Physical
Current @ 5V DC (Operating / Standby): 281 mA max / 129 mA standby
Dimensions: 95 × 68 × 166 mm
Input Voltage: 5 V DC ±5%
Interfaces: USB (USB-KBW, USB-CDC, HID-POS), optional RS232
Notifications: Beeper, LED, vibration
Weight: 140 g
Environmental
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% non-condensing
Electrostatic Discharge (ESD): ±8 kV contact discharge, ±15 kV air discharge
Drop Resistance: 1.5 m drops to concrete
IP Rating: IP52
Accessories
Standard: USB cable
Optional: Smart stand
Certifications
Hardware Certifications: CE, FCC, RoHS 2.0, IEC 62471, IEC 60825
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Newland HR33 Marlin 2D Bluetooth Handheld Barcode Reader NLS-HR3300-SA
The legacy continues with the latest HR33 Marlin Corded, which offers effortless barcode capture thanks to Newland EMEA decoding technology. Cutting-edge scanning and decoding are showcased in a design that represents premium quality to become Newland’s best ever handheld 2D barcode reader so far. The HR33 Marlin Corded features a light and ergonomic design, making it the ideal companion for high-intensity scanning.
Performance and Elegance
The HR33 Marlin boasts a stylish design that is not only well-balanced and comfortable to hold but also looks great. It is an example of Newland taking pride in matching performance with beauty.
Adaptable to your needs.
The HR33 Marlin is the first in the portfolio to include advanced Scripting for programming intricate commands. Easyset is still available to those familiar with the program, but adding Scripting allows even finer detail, making the HR33 Marlin series the best in class.
High Performance
The HR33 Marlin Corded has a laser aimer for accurate barcode scanning and a megapixel sensor to capture various types of barcodes, even if they are damaged or distorted. This makes it ideal for high-density workloads.
Acuscan
Laser aiming with Acuscan is an optional feature that allows you to hone in on the code you want, even if barcodes are printed closely together.
Hands-free Scanning
The HR33 Marlin Corded scanner offers various hands-free scanning stand options. The first option is the intelligent adjustable auto-sense stand, which can be adjusted from an upright position to a flat one, making it suitable for desktop and wall-mounted use. The second option is the gooseneck stand, which provides a flexible design to adjust to your preferred scanning distance and angle.
Be confident with Newland
The HR33 Marlin’s IP52 and 1.5m drop specification are backed up with a trustworthy 5-year warranty. Select the HR33 with confidence, knowing that Newland has created a scanner that’s up for the job no matter the environment.
Technical Specifications:
Data Capture
1D: Code 11, Code 128, Code 39, GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 Databar (RSS), Code 49, Code 16K
2D: PDF417, QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code, Micro PDF417, Code One, Dotcode
OCR: Passport OCR, Chinese ID Card OCR, China Travel Permit OCR
Image Sensor: 1280 × 800 CMOS
Aiming: Cross laser
Illumination: White LED
Resolution: ≥ 3 mil
Scanning Performance
Depth of Field (EAN-13, 13 mil): 40 mm – 535 mm
Depth of Field (Code 39, 5 mil): 50 mm – 230 mm
Depth of Field (PDF417, 6.7 mil): 45 mm – 215 mm
Depth of Field (DataMatrix, 10 mil): 30 mm – 245 mm
Field of View: Horizontal 48°, Vertical 30°
Scan Angle: Roll 360°, Pitch ±60°, Skew ±60°
Minimal Print Contrast: 15%
Physical
Current @ 5V DC (Operating / Standby): 281 mA max / 129 mA standby
Dimensions: 95 × 68 × 166 mm
Input Voltage: 5 V DC ±5%
Interfaces: USB (USB-KBW, USB-CDC, HID-POS), optional RS232
Notifications: Beeper, LED, vibration
Weight: 140 g
Environmental
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 95% non-condensing
Electrostatic Discharge (ESD): ±8 kV contact discharge, ±15 kV air discharge
Drop Resistance: 1.5 m drops to concrete
IP Rating: IP52
Accessories
Standard: USB cable
Optional: Smart stand
Certifications
Hardware Certifications: CE, FCC, RoHS 2.0, IEC 62471, IEC 60825
