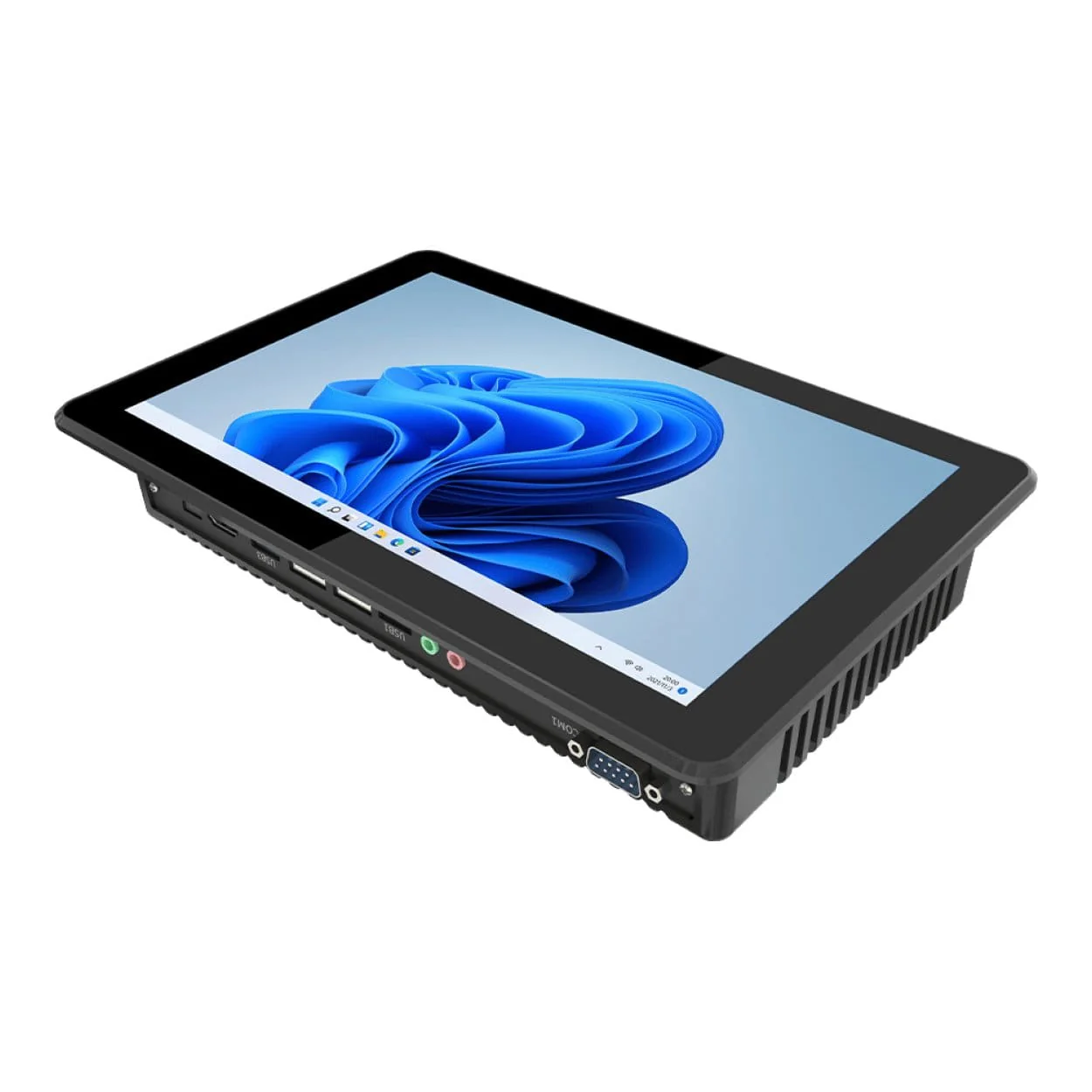

ONERugged P10A 10.1-inch HD Rugged Panel All-in-one PC - Intel Core i5-1235U 128GB ROM 16GB RAM Win 11 Pro
Powerful and high-speed
Powered by 12th-gen Intel® Core™ i5-1235U Processors and Windows 11, P10A features a 10.1" capacitive touch panel with 700 nits high brightness. With Wi-Fi 6, Bluetooth 5.1, and expandable 4G, it offers versatile connectivity. Its fanless design and large-area uniform heating fin ensure 24/7 operation without compromising reliability. P10A boasts excellent environmental adaptability, anti-electromagnetic interference, and anti-static capabilities. With multiple USB/RJ45/DB9/HDMI ports, it easily meets various requirements. Its wide voltage and temperature design, IP65-rated dustproof and waterproof build, and standard PPC mounting hook facilitate easy installation in diverse settings.
High-Quality Display
10.1-inch impact-resistant flat capacitive touch panel, 700 nits high brightness screen for clear visibility
Reliable Fanless Design
Utilizes large-area uniform heating fin for fanless operation, runs 24/7 without compromising reliability or service life
Versatile Connectivity
Wi-Fi 6, Bluetooth 5.1, and expandable 4G via M.2 interface, supports multiple network connection modes
Rich Interface Options
Multiple USB, RJ45, DB9, HDMI, and other I/O ports, easily meets various scenario requirements
Excellent Performance
Powered by 12th-gen Intel® Core™ i5-1235U/i7-1255U Processors, equipped with Windows 11 operating system
Easy Installation
Standard PPC mounting hook component for easy installation, supports various installation methods like embedded and wall-mounted.
Environmental Adaptability
Excellent anti-electromagnetic interference and anti-static capabilities, IP65-rated dustproof and waterproof design.
Specification
Product:Â ONERugged P10A Rugged Panel All-in-one PC
Product type:Â Industrial Panel PC
Processor family:Â 12th generation Intel Core i5
Processor model:Â i5-1235U
vPro security:Â Disabled
Processor frequency:Â Octa-Core~4.4GHz
Display diagonal:Â 25.6 cm (10.1")Â
HD type:Â HD
Display resolution: 1200 x 800 pixels
Display:Â PCAP, 700 Nits
Internal memory:Â 16GB
Internal memory type:Â DDR4X
Total storage capacity:Â 128GB
Storage media:Â M.2 SATA
On-board graphics card model:Â Intel Xe Iris Graphics
Operating system installed:Â Windows 11 Pro
Product colour:Â Black
Weight: Starting at 1.84 kg
Ports & Slots:
- 4x USB 3.0
- 1x DC 19V (Support 12-24V）
- 1x 3.5mm Standard Earphone Jack
- 2x RJ45 (10M/100M/1000M adaptive)
- 2x DB-9-RS232
- 1x HDMI
- 1x M2 [M.2 2280 standard interface (Support SATAIII/PCIE3.0XA signal)]
Rugged Features:
- IP65 (Front Panel)
- Water Resistance (Front Panel)
- Dust Resistance
- MIL-STD-810H
