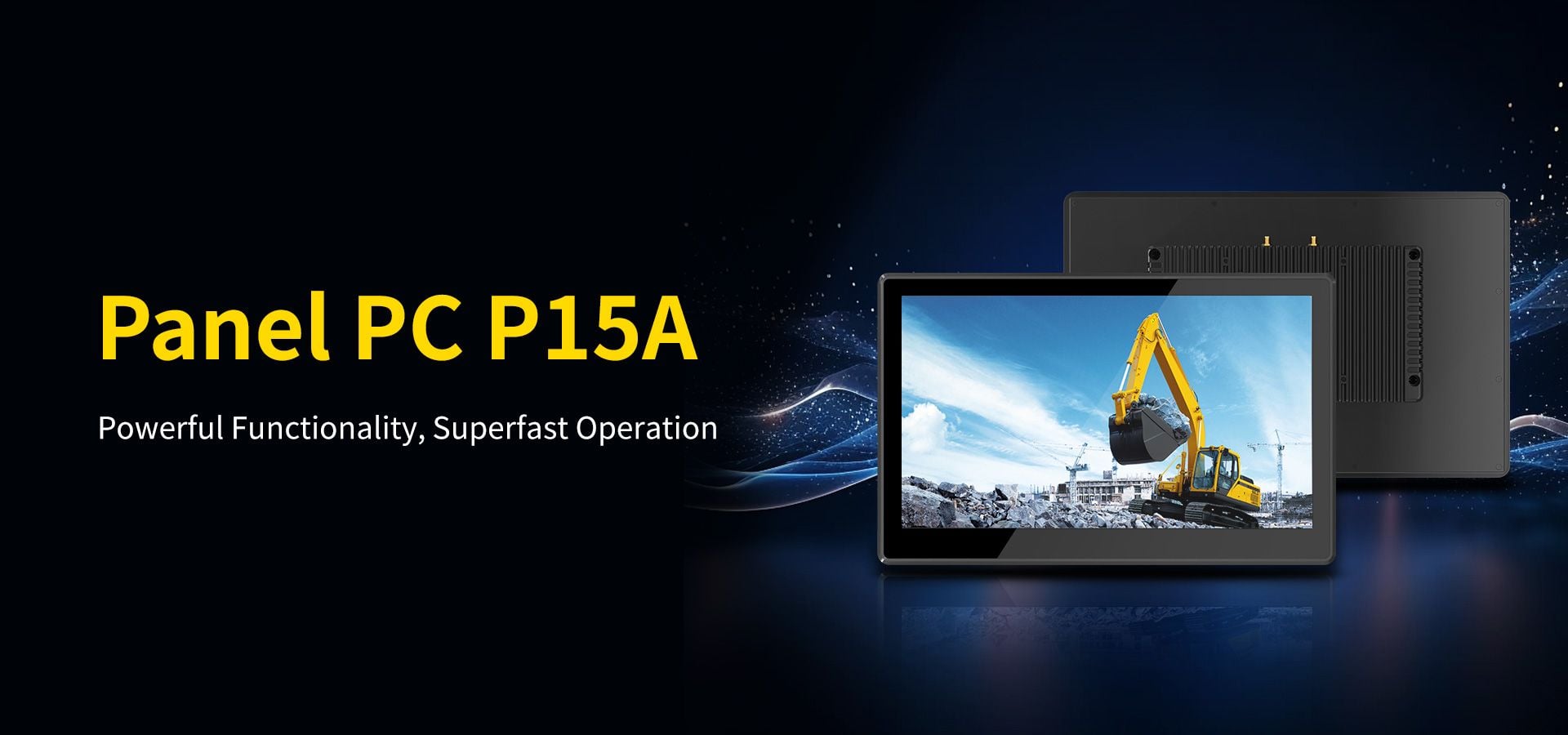

ONERugged P15A 15.6-inch Rugged Panel All-in-one PC - Intel Core i5-1235U 128GB ROM 16GB RAM Win 11 Pro
The P15A can meet a variety of industrial usage scenarios
Powered by 12th-generation Intel® Core™ i5-1235U Processor, equipped with Windows 11 operating system. 15.6-inch flat capacitive touch panel with high impact resistance. Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection mode. Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities. Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life. Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports,can easily meet various scenario requirements. Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted.
7×24 Operation
running 24/7 without affecting reliability and service life
Rich I/O Interfaces
Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports,can easily meet various scenario requirements
Multiple Networking
Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection mode

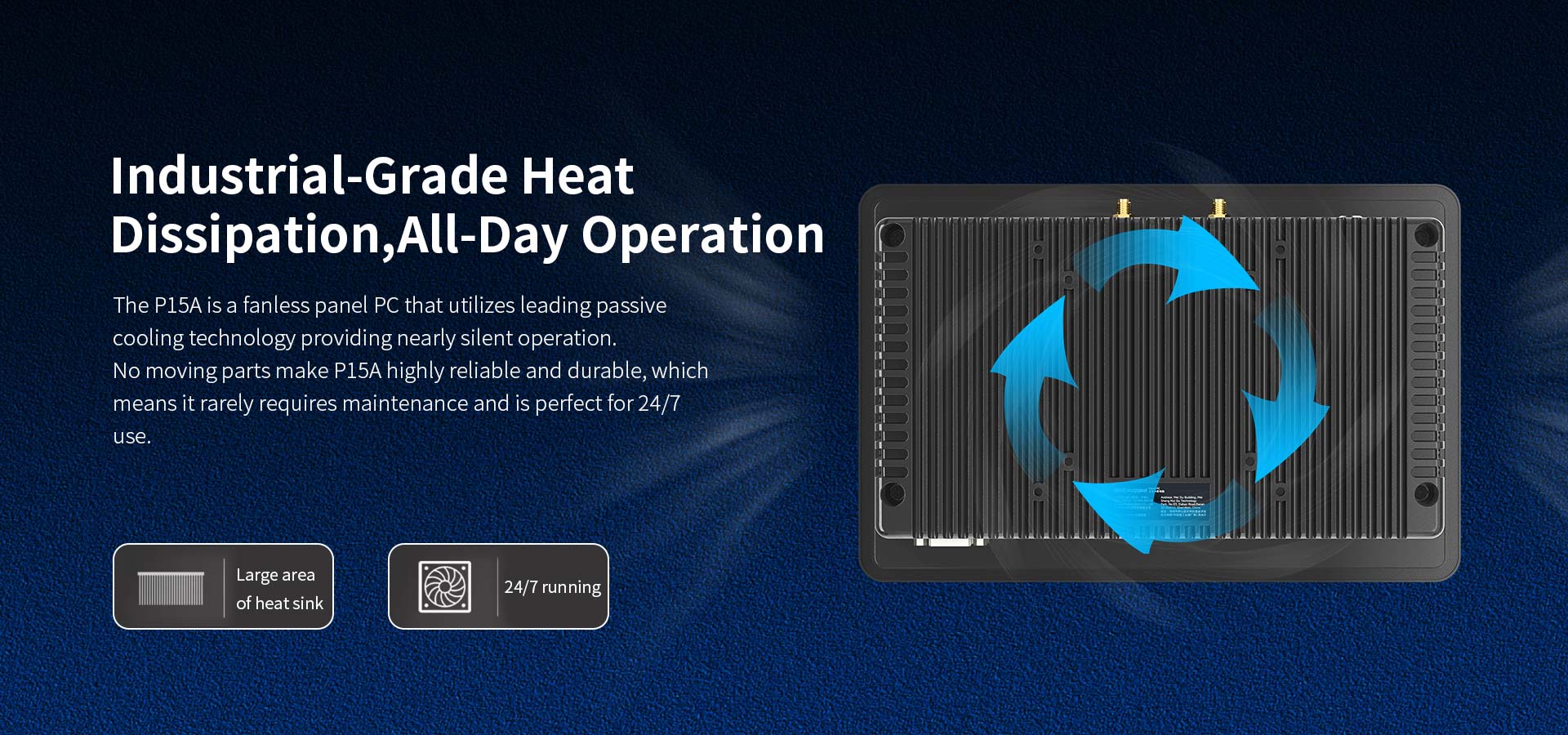

Fanless design
Fanless design, using large-area uniform heating fin
Easy to Install
Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted
Technical Specifications:
Product: ONERugged 15A Rugged Panel All-in-one PC
Product type: Industrial Panel PC
Processor family: 12th generation Intel Core i5
Processor model: i5-1235U
vPro security: Disabled
Processor frequency: TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz

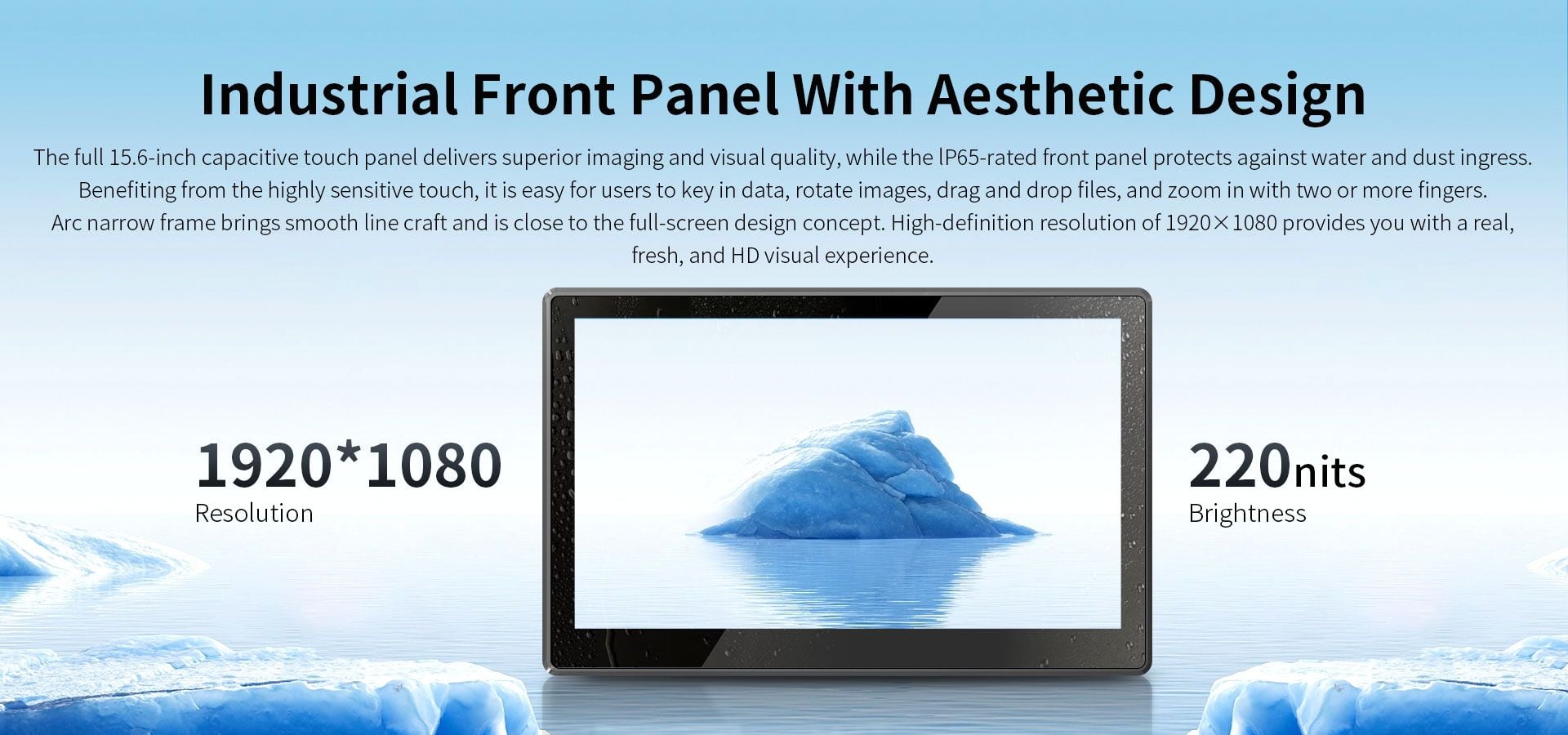

Display diagonal: 39,6 cm (15.6")
HD type: FHD
Display resolution: 1920 x 1080 pixels
Display: PCAP, 220 Nits, 16:9
Internal memory: 16GB
Internal memory type: DDR4X
Total storage capacity: 128GB
Storage media: M.2 SATA
On-board graphics card model: Intel Xe Iris Graphics
Operating system installed: Windows 11 Pro
Product colour: Black
Weight: Starting at 2.84 kg
Warranty: 3 Year

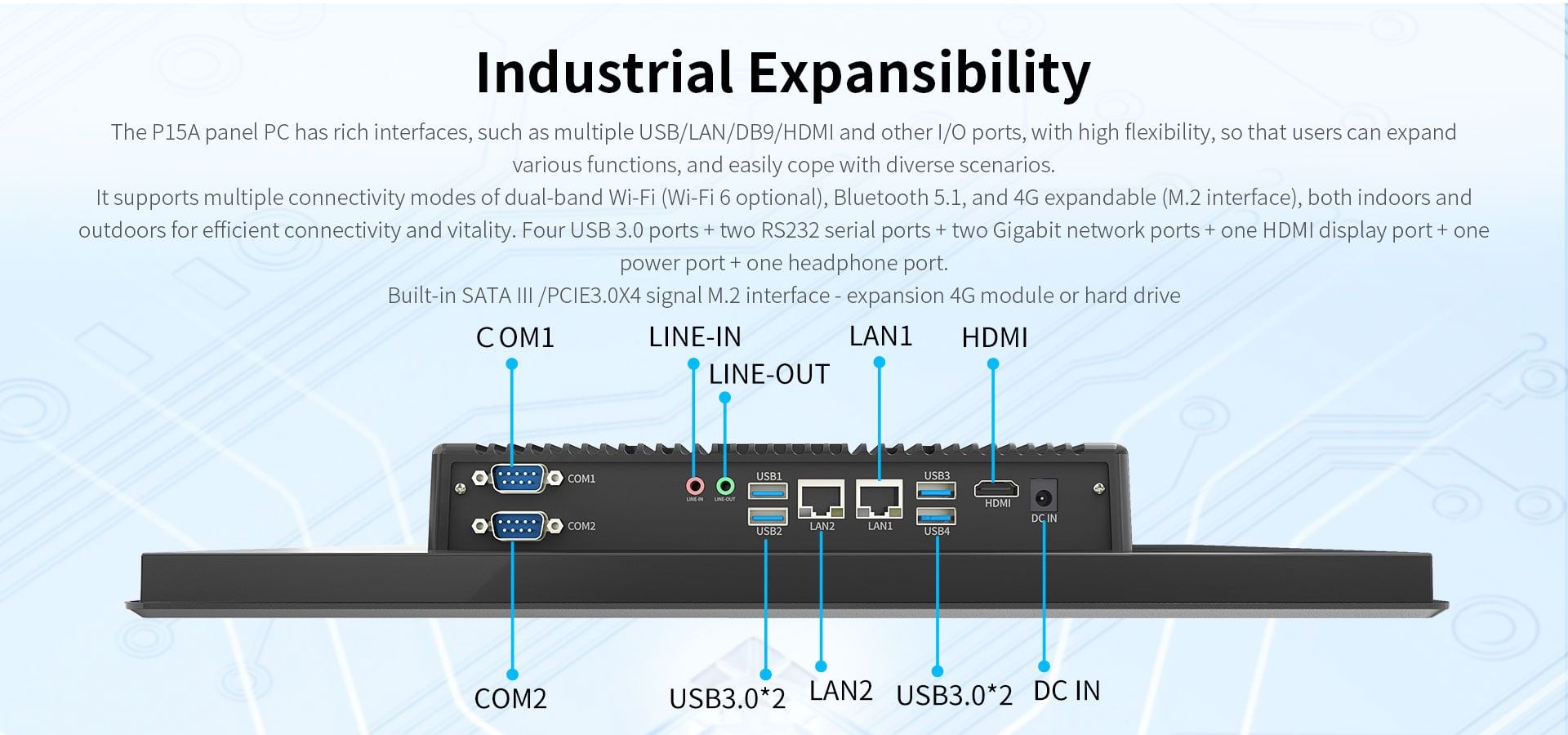

Ports & Slots:
- 4x USB3.0
- 1x DC 19V (Support 12--24V)
- 1x ∮3.5mm Standard Earphone Jack
- 2x RJ45
- 2x DB9 PORT RS232
- 1x HDMI
- 1x M2 M.2 2280 standard interface (Support SATA / PCIe 3.0x4 signal)
