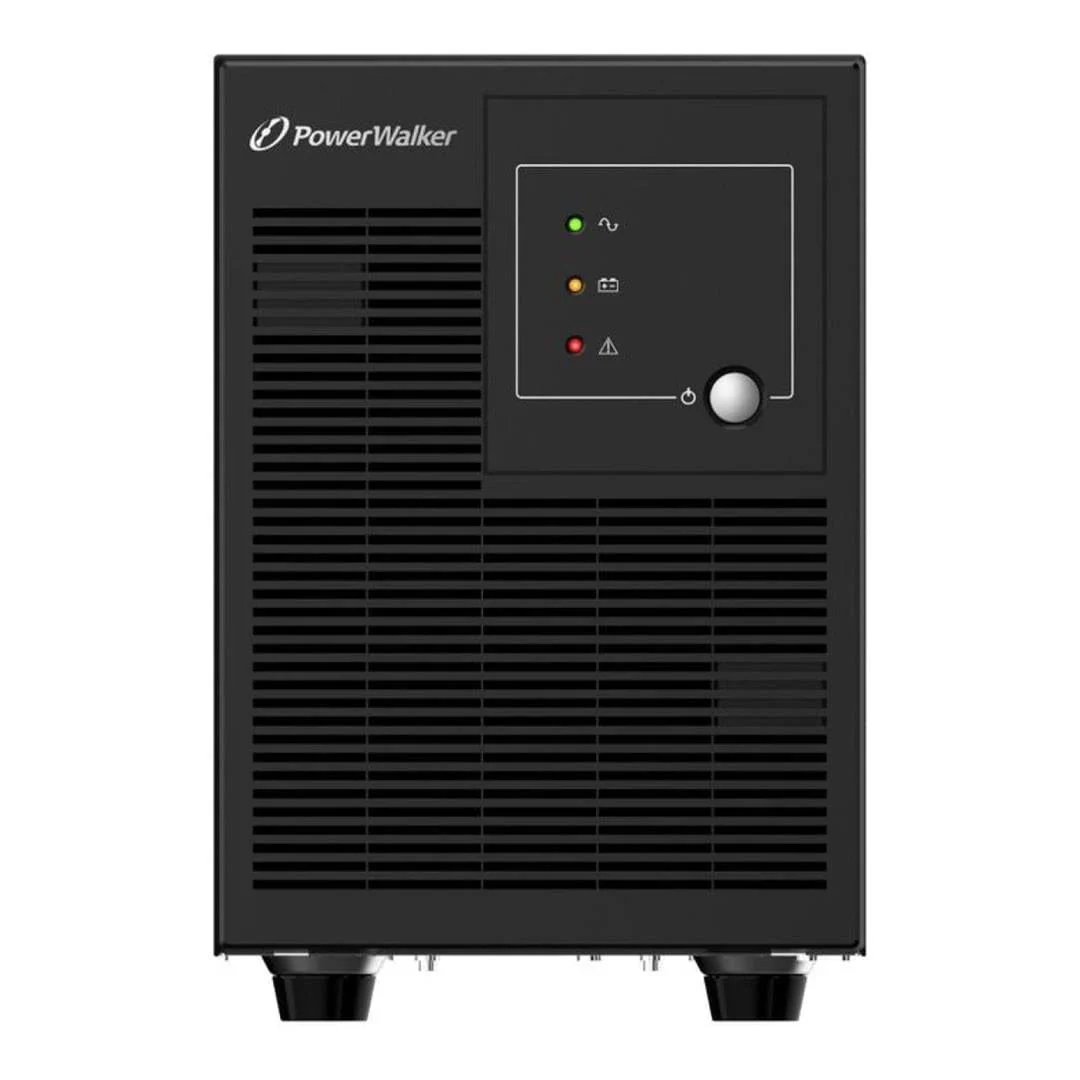

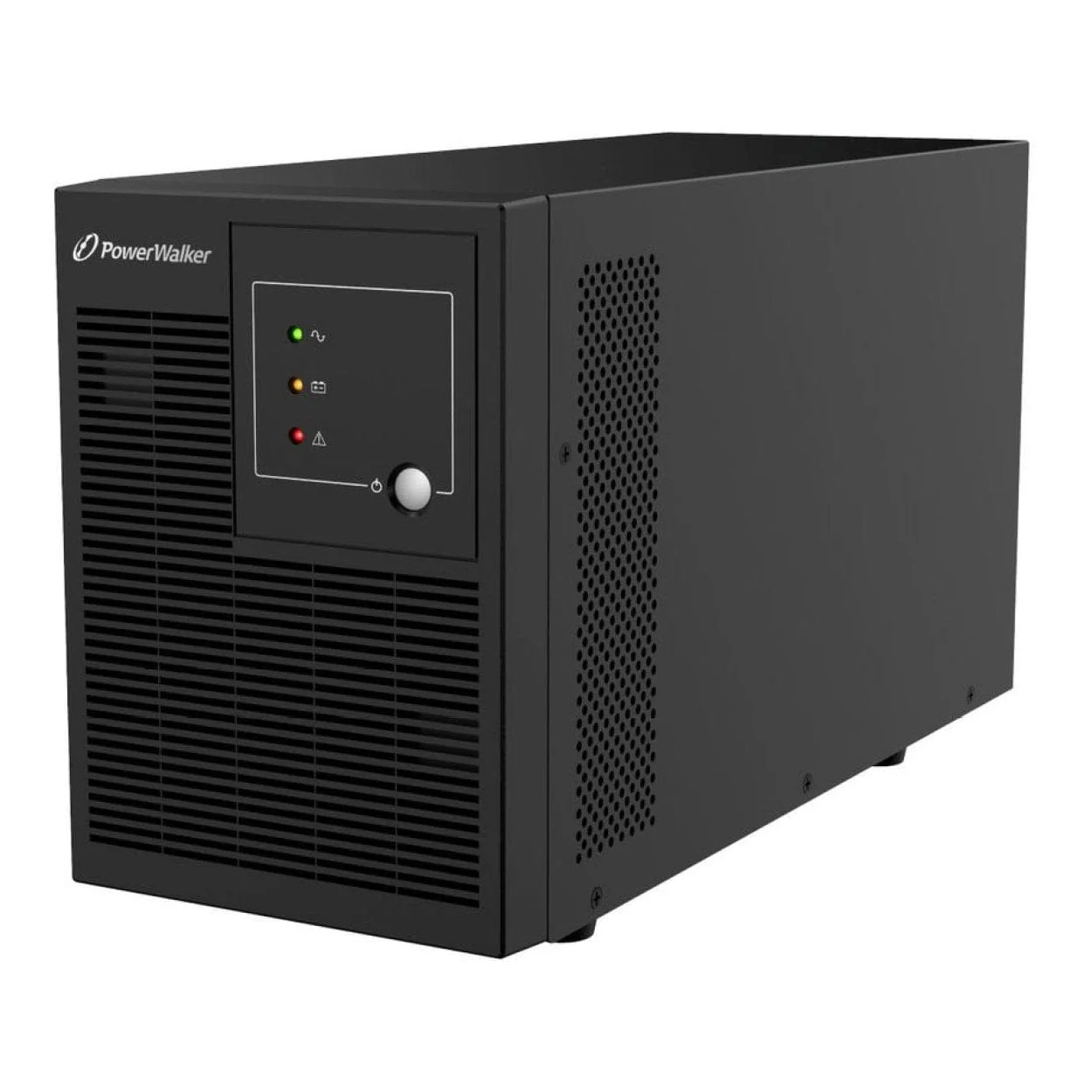

PowerWalker Basic VI ST Series 3000VA 1800W Line Interactive UPS VI 3000 ST

PowerWalker Basic VI ST Series 3000VA 1800W Line Interactive UPS VI 3000 ST

The PowerWalker Basic VI ST ZA series is designed to answer the essential market needs. This Line-Interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped.

Technical Specifications:

Type
Line-Interactive (VI)

Phases (IN–OUT)
1–1

Form Factor
Tower

Power Capacity
1200 VA / 720 W

Output Power Factor
0.60

Input

Input Voltage Range
162 – 290 VAC

Frequency Range
50 / 60 ±1 Hz (default 50 Hz)

Output

Waveform
Simulated sine wave

GOES Rating
1200

Load Crest Ratio
3:1

Nominal Output Voltage
220 – 240 VAC

Frequency (Battery Mode)
±0.05 Hz

Output Power Factor
0.60

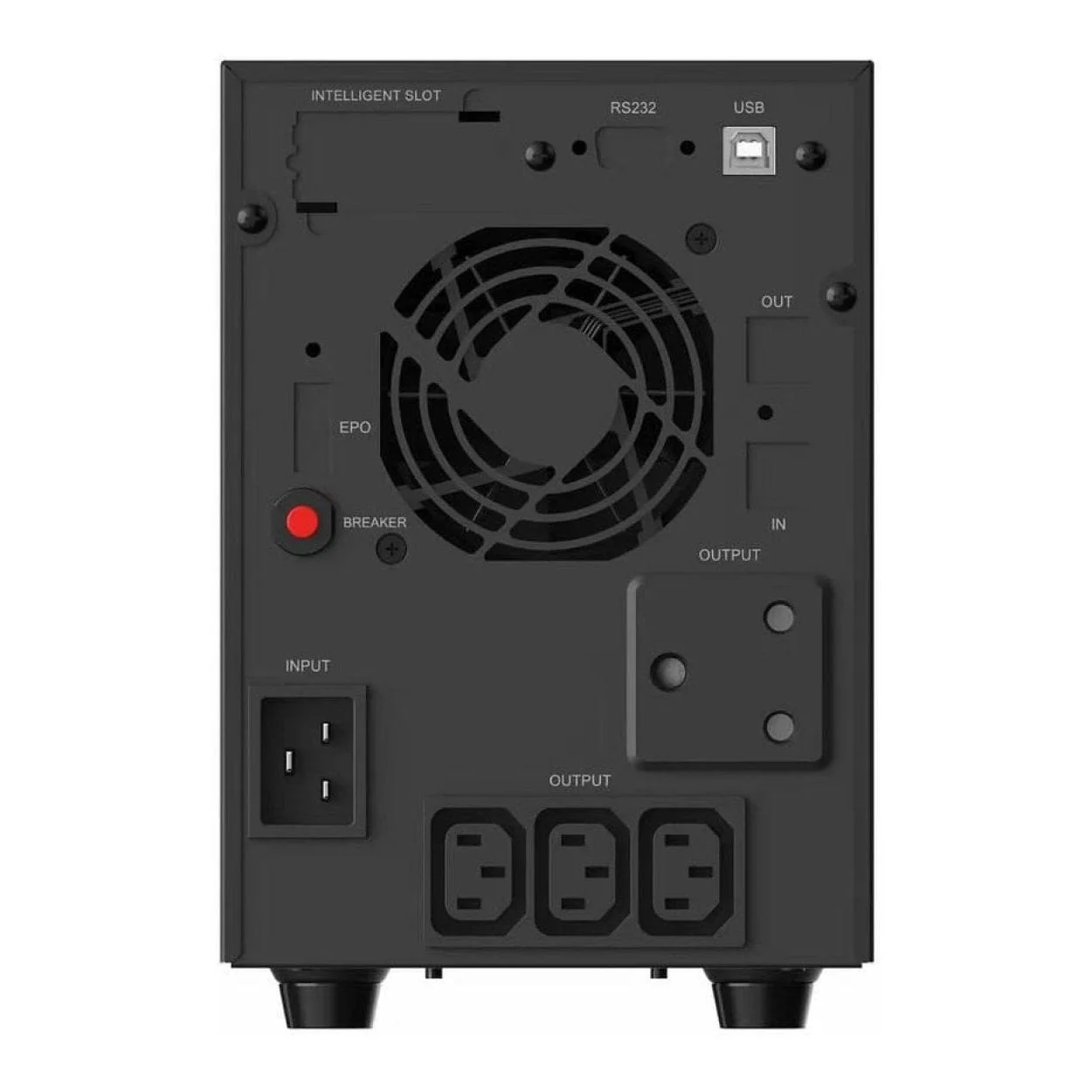

Input & Output Connectors

Input Connector
IEC C20

Output Connectors
3 × Type G (BS 1363)

Technical Details

Line Mode Efficiency (Full Load)
95.0%

Transfer Time (AC/Line to Battery Mode)
4 ms

Additional Features
AVR – Automatic Voltage Regulator
Cold-start function
HID – Human Interface Device

IEC 62040-3 Classification
VI-SY-333

Batteries and Autonomy

Batteries
4 × 24.0 V / 9.0 Ah

DC Voltage
4 × 24.0 V

Recharge Time
8 hours to 90%

Communication

Communication Port
USB Type-B (for monitoring software)

Software
PowerMaster

Management and Environment

Noise Level
< 50 dB

Fan
No fan

Operating Temperature
0°C – 40°C

Operating Humidity
10% – 90%

Ingress Protection
IP20

Logistics

Product Dimensions (D × W × H)
390 × 151 × 225 mm

Product Weight
19.3 kg

What's in the Box:
UPS
User manual
