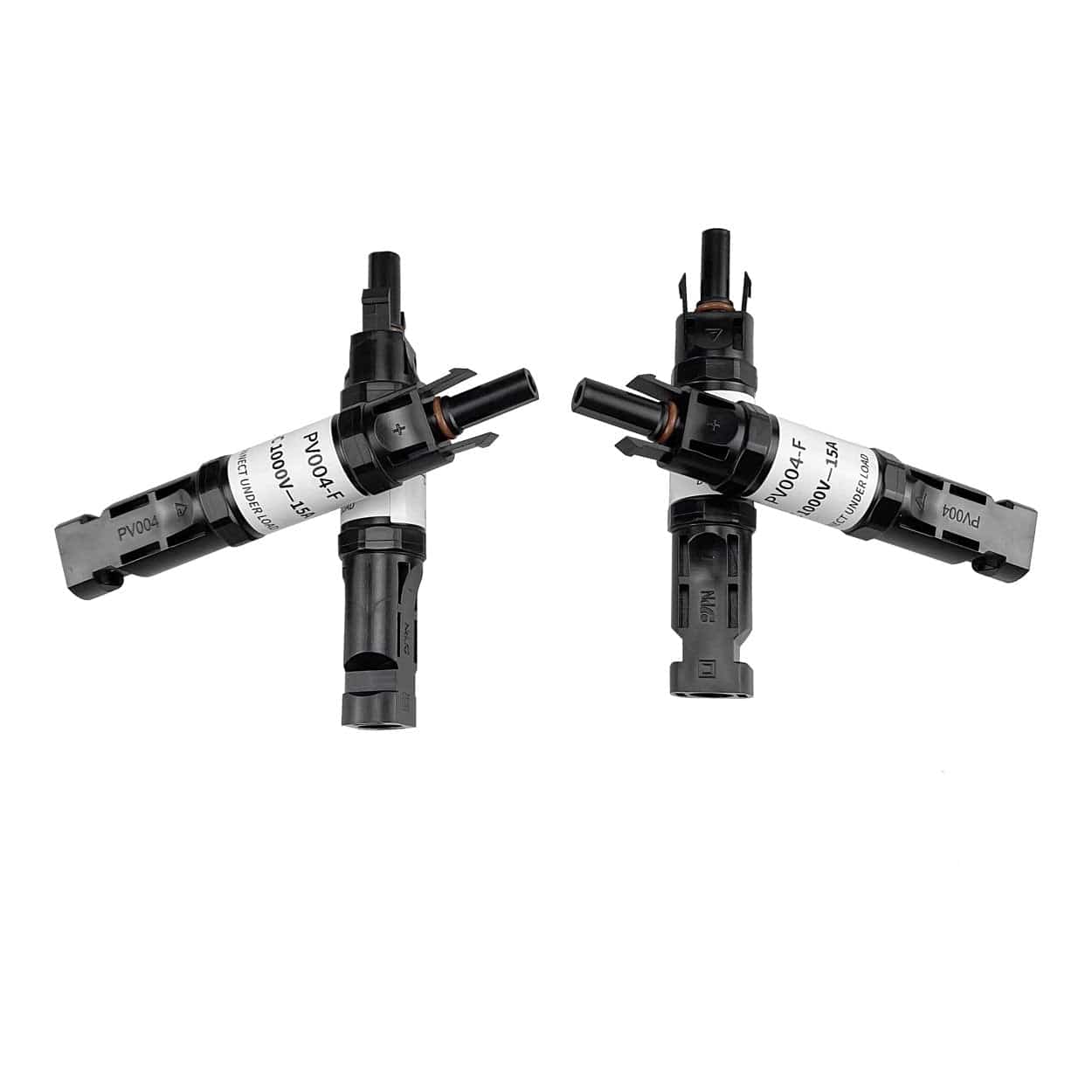

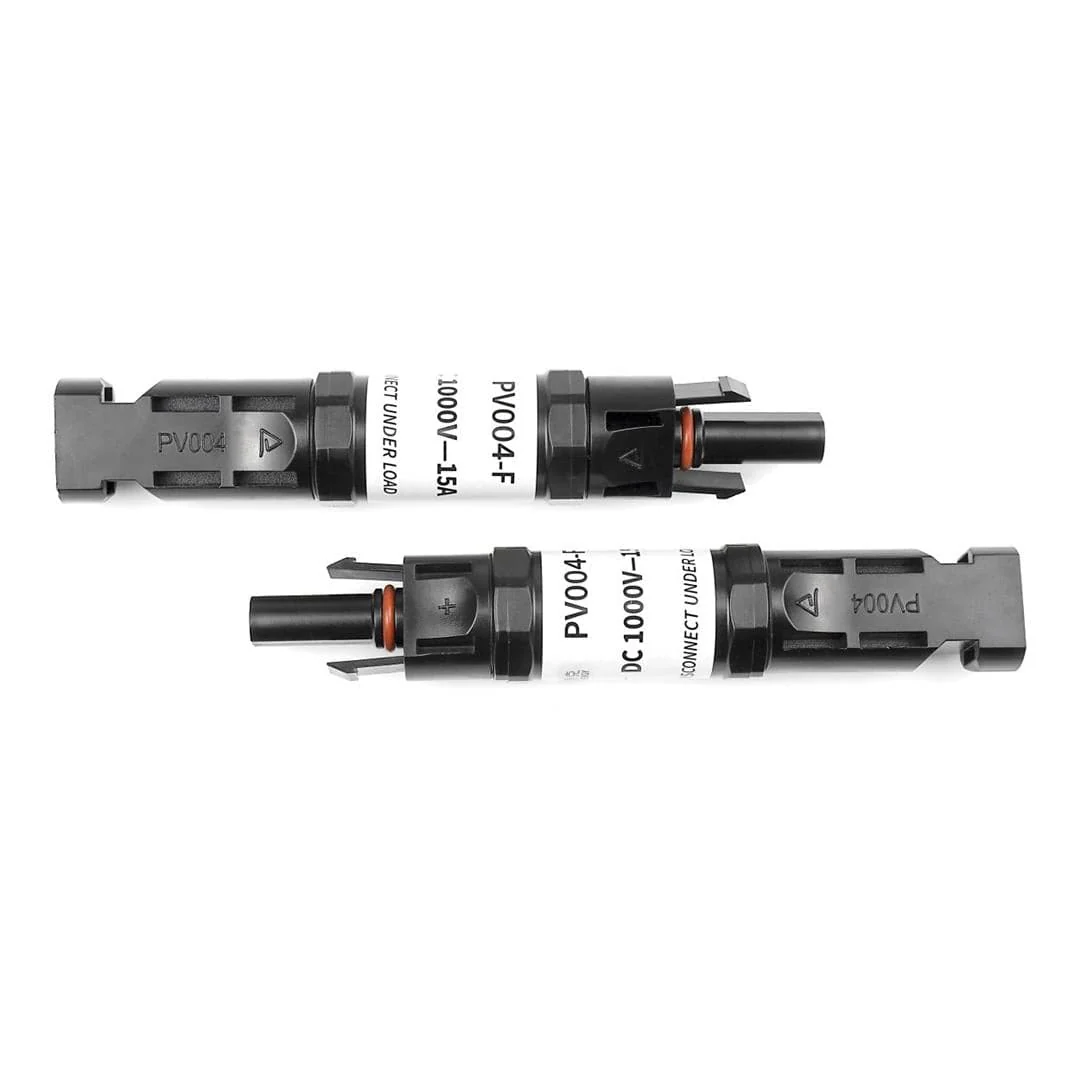

PV 1000V DC Solar Fuse Connectors PV004-F

PV 1000V DC Solar Fuse Connectors PV004-F

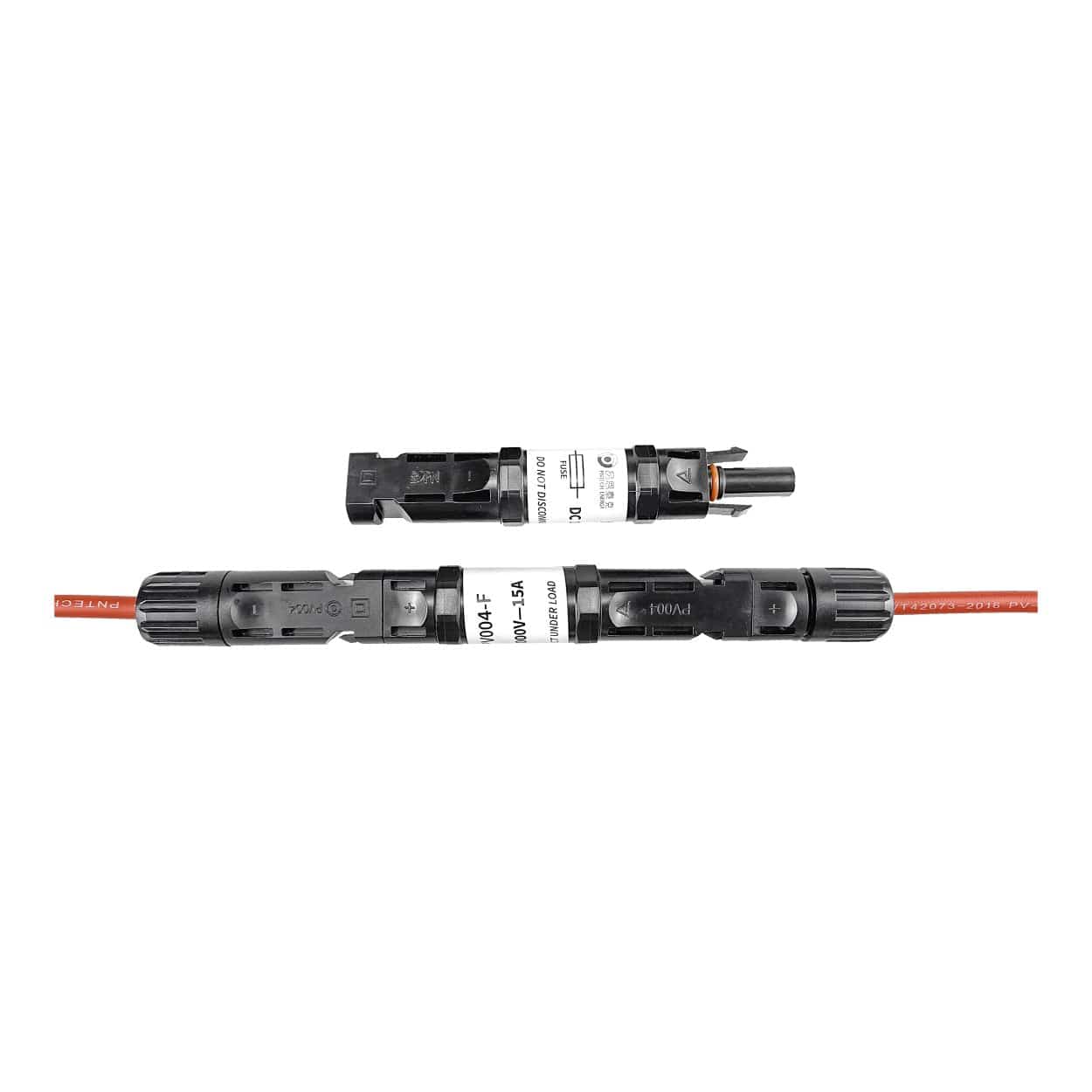

The solar extension cable is mainly used for the connection between PV modules and inverter (Controller). It can be produced according to different requirements.We have a variety of connectors for photovoltaic systems. Line-to-Line types: PV004(30A), PV008(80A). Branch types: 2T1, 3T1, 4T1,T2,T3,T4,T6. Special function connector PV004-D (with diode) and PV004-F(with Fuse).



High-strength waterproof apron

waterproof is safe and stable

High-strength PPO insulation material

high load current, high voltage design

Ambient temperature -40ºC ~ +85ºC

The shell material is adapted to the environment of different areas and resits to UV rays.

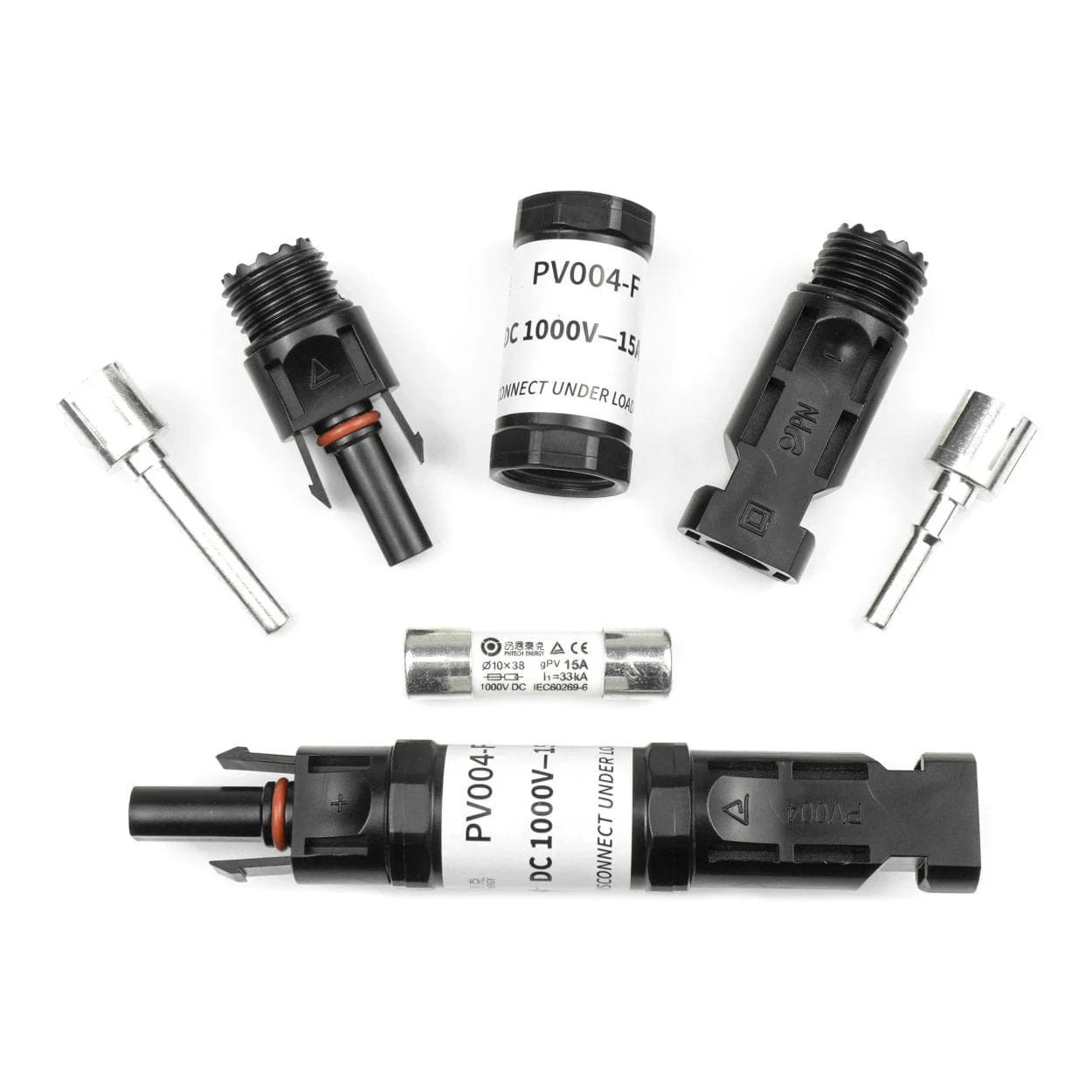

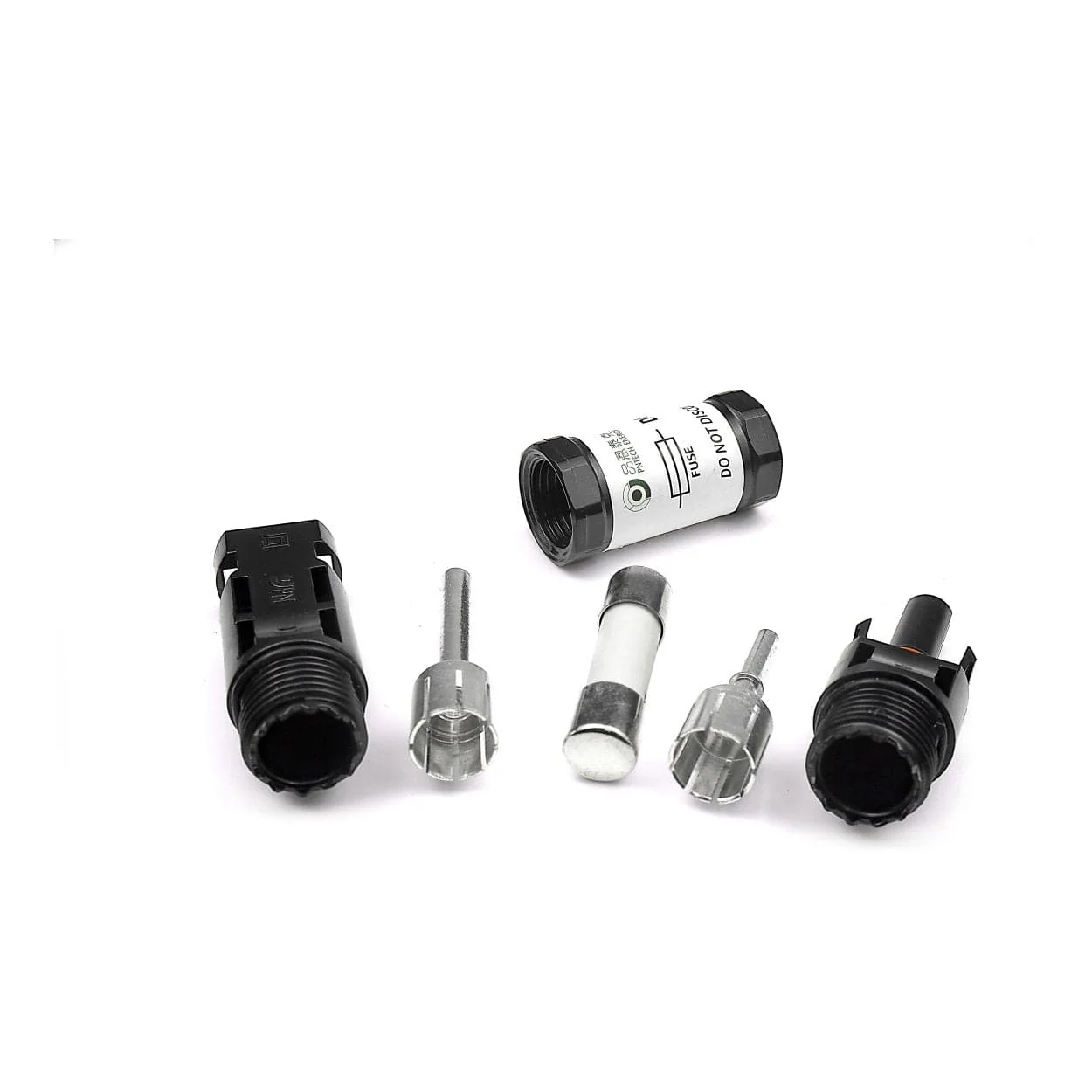

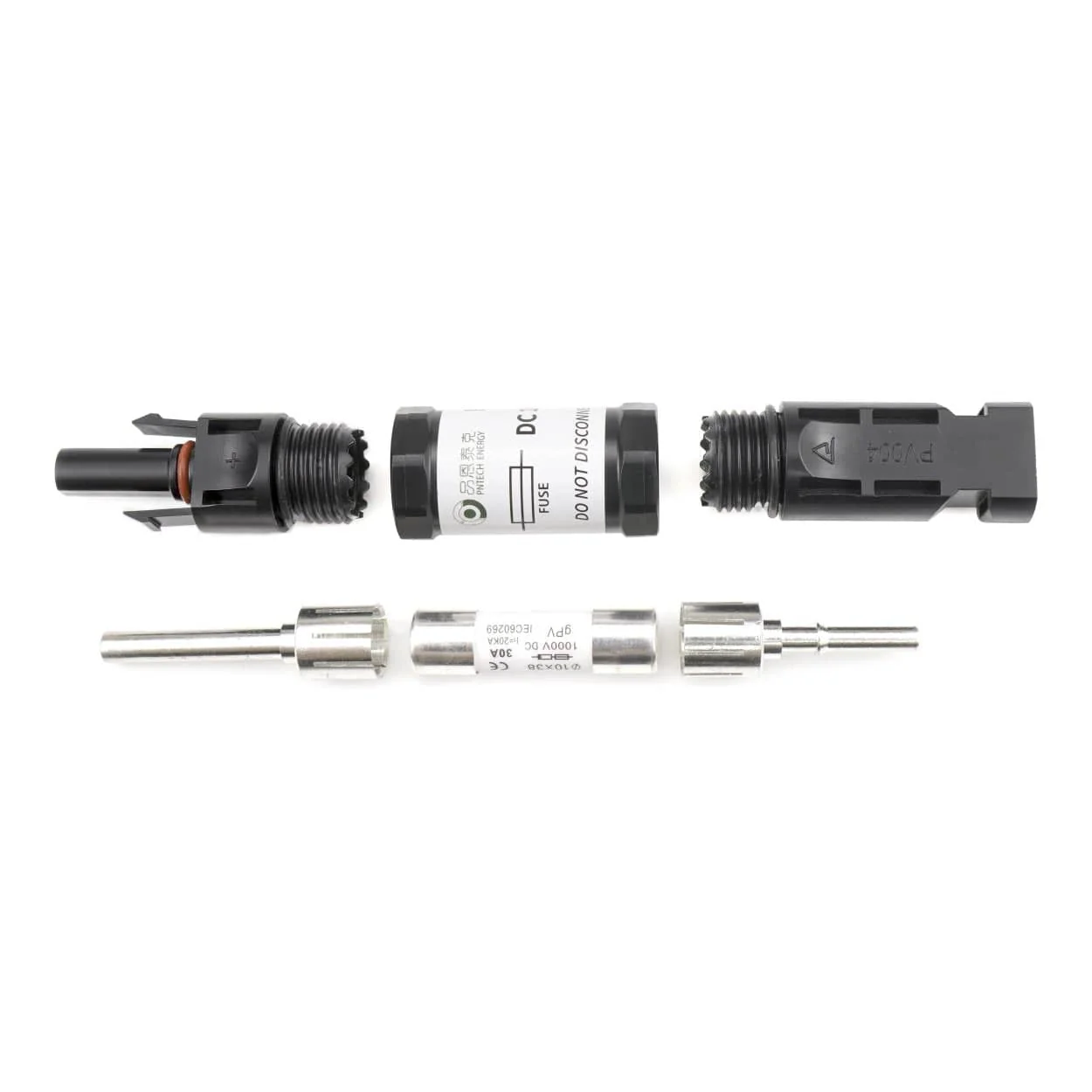

Built in fuse

Rated current 10A/15A/20A

High Strength PPO Plastic

It has the advantages of large rigidity and high heat resistance.In addition, PPO still had the advantages of wear-resisting and poliution resistance

Stable Self-locking

The connector is connected by pressing, and the male and female connectors open and close freely

Specifications

Type: PV004-F

Rated Voltage: 1000VDC

Rated impulse voltage: 8000V

Rated insulation voltage: 6000V

Rated Current: 30A

Standard: EN 62852: 2015, IEC 62852(ed.1)

Protection Degree: IP67

Contact Resistance: ≤0.5mΩ

Pollution Degree: 2

Ambient Temperature: -40~+85ºC

Cable cross section area: 2,5 mm² 4,0mm² 6,0 mm²

Cable outer diameter: 4.0-7.0mm

Insulation Material: PC /PPO

Flame Class: UL94-V0
