PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2
HomeStore

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2

$0.54

Original: $1.79

-70%
PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2—

$1.79

$0.54

The Story

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2

  • The product has a large current, high voltage load capacity
  • Low contact resistance
  • Waterproof and dust-proof, simple Installation
  • High and low temperature resistance
  • Fire resistance, UV resistance and other characteristics

Specifications

Type: PV004-T2

Rated Voltage: 1000V DC

Rated Current: 30A

Protection Degree: IP65

Contact Resistance: ≤0.5mΩ

Ambient Temperature: -40ºC~+ 90ºC

Insulation Material: PPO

Flame Class: UL94 V-0

Contact Materials: Tin Plated Copper

Adaper Connector: PV004/PV005

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

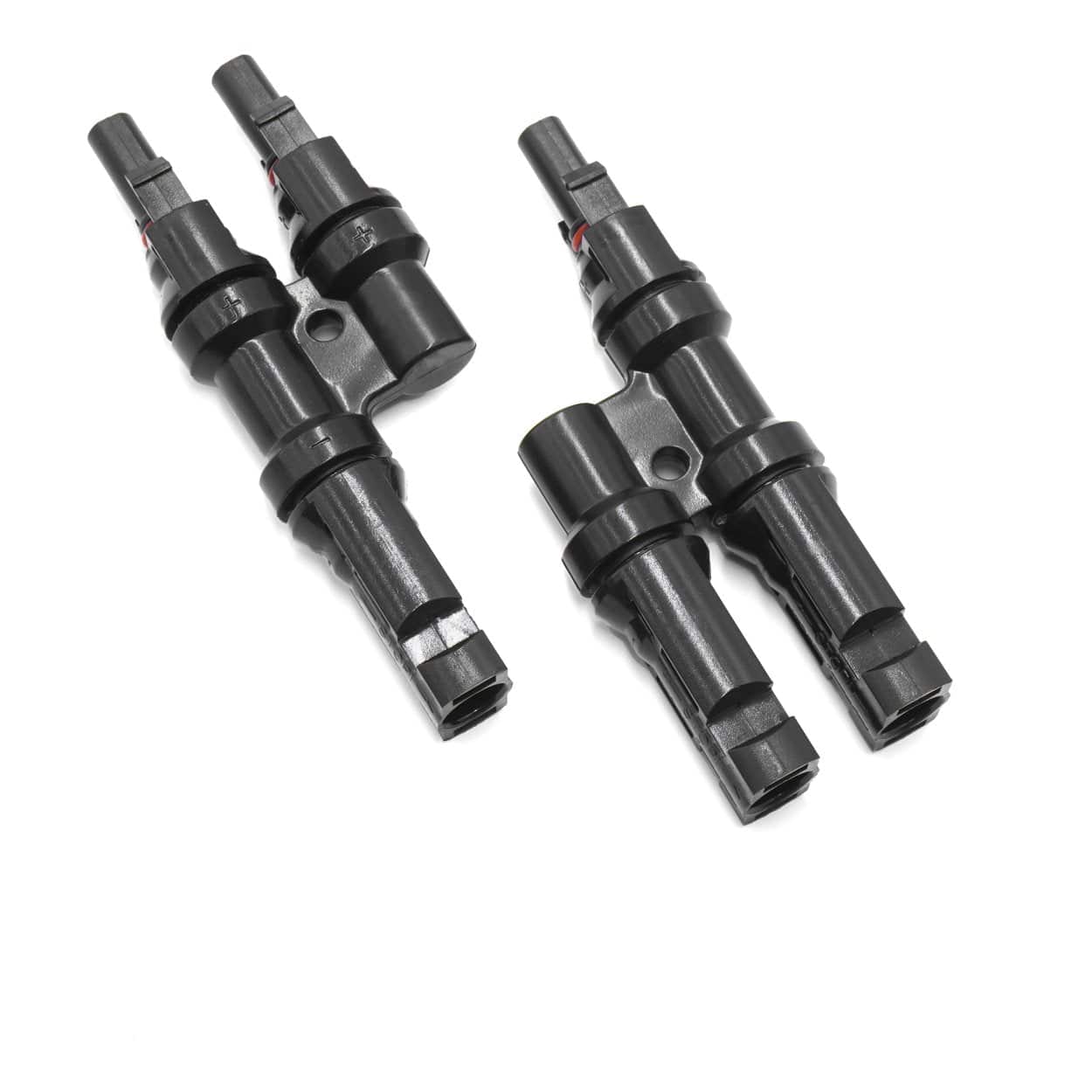

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

PV 1000V DC T 2 to 1 Solar Branch Connectors PV004-T2

  • The product has a large current, high voltage load capacity
  • Low contact resistance
  • Waterproof and dust-proof, simple Installation
  • High and low temperature resistance
  • Fire resistance, UV resistance and other characteristics

Specifications

Type: PV004-T2

Rated Voltage: 1000V DC

Rated Current: 30A

Protection Degree: IP65

Contact Resistance: ≤0.5mΩ

Ambient Temperature: -40ºC~+ 90ºC

Insulation Material: PPO

Flame Class: UL94 V-0

Contact Materials: Tin Plated Copper

Adaper Connector: PV004/PV005
