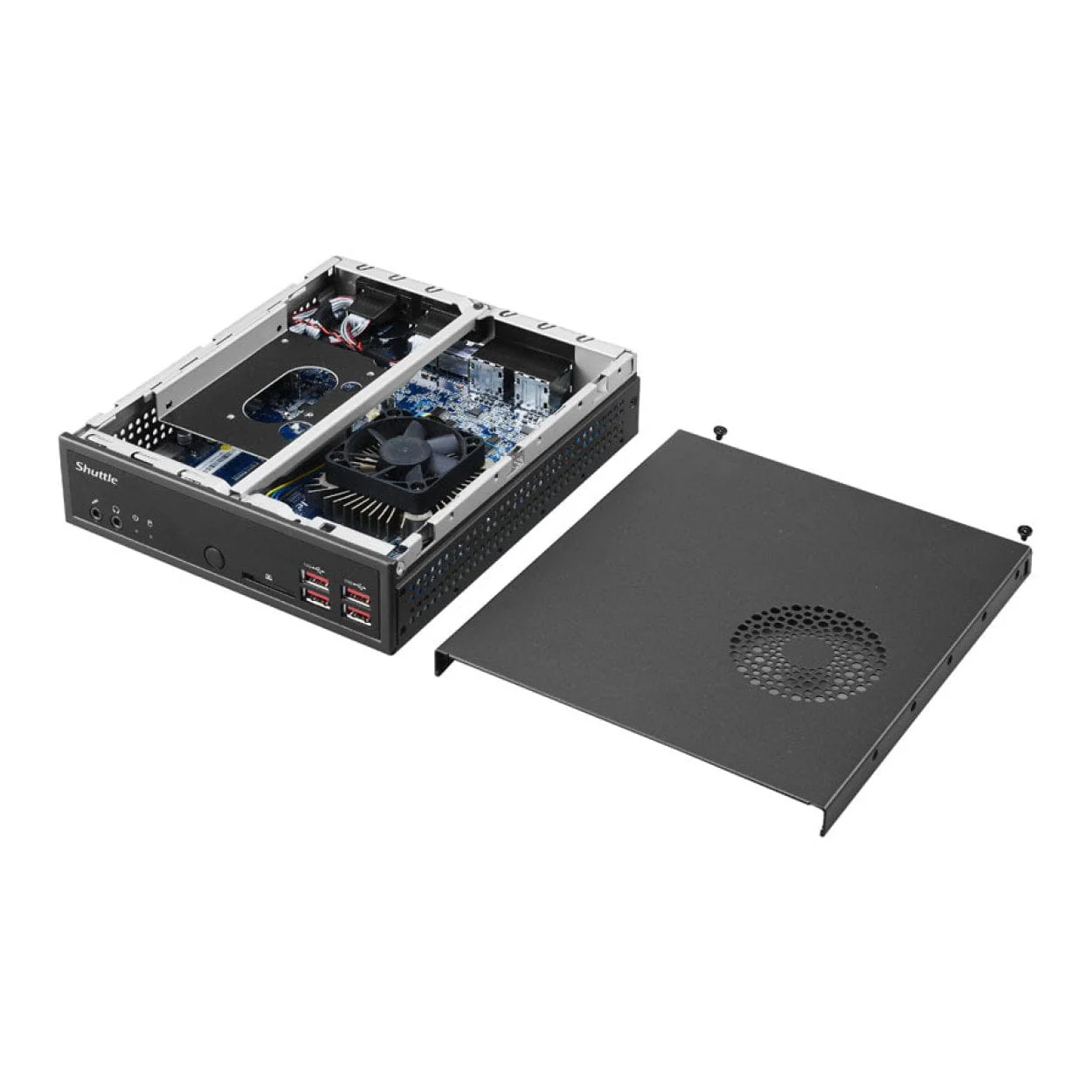

Shuttle DH32UE XPC Barebone Mini PC PC-NUC-DH32UE

Shuttle DH32UE XPC Barebone Mini PC PC-NUC-DH32UE

This space-saving Slim PC integrates an energy-efficient Gen 11 Intel ULV processor "Tiger Lake-U" and supports no less than four Ultra HD displays at 60 Hz frame rate via HDMI2.0b. It's slim metal chassis with a VESA mount included, versatile connectivity and reliable operation in ambient temperatures of up to 50 °C degrees, make it ideal for vertical applications such as Digital Signage, Kiosk, Surveillance, Control Room, Gambling Machines, Healthcare and Industry.

SPECIFICATIONS:
DIMENSIONS: 190 x 165 x 43mm

WEIGHT: 2.1kg

CPU: Supports Intel i7, i5, i3 and Pentium

RAM: Up to 2x DDR4. Max. 64GB

STORAGE: 1x 2.5” Hard Drive Bay
1x M.2-2280 M-Key

GPU: i5 and i7 Processor Supports Intel Xe Graphics, Pentium and i3 Processor Supports Intel UHD Graphics

VIDEO PORTS: Quad Display via 4x HDMI2.0b
Simultaneously

LAN/WIRELESS: Dual Gigabit LAN

USB PORTS: 4x USB3.2 Gen 1 and 4x USB3.2 Gen 2

IO: 1x RS232 DB9 Port and 1x RS232 / 422 / 485 DB9 Port

AUDIO: Line-Out and Mic-In

KENSINGTON: Yes

POWER: 19V 4.74A, 90W AC Adapter, Extended Power Connector
