Shuttle EN01 Series GbE LAN Power-over-Ethernet PSE Module PSE01

Shuttle EN01 Series GbE LAN Power-over-Ethernet PSE Module PSE01

The PSE01 enables the EN01 to supply another network device with power via PoE

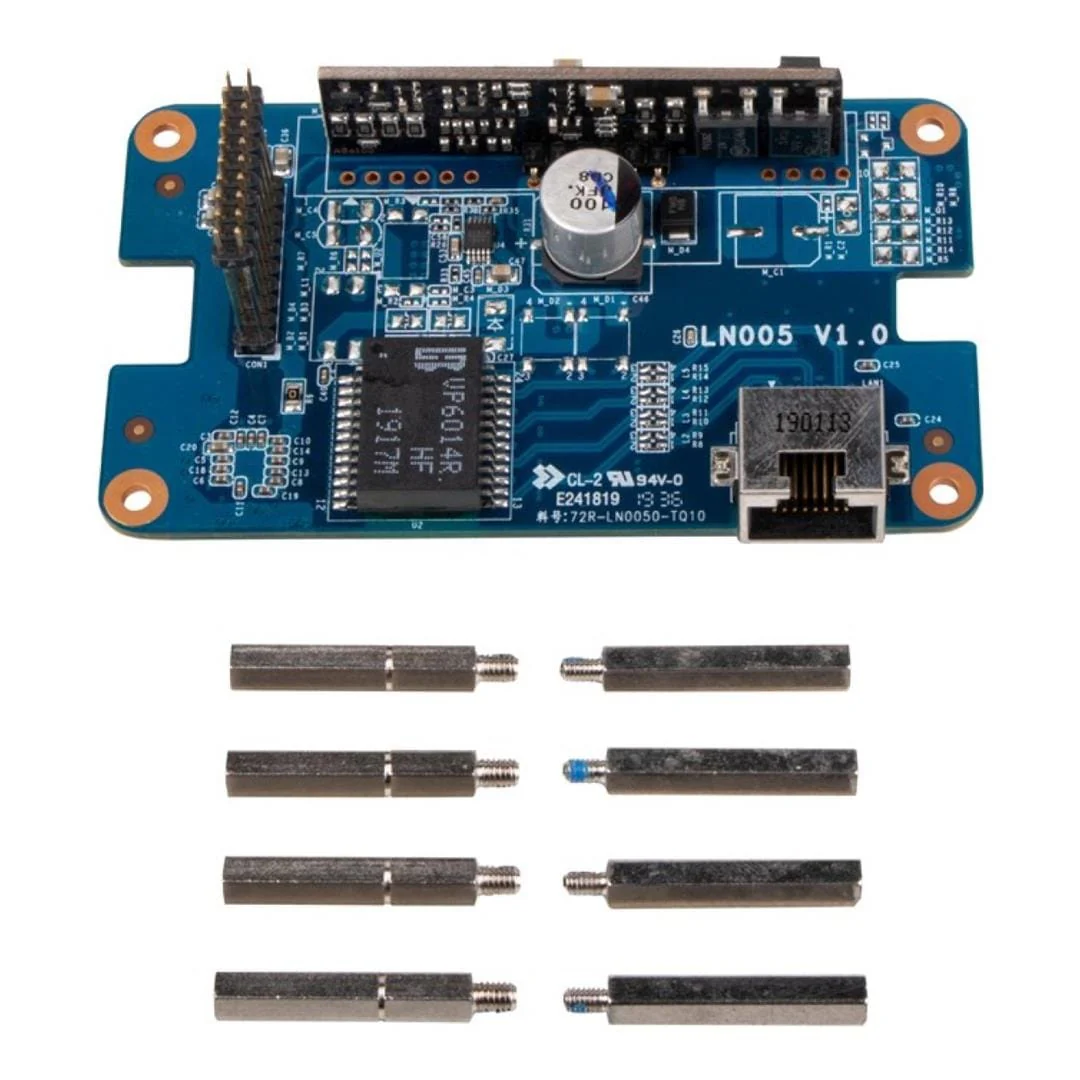

The Shuttle accessory PSE01 is a daughterboard for the EN01 series which provides a second Gigabit network port with Power-over-Ethernet (PoE) function. This makes the EN01 act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device, such as an IP camera.

Features

• Purpose: LAN Port with POE (PSE) Power Sourcing Equipment
  PoE Output: 48 Vdc / 0.5 A
• Internal Port(s): 1x Realtek Gigabit LAN (RTL8119I)
  Supports (IEEE 802.3x)

Technical Specification

Product: Shuttle POE PSE Module PSE01

LAN controller: Realtek RTL8119I supports 1 Gbit/s

PoE output wattage at the LAN port

• 48 Vdc, max. 0.5 A
• Supports 802.3AT & 802.3AF PoE standards

Recommended power adapter for EN01

• ≥ 40 W, if the accessory PSE01 is not used
  ≥ 65 W, if the accessory PSE01 is installed

Contents

• PoE daughterboard with RJ45 network connector
• 8× standoff (4 of these have a marking)
• Adhesive membrane
• Quick guide

Compatibility

• Compatible with the following Shuttle products:
  Edge EN01J3, EN01J4, EN01E, EN01B
