Stylish expansion module of the D8xx series

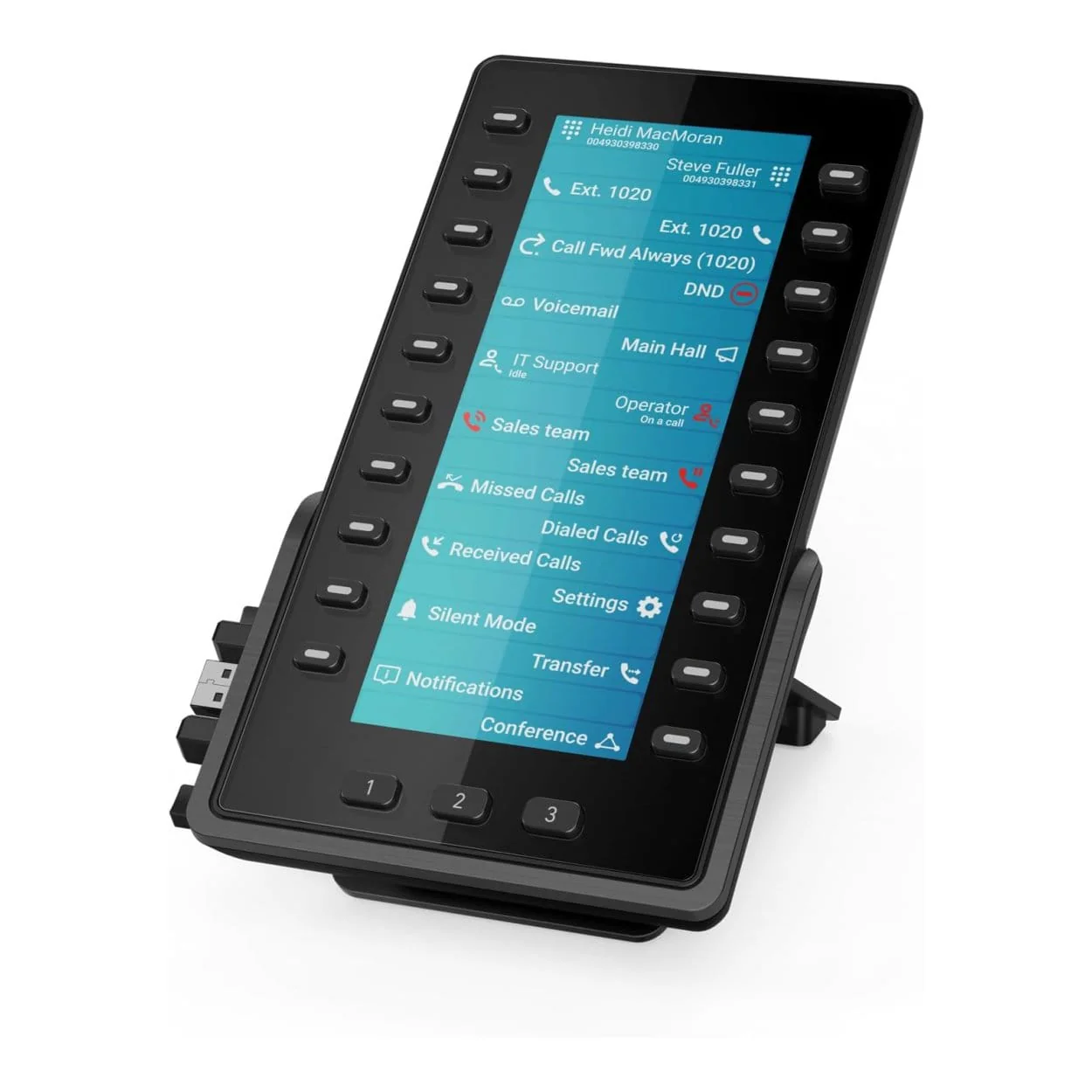

The Snom D8C is an expansion module for all D8xx series devices.

The expansion module has a large, high-resolution colour display with a very clear user interface.Connected to the telephone via USB using plug and play, the Snom D8C expands the D8xx series telephones with an additional large screen and a wide range of application options.

With the help of the 20 physical (60 virtual) freely programmable and multi-coloured LED function keys, the status of colleagues, for example, can be quickly identified and a call quickly forwarded. If the corresponding line or the LED function line lights up red or yellow, the person in question is inactive or busy.

Where an even more comprehensive overview is required, up to three Snom D8Cs in series can be connected. Simply plug and play via USB.

Configuration of the Snom D8C is always very straightforward, either via the telephone system or the Snom web interface.The user can decide almost freely what and how things are displayed in the D8C - Snom supports several styles and symbols or even customised backgrounds!

60 programmable keys

(20 physical), with multicoloured LEDs - The keys can be assigned to all functions available on the Snom phones, e.g. speed dialling, direct dialling or extensions. The multi-colour LEDs indicate the call and presence status of a direct dial.

Clear design and variable functions

The Snom D8C has a very large, high-resolution colour display. The backgrounds and styles of the displayed functions can be selected from a variety of options.

Cascadable

For environments where an overview of many contacts is required, up to 3 D8Cs can be connected to one D8xx device.

Specifications:

Display: TFT liquid crystal display (LCD),true colour, backlit

Size (diagonal): 6.86″ (172 mm)

Size (W × H): 60 mm × 161 mm

Resolution: 1,280 × 480 pixels

23 LED indicators

• Function key status indication: 20 multicolour LEDs
• Page keys indication: 3 green LEDs

23 hard keys in total

• 20 SmartLabel keys: (with multicolour LED), Key mapping of up to 60 functions (20 keys × 3 pages)
• 3 dedicated function keys: Page 1/2/3

Power options

• USB powering: 5 V
• Power adapter: 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

• Daisy chaining, USB powering, USB headsets and other accessories
• USB 2.0 type A port
• USB 2.0 type A plug
• Power adapter: coaxial power connector (socket)
