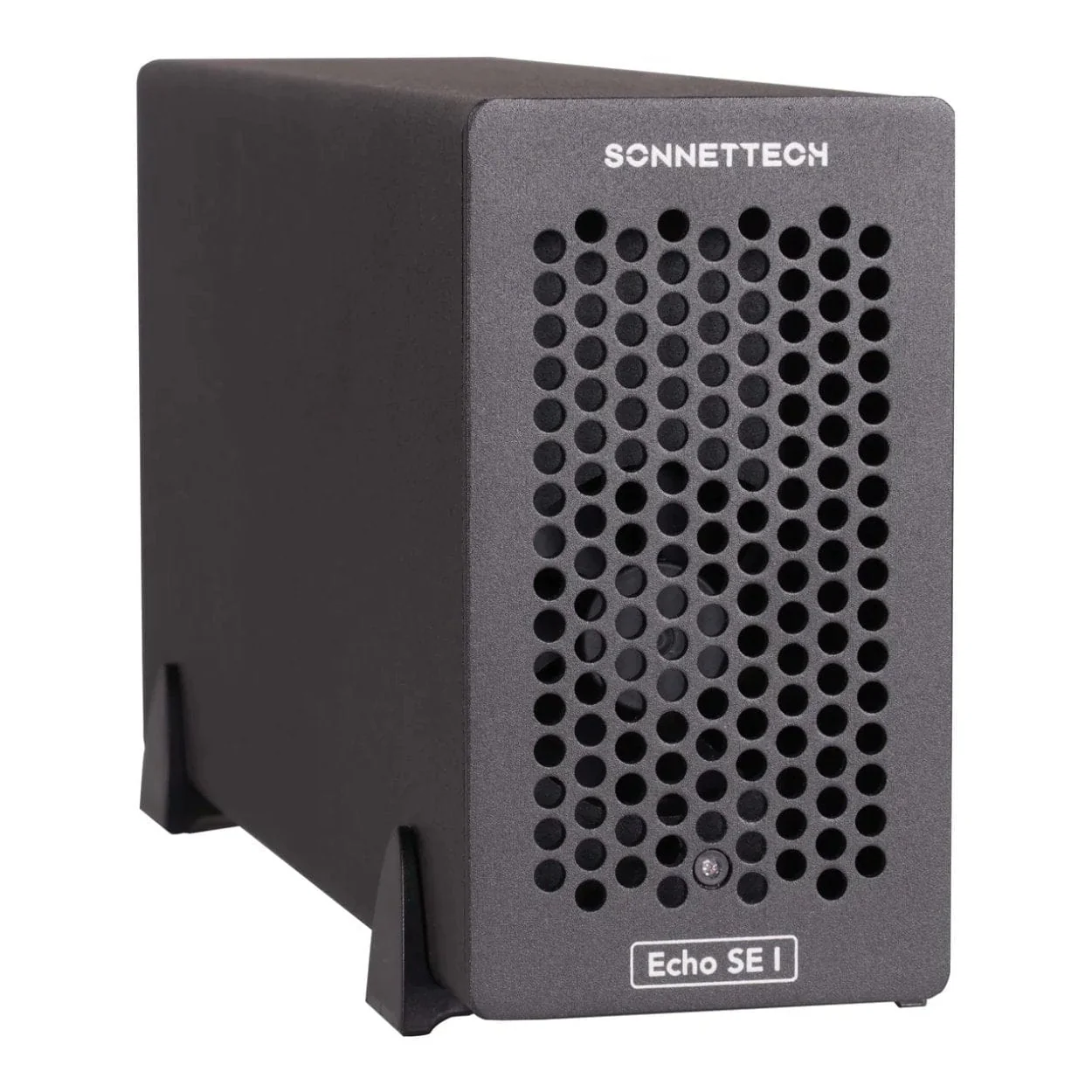

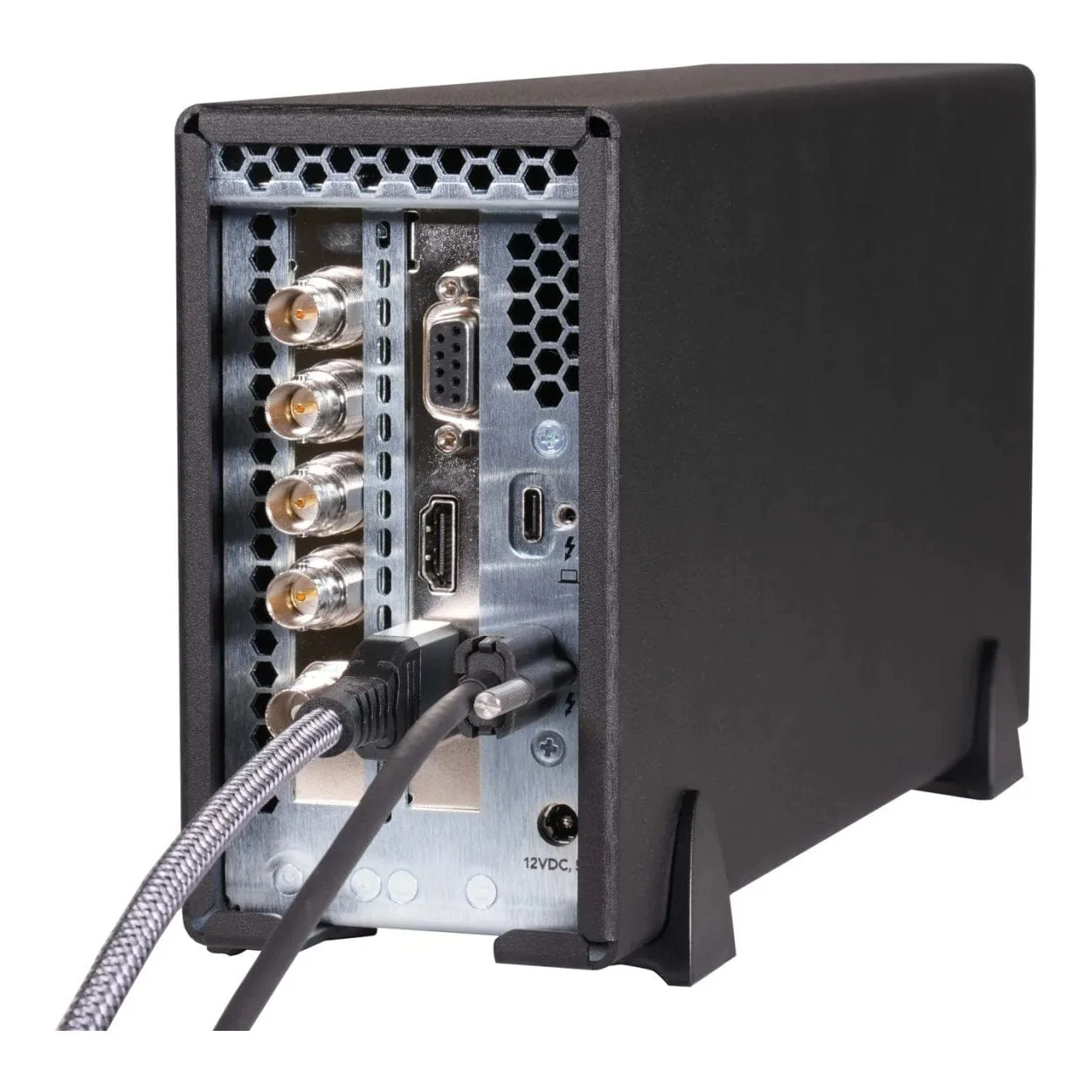

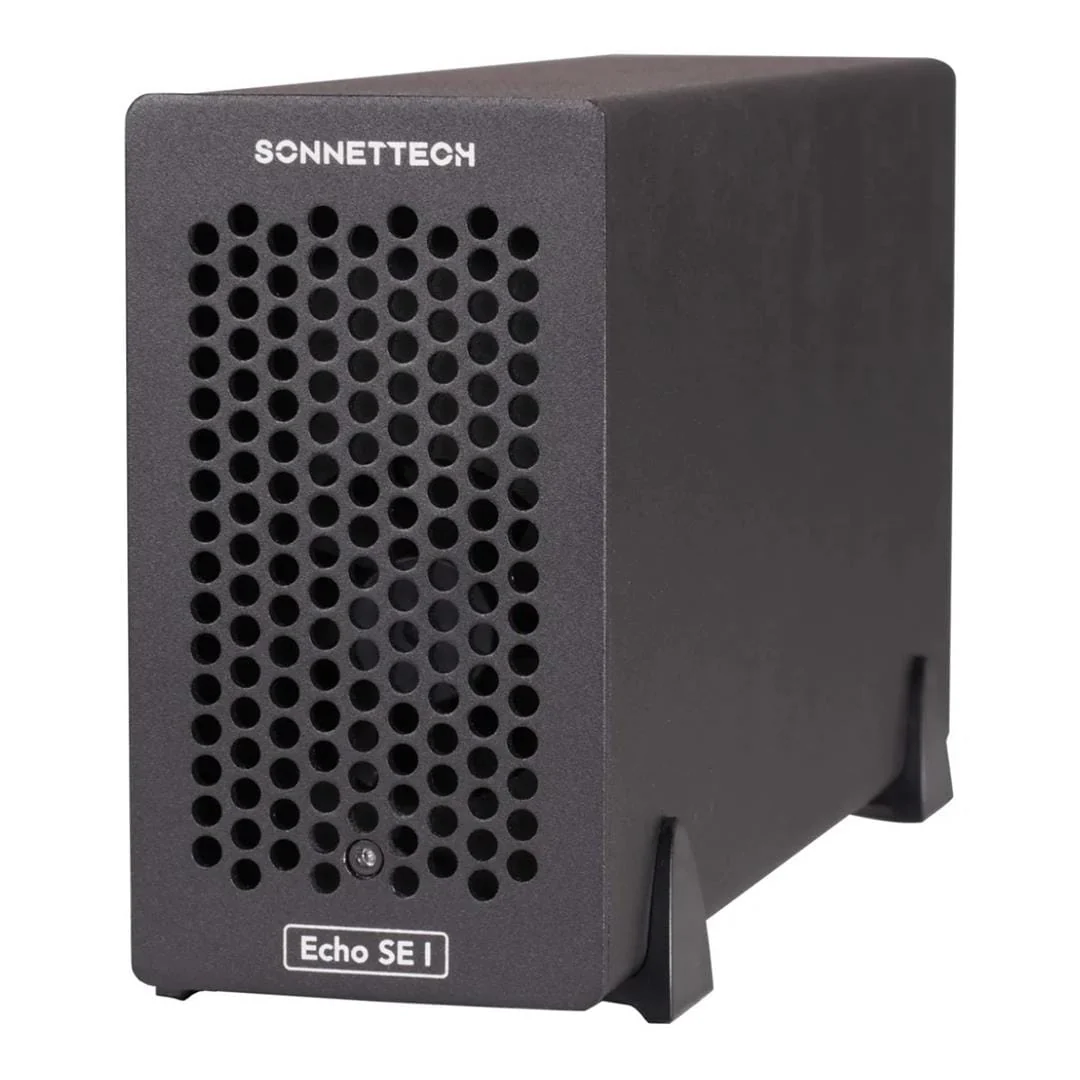

Sonnet Echo Express SE 1 Thunderbolt 5 PCIe Card Expansion System ECHO-EXP-SE1-T5

Sonnet Echo Express SE 1 Thunderbolt 5 PCIe Card Expansion System ECHO-EXP-SE1-T5

Unleash the full potential of your computer with the Sonnet Echo SE I, the compact, single-slot Thunderbolt 5 to PCIe card expansion system.

Connect one high-performance PCIe card like a video capture, audio interface, or 10Gb Ethernet card to add the specialized connectivity your modern laptop or desktop lacks. The Thunderbolt 5 interface delivers a massive 6000 MB/s of bi-directional PCIe bandwidth, ensuring your pro card operates at maximum speed.

Featuring a second Thunderbolt port for daisy-chaining and ultra-quiet operation, the rugged aluminum enclosure is perfect for noise-sensitive workflows. Easily transform your Thunderbolt-equipped computer into a powerhouse!

Adds Connectivity, Improves Capabilities

Connects a high-performance PCIe card to your computer with Thunderbolt ports.

Thunderbolt 5 to PCIe Device

Provides 6000 MB/s of bi-direction PCIe bandwidth to the installed card.

Broad PCIe Card Compatibility

PCIe 4.0 x8 card slot support one half-length+ (maximum 7.75 inches long), full-height, single-width PCIe card (plus one daughter card).

Pro Power

Auxiliary PCIe power connector for a power-hungry card; second Thunderbolt port provides 15W of power to the connected peripheral.

Compact. Lightweight. Amazing Performance.

Small footprint, but large enough to support nearly every Thunderbolt-compatible PCIe card at maximum performance.

Connect Additional Devices

One Thunderbolt port connects to computer; second port supports daisy-chaining additional Thunderbolt peripheral devices, or connection of a USB device.

Extremely Quiet

Temperature-controlled, variable-speed fan automatically and quietly cools the card.

Rugged Aluminum Housing

Provides robust and secure protection.

Smart Power Management

System powers on/off automatically with the computer; no power switch required.

Mac Compatible

Supports all M series Macs and Intel Macs with Thunderbolt 3 ports.

Windows Compatible

Supports Windows computers with Thunderbolt 5 or 4 ports, or USB4 ports.

Linux Compatible

Supports Linux computers withThunderbolt 5 or 4 ports, or USB4 ports.

Specifications

Form Factor: Thunderbolt desktop enclosure

External Connectors: Two Thunderbolt ports, 12V power port

Internal Connector: 6-pin Mini-Fit provides power for PCIe cards that require supplemental power

Expansion Slot: One x8 mechanical (x4 electrical) PCIe 4.0 [Thunderbolt 5 spec]

PCIe Card Supported: One half-length+ (maximum 7.75 inches long), single-width, full-height x8 PCIe card, One daughter card

Power Adapter: Universal 60W, 100-240V, 50-60 Hz, NRTL Certified

Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)

Dimensions (WxDxH): 8.5 x 28.3 x 14.6 cm

Weight: 1.86 kg (Product)

Compliance: RoHS 3 (Directive 2015/863), IEC62368-1 and IEC62368-2
