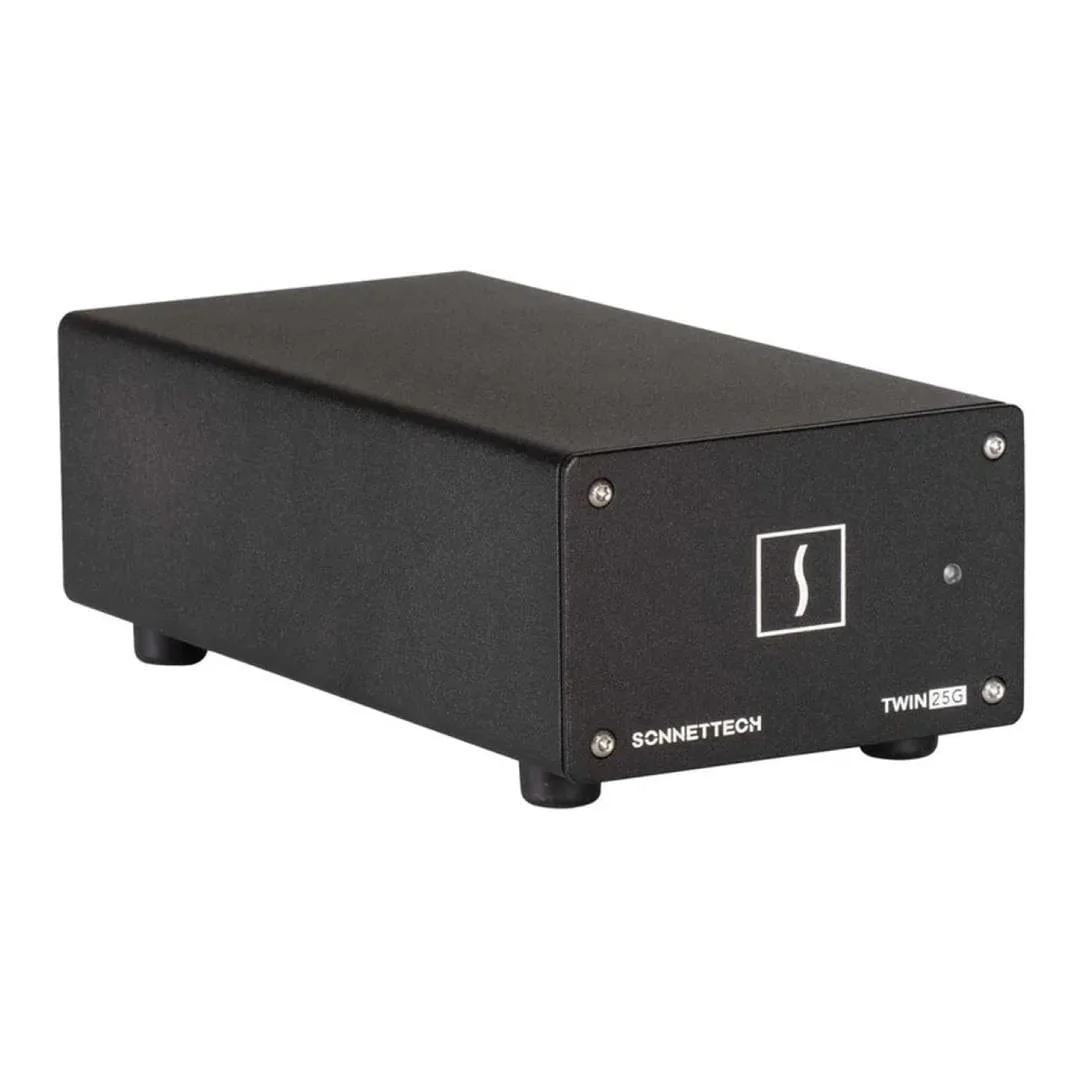

Sonnet Twin25G 2-port 25GbE Thunderbolt Ethernet Adapter with 2x SFP28 Transceivers

Sonnet Twin25G 2-port 25GbE Thunderbolt Ethernet Adapter with 2x SFP28 Transceivers

25 Gigabit Ethernet Thunderbolt Adapter with Two SFP28 Transceivers

Incredible 25GbE Connectivity Over Thunderbolt

Many post-production shared storage workgroups and other bandwidth-intensive workflows have reached a point where 10Gb Ethernet (10GbE) does not provide enough bandwidth and speed for optimum performance. Stepping up to 25Gb Ethernet (25GbE) makes a lot of sense it offers greater performance and often works with the same optical network infrastructure as 10GbE. For these workgroups, there is now a cost-effective 25GbE interface for your Mac®, Windows®, or Linux® computer with Thunderbolt™ 4 or Thunderbolt 3 ports Sonnet’s Twin25G™, an affordable yet powerful solution for adding incredibly-fast fiber optic 25GbE network connectivity.

Affordable 25GbE Networking Make the Switch

Postproduction workflows’ needs for speed and increased network bandwidth beyond the current 10Gb standard  have increased more quickly than the availability of affordable higher speed network components. Recently, extremely affordable 25Gb Ethernet switches have become available, but connecting a computer with Thunderbolt ports such as a Mac Studio® to a 25GbE infrastructure has remained expensive. Until now. Sonnet’s Twin25G Thunderbolt adapter is the most cost-effective and powerfully simple solution for adding incredible 25GbE network connectivity to your computer without PCIe card slots.

Compact and Nearly Noiseless, Cool Running

Small enough to easily fit in most workspaces, the Twin25G adapter is still large enough to support proper airflow inside its case to enable the adapter’s temperature-controlled, variable-speed fan to keep the adapter always running cool and quiet.

Intelligent Operation, Efficient Performance

The Twin25G adapter attains high throughput performance with minimal host CPU load. The adapter’s smart controller has its own internal processing system with onboard memory to process TX/RX data while using few CPU resources. Once data appears in queues, TX checksums are computed on the fly as data is transmitted; RX checksums are quickly verified, and data is immediately passed directly to main memory. This independent controller action minimizes latency and avoids packet drops. The CPU is freed for other tasks.

Specifications

External Connectors

• 2x Thunderbolt ports
  (second port supports a Thunderbolt peripheral, USB device, or a display)
• Two SFP28 sockets with two 25GBASE-SR optical transceivers
• 12V power port

Advanced Features

• Flow control support
• MSI (Message Signaled Interrupts)
• RSS (Receive-Side Scaling)
• Multicast filtering
• 64-bit address support for systems using more than 4GB of physical memory
• Wake-on-LAN not supported

Mac Compatibility

• Mac (M series)
• Mac (Intel) with Thunderbolt 3 ports
• macOS 13-15.3
• Not compatible with macOS 15.3.1 or 15.4. Apple update pending.

Windows Compatibility

• Windows computer with Thunderbolt 5 or 4 ports
• Windows 11

Linux Compatibility

• Linux computer with Thunderbolt 5 or 4 ports
• Linux Kernel 6.1, 6.12

In the Box:

• Twin25G Thunderbolt Adapter
• Two 25GBASE-SR (short-range) SFP28 transceivers (installed)
• Universal power adapter
• Region-specific power cable
• 0.8- meter Thunderbolt cable
• ThunderLok-A connector lock
• Documentation
