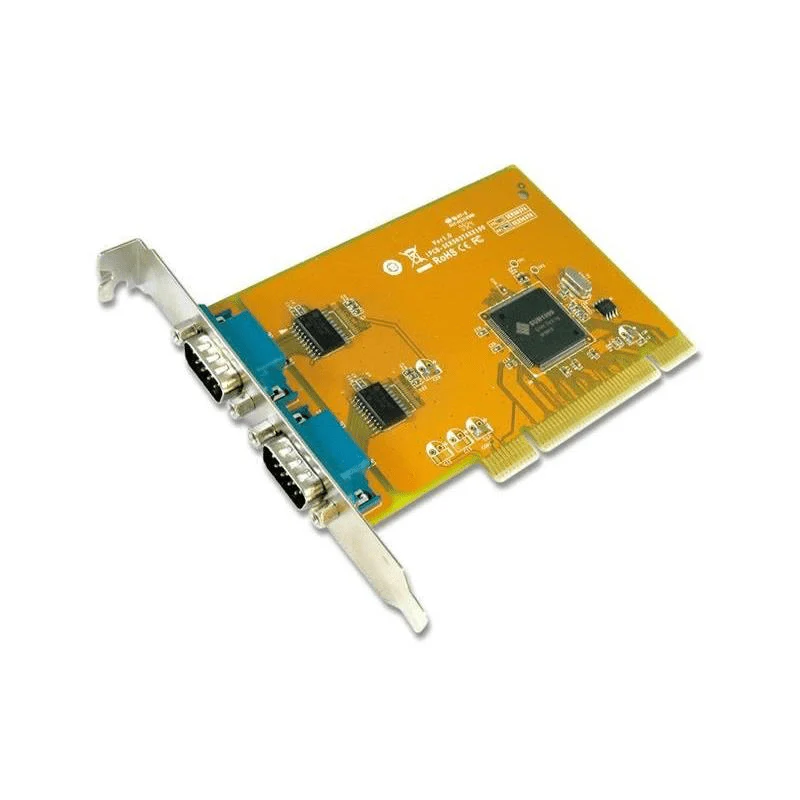

SUNIX 2-port RS-232 Universal PCI Serial Board SER5037A

SUNIX 2-port RS-232 Universal PCI Serial Board SER5037A

SUNIX SER5037A, Universal PCI serial communication board, allows users to add or expand two RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5037A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1989 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Specifications

Brand: SUNIX

Product: SUNIX SER5037A Serial Board

Host interface: PCI

Width: 120 mm

Depth: 82 mm

Data transfer rate: 0.1152 Mbit/s

Connectivity technology: Wired

Compatible operating systems: Windows XP/Vista/7 (X86/X64), Windows 2000/2003/2008 (X86/X64), Windows CE5.0/6.0/XP Embedded/POS
