🎉 Up to 70% Off Selected ItemsShop Sale
$101.78
Original: $339.28
-70%Teltonika RUT956 Industrial Cellular LTE Cat4 Router—
$339.28
$101.78The Story

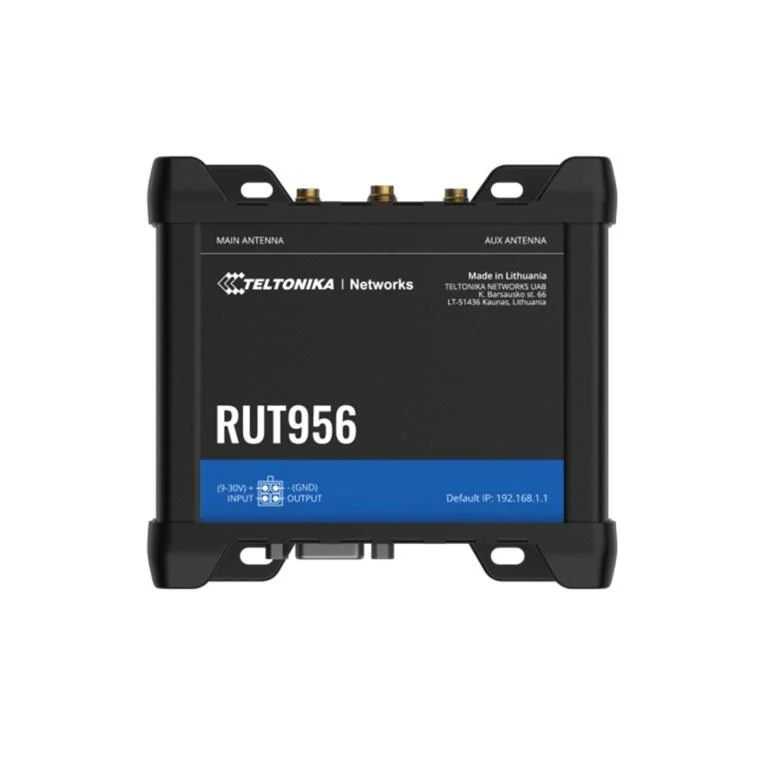

Teltonika RUT956 Industrial Cellular LTE Cat4 Router
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.Â
Features
- 4G LTE (Cat 4), 3G, 2G
- DUAL SIM -Â With auto failover, backup WAN and other switching scenarios
- Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
- Global Navigation Satellite System for location services and time synchronization
Technical Specification
Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch:Â 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status:Â Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS:Â SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD:Â Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list:Â Operator black/white list
Multiple PDN:Â Possibility to use different PDNs for multiple network access and services
Band management:Â Band lock, Used band status display
APN:Â Auto APN
Bridge:Â Direct connection (bridge) between mobile ISP and device on LAN
Passthrough:Â Router assigns its mobile WAN IP address to another device on LAN
Wireless mode:Â IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security:Â WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID:Â SSID stealth mode and access control based on MAC address
WiFi users:Â Up to 100 simultaneous connections
Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features:Â Fast roaming (802.11r), Relayd
WAN: 1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN:Â 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Ethernet ports:Â 4 x RJ45 ports, 10/100 Mbps
I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
Status LEDs:Â 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM:Â 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power:Â 1 x 4-pin power connector
Input/output:Â 1x 10 pin industrial socket for inputs/outputs
Antennas:Â 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB:Â 1 x USB A port for external devices
RS232:Â 1 x DB9 socket
RS485:Â 1 x 6-pin industrial socket
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Teltonika RUT956 Industrial Cellular LTE Cat4 Router
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.Â
Features
- 4G LTE (Cat 4), 3G, 2G
- DUAL SIM -Â With auto failover, backup WAN and other switching scenarios
- Ethernet, Serial (RS232, RS485) and multiple Inputs/Outputs
- Global Navigation Satellite System for location services and time synchronization
Technical Specification
Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch:Â 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status:Â Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS:Â SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD:Â Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list:Â Operator black/white list
Multiple PDN:Â Possibility to use different PDNs for multiple network access and services
Band management:Â Band lock, Used band status display
APN:Â Auto APN
Bridge:Â Direct connection (bridge) between mobile ISP and device on LAN
Passthrough:Â Router assigns its mobile WAN IP address to another device on LAN
Wireless mode:Â IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security:Â WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID:Â SSID stealth mode and access control based on MAC address
WiFi users:Â Up to 100 simultaneous connections
Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features:Â Fast roaming (802.11r), Relayd
WAN: 1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN:Â 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Ethernet ports:Â 4 x RJ45 ports, 10/100 Mbps
I/O’s: 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
Status LEDs:Â 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM:Â 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power:Â 1 x 4-pin power connector
Input/output:Â 1x 10 pin industrial socket for inputs/outputs
Antennas:Â 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB:Â 1 x USB A port for external devices
RS232:Â 1 x DB9 socket
RS485:Â 1 x 6-pin industrial socket
