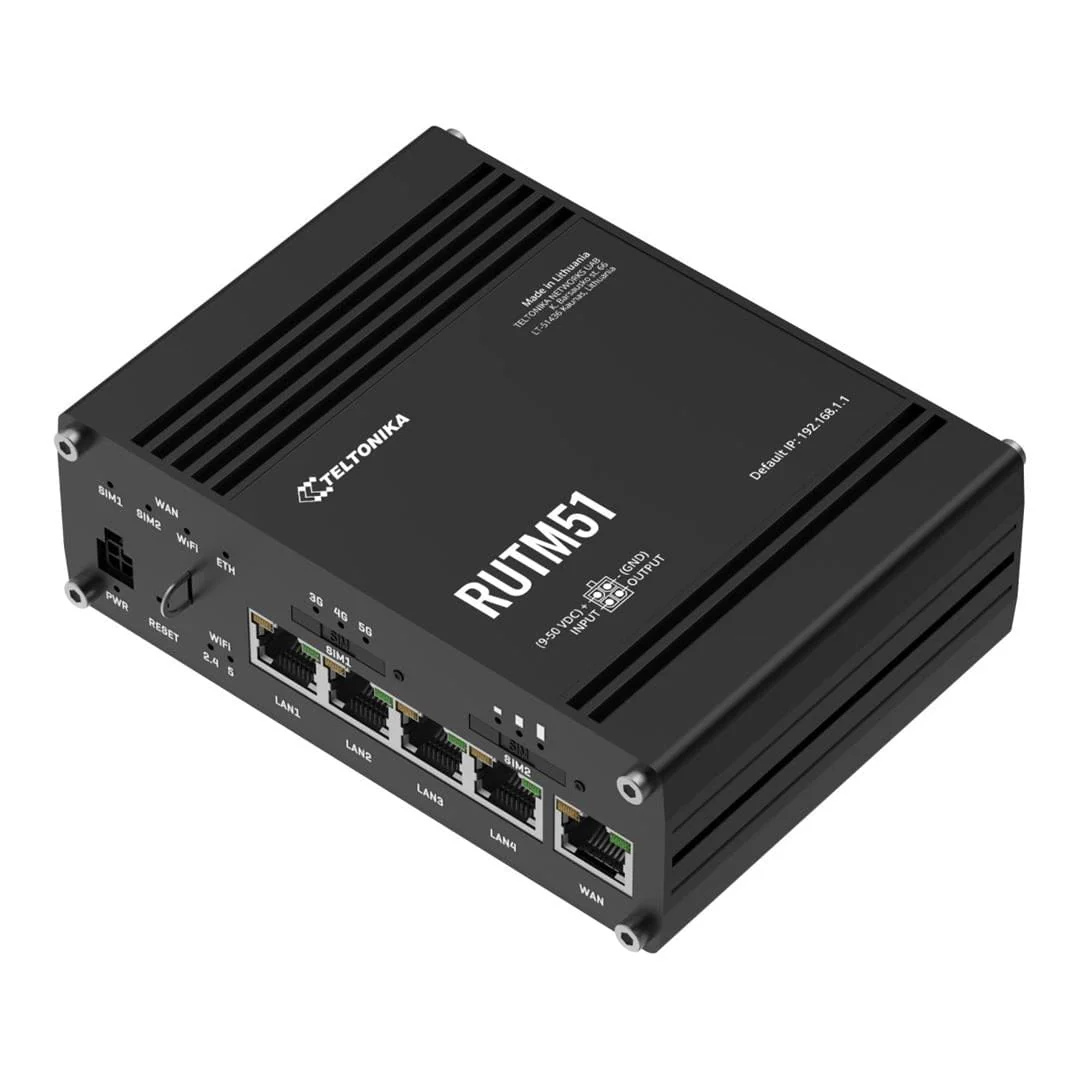

Teltonika RUTM51 5G Industrial Router

Teltonika RUTM51 5G Industrial Router

The RUTM51 is a budget-friendly dual-SIM, multi-network industrial 5G router delivering connectivity for data-heavy applications. With five Gigabit Ethernet ports, dual-band Wi-Fi, and auto-failover, it ensures seamless, reliable performance. Backward compatibility with 4G Cat 12 and a versatile range of interfaces make the RUTM51 5G router a smart, future-proof choice for businesses seeking high-speed connectivity at a lower cost.

Features

• COST-EFFICIENT 5G: Top-tier 5G speeds at an unbeatable price point
• DUAL SIM: With auto failover, backup WAN and other switching scenarios
• SA & NSA: Supports both architectures to leverage the 5G infrastructure
• FUTURE-PROOFING: Backward compatible with 4G (LTE Cat 12)

Technical Specification

Product: Teltonika RUTM51 5G Industrial Router

CPU: MediaTek, Dual-core, 880 MHz, MIPS1004KC

RAM: 256 MB, DDR3

FLASH storage: 16MB serial NOR flash, 256MB serial NAND flash

Ethernet ports

• 1x WAN port 10/100/1000 Mbps
• 4x LAN ports, 10/100/1000 Mbps
• Compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

USB

• Data rate: USB 2.0
• Applications: Samba share, USB-to-serial
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
• Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

• Input: 1x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
• Output: 1x Configurable digital Output, Open collector output, max output 50 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate event

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
• PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
• Power consumption: Idle: 5 W, Max: 18 W

Other Interfaces

• I/O’s: 1x Digital Input, 1x Digital Output on 4-pin power connector
• SIM: 2x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
• Antennas: 4x SMA for Mobile, 2 x RP-SMA for Wi-Fi
• Antennas specifications: 4x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 Ω, VSWR 3.5, gain 4.9 dBi, omnidirectional
• Other: 1x Grounding screw

Mobile module

• 5G Sub-6GHz SA: 2 Gbps DL, 1 Gbps UL; NSA: 2.6 Gbps DL, 650 Mbps UL
• 4G (LTE) Cat 12: 600 Mbps DL, Cat 13: 150 Mbps UL
• 3G - 42.2 Mbps DL, 11 Mbps UL

Wireless mode: Wi-Fi 5 (802.11b/g/n/ac Wave 2)

Operating system: RutOS (OpenWrt based Linux OS)

Weight: 525 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
