Tenda 4G05 N300 Wi-Fi 4G LTE Router

Tenda 4G05 N300 Wi-Fi 4G LTE Router

The Tenda 4G05 provides fast and stable internet access with LTE and Ethernet connectivity. Offering plug-and-play convenience, it supports SIM cards from over 100 operators, making it perfect for homes, offices, or temporary setups. Enjoy Wi-Fi speeds up to 300Mbps for smooth streaming and browsing.

Equipped with two external 4G antennas and MIMO Wi-Fi technology, the 4G05 ensures strong signal reception and supports up to 32 devices. Its compact design and automatic network repairs make it ideal for uninterrupted connectivity in various environments.

Features:

• LTE + Ethernet connectivity
• 300Mbps Wi-Fi speeds
• Global SIM compatibility
• Plug-and-play setup
• Connects up to 32 devices
• Automatic network repair
• Compact and portable

No need to configure. Plug and play.

Simply connect the power source and insert a nano SIM card, without the need for complicated setup, and you can immediately enjoy stable and high-speed Wi-Fi. Additionally, the device also supports wired connections to devices such as laptops, providing you with a more flexible and convenient network experience.

Wi-Fi rate of 300Mbps allows up to 32 operators to access simultaneously.

Featuring two external high-performance 4G antennas and optimized LTE technology, it offers speeds of up to 150Mbps for 4G networks. With two built-in omni-directional Wi-Fi antennas and wireless MIMO technology, it supports wireless connections at speeds of up to 300Mbps. Stable and fast multi-device connectivity for an exceptional wireless experience.

Support mobile power for more comprehensive scenarios.

The device supports dual voltage (9V/5V) and can be powered by either an adapter or a mobile power source. It is suitable for diverse environments like villas, conference room, surveillance, temporary store,recreational vehicle, and power outage. It ensures high-speed Wi-Fi connectivity even during power outages and extreme temperatures (-5°C to 45°C).

Technical Specifications:

Hardware
4G Category: LTE CAT.4
4G/3G Standards: FDD-LTE, TDD-LTE, WCDMA

Working Bands
FDD-LTE: B1, B3, B5, B7, B8, B20, B28AB
TDD-LTE: B38, B40, B41
WCDMA: B1, B5, B8

Max 4G Speed
Downlink: 150 Mbps
Uplink: 50 Mbps

Wi-Fi
Standards: 802.11b/g/n
Frequency: 2.4 GHz
Speed: 300 Mbps
Transmit Power: up to 20 dBm

Interface

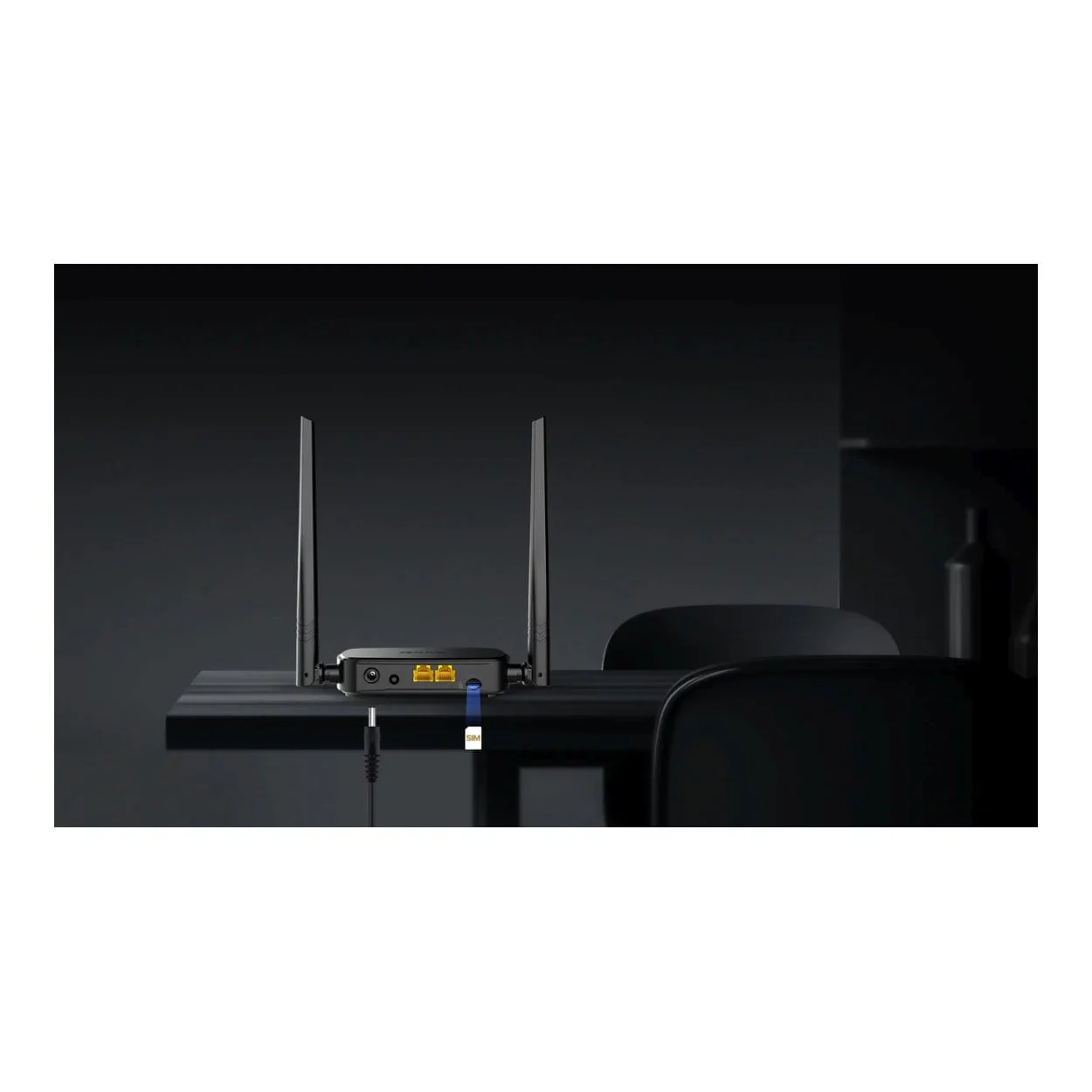

1 × 10/100 Mbps LAN/WAN Port
1 × 10/100 Mbps LAN Port
1 × Nano SIM Card Slot

Button
WPS/Reset

Antennas
2 External 4G/3G Antennas
2 Internal Wi-Fi Antennas

LED Indicators
Internet
Wi-Fi
LAN
4G/3G Signal Strength (3 Bars)

Dimensions (L × W × H)
116 × 95 × 26 mm

Weight
About 134 g

Power Supply
Input: AC 100–240V, 50/60Hz
Output: DC 9V == 0.6A, 5V == 1A

Software
WAN Type: 4G/3G or Wired, supports Failover

Wi-Fi Functions
Wi-Fi name & key
Channel & bandwidth
WPS

Wi-Fi Security
WPA-PSK, WPA2-PSK, WPA/WPA2

Software Features
APP/WEB management
DHCP Server
Firewall
QoS
Firmware upgrade (Local or OTA)
IPv4/IPv6

Certifications
CE
RoHS
SIRIM
NBTC
Postel

Working Environment
Operating Temperature: -5°C to 45°C
Storage Temperature: -30°C to 70°C
Operating Humidity: 10%–90% RH (non-condensing)
Storage Humidity: 5%–90% RH (non-condensing)

What's in the Box:

• 1 x Tenda 4G05 N300 Wi-Fi 4G LTE Router
• 1 x AC adaptor
• 1 x Ethernet cable
