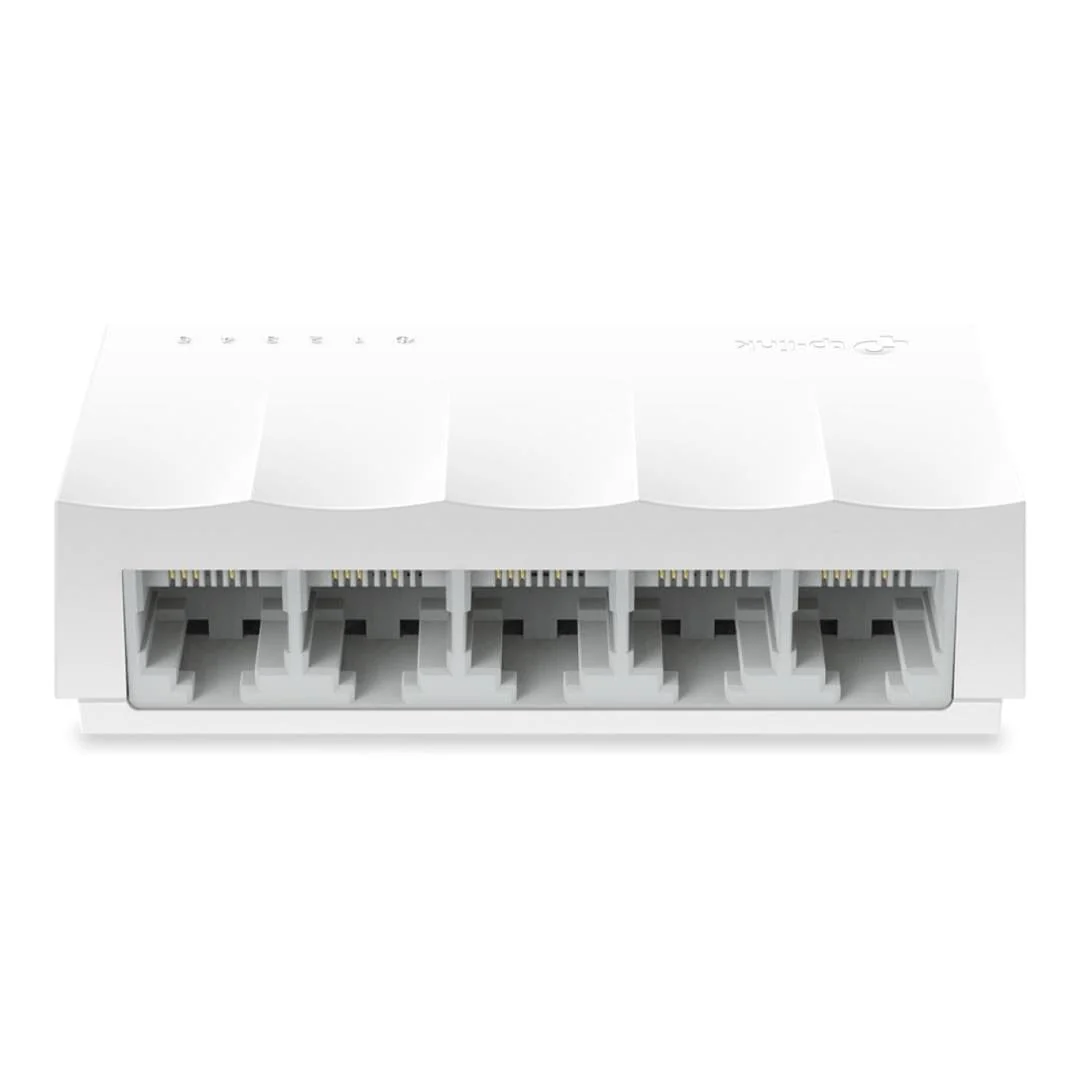

TP-Link LiteWave LS1005 5-port Fast Ethernet Desktop Unmanaged Switch

TP-Link LiteWave LS1005 5-port Fast Ethernet Desktop Unmanaged Switch

Let LiteWave Bring You Lighter Network Life

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Features

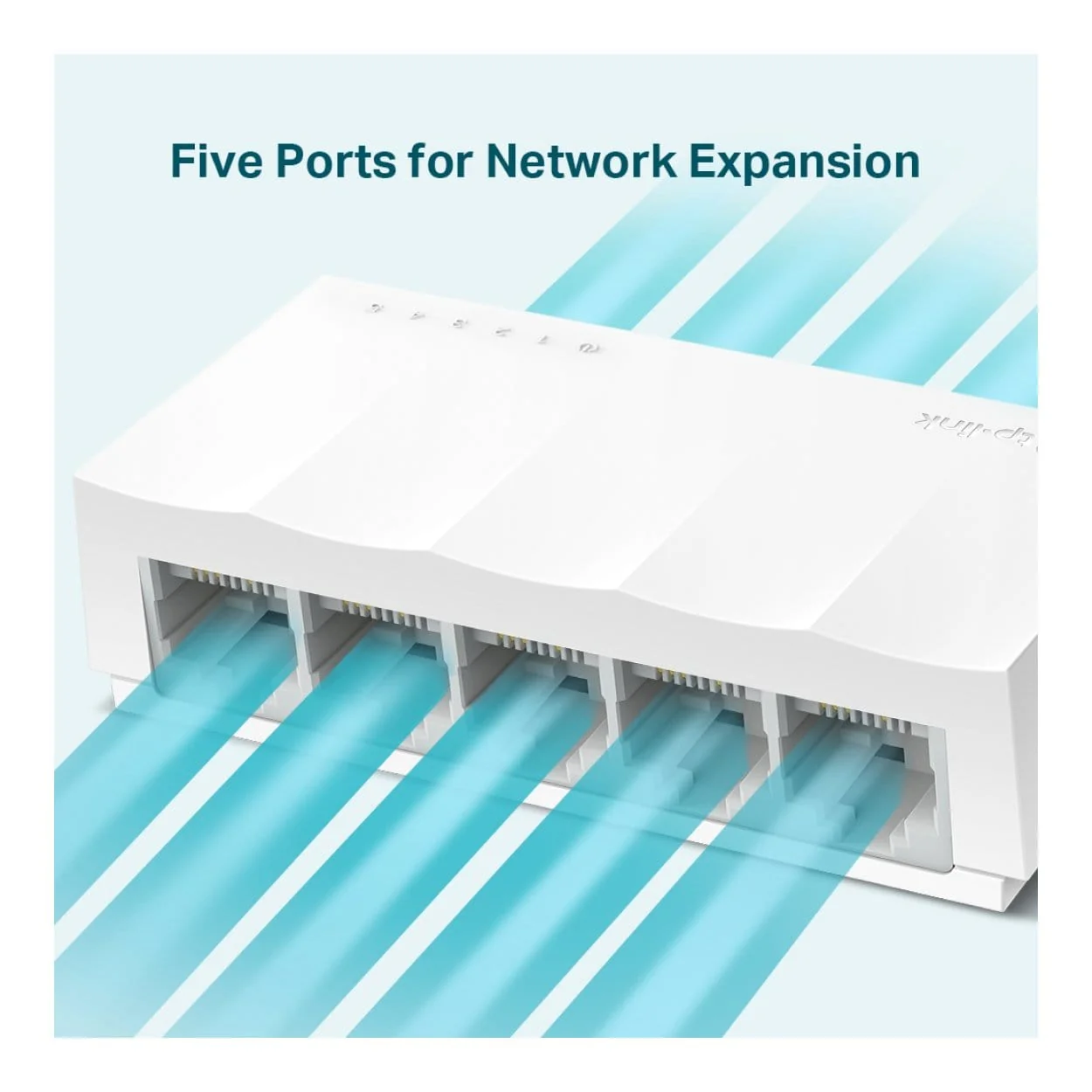

• 5× 10/100Mbps Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3X flow control provides reliable data transfer
• Plastic casing and desktop design
• Plug and play, no configuration required
• Fanless design ensures quiet operation

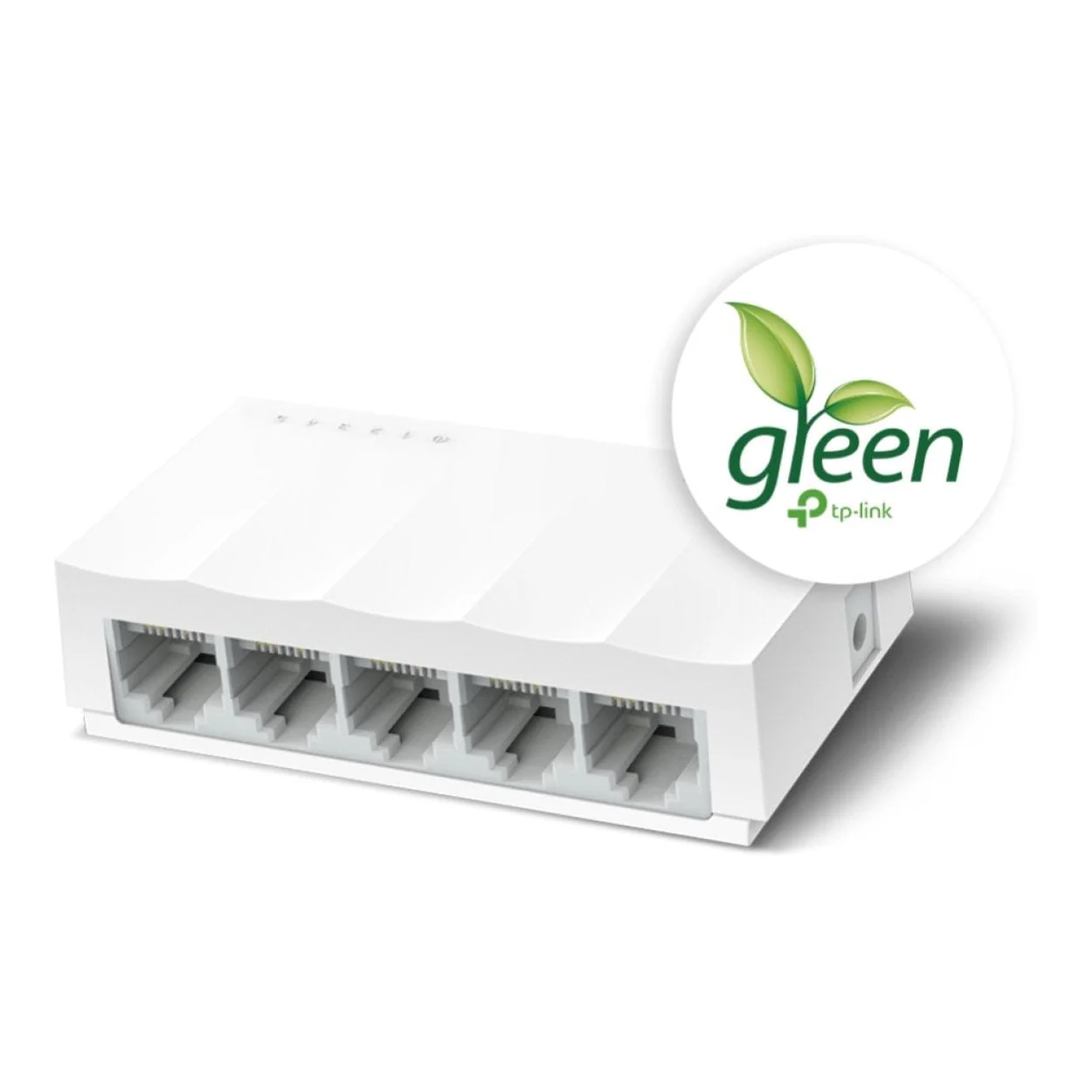

Go Green with Your Ethernet

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills it’s a win-win!

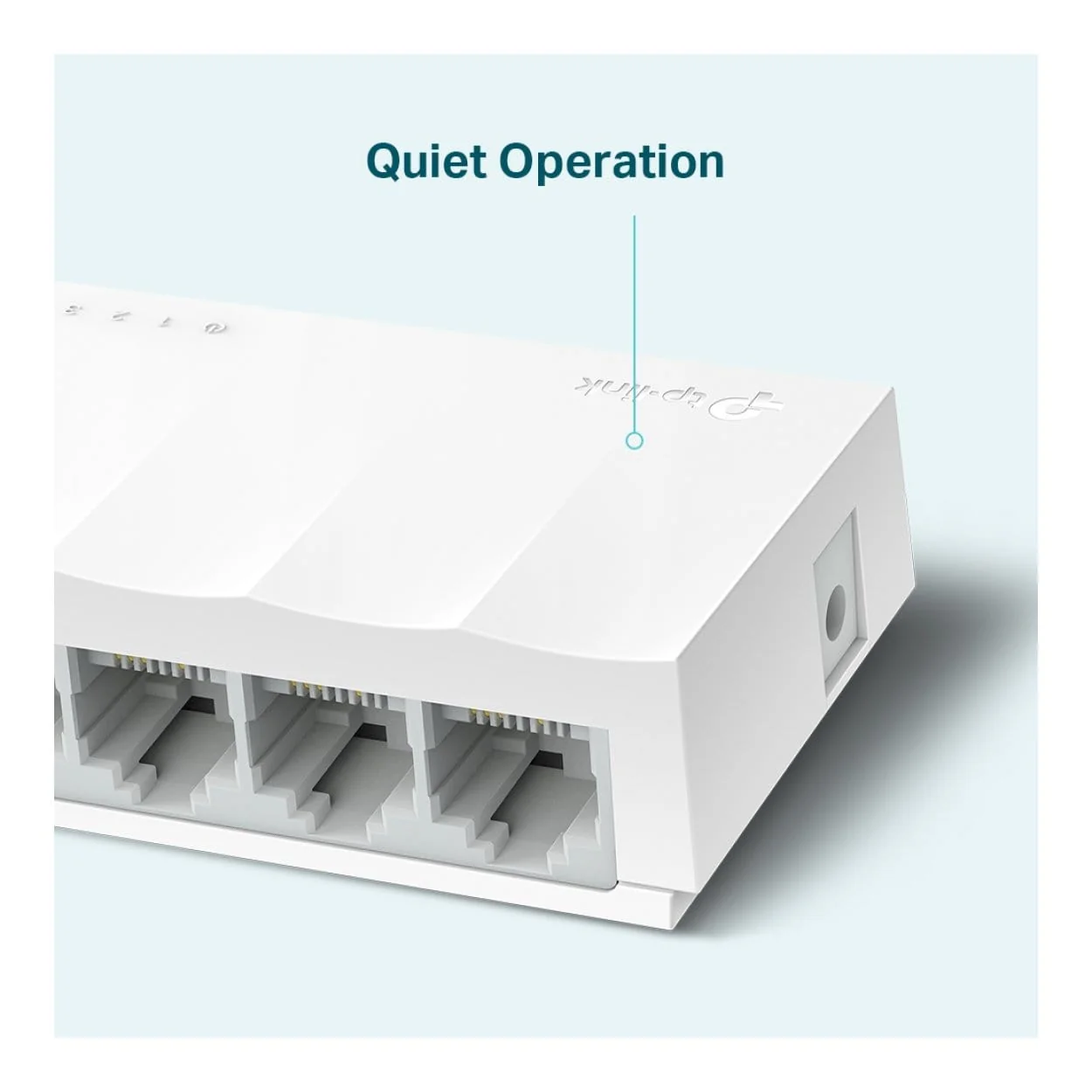

Fanless and Desktop Design

Compact desktop design, to meet your needs in any environment.Besides, fanless design ensures quiet operation.

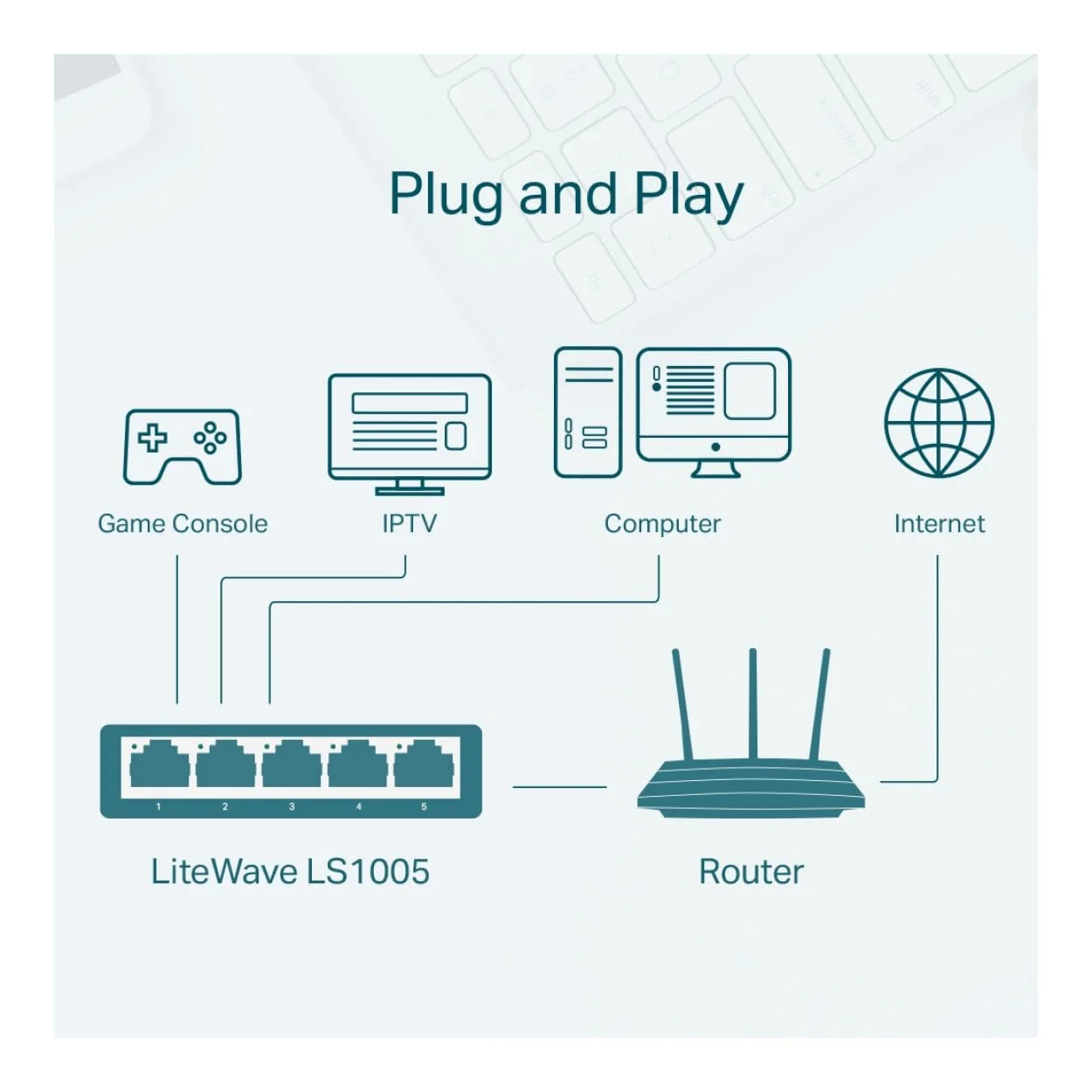

Use Where You Need, However You Need

The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Technical Specifications:

Hardware Features

Standards and Protocols
IEEE 802.3i / 802.3u / 802.3x

Interface
5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity
Fanless

External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)

Dimensions (W x D x H)
3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm)

Max. Power Consumption
1.65 W

Max Heat Dissipation
5.627 Btu/hr

Software Features

Advanced Features
Green Technology
802.3X Flow Control
Back Pressure

Transmission Method
Store and Forward

Others

Certification
CE, FCC, RoHS

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the Box:

• 5-Port 10/100Mbps Desktop Switch
• Power Adapter
• Installation Guide
