TP-Link Omada EAP623-Outdoor HD AX1800 Wi-Fi 6 Access Point

TP-Link Omada EAP623-Outdoor HD AX1800 Wi-Fi 6 Access Point

Features

• Up to 1.8 Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.*
• Supports Wi-Fi 6 technologies, such as 1024-QAM and OFDMA, etc.
• High-density connectivity up to 1,000+ clients.^**
• Long-range coverage with the high-power amplifier and smart antennas.
• IP67 weatherproof enclosure for various outdoor environments.
• Advanced Functions: Centralized management, Omada mesh, and seamless roaming.
• PoE+ Powered: Supports 802.3at PoE (adapter not included).

Long-Range, High-Speed Wi-Fi 6

Professional antennas with high-power amplifiers utilize Wi-Fi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest Wi-Fi 6 technology, the AP delivers speeds of up to 1.8 Gbps.

Explore More with Smart Antennas

Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.

Ideal for High-Density Outdoor Scenes

OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas. Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.

Flexible Deployment with Omada Mesh and PoE Support

Seamless Integration into Omada SDN

Technical Specification

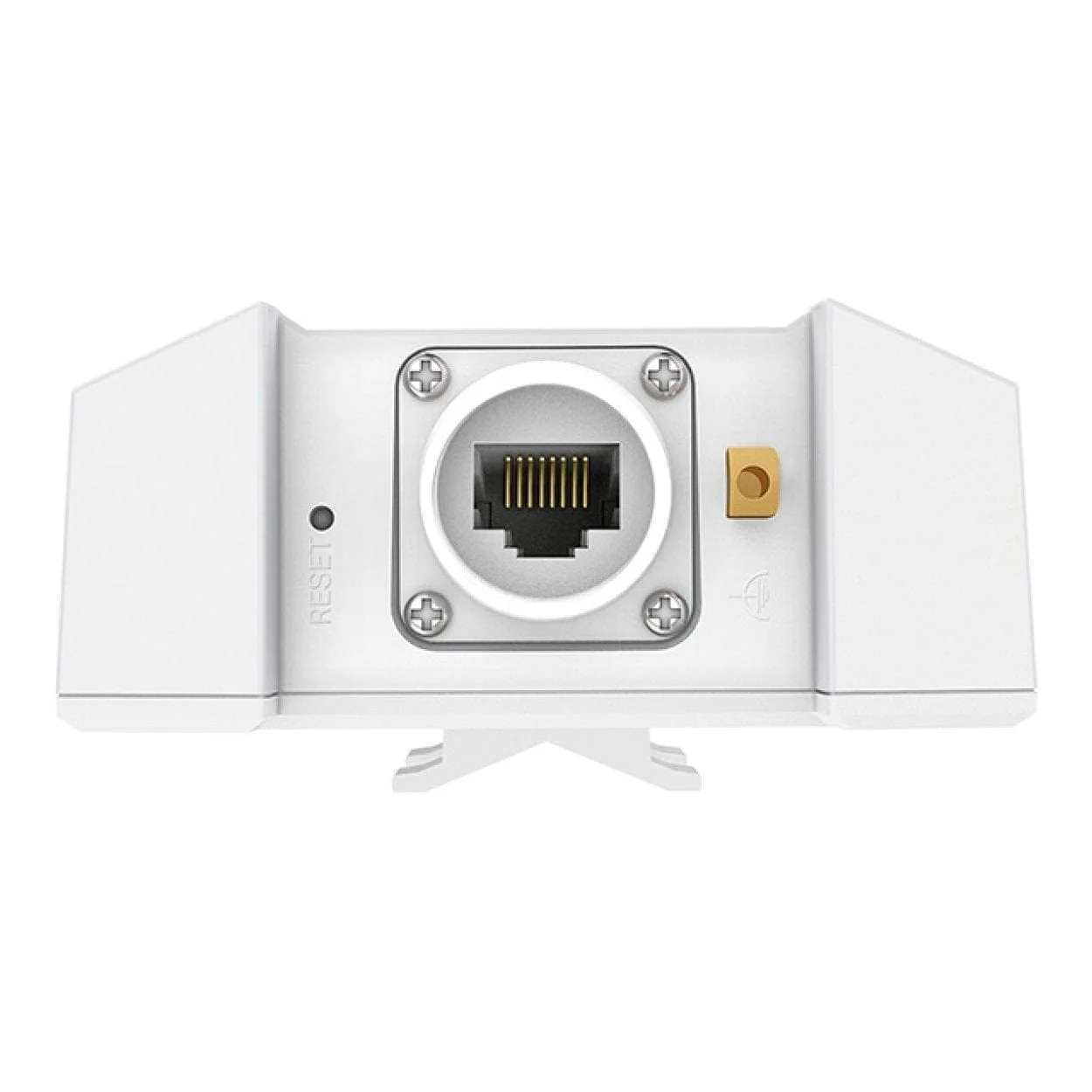

Interface: 1x Gigabit Ethernet Port

Concurrent Clients:  up to 1020+

Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax

Frequency: 5 GHz and 2.4 GHz

Signal Rate

• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps

Antenna

• 2× Internal Dual-Band Omni Antennas
• 2.4 GHz: 4.0 dBi
• 5 GHz: 5.0 dBi

Wireless Functions

• Mesh
• Seamless Roaming(802.11k/v/r)
• Automatic Channel Assignment
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Weatherproof Enclosure: IP67

Mounting: Pole/Wall Mounting (Kits included)

Button: Reset

Power Supply

• 802.3at PoE
• 48V Passive PoE
• Note: PoE adapter is not included.

Package Content

• EAP623-Outdoor HD
• Installation Guide
• Mounting Kit
• Waterproof Kit
