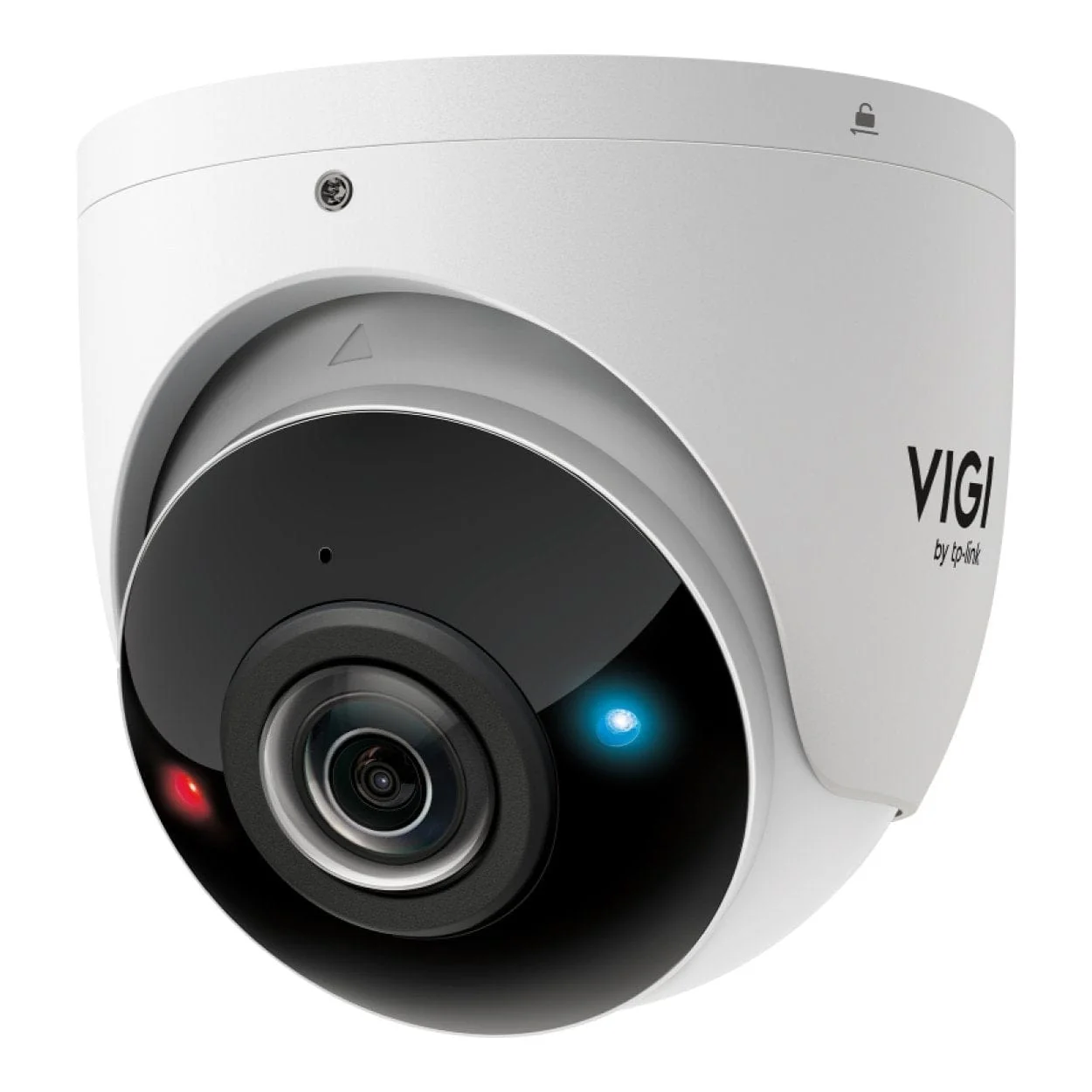

TP-Link VIGI InSight S485PI 8MP IR Panoramic Turret Network Camera

TP-Link VIGI InSight S485PI 8MP IR Panoramic Turret Network Camera

Key Features

• 180° Panorama View with Huge Vision
• 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)
• Red-Blue Warning Lights with Stronger Deterrence
• People & Vehicle Analytics
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Features

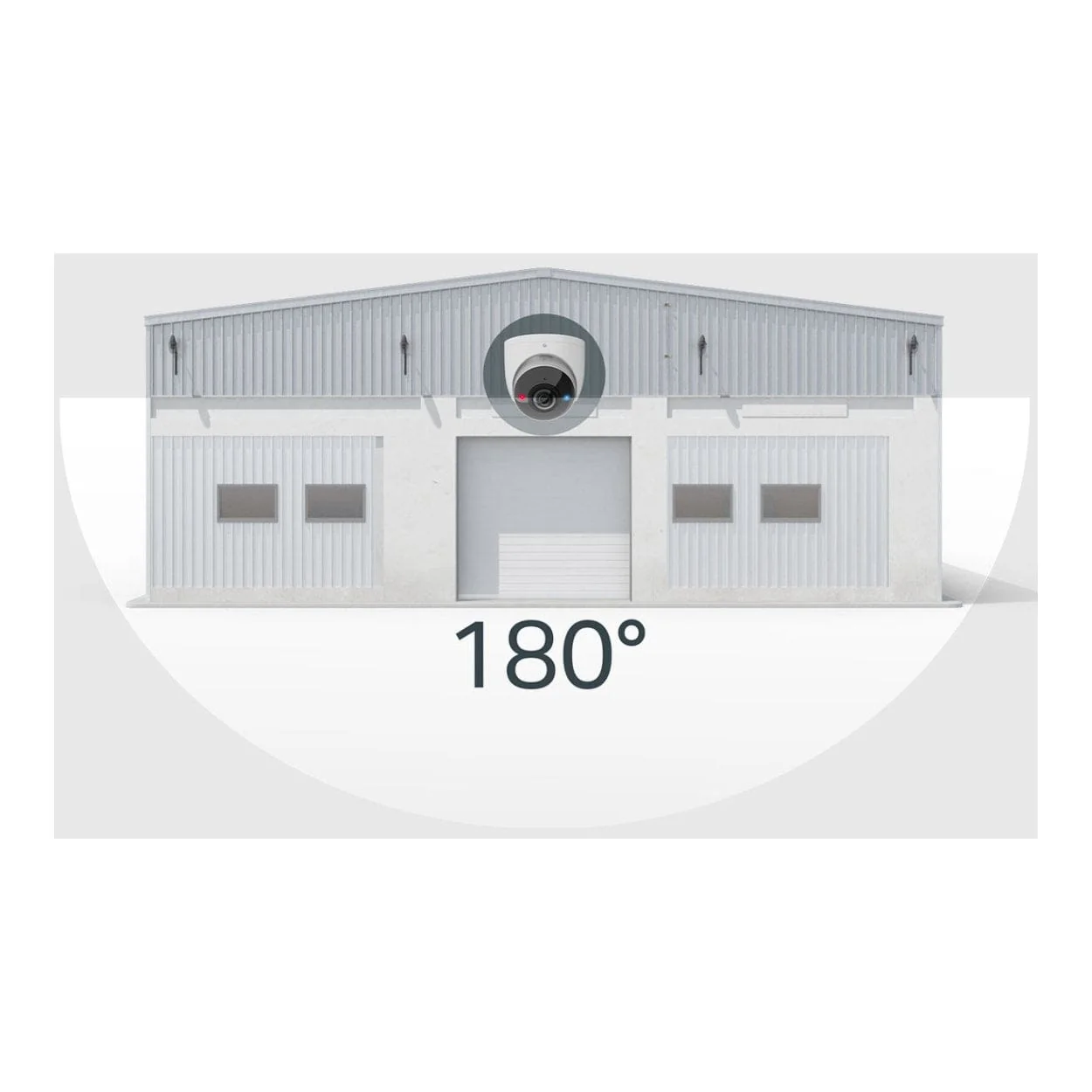

Cut Project Costs with 180° View and 4K (8MP) Clarity

General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.

Powerful, Efficient Monitoring with Active Defense

Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.

Red-Blue Warning Lights with Stronger Deterrence

Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.

Flexible Audio & Alarm Integration

The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.

Instant Event Notifications

When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.

• Learn more about VIGI App
  https://www.vigi.com/za/business-networking/vigi-software-service/vigi-app/

VIGI AI Detection Technology

• People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.
• Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.

Smart Video Enhancement Technology

• True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Technical Specification

Product: TP-Link VIGI InSight S485PI 8MP IR Panoramic Turret Network Camera

Image Sensor: 1/2.7“ Progressive Scan CMOS

Type: Fixed Focal Lens

Focal Length: 1.65 mm

Horizontal FOV: 180°

Vertical FOV: 86°

Diagonal FOV: 180°

Detect: 144.36 ft (44 m)

Observe: 60.15 ft (18.33 m)

Recognize: 28.87 ft (8.8 m)

Identify: 14.44 ft (4.4 m)

IR LED Quantity: 4

IR LED Range: 65.62 ft (20 m)

IR LED Wavelength: 850 nm

Max. Resolution: 3840 x 2160

Audio Communication: Two-Way Audio

Audio Input

• Built-in Microphone
• Audio In Interface

Audio Output

• Built-in Speaker
• Audio Out Interface

Alarm

• 1x Alarm In, 1x Alarm Out
• Red-Blue Warning Lights

Protection: IP67 Waterproof, IK10 Vandal Proof

Network Interface: 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Power Supply

• 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3at, class 4, Max. 21 W
• Please note: Power supply is not included

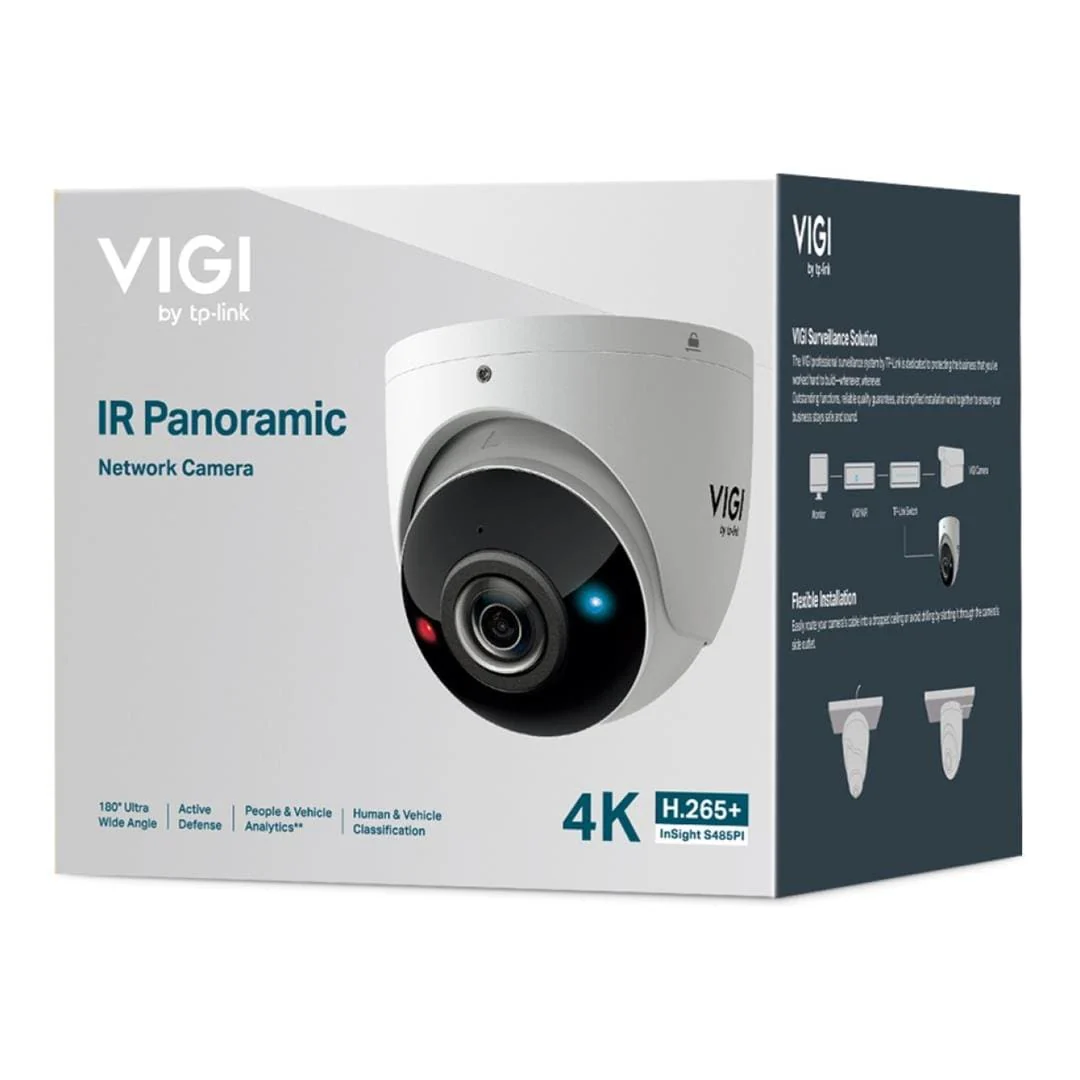

Package Content

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
