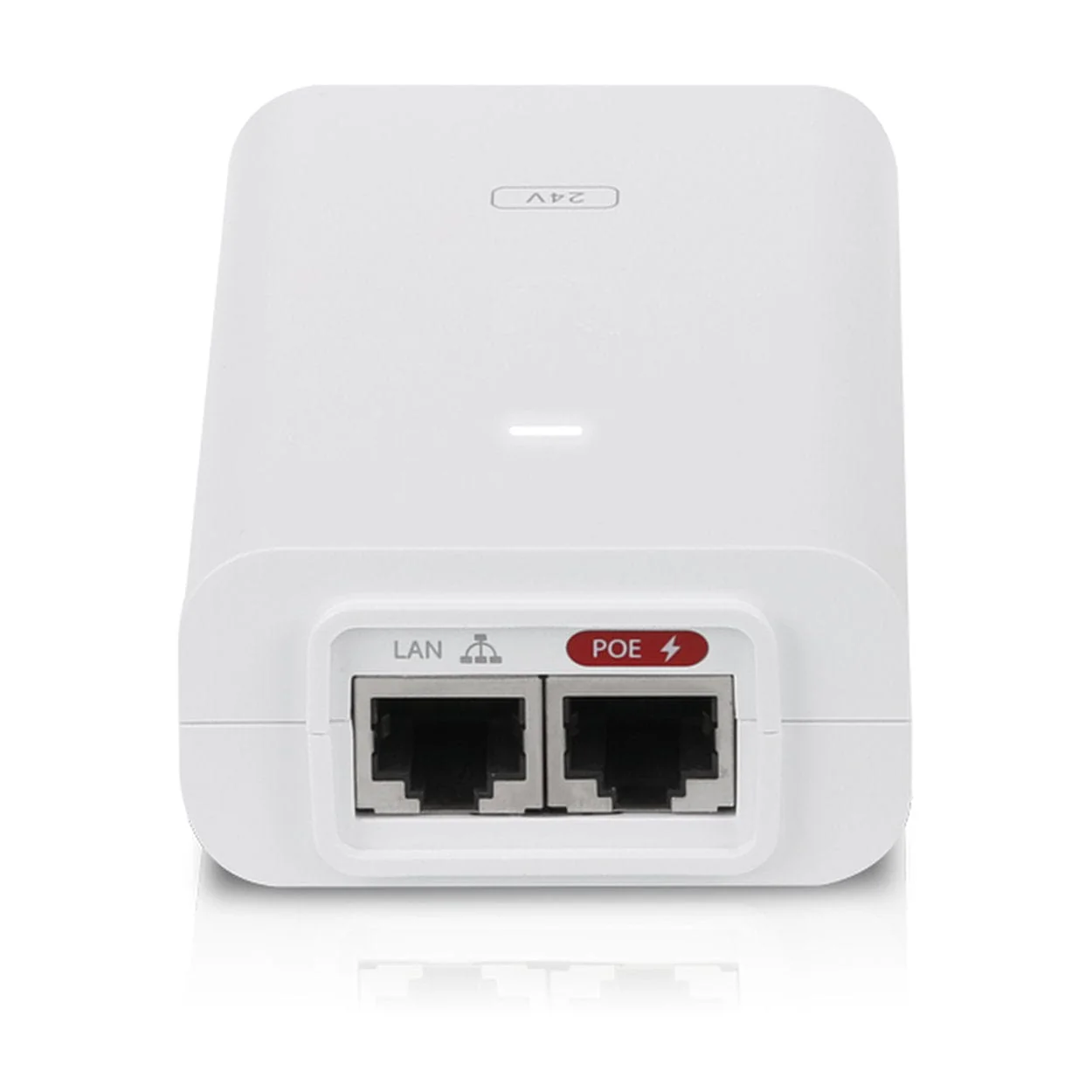

Ubiquiti 24V 12W Gigabit PoE Adapter White POE-24-12W-G-WH

Ubiquiti 24V 12W Gigabit PoE Adapter White POE-24-12W-G-WH

Ubiquiti's POE-24-12W-G-WH is a 24V, 0.5A, Gigabit PoE injector. The unit features Electrostatic Discharge (ESD) protection, surge protection, clamping protection, peak pulse current and maximum surge discharge, all of which aid in protecting your PoE devices.

• Please note: Power Cable Not Included

Technical Specification

Output voltage: 24V DC @ 0.5A

LAN activity indicator: No

Gigabit LAN port: Yes

Remote reset capability: Yes

Reset button: Yes

Rated voltage: 100-240V AC @ 50/60Hz

Input current: 0.3A @ 120V AC, 0.2A @ 240V AC

Inrush current: <30A peak @ 120V AC, <60A peak @ 230V AC

Efficiency: 75+%

Output ripple: 1% Max.

Switching frequency: 50 kHz

Line regulation: ≤ 3%

Load regulation: ≤ 5%

2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)

4-pair powering: -

Data IN / PoE: RJ45 shielded socket

Surge protection: Difference and common mode

Clamping protection: 11V data, 60V power

Max. surge discharge: 1500A (8/20 μs) power

Peak pulse current: 36A (10/1000 μs) data

Shunt capacitance: <5 pF data

Response time: <1 ns

Dimensions: 87 x 44 x 29 mm

Weight: 99 g
