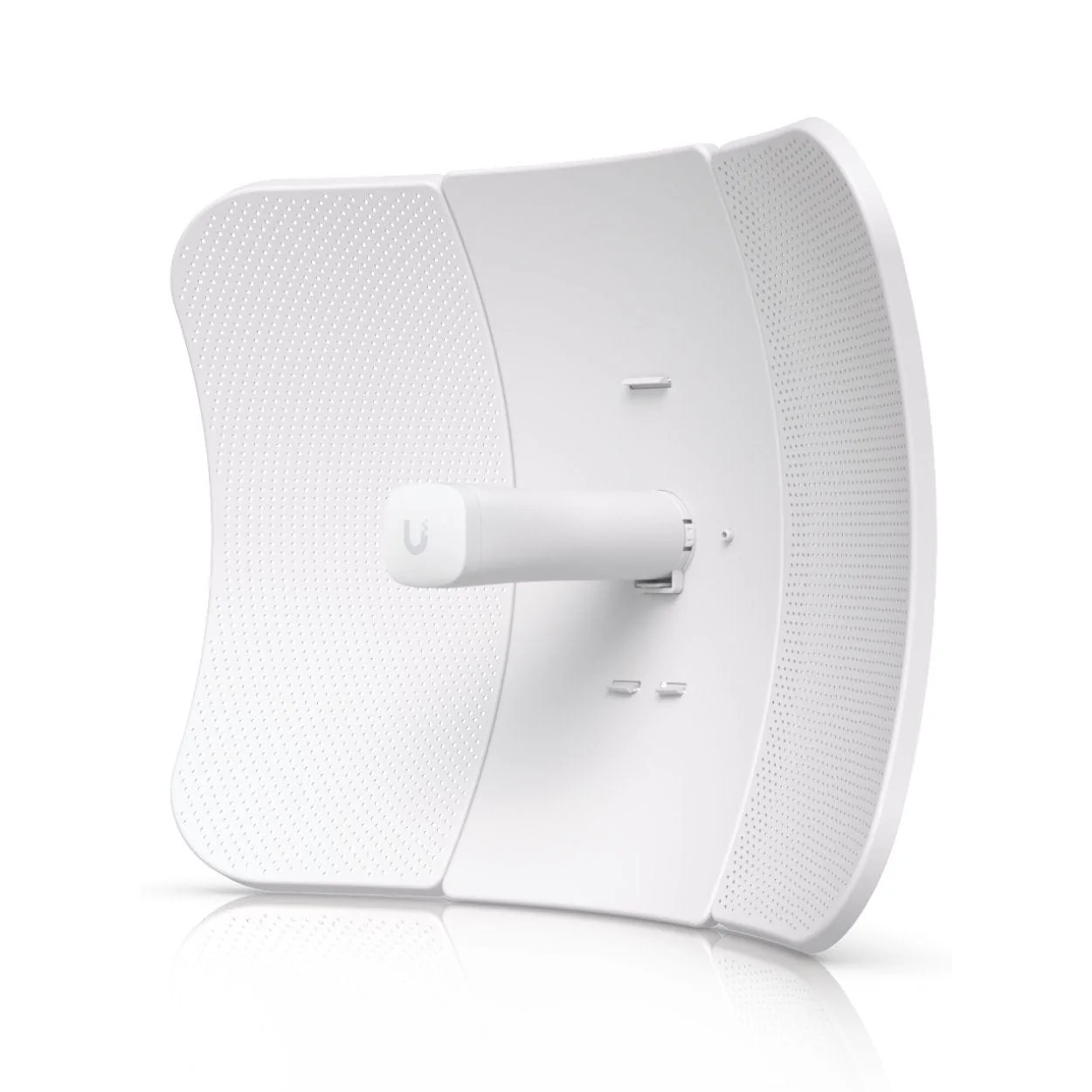

Ubiquiti airMAX LiteBeam 5AC LBE-5AC-LR-5 26dBi Long-Range CPE Station 5-pack

Ubiquiti airMAX LiteBeam 5AC LBE-5AC-LR-5 26dBi Long-Range CPE Station 5-pack

The LiteBeam 5AC Long Range 5-pack is an affordable airMAX AC CPE kit designed for long-distance links. Reach new customers and still maintain your great ROI.

Technical Specification

Product: Ubiquiti airMAX LiteBeam 5AC 26dBi Long-Range CPE Station 5-pack

Networking interface: 1x GbE RJ45 port

Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply: 24V, 0.3A gigabit PoE adapter (Included)

Supported voltage range: 20-27V DC

Max. power consumption: 7W

Gain: 26 dBi

LEDs: Power, Ethernet

ESD/EMP protection: Air/contact ± 24kV

Channel sizes

• PtP mode: 10/20/30/40/50/60/80 MHz
• PtMP mode: 10/20/30/40 MHz

Enclosure material: Aluminum, plastic

Mounting: Pole mount (Kit included)

Wind loading: 550 N at 200 km/h (123.6 lbf at 125 mph)

Wind survivability: 200 km/h (125 mph)

Weight per Station

• Without mount: 1.4 kg (3 lb)
• With mount: 1.7 kg (3.8 lb)
