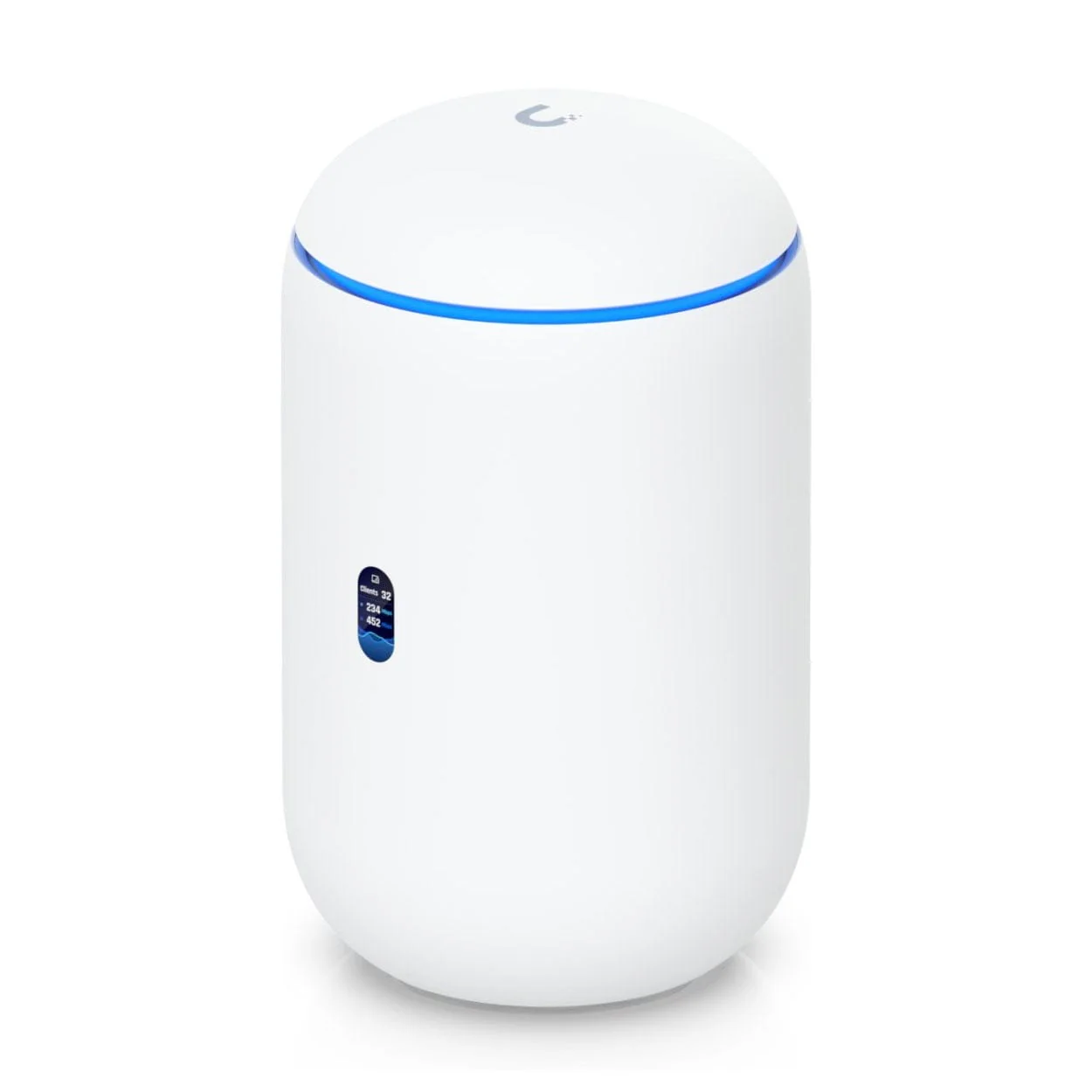

Ubiquiti Dream Router 7 Tri-Band Cloud Gateway with 1x SFP+ and 1x 2.5GbE WAN ports

Ubiquiti Dream Router 7 Tri-Band Cloud Gateway with 1x SFP+ and 1x 2.5GbE WAN ports

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.

Technical Specification

Managed UniFi Devices: 30+

Managed Cameras

• (5) HD
• (2) 2K
• (1) 4K

Simultaneous Users Connected: 300+

Default WAN Ports

• (1) 10G SFP+
• (1) 2.5 GbE RJ45

LAN Ports

• (3) 2.5 GbE RJ45 including
• (1) PoE

IDS/IPS Throughput: 2.3 Gbps

Form Factor: Compact desktop

Coverage Area: 160 m²

WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

• 6 GHz: 5.7 Gbps
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps

MIMO

• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain

• 6 GHz: 6 dBi
• 5 GHz: 7 dBi
• 2.4 GHz: 5 dBi

Max. TX Power

• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm

NVR Storage: Pre-installed 64GB microSD for NVR

Expansion Slot: MicroSD Card

PoE Budget: 15.4W

Max. PoE Wattage per Port by PSE: 15.4W

Voltage Range PoE Mode: 44 - 57V

Max. Power Consumption: 26W (Excluding PoE output)

Power Method: Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply: AC/DC, Internal, 50W

Supported Voltage Range: 100 - 240V AC

Processor: Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory: 3 GB

Enclosure Material: Polycarbonate

LCM Display: 0.96" status display

Management: Ethernet ; Bluetooth

ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
