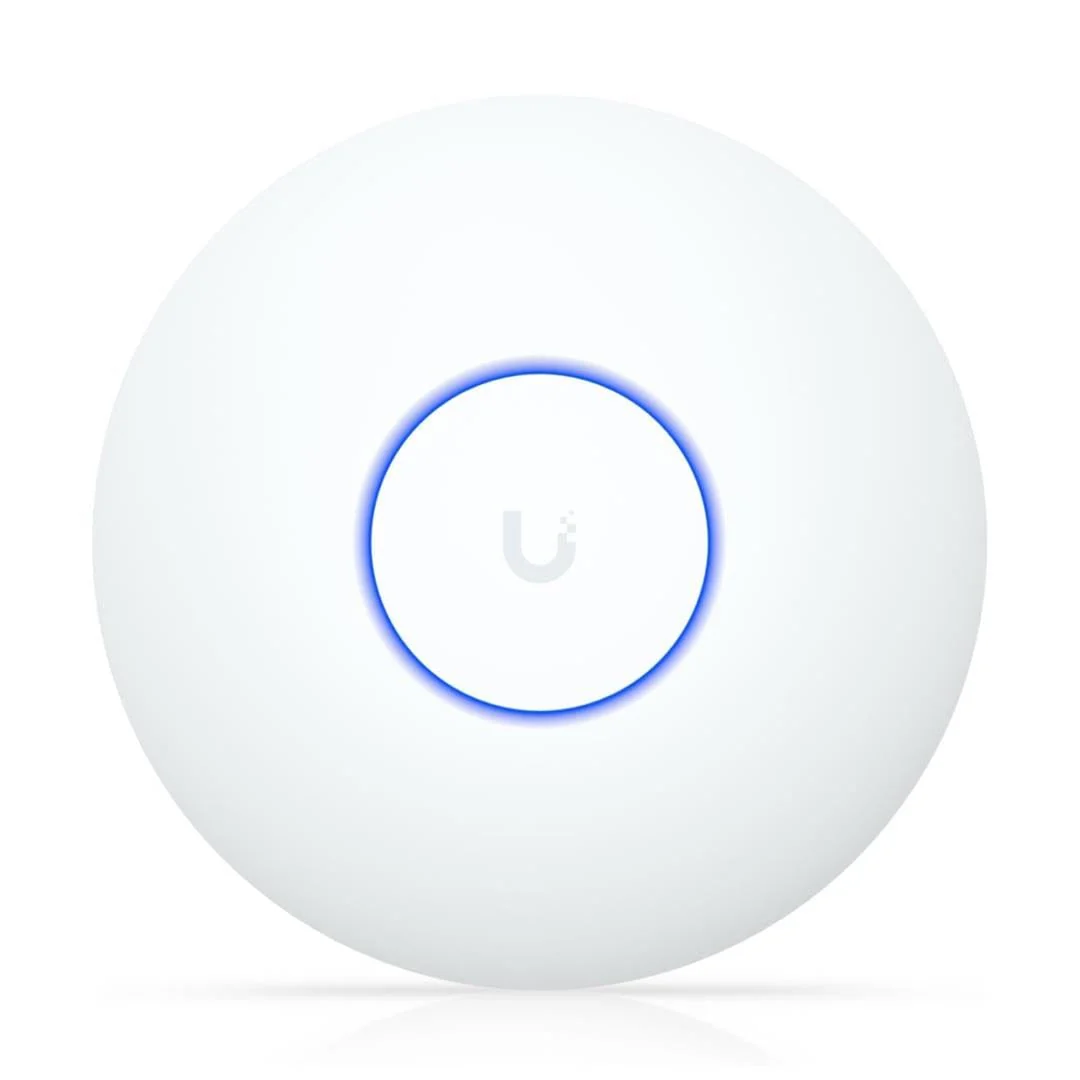

Ubiquiti U7 Lite Dual-band Wi-Fi 7 Ceiling-mounted Access Point
Features
- Wireless Meshing
- Band Steering
- 802.11v BSS Transition Management
- 802.11r Fast Roaming
- 802.11k Radio Resource Management (RRM)
- Advanced Radio Management
- Passpoint (Hotspot 2.0)
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Technical Specification
WiFi Standard:Â Wi-Fi 7
Spatial Streams:Â 4
Coverage Area: 115 m² (1,250 ft²)
Max. Client Count:Â 200+
Networking Interface: 1x 2.5 GbE RJ45 port
MIMO
- 5 GHz:Â 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz:Â 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
- 5 GHz:Â 4.3 Gbps (BW240)
- 2.4 GHz:Â 688 Mbps (BW40)
Enclosure Material:Â UV-stabilized polycarbonate
Mounting:Â Ceiling, Wall (Lite Mount Included)
Power Method:Â PoE (Power supply not included)
Supported Voltage Range: 42.5 — 57V DC
Max. Power Consumption:Â 13W
Weight:Â 313 g
