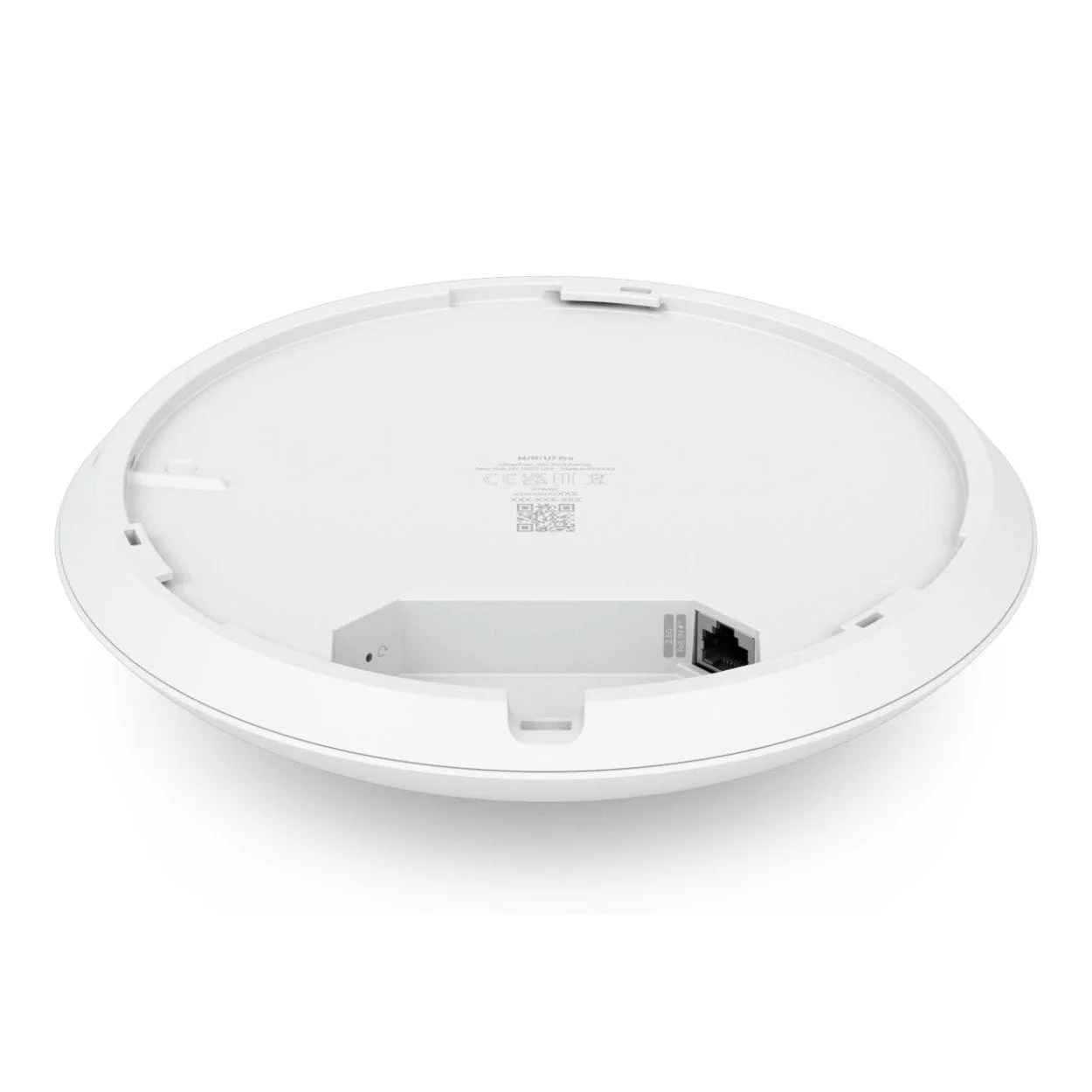

Ubiquiti U7-Pro Wi-Fi 7 Ceiling-Mounted Access Point 5-pack

Ubiquiti U7-Pro Wi-Fi 7 Ceiling-Mounted Access Point 5-pack

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features

• WiFi 7 with 6 GHz support
• 6 spatial streams
• 140m² coverage
• 300+ connected devices
• Powered using PoE+
• 2.5 GbE uplink
• Pack of 5 Access Points

Technical Specification

Networking interface: 1x 1/2.5 GbE RJ45 port
Management interface: Ethernet
Power method: PoE+
Power supply: UniFi PoE switch
Supported voltage range: 44 - 57V DC
Max. power consumption: 21W
Max. TX power

• 2.4 GHz: 22 dBm
• 5 GHz: 26 dBm
• 6 GHz: 23 dBm

MIMO

• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 6 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. data rate

• 2.4 GHz: 688 Mbps (BW40)
• 5 GHz: 4.3 Gbps (BW240)
• 6 GHz: 5.7 Gbps (BW320)

Antenna gain

• 2.4 GHz: 4 dBi
• 5 GHz: 6 dBi
• 6 GHz: 5.8 dBi

WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Concurrent clients: 300+

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Enclosure material: Polycarbonate, metal

Mounting: Wall/ceiling (Included)

Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

Weight: 680 g

• Please note: PoE Power supplies are not included
