Ubiquiti UISP WaveFiber ONU SC/APC 2.5Gbps Ethernet GPON Optical Network Media Converter Wave-Fiber-ONU

Ubiquiti UISP WaveFiber ONU SC/APC 2.5Gbps Ethernet GPON Optical Network Media Converter Wave-Fiber-ONU

A GPON optical network unit with a 2.5 GbE port that delivers 1.2 Gbps uplink / 2.5 Gbps downlink speeds at distances up to 20 km.

Technical Specifications:

Mechanical
Dimensions: 76.5 × 76.5 × 26.4 mm (3 × 3 × 1")
Weight: 78 g (2.8 oz)
Enclosure Material: Polycarbonate

Hardware

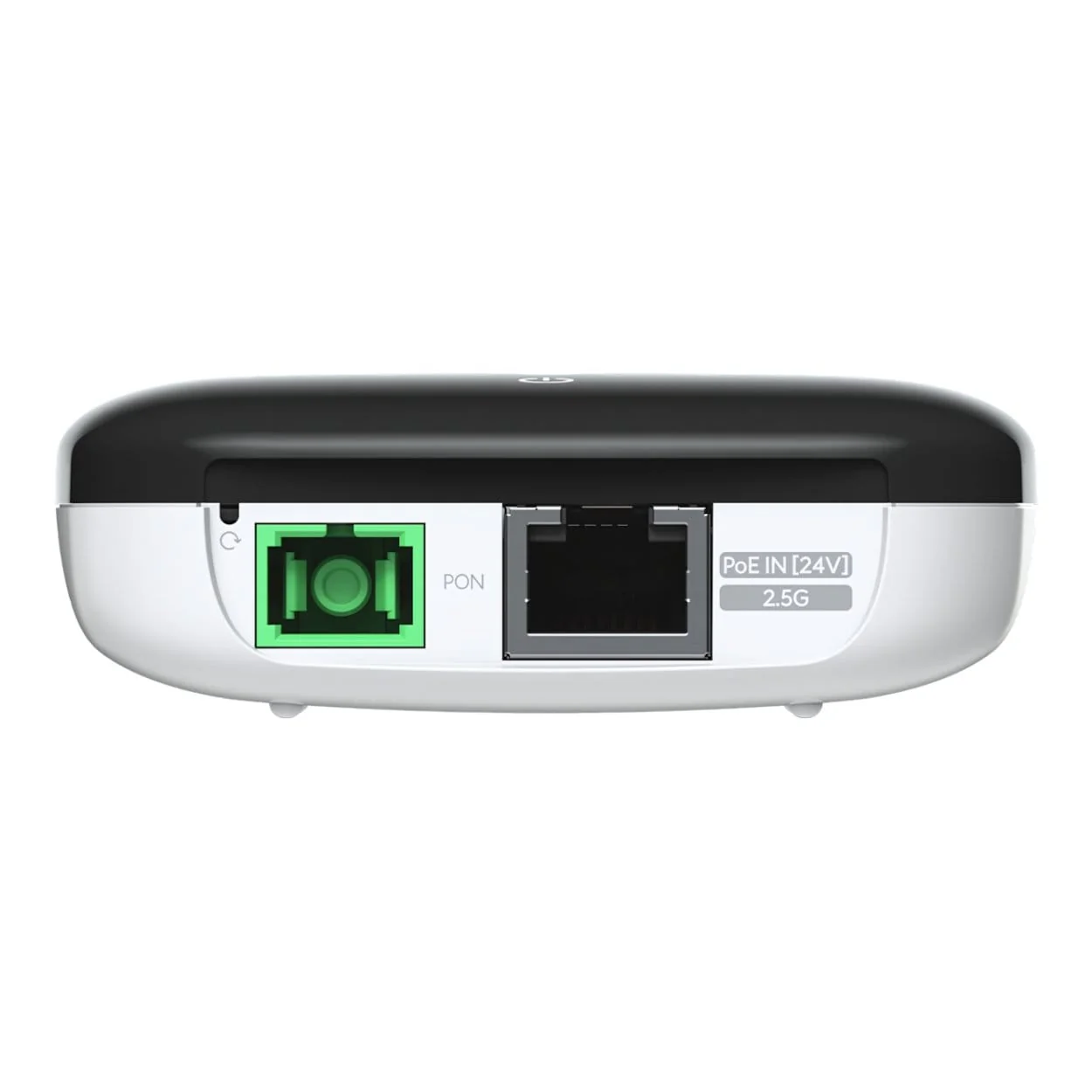

Networking Interface: 1 × SC/APC ITU-G.984 GPON WAN port, 1 × 1/2.5 GbE RJ45 LAN port
Management Interface: Ethernet in-band

PON
Power Method: PoE, 0.3A

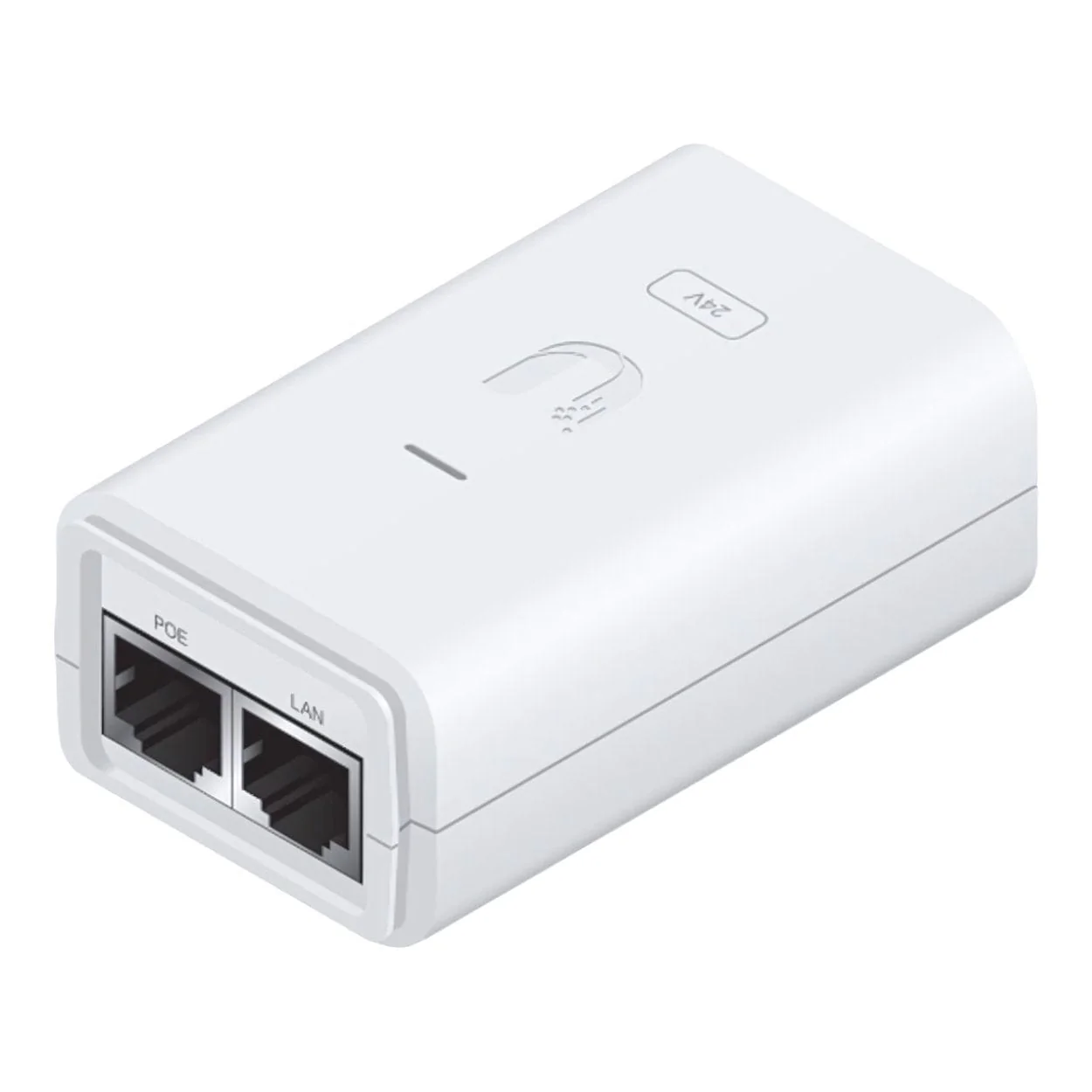

Power Supply: 24V passive PoE 2-pair (4,5+; 7,8-)
Supported Voltage Range: 20–28V DC
Max Power Consumption: 5W
Total Non-Blocking Line Rate: Downstream 2.488 Gbps, Upstream 1.244 Gbps
Normal Range of Optical Module: TX 1.5 to 5 dBm, RX -8 to -28 dBm
Mounting: Desktop, wall
Button: 1 × Factory Reset
Ambient Operating Temperature: -15 to 45°C (5 to 113°F)
Ambient Operating Humidity: 10 to 90% non-condensing
Certifications: FCC, IC, CE

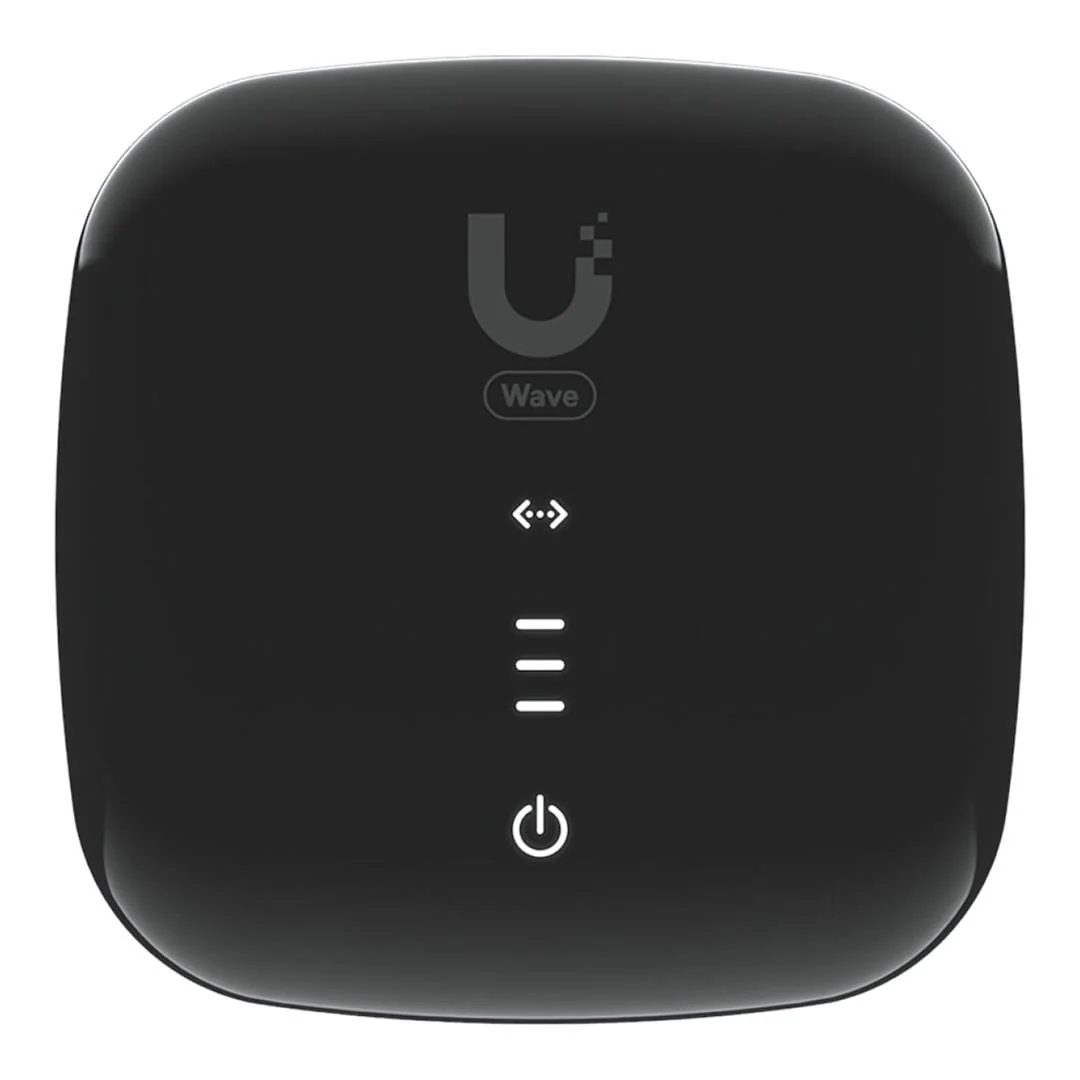

LEDs
PON Status: 3 signal LEDs; All-OFF: bootup, 1× red: signal too low (< -28 dB), 1× white: signal low (≥ -28 dB), 2× white: signal good (≥ -25 dB), 3× white: signal strong (≥ -11 dB), 1× red + 2× white: signal too strong (≥ -8 dB), 3× red: no signal, LEDs alternate red + signal strength: no authority
Ethernet: Steady white: link up, Blinking white: activity, OFF: link down
Power: White: ON

Software
Mode: ONU/ONT layer 2/3 Ethernet switch
Services: Web server, telnet, NAT, bridging and routing, firewall, application passthrough
Utilities: Dashboard, monitoring, alarms, logs
Security: GEM Port Encryption
Other: Remote reset, remote reboot, remote firmware upgrade, VLAN support

Fiber
Operating Wavelength: TX 1310 nm, RX 1490 nm
Line Code: Scrambled NRZ
Optical Interface Nominal Bit Rate: Downstream 2488.32 Mbit/s, Upstream 1244.16 Mbit/s
Physical Reach: 20 km
