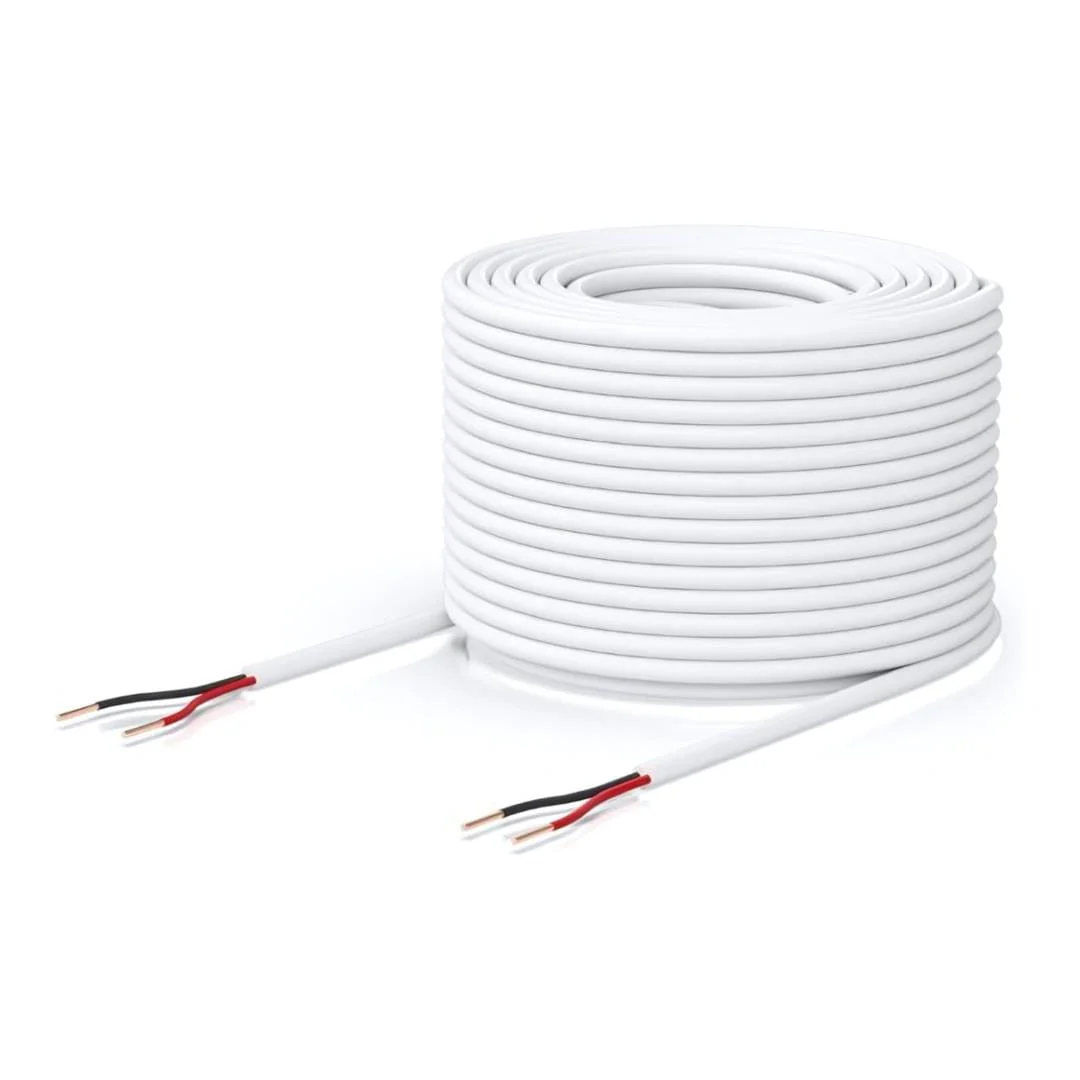

Ubiquiti UniFi 152.4m Door Lock Relay Cable UACC-CABLE-DOORLOCKRELAY-1P

Ubiquiti UniFi 152.4m Door Lock Relay Cable UACC-CABLE-DOORLOCKRELAY-1P

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

Features:

1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub

2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

1-Pair Relay Cable:

• (2) 18 AWG conductors for an electric/magnetic lock

2-Pair Relay Cable:

• (2) 18 AWG conductors for an electric/magnetic lock
• (2) 22 AWG conductors for a door position sensor

Plenum-rated

Technical Specifications:

Length
152.4 m (500 ft)

Material
Conductor: Solid bare copper
Jacket: Thermoplastic elastomer (TPE)
Insulation: Semi-rigid polyvinyl chloride (SR-PVC)

Insulation Colors
UACC-Cable-DoorLockRelay-2P: Black/Red (18 AWG), Amber/White (22 AWG)
UACC-Cable-DoorLockRelay-1P: Black/Red (18 AWG)

Current Rating
18 AWG: 2A (500 ft length)
22 AWG: 1A (500 ft length)

Flame Rating
VW-1

Conductor Wire Gauge
UACC-Cable-DoorLockRelay-2P: 18/22 AWG
UACC-Cable-DoorLockRelay-1P: 18 AWG

Weight
UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb)
UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)

Cable Dimensions
Jacket Outer Diameter:
– UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18")
– UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
Jacket Color: White
Bend Radius:
– UACC-Cable-DoorLockRelay-2P: 56 mm (2.2")
– UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")

Pulling Tension
UACC-Cable-DoorLockRelay-2P: 24.2 kgf
UACC-Cable-DoorLockRelay-1P: 16.4 kgf

Conductor DCR
UACC-Cable-DoorLockRelay-2P: 23.2 Ω/km (18 AWG), 59.4 Ω/km (22 AWG)
UACC-Cable-DoorLockRelay-1P: 23.2 Ω/km (18 AWG)

Supported Voltage Range
36V DC

Number of Conductors
UACC-Cable-DoorLockRelay-2P: 4
UACC-Cable-DoorLockRelay-1P: 2

Environmental Specifications
Ambient Storage Temperature: -45°C to 65°C (-40°F to 149°F)
Ambient Operating Temperature: -45°C to 65°C (-40°F to 149°F)
